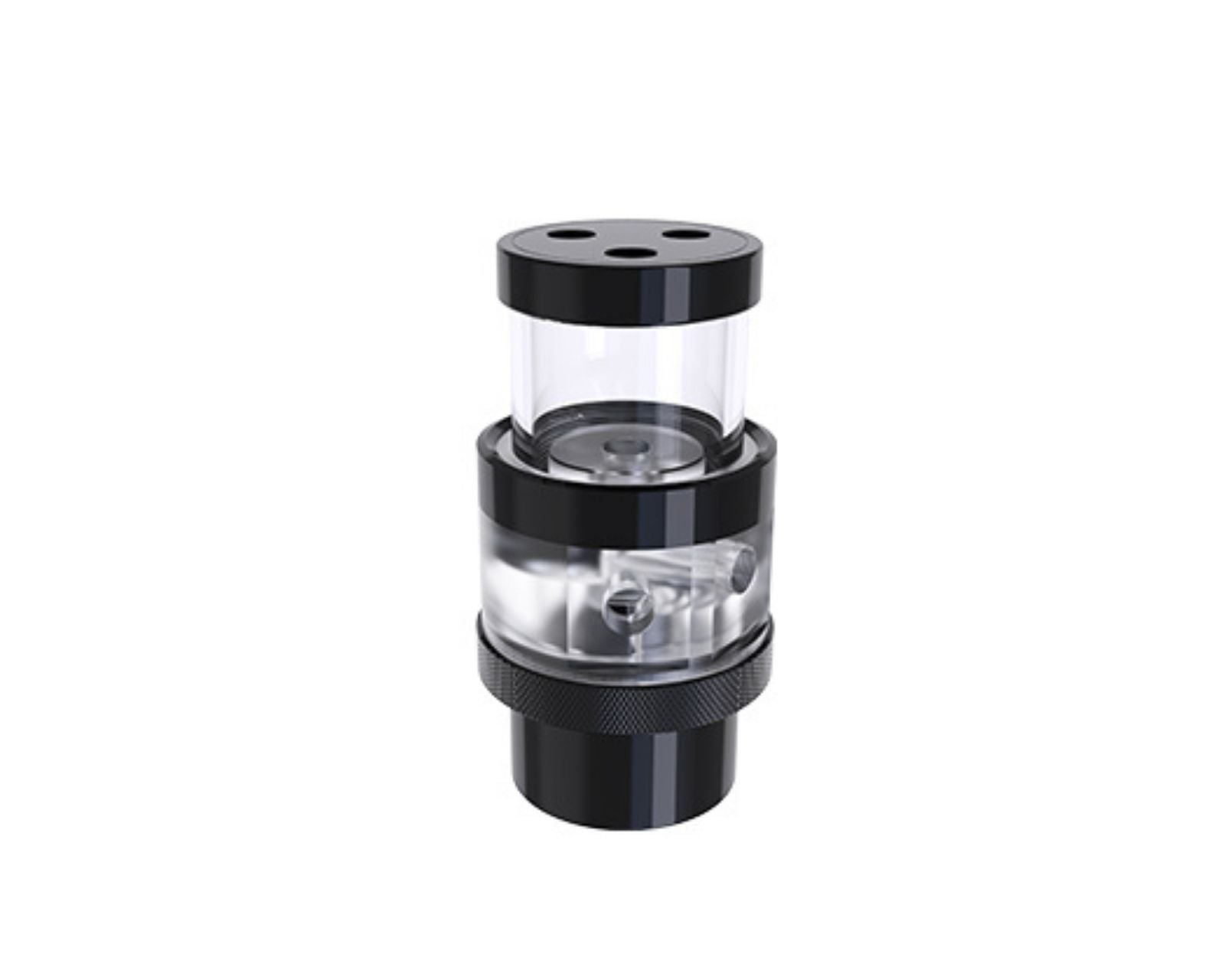

The Bykski D5 Style Pump / 60mm PMMA Reservoir Combo is based on a PMS5 pump with an integrated PMMA reservoir. The all in one reservoir and pump is extremely clean looking. Along with gorgeous looks this pump station has the power to run any sized loop. A monster 1100L/H flow rate keeps your coolant flowing without issue. Integrated 5v Addressable RGB (RBW) gives your system some unique lighting options. Must connect to a compatible controller (B-RBW-C8 series) or compatible motherboard header to use this lighting feature.
- Aluminum Alloy Armor Construction (Not in Contact with Coolant)
- Industry Standard G 1/4in. Thread
- High Quality Acrylic
- Model: CP-NWD5-X-CT60-V3
- Material: Engineered Plastic + PMMA + Aluminum alloy (not in contact with coolant)
- Power: DC12v, TDP18W
- Flow Rate: 1100L/h
- Temperature: 38°C below 4800RPM

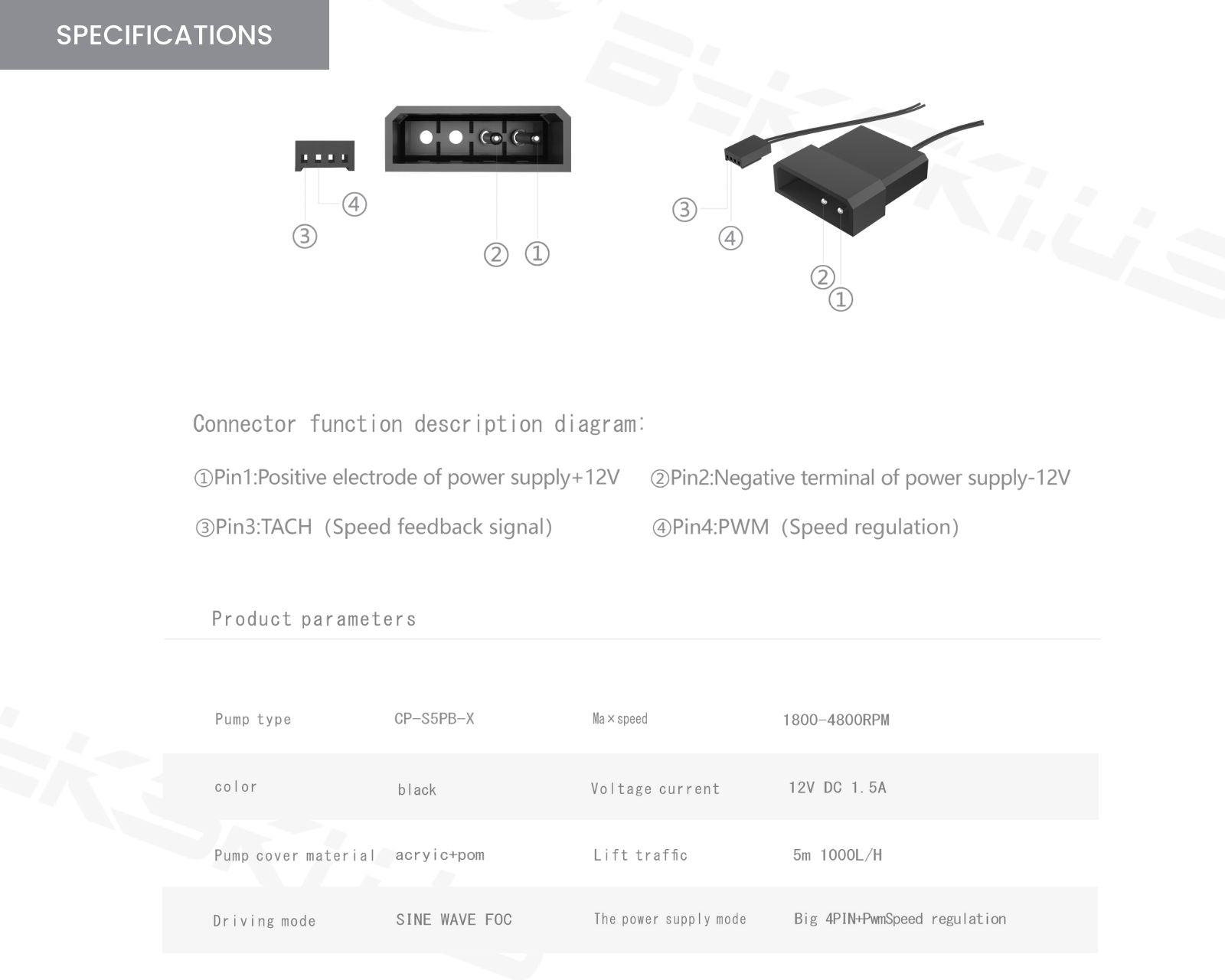

- Connector: 4-Pin Molex and PWM+ data feedback
- Drive Technology: Ultra Durable PCB + Solid Capacitor + SMD Sensor
- Height: 151mm (total) | 60mm (reservoir only)
- Width: 81mm
- Thread: G 1/4in.
- Loop: Aluminum or Non-Aluminum
- Fitting: G 1/4in. Thread
- 1x PMS5 Pump (installed)
- 1x Reservoir + Top
- 1x Pump Armor (installed)
- 2x Mount Brackets + Screws
- 1x 5v Addressable RGB (RBW)
- (Warning: Addressable RGB (RBW) is 5V and is ONLY compatible with A-RGB (RBW) components. RGB is 12V and is ONLY compatible with RGB components. Mix and match will NOT work and will cause damage.

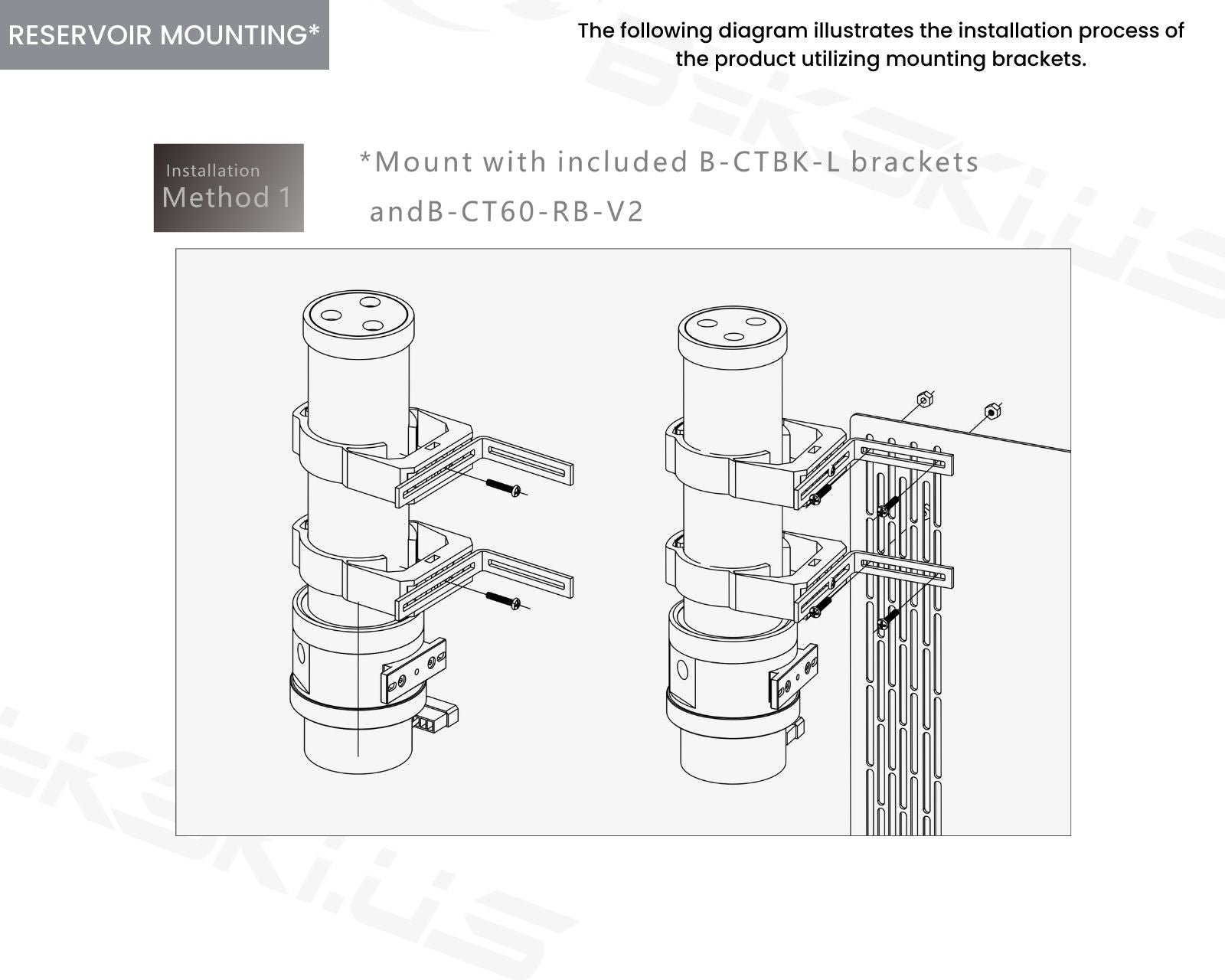

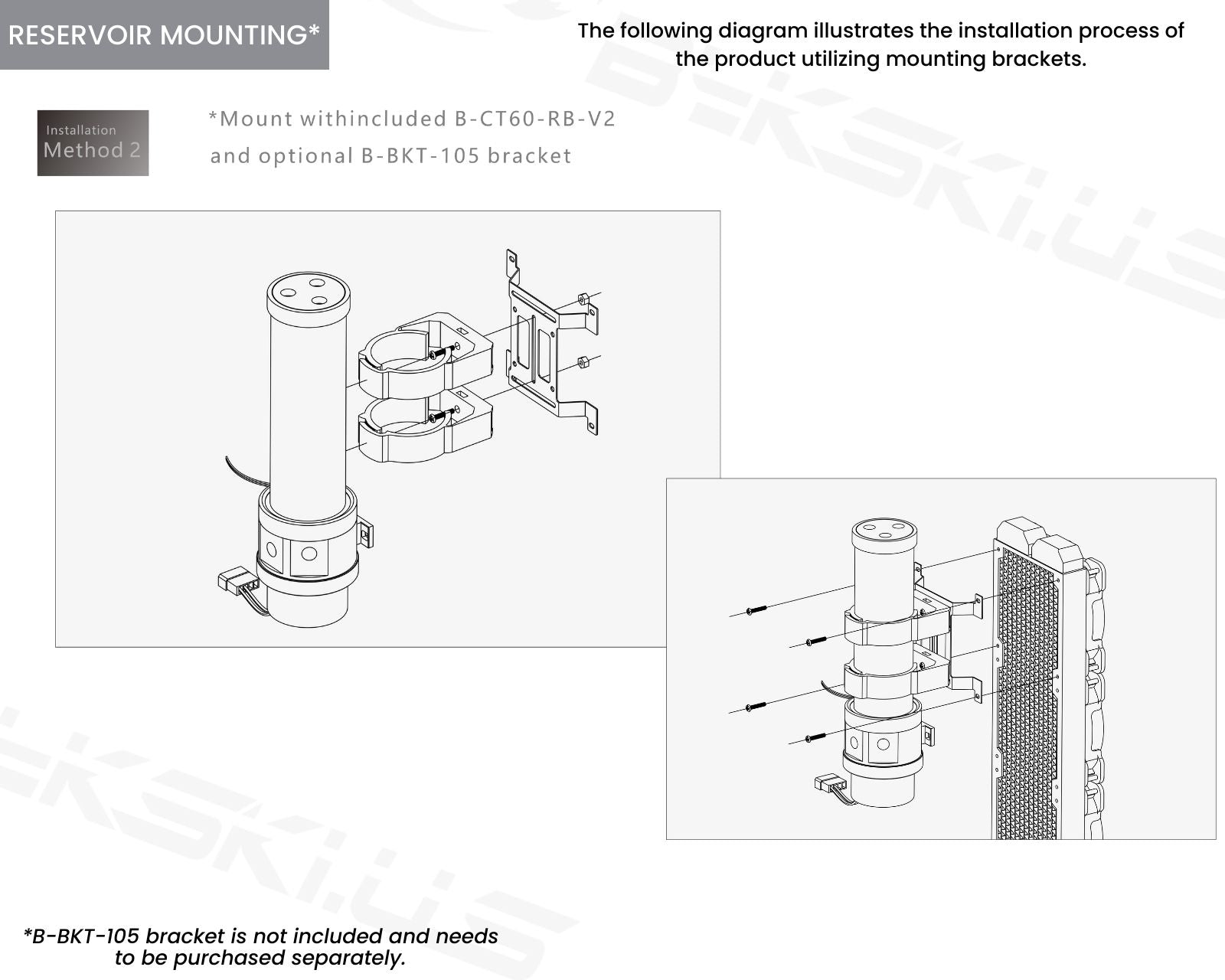

Secondary mounting picture shows alternate mounting options using the Bykski 120mm Raised Multi Function Water Cooling Bracket - Black (B-BKT-105)
Not responsible for any hardware damage. Use at your own risk.
