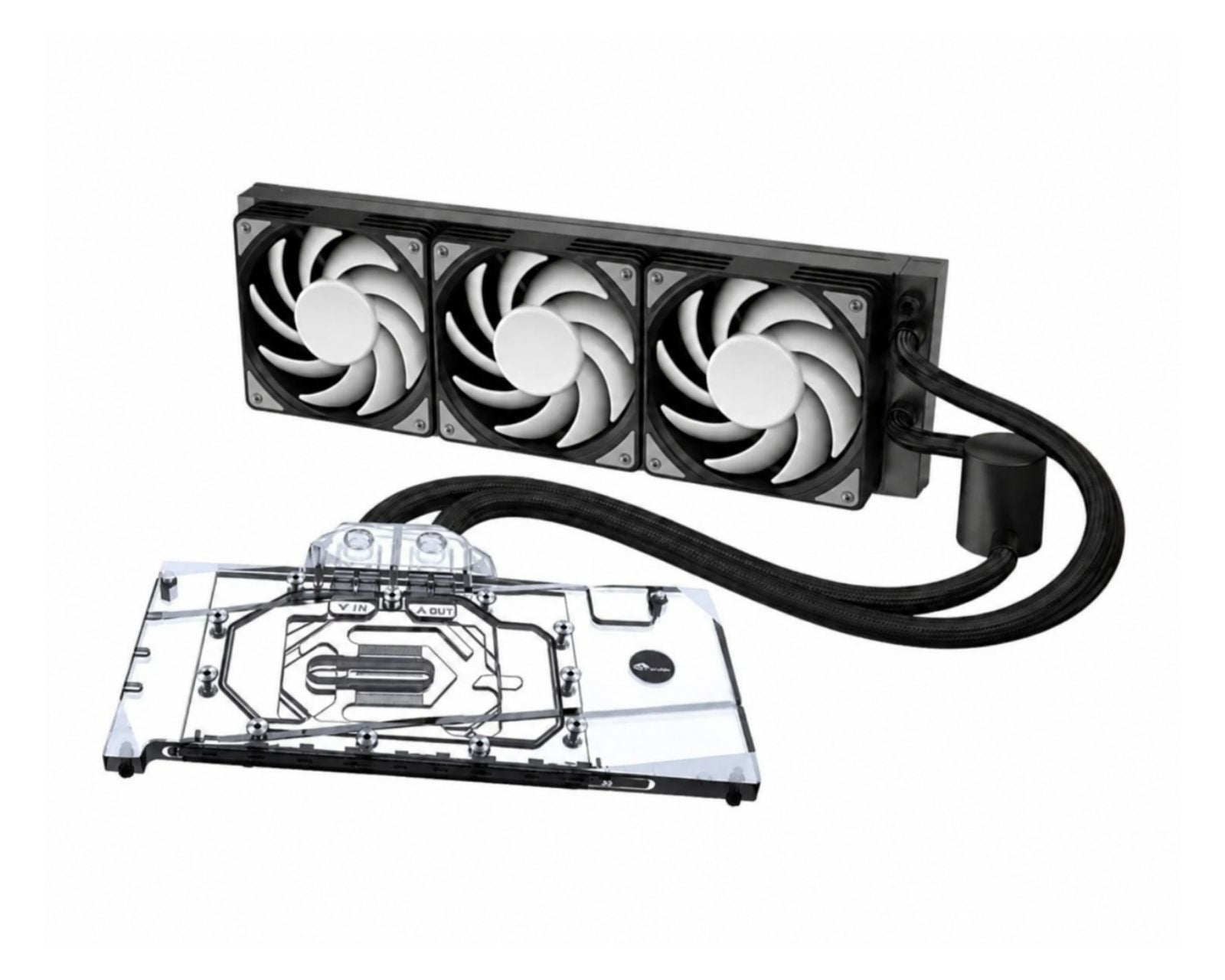

Built for the ASRock AMD Radeon RX 7900 XTX Phantom Gaming 24GB OC and Taichi 24GB OC, this 360mm AIO cooler takes the loop-building out of your GPU upgrade. The block, pump, tubing and radiator arrive as one sealed loop, pre-filled and pre-bled, so there is nothing to fill or bleed.

The nickel-plated T2 copper cold plate sits under a clear acrylic top, so you can see the coolant channels running over the GPU chip. The radiator and three 120 mm fans carry that heat out of the case, and the pump sits inline in the tubing with nothing mounted to the card.

Specifications

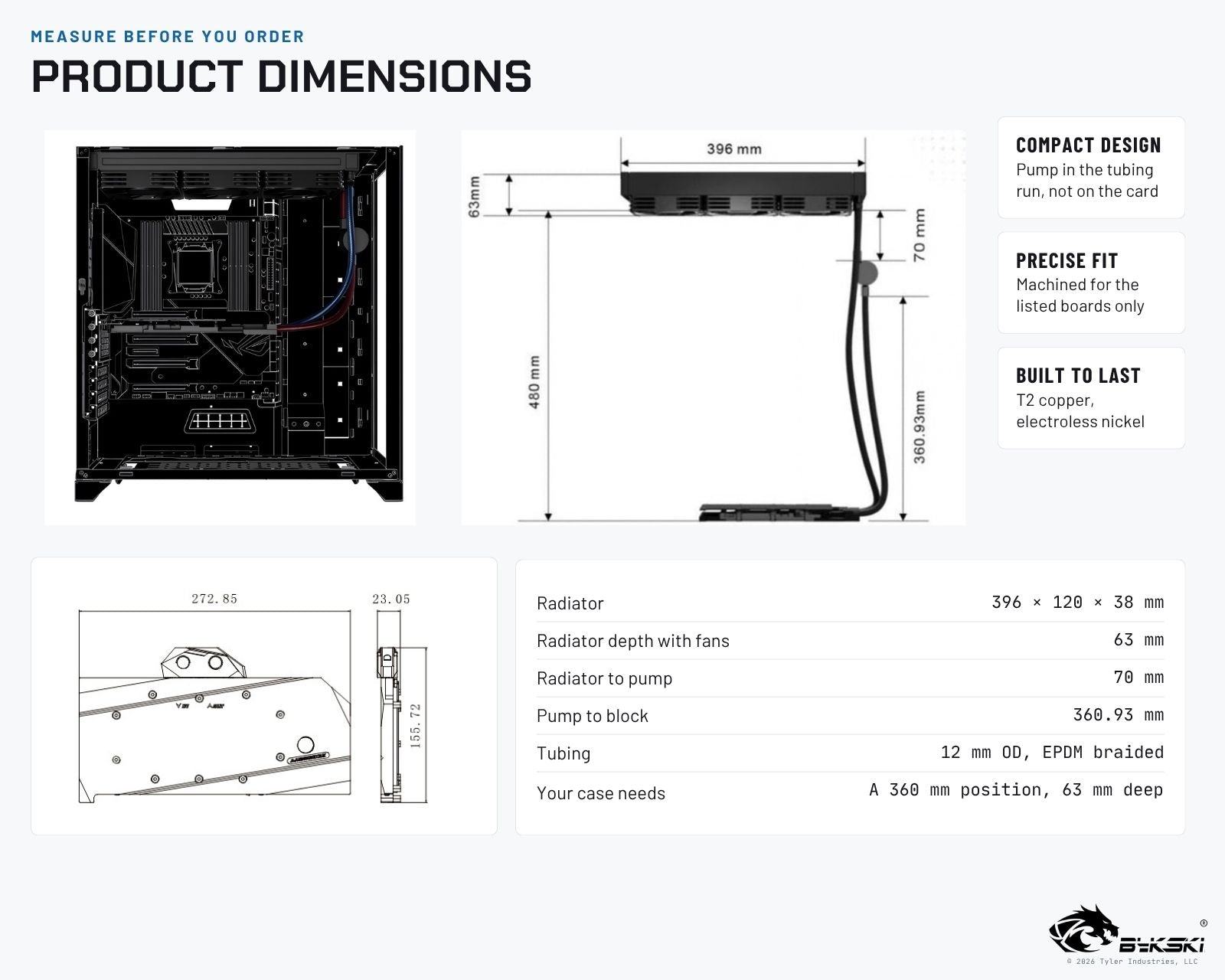

• Water Block: T2 copper, electroless nickel, acrylic top, 272.85 x 155.72 x 23.05 mm

• Radiator: 396 x 120 x 38 mm, 63 mm with fans

• Fans: 3 x 120 mm PWM

• Pump: Inline, 7000 RPM

• Fits: a 360 mm radiator position with 63 mm of depth, plus the card with the block on it

Compatibility

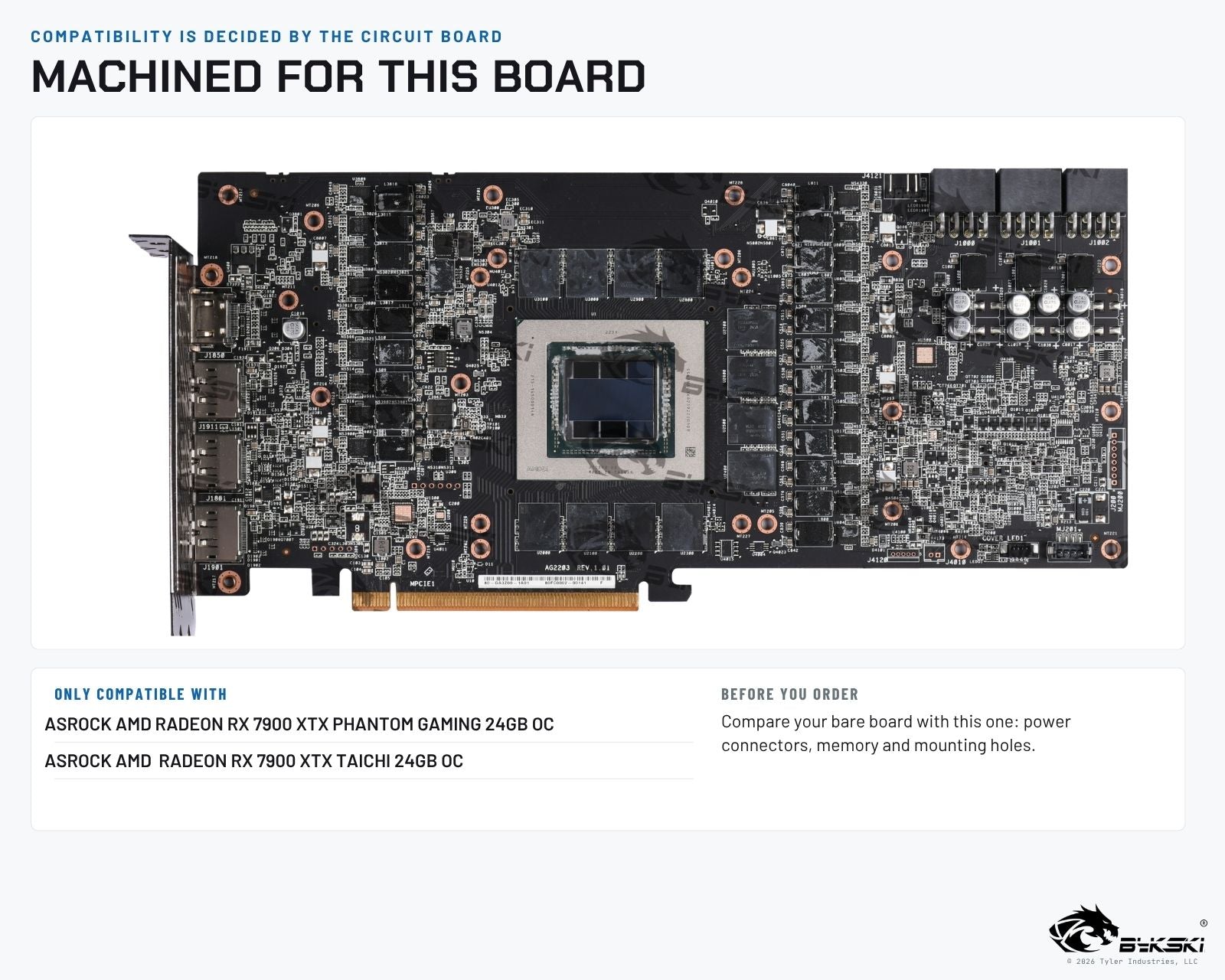

ONLY Compatible with:

• ASROCK AMD 7900 - RADEON RX 7900 XTX PHANTOM GAMING 24GB OC

• ASROCK AMD 7900 - RADEON RX 7900 XTX TAICHI 24GB OC

Parts Included

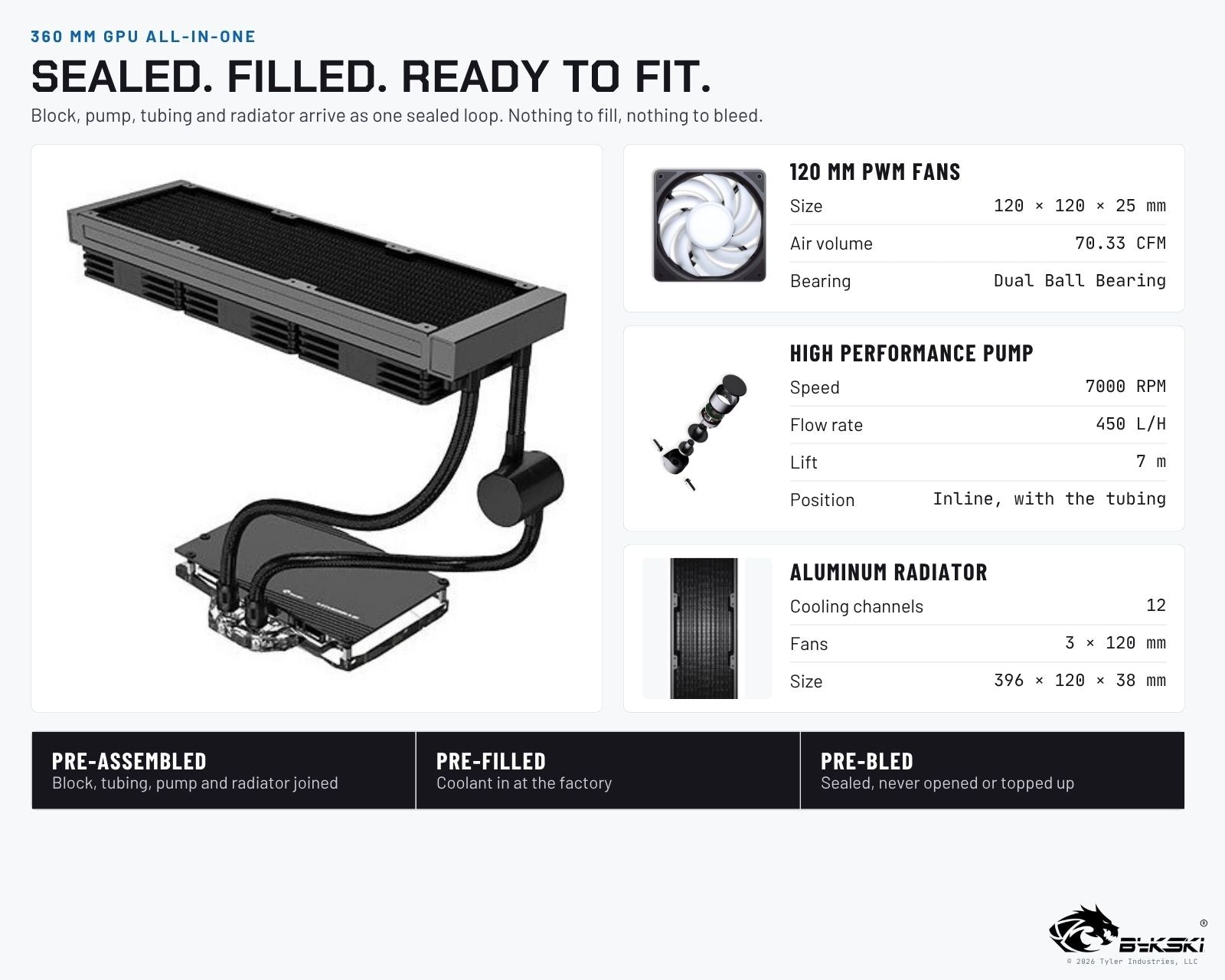

• Radiator, pump, tubing and block, pre-assembled, pre-filled and pre-bled as one sealed loop

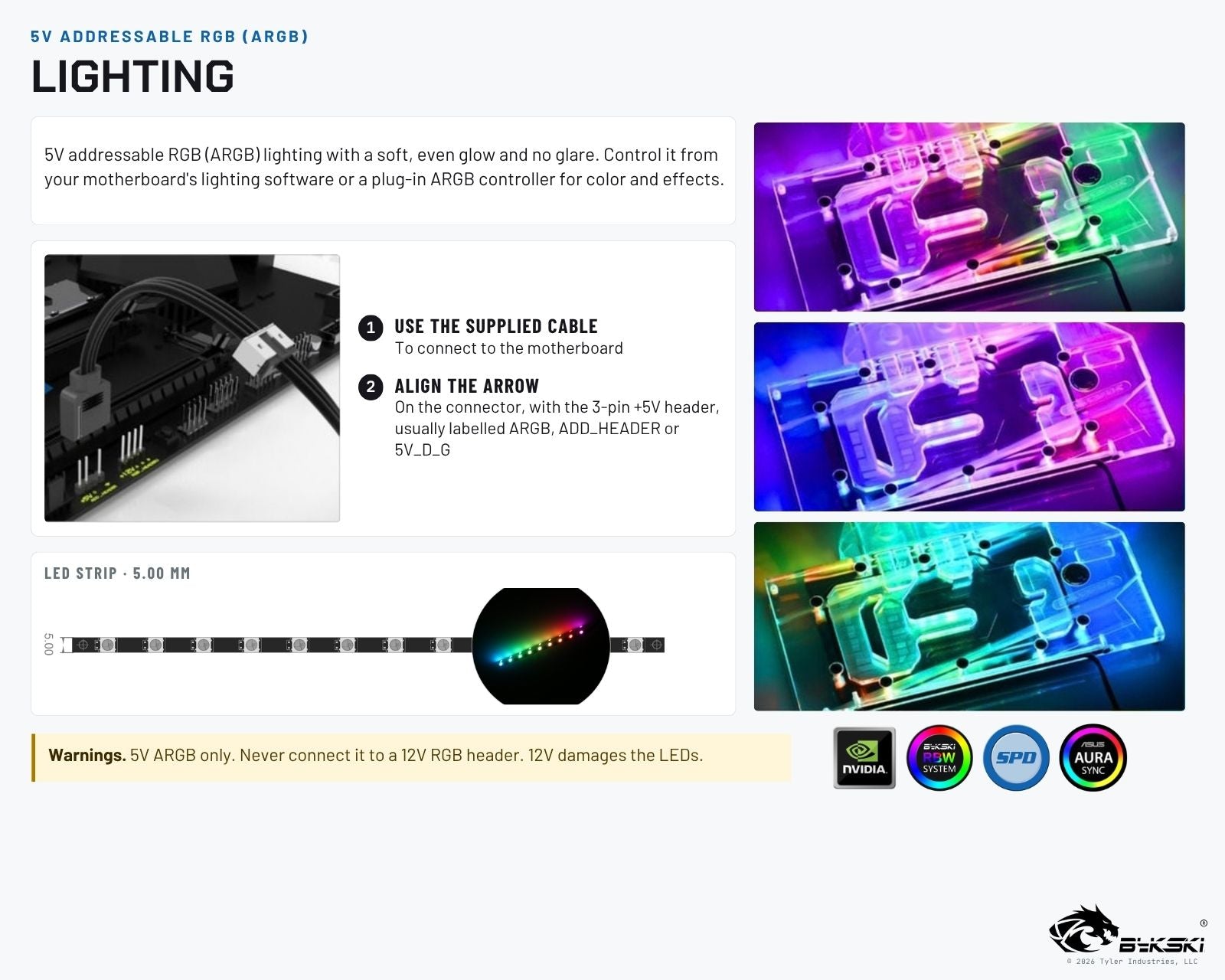

• Three 120 mm PWM fans with 5V ARGB lighting

• GPU water block with backplate: T2 copper cold plate, acrylic top, aluminum backplate

• Thermal paste for the GPU chip and 1.5 mm thermal pads for the memory and power stages

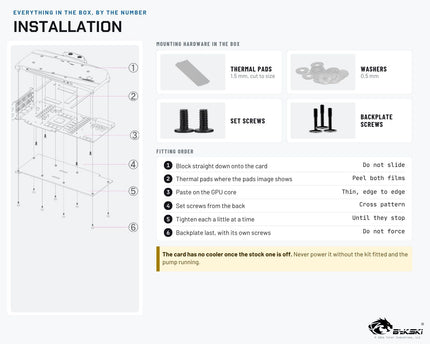

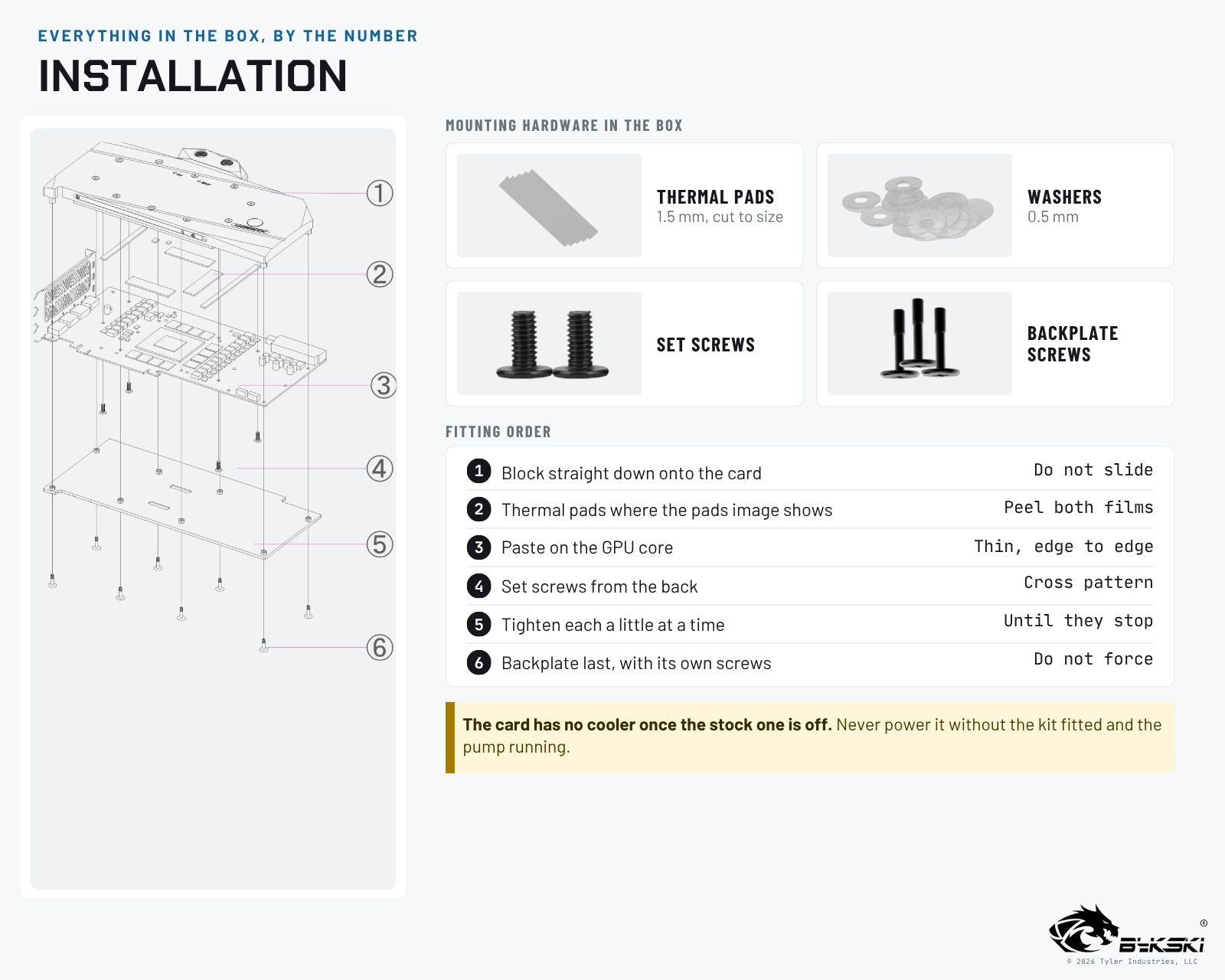

• Mounting hardware: set screws, backplate screws and 0.5 mm washers

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

The loop is sealed, pre-filled and pre-bled. Do not open it, do not modify the tubing and do not attempt to top it up. Doing so can cause a leak or a pump failure.

The top of the block is acrylic. Tighten the mounting screws evenly and finger tight - over-tightening cracks acrylic, and a cracked top is not covered by the warranty.

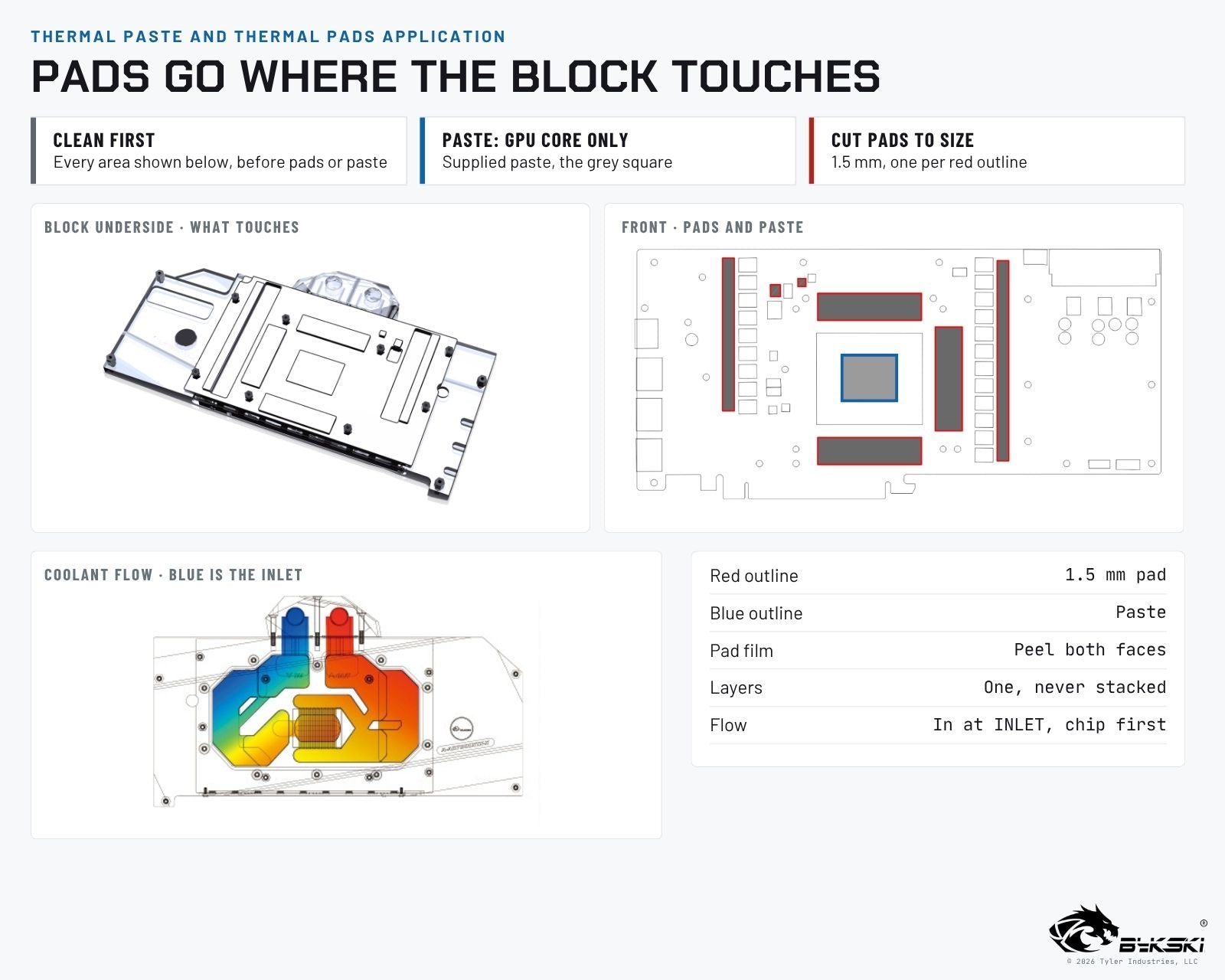

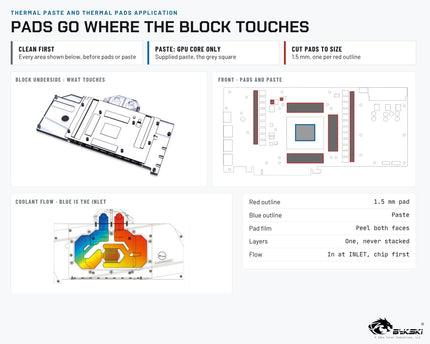

Fitting the kit means removing the stock cooler and exposing the GPU chip. Thermal pads go on the memory and the power stages; thermal paste goes on the GPU chip.

The manufacturer reserves the right to alter the design to expand compatibility, so the delivered item may not match the pictured item exactly.

This product is for self-installation by qualified users. Not responsible for any damage caused by or when using this product. Please use at your own risk.
