Bykski 80mm x 30mm RC Series Radiator, 80mm x 1, Single Fan (CR-RD80RC-TN)

Product form

$44.99

Bykski CR-RD80XRC-TN radiator is designed as a single row of copper channels. The thickness of the radiator is 30mm which allows... Read more

SKU: CR-RD80RC-TN

Out of stock

Ships Today just order in next: May 08, 2024 14:00:00 -0600

No Hassle Returns within 30 days

Pay within 30 days with Klarna or Shop Pay

Order $125.00 or more and enjoy free shipping. This offer is valid for deliveries within the Lower 48 States.

Shop the look

Product title
In stock, In Boise ID USA In stock, In Boise ID USA
This item is in stock and can be shipped out the same day if ordered before 2 pm MST.
$0.00
Product title
In stock, In Boise ID USA In stock, In Boise ID USA
This item is in stock and can be shipped out the same day if ordered before 2 pm MST.
$0.00
Product title
In stock, In Boise ID USA In stock, In Boise ID USA
This item is in stock and can be shipped out the same day if ordered before 2 pm MST.
$0.00
Product title
In stock, In Boise ID USA In stock, In Boise ID USA
This item is in stock and can be shipped out the same day if ordered before 2 pm MST.
$0.00
Product title
In stock, In Boise ID USA In stock, In Boise ID USA
This item is in stock and can be shipped out the same day if ordered before 2 pm MST.
$0.00

Description

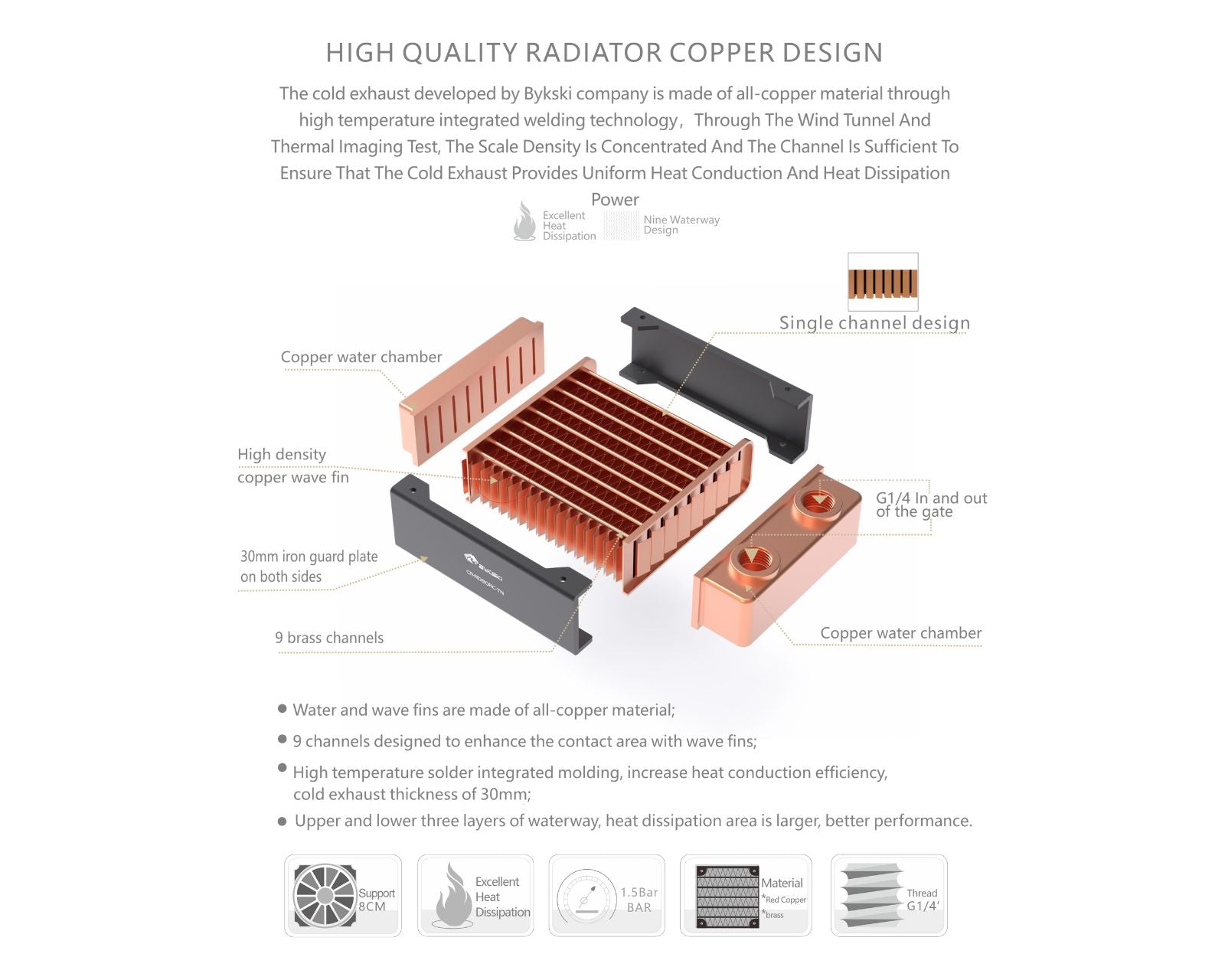

Bykski CR-RD80XRC-TN radiator is designed as a single row of copper channels. The thickness of the radiator is 30mm which allows this radiator to be mounted in smaller profile locations. The water channels and wave fins are made of red copper with a thermal conductivity up to 401 w/(M.K.). There are 9 water channels aligned in a single row.

Features

9 Channel Design
Industry Standard G1/4 Thread
High Quality Copper Design

Specifications

Material: Copper Channels and Fins / Iron side plates (not in contact with coolant)

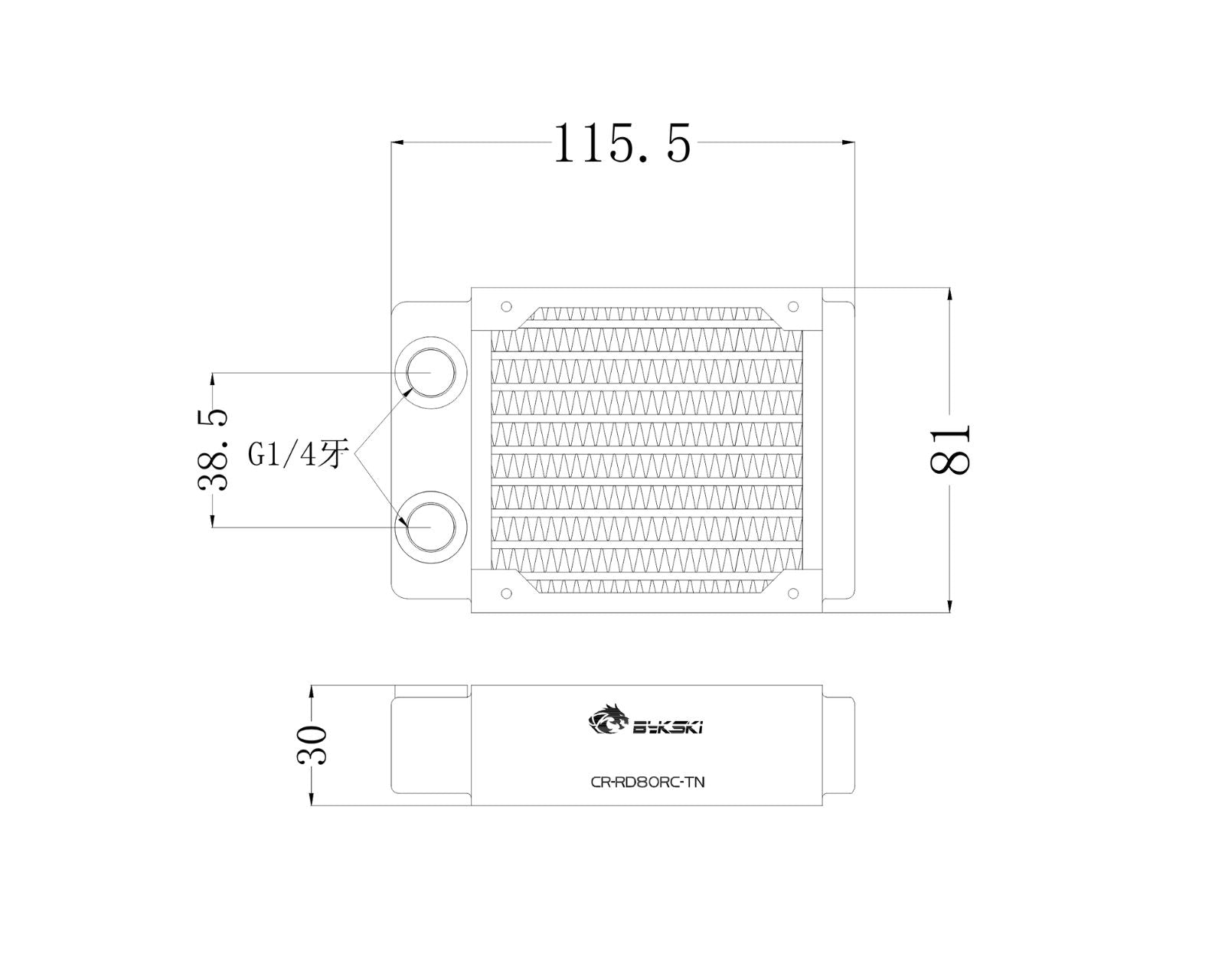

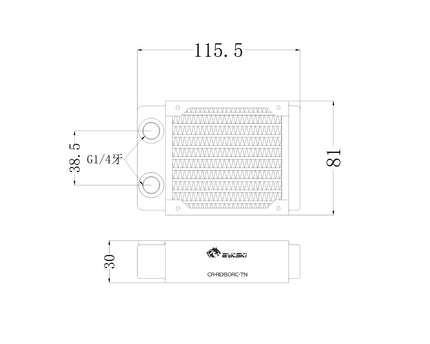

Dimensions: 115.5mm x 81mm x 30mm
Ports: 2
Port Thread: G 1/4
Mount Thread:M3
Channels: 9
Pressure:1.5bar

Compatibility

Fans: 80mm

Included Parts

1x Radiator
4x M3 x 30mm Screws
4x M3 x 5mm Screws

Warnings

Radiator is formed by a high temperature integrated soldering process. Due to this, there will be a slight color change in the copper, this is a result of the process and not rust.

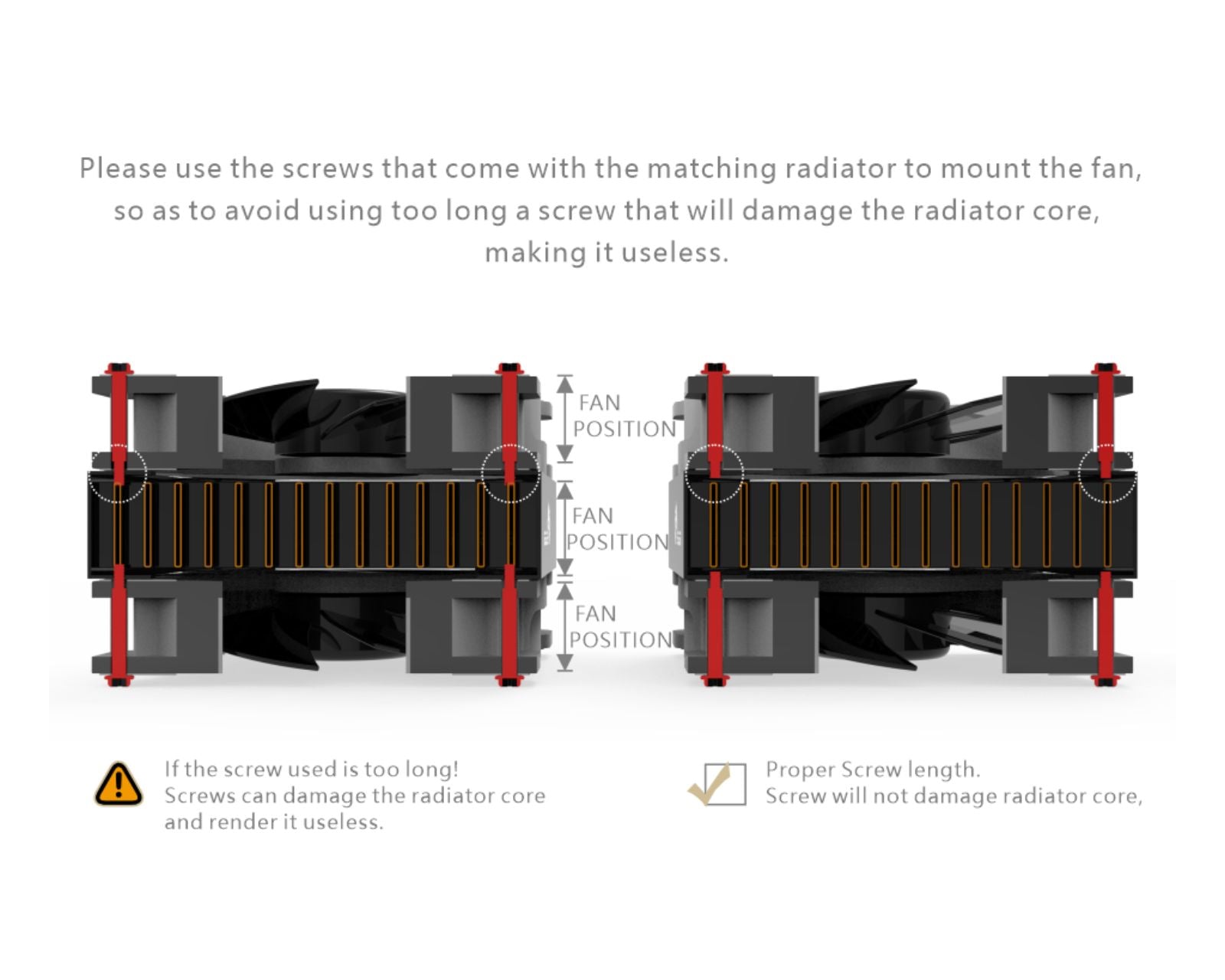

Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding warranty. Radiator comes with M3X30mm screws suitable for fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, not included)

Not responsible for any hardware damage. Use at your own risk."
