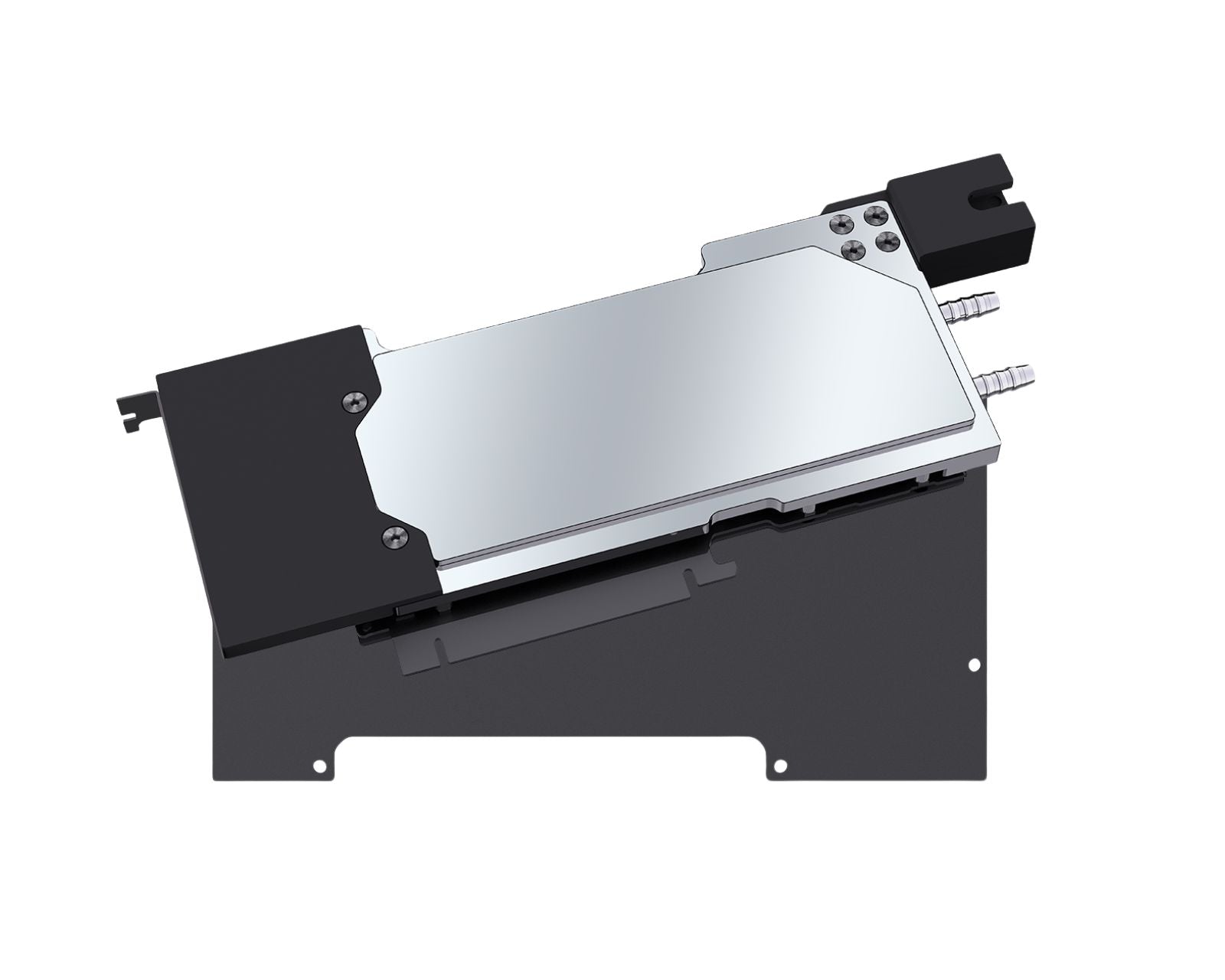

The Bykski N-H200-SR-QH is an all metal Vacuum Brazed GPU water block for the NVIDIA Tesla H200 141GB, cooling the bare die, memory and VRM from one copper plate. Built for cards that run without idle periods.

The cold plate is a single 9.5 mm oxygen-free copper billet joined by vacuum brazing rather than sealed with a gasket, so no O-ring joint sits between the coolant and the card. It carries 48 jet-fed micro-channels at 0.3 mm for 8251.2766 mm² of wetted area, with electroless nickel plating for corrosion resistance.

Specifications

• Base Material: Oxygen-free copper, 401 W/m-K
• Base Plate Thickness: 9.5 mm
• Construction: Vacuum brazed
• Surface Treatment: Electroless nickel, 0.001 to 0.002 mm
• Micro-channels: 48 at 0.3 mm, 8251.2766 mm²
• Heat Transfer: Jet impingement
• Port Thread: G1/4 female
• Working Pressure: Max 10 bar
• Working Temperature: -20 to 60 deg C
• Flow Resistance: 7500 Pa at 2.5 L/min, 29500 Pa at 6 L/min
• Net Weight: 1.2 kg
• Warranty: 3 years

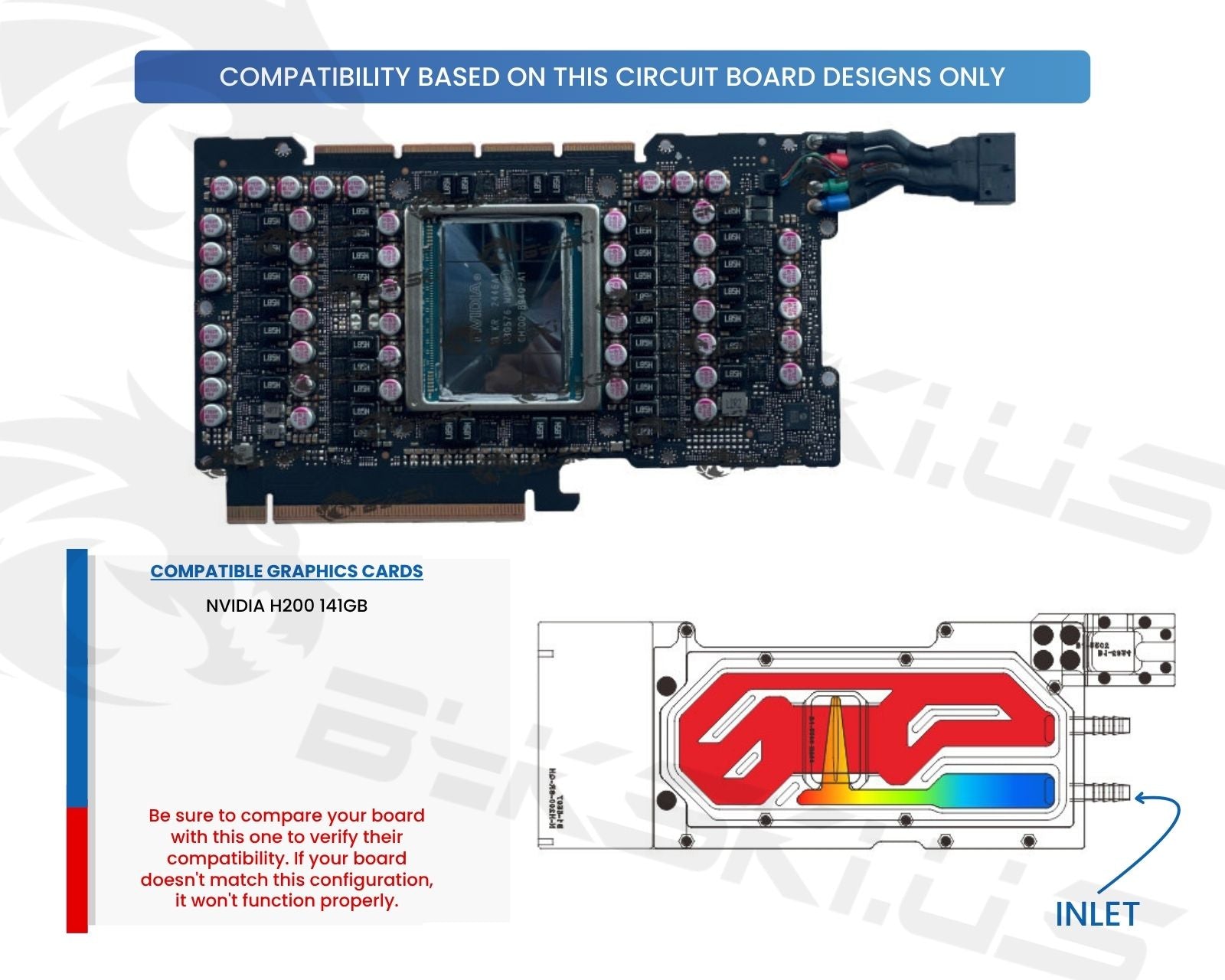

Compatibility

ONLY Compatible with:

• NVIDIA Tesla H200 141GB

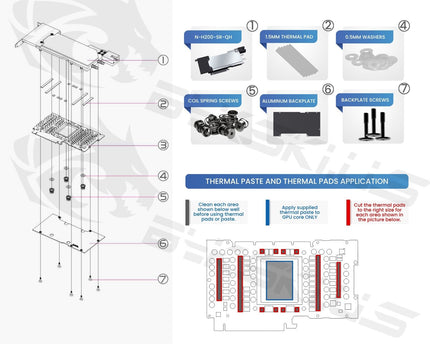

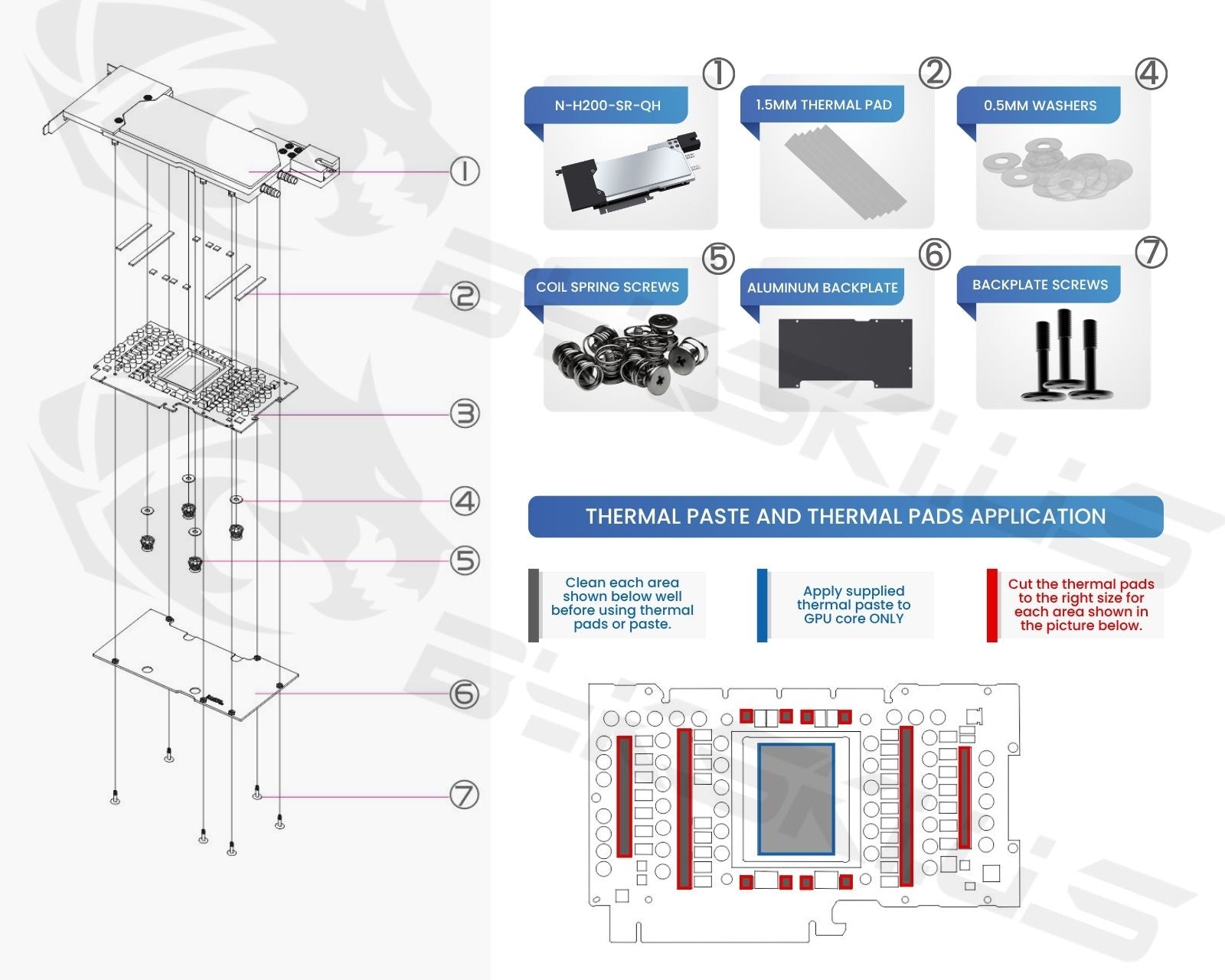

Parts Included

• 1x Bykski N-H200-SR-QH water block
• Thermal pads
• Mounting hardware

Warnings

This is a repair or replacement only item. Returns are not accepted on compatibility issues, or once fluid has been run through the block. Confirm fitment before ordering.

The manufacturer may alter the design, so the delivered item may not match the pictured item exactly.

Installation removes the card's stock heatsink, after which the card cannot be air cooled at all. Never power it without the loop installed and the pump running.

This product is for self-installation by qualified users. The manufacturer is not liable for damage resulting from misuse, including improper installation, operation outside specification, or use with incompatible hardware or fluids.
