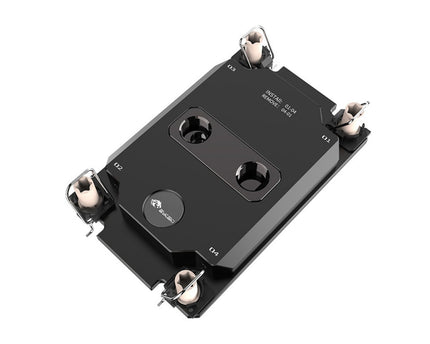

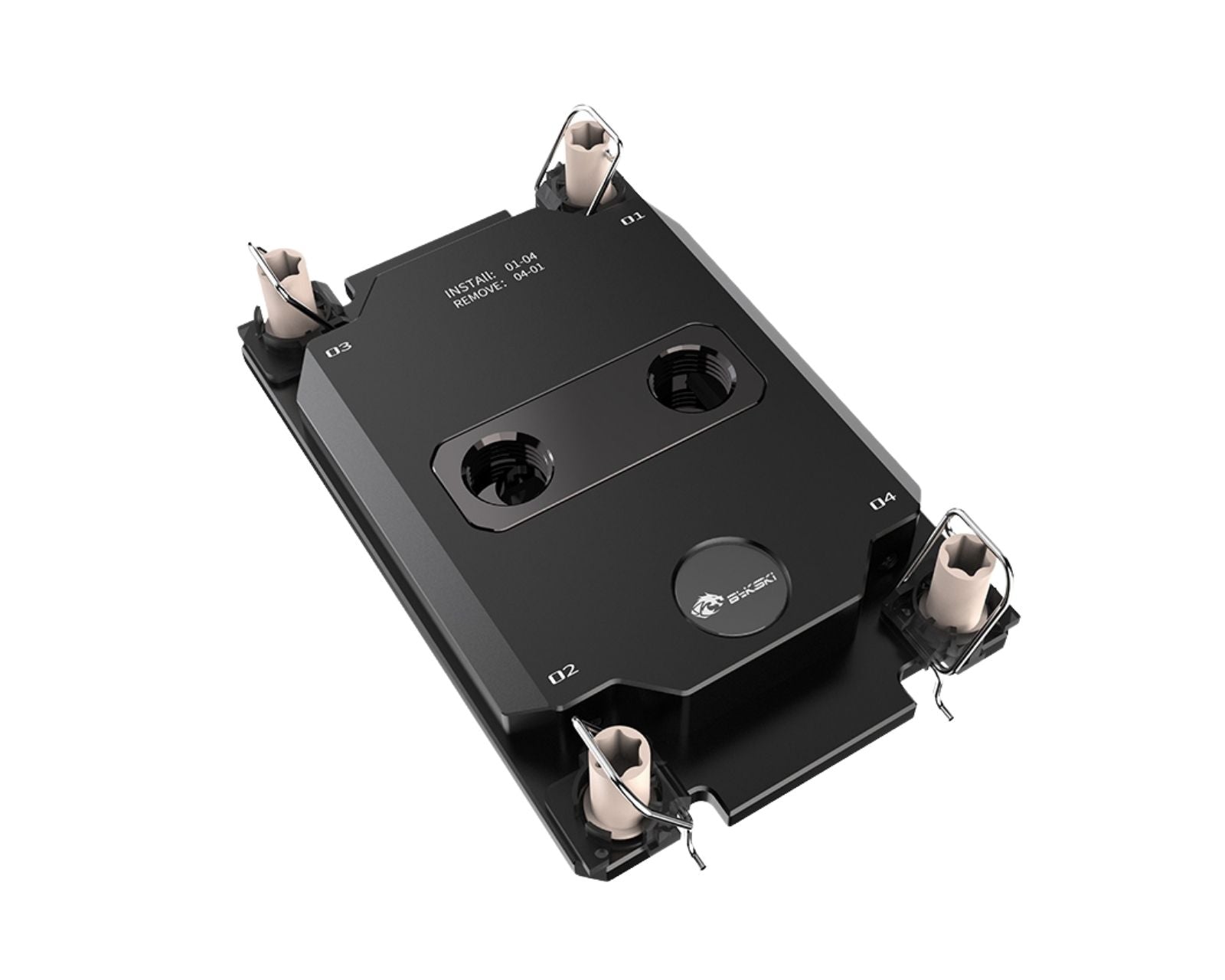

The Bykski CPU-4677-SR is a water block for Intel Xeon 6 (LGA 4710) and Intel Xeon Scalable 4th and 5th Gen plus Xeon Max processors on LGA 4677/4710 sockets. Those high core-count chips run flat out for hours, and a server heatsink only moves their heat as far as the chassis fans push air. This block carries that heat off the IHS into your loop instead.

Its nickel-plated T2 copper cold plate has fine micro-channels under a brass and aluminum top.

Specifications

• Block Material: Nickel-plated T2 copper, brass and aluminum top

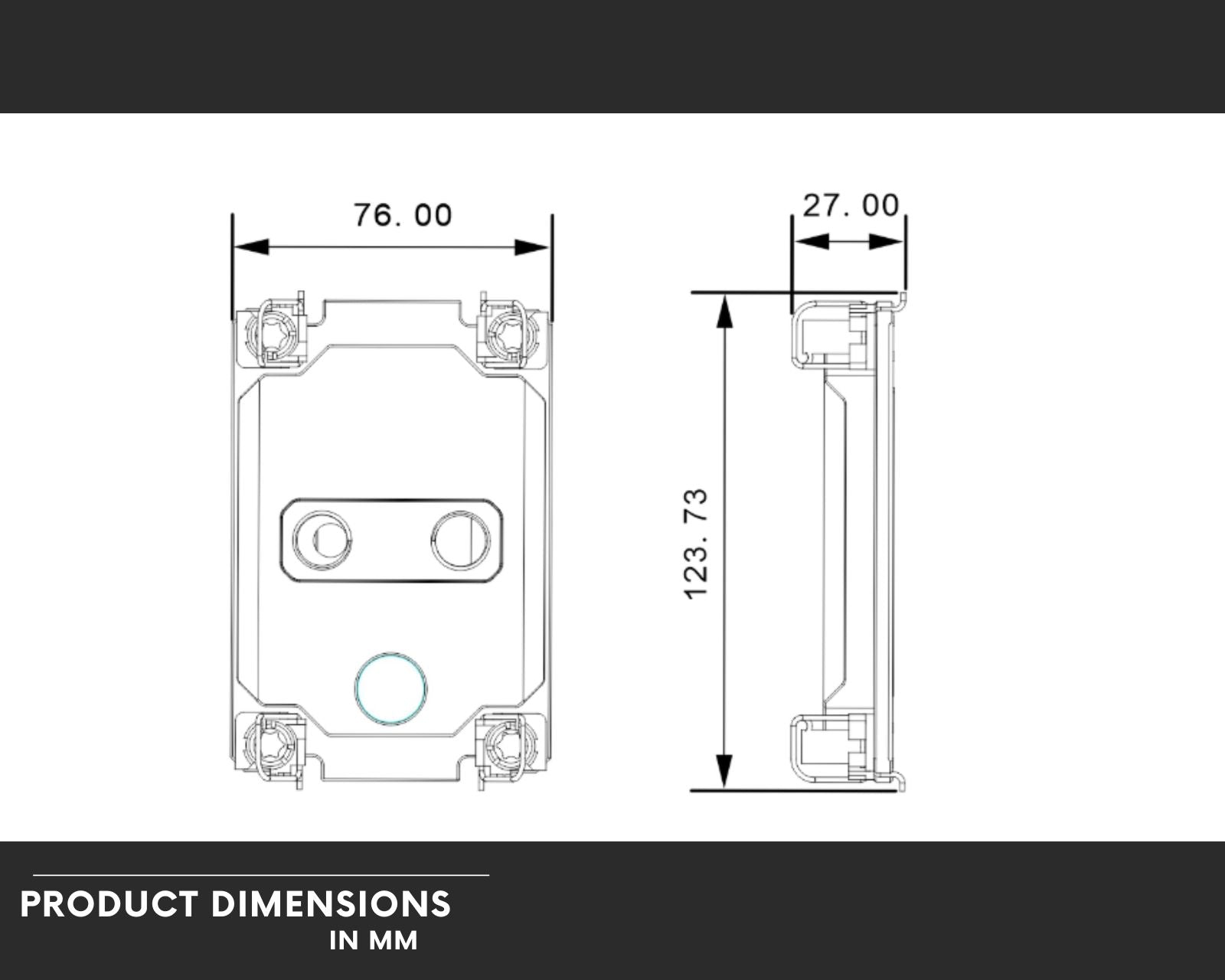

• Dimensions: 123.73 x 76.00 x 27.00 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• Intel Xeon 6 LGA 4710 Any 65xx / 67xx
• Intel Xeon Scalable 4th / 5th gen Any 84xx / 85xx

Parts Included

• CPU Water Cooling Block
• Installation Hardware, including thermal paste

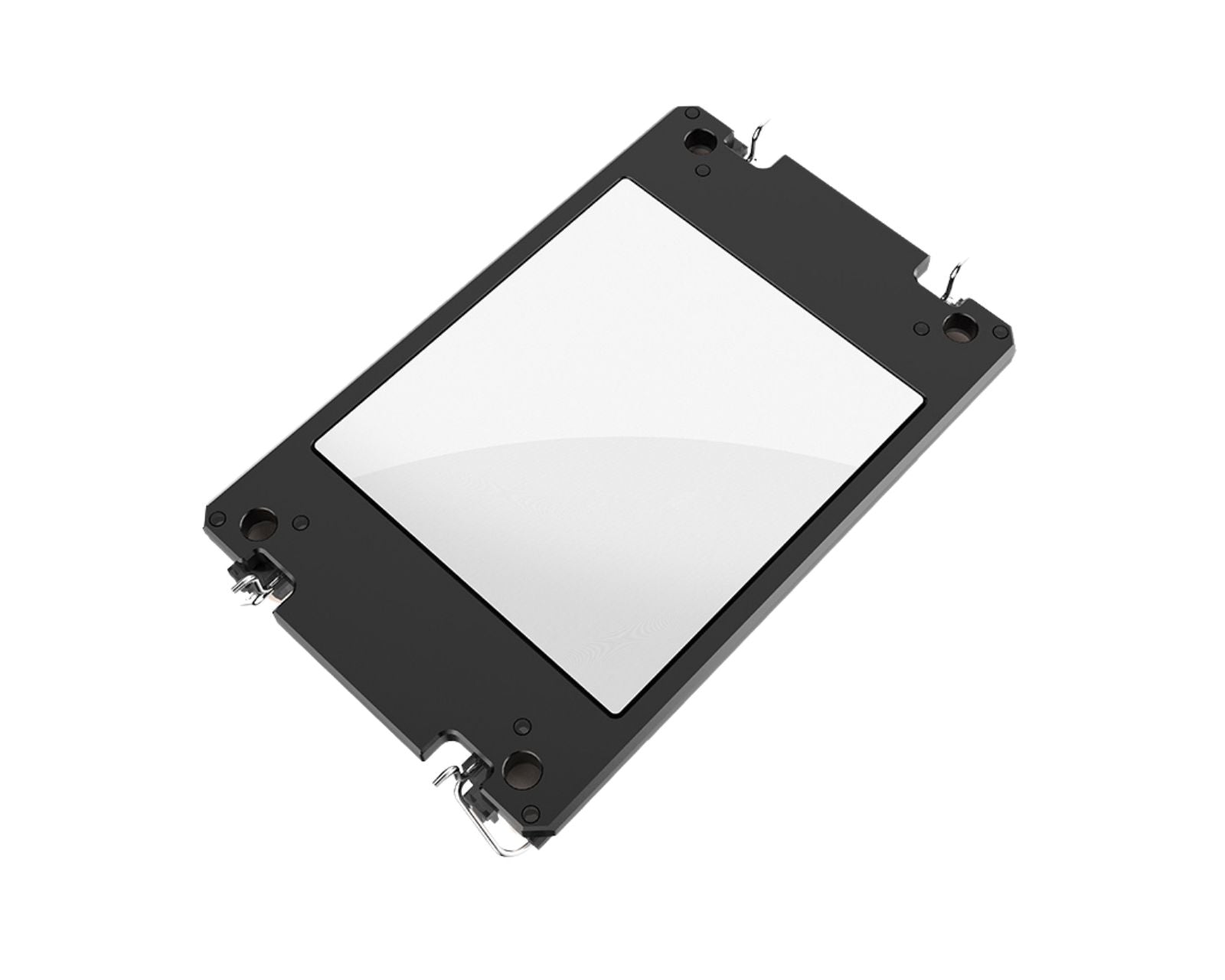

• Backplate

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

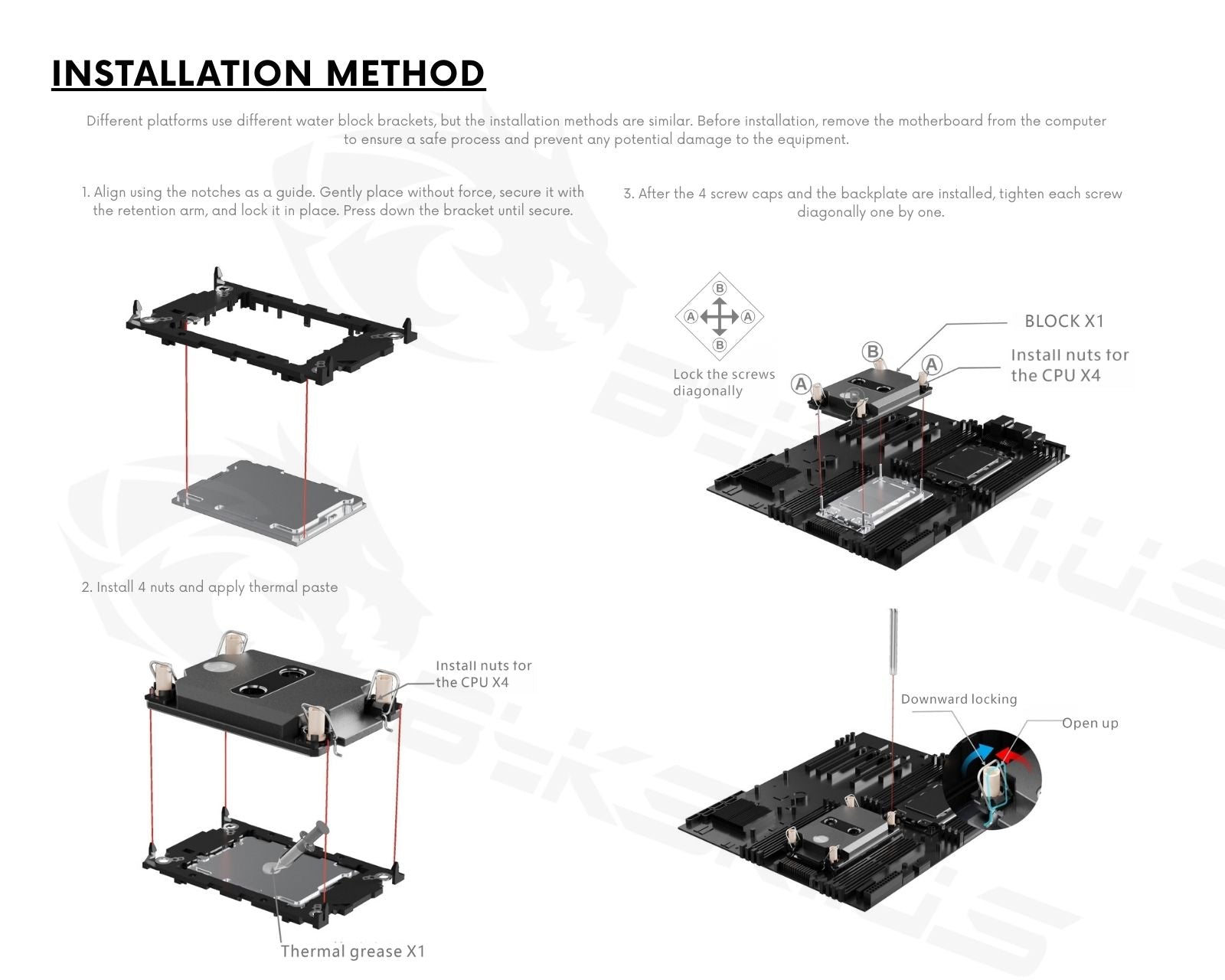

No printed instructions are included; the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
