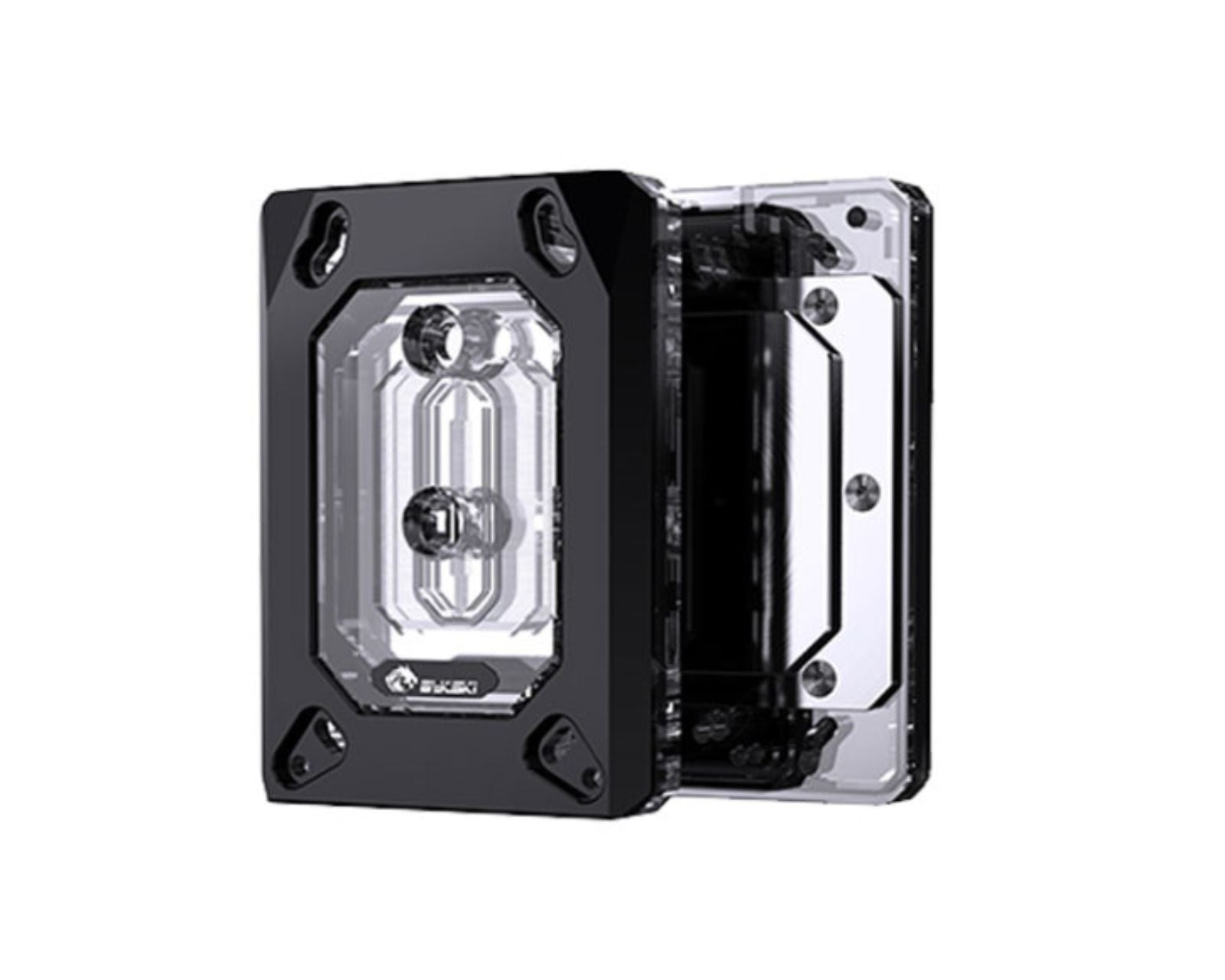

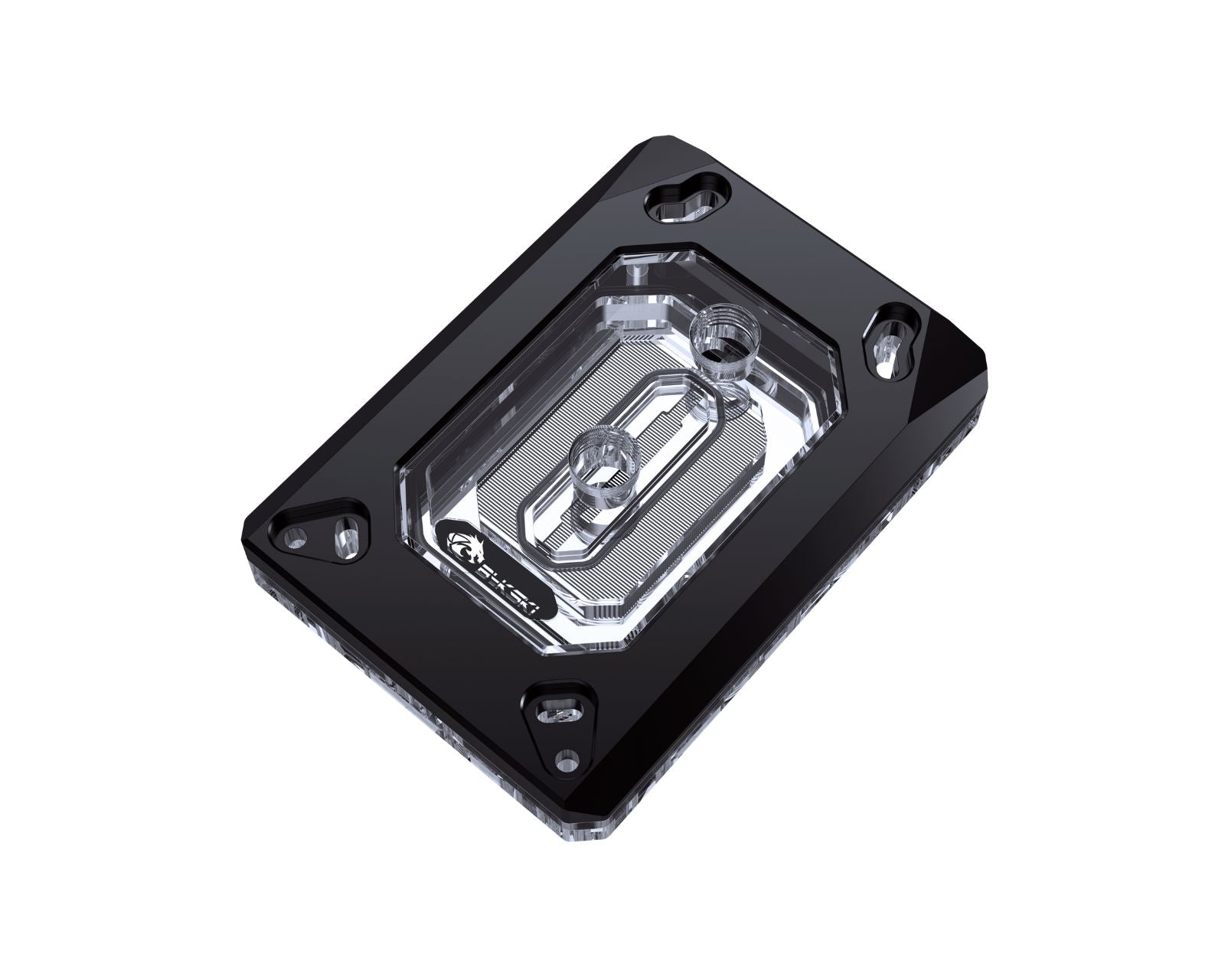

The Bykski CPU-RAY-MC-M is a CPU water block for AMD Ryzen 7000 / 8000 / 9000, AMD Ryzen 1000 to 5000, AMD Threadripper PRO 3000WX / 5000WX, AMD Threadripper 3rd Gen, AMD Threadripper 1st / 2nd Gen, AMD EPYC Naples / Rome / Milan (AM5, AM4, SWRX8, STRX4, TR4, SP3). Fitment is decided by the socket and its mounting pattern, not by the CPU model number - any processor in those generations mounts the same way.

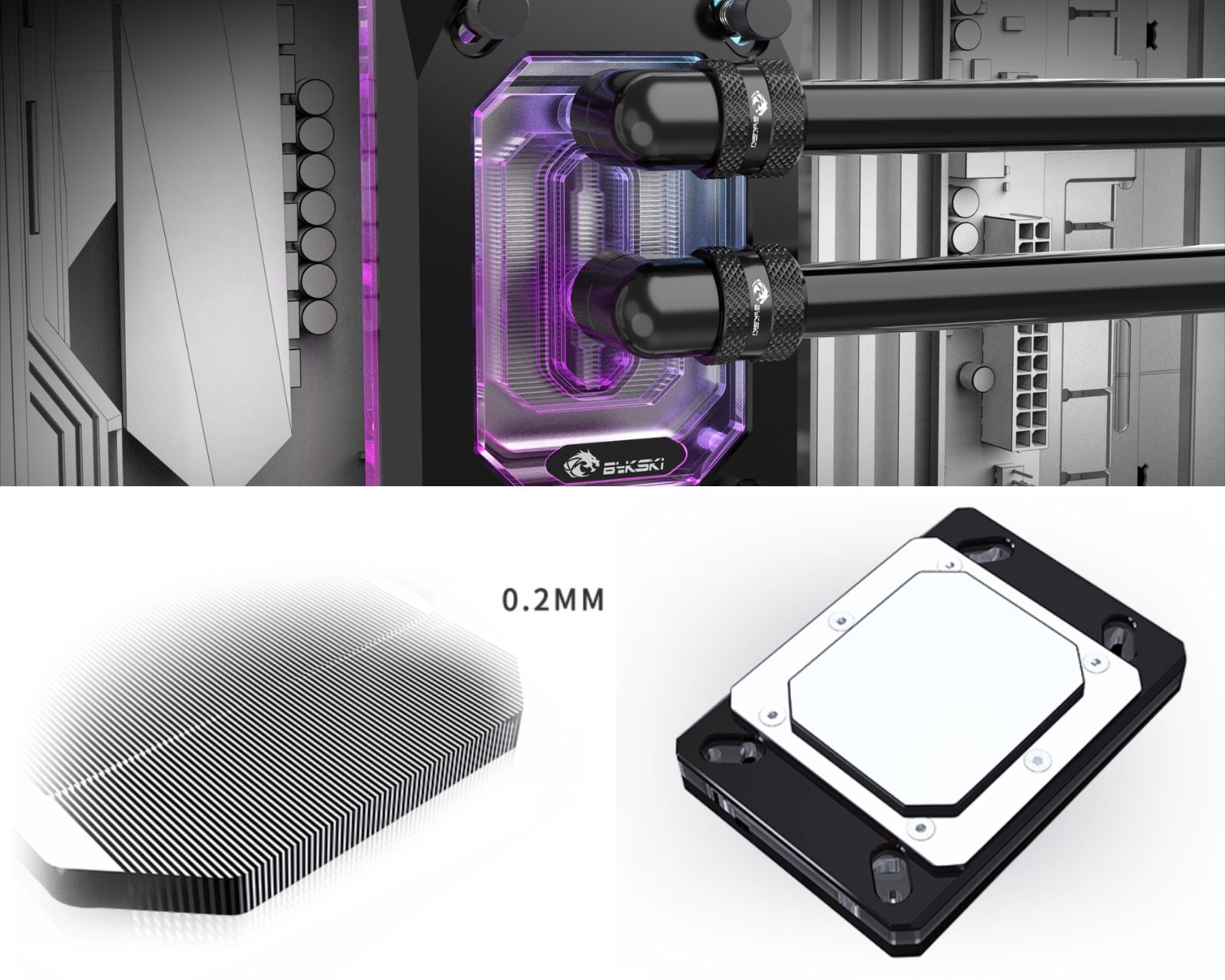

The base carries a 0.2mm spray-type micro-channel array, which increases the surface area in contact with the coolant over a plain plate. It is machined from pure copper. Ports are standard G1/4, so it takes any fitting in the catalogue.

Specifications

• Base material: pure copper
• Micro-channel width: 0.2 mm
• Top material: PMMA (acrylic)
• Port thread: G1/4
• Lighting: 5V addressable RGB (RBW), 3-pin header

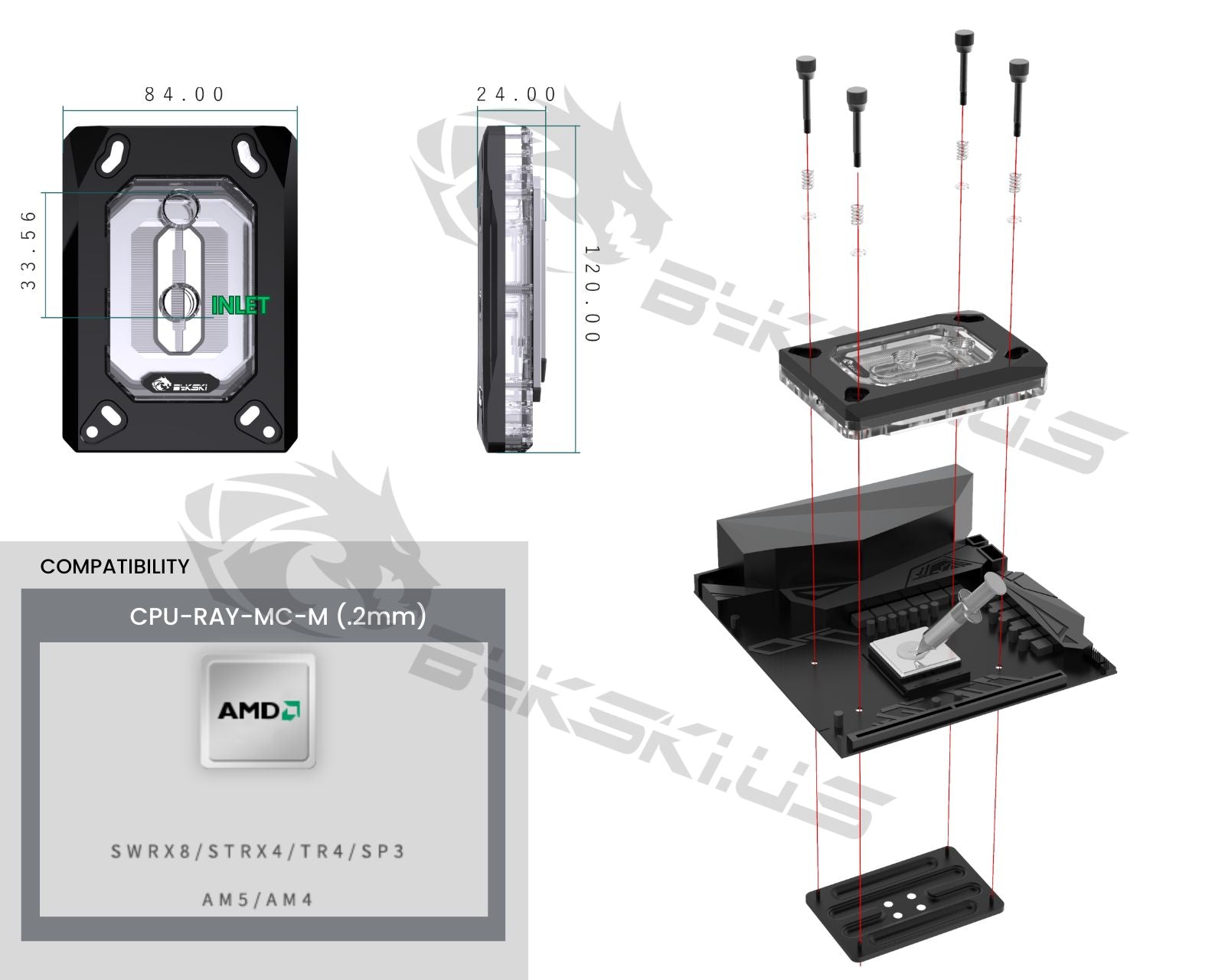

• Block dimensions: 120mm x 84mm x 24mm

Compatibility

ONLY Compatible with:

• AMD Ryzen 7000 / 8000 / 9000 - socket AM5
• AMD Ryzen 1000 to 5000 - socket AM4
• AMD Threadripper PRO 3000WX / 5000WX - socket SWRX8
• AMD Threadripper 3rd Gen - socket STRX4
• AMD Threadripper 1st / 2nd Gen - socket TR4
• AMD EPYC Naples / Rome / Milan - socket SP3

Parts Included

• CPU Water Cooling Block
• Installation Hardware, including thermal paste
• 5v Addressable RGB (RBW)
• Not included: coolant, fittings and tubing
• Addressable RGB (RBW) is 5V and works only with addressable RGB components. 12V RGB is not interchangeable and connecting one to the other will cause damage.

Warnings

This is a repair or replacement-only item. Returns are not accepted on compatibility issues. An unused part comes back within 30 days, no questions asked; a part that has been installed and had coolant run through it can still be returned, but a higher restocking fee applies.

Thermal compound goes on the CPU's integrated heat spreader. Do not apply thermal pads to the IHS.

Watch the inlet and outlet direction during installation. Fitting the loop backwards reduces heat transfer.

Tighten the mounting screws in a cross pattern, finger tight and no further. Over-tightening can crack an acrylic top or bow the socket retention frame.

The manufacturer reserves the right to alter the design to expand compatibility, so the delivered item may not match the pictured item exactly. English installation instructions are not included in the box; the install guide is published online.

This product is for self-installation by qualified users. Not responsible for any damage caused by or when using this product. Please use at your own risk.
