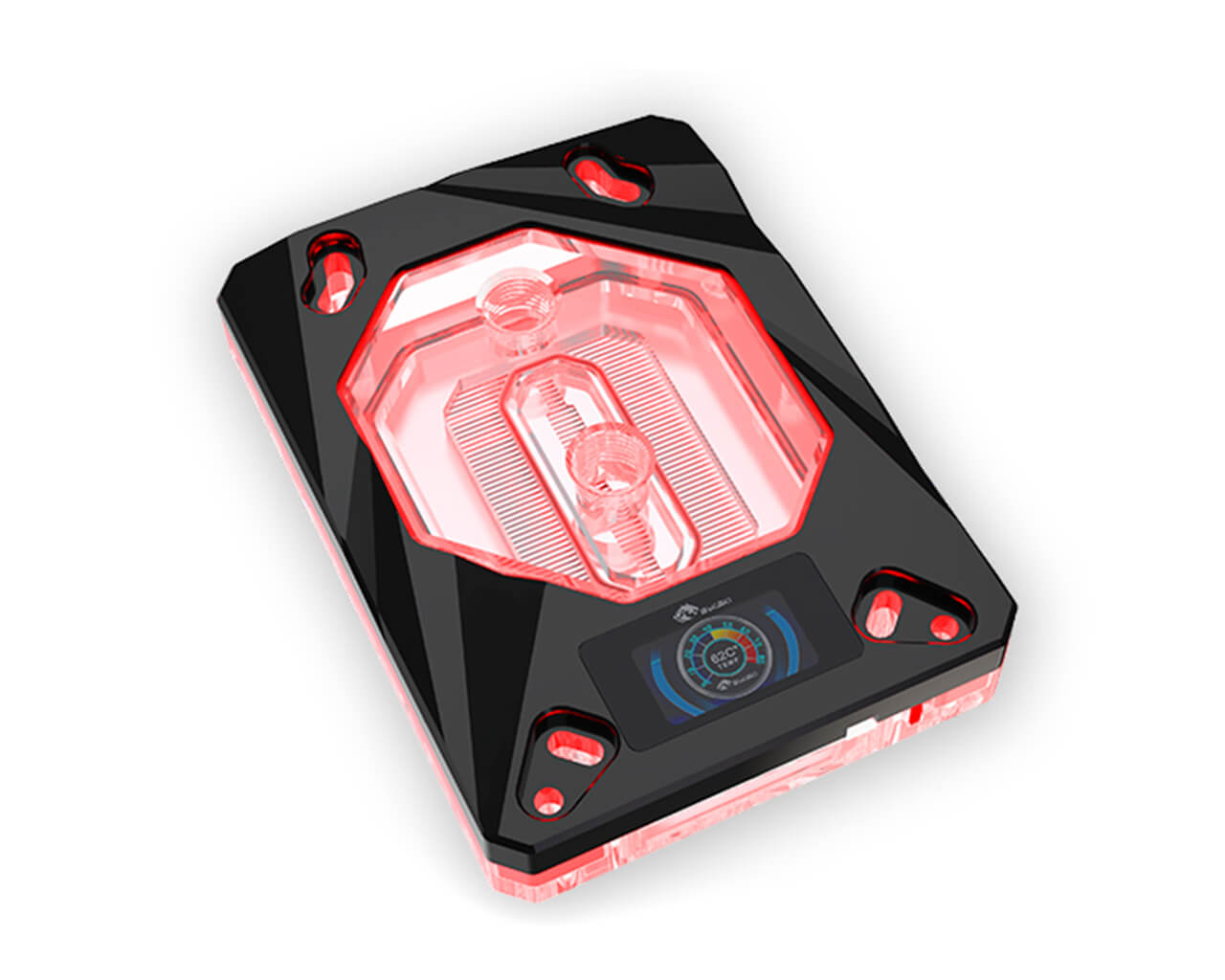

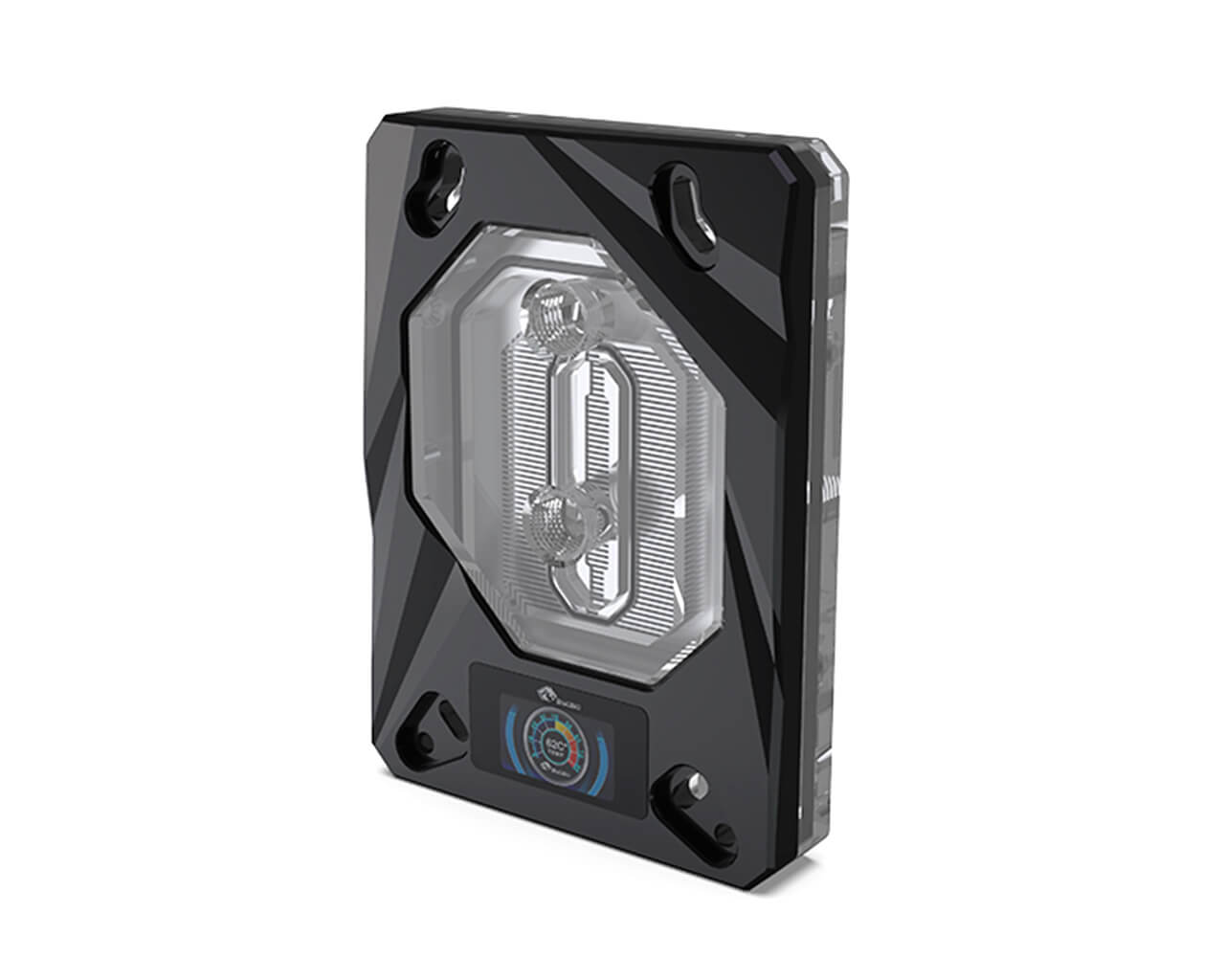

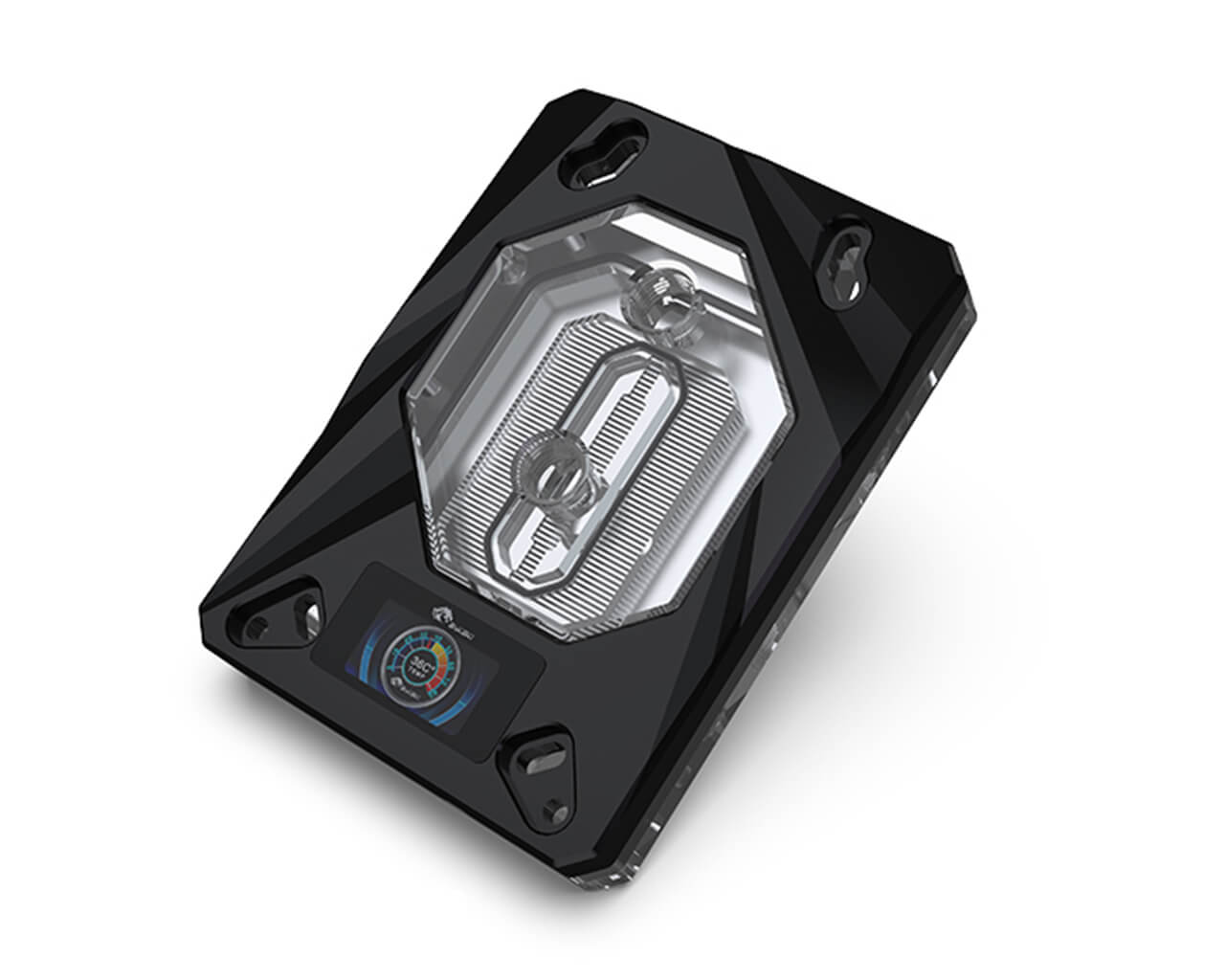

The Bykski CPU-RAY-ON-M is a CPU water block engineered for AMD Ryzen and Threadripper processors across AM4, AM5, TR4, sTRX4, sWRX8, and SP3 sockets. It features an integrated color LCD screen for real-time temperature monitoring and 5V addressable RGB lighting.

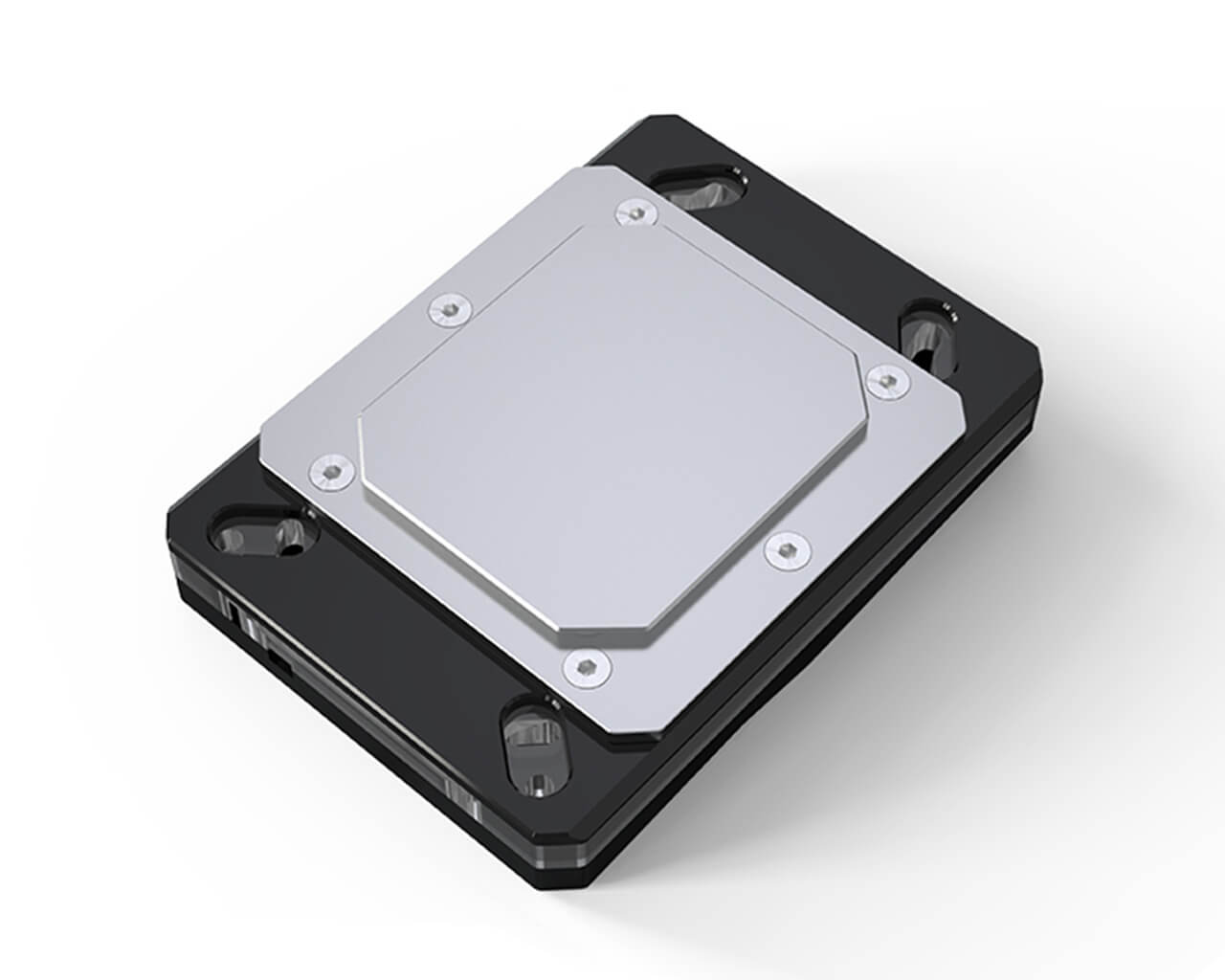

A nickel-plated T2 copper baseplate pairs with a 0.35 mm base thickness and 77 micro-channels to draw heat away from the processor IHS. The PMMA top housing is reinforced by an aluminum armor frame, and standard G1/4 ports connect to custom liquid cooling loops.

Specifications

• Block Material: Nickel-plated T2 copper, PMMA and aluminum top

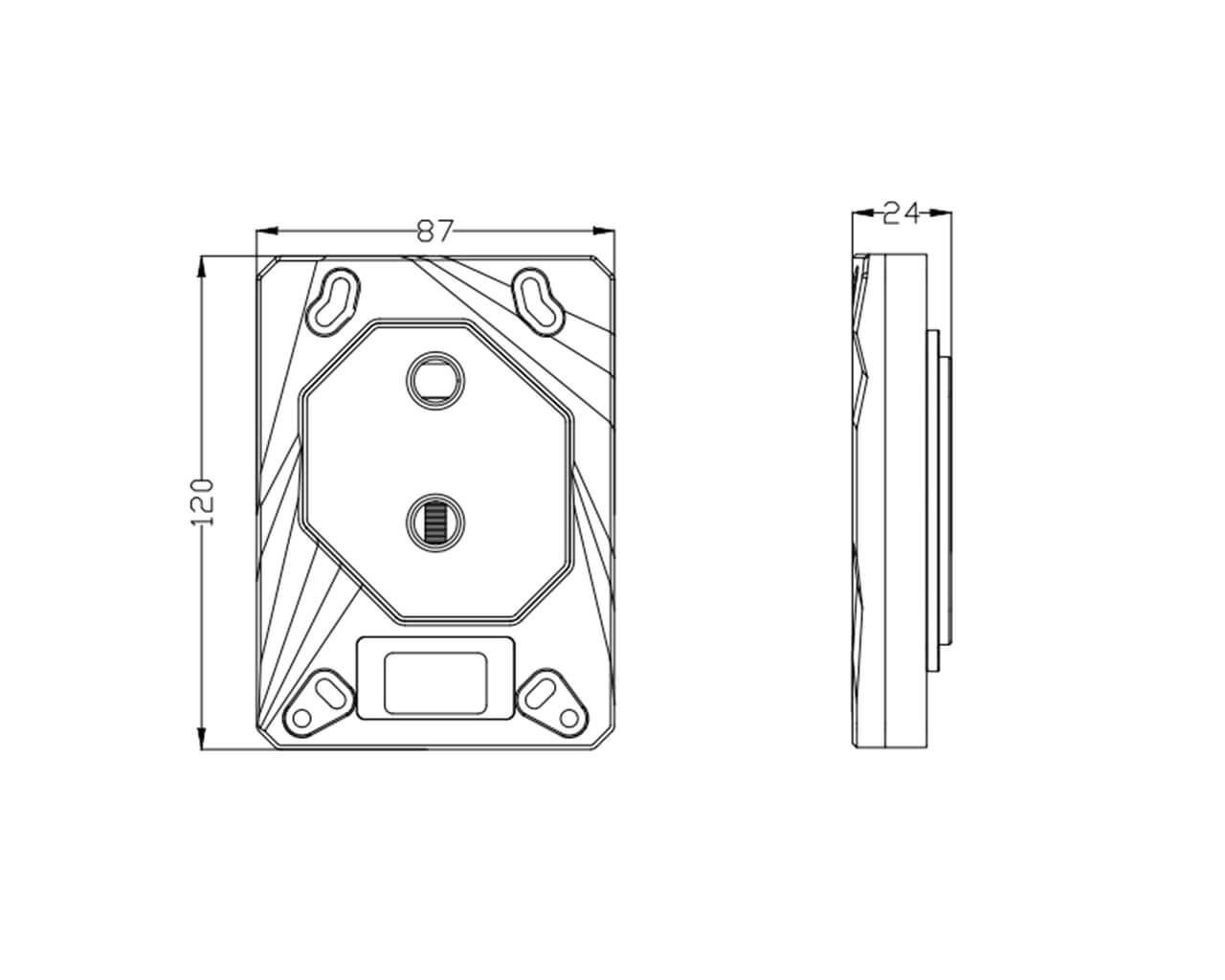

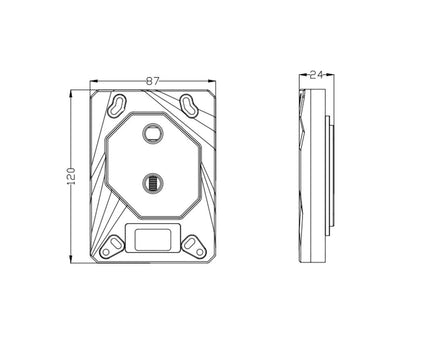

• Dimensions: 120 x 87 x 24 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• AMD A-series APU A4 / A6 / A8 / A10
• AMD FX / Phenom II FX-4xxx / 6xxx / 8xxx / 9xxx and Phenom II
• AMD Ryzen 1000 Ryzen 7 / 5 / 3 1xxx
• AMD Ryzen 2000 Ryzen 7 / 5 / 3 2xxx
• AMD Ryzen 3000 Ryzen 9 / 7 / 5 / 3 3xxx
• AMD Ryzen 4000 Ryzen 7 / 5 / 3 4xxx
• AMD Ryzen 5000 Ryzen 9 / 7 / 5 5xxx
• AMD Ryzen 7000 Ryzen 9 / 7 / 5 7xxx
• AMD Ryzen 8000 Ryzen 7 / 5 8xxx
• AMD Ryzen 9000 Ryzen 9 / 7 / 5 9xxx
• AMD Threadripper 1000 / 2000 Threadripper 1xxx / 2xxx
• AMD Threadripper 3000 Threadripper 39xx

Parts Included

• 1x CPU Water Cooling Block
• 1x Mounting Hardware
• 5v Addressable RGB LED (RBW)

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

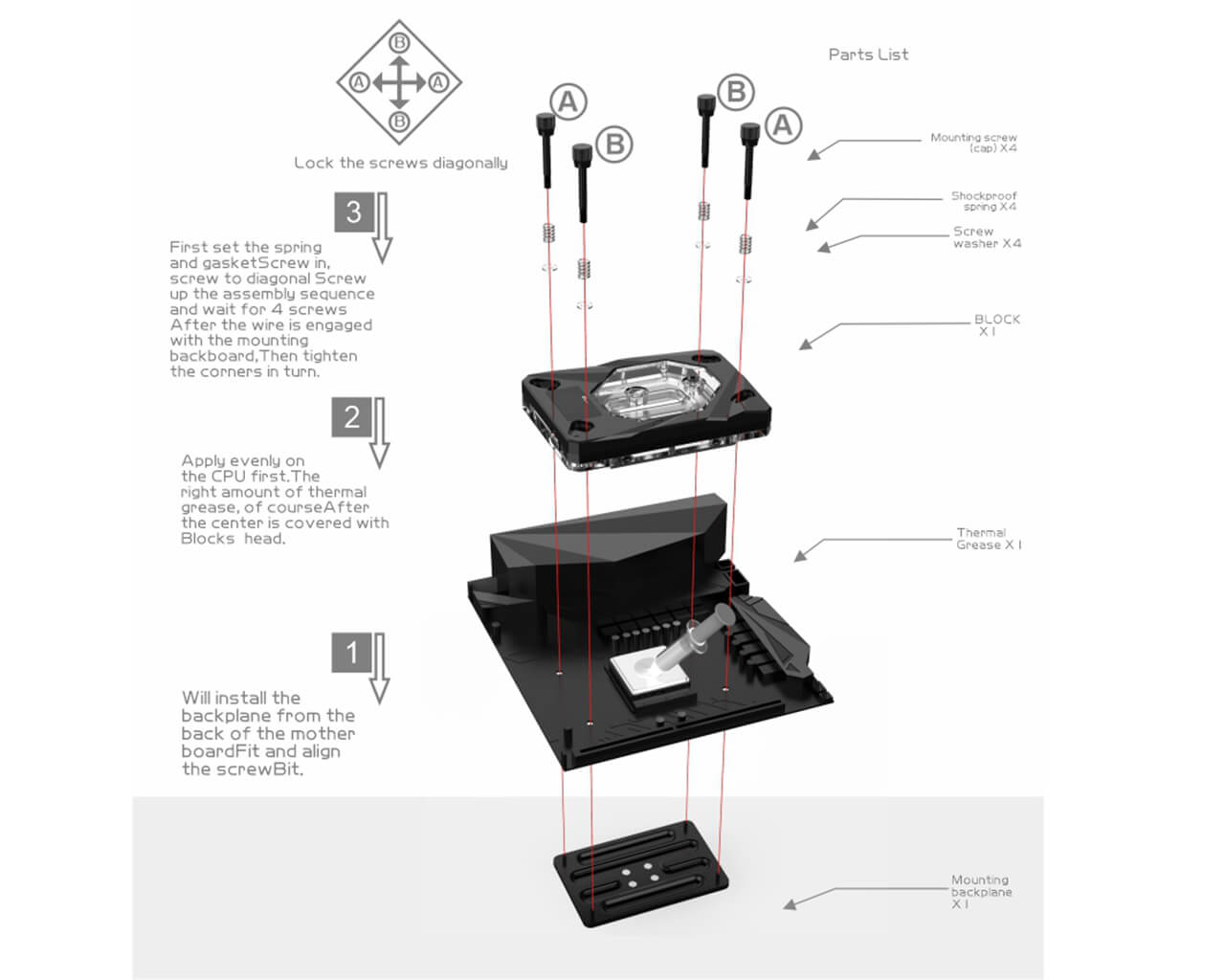

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
