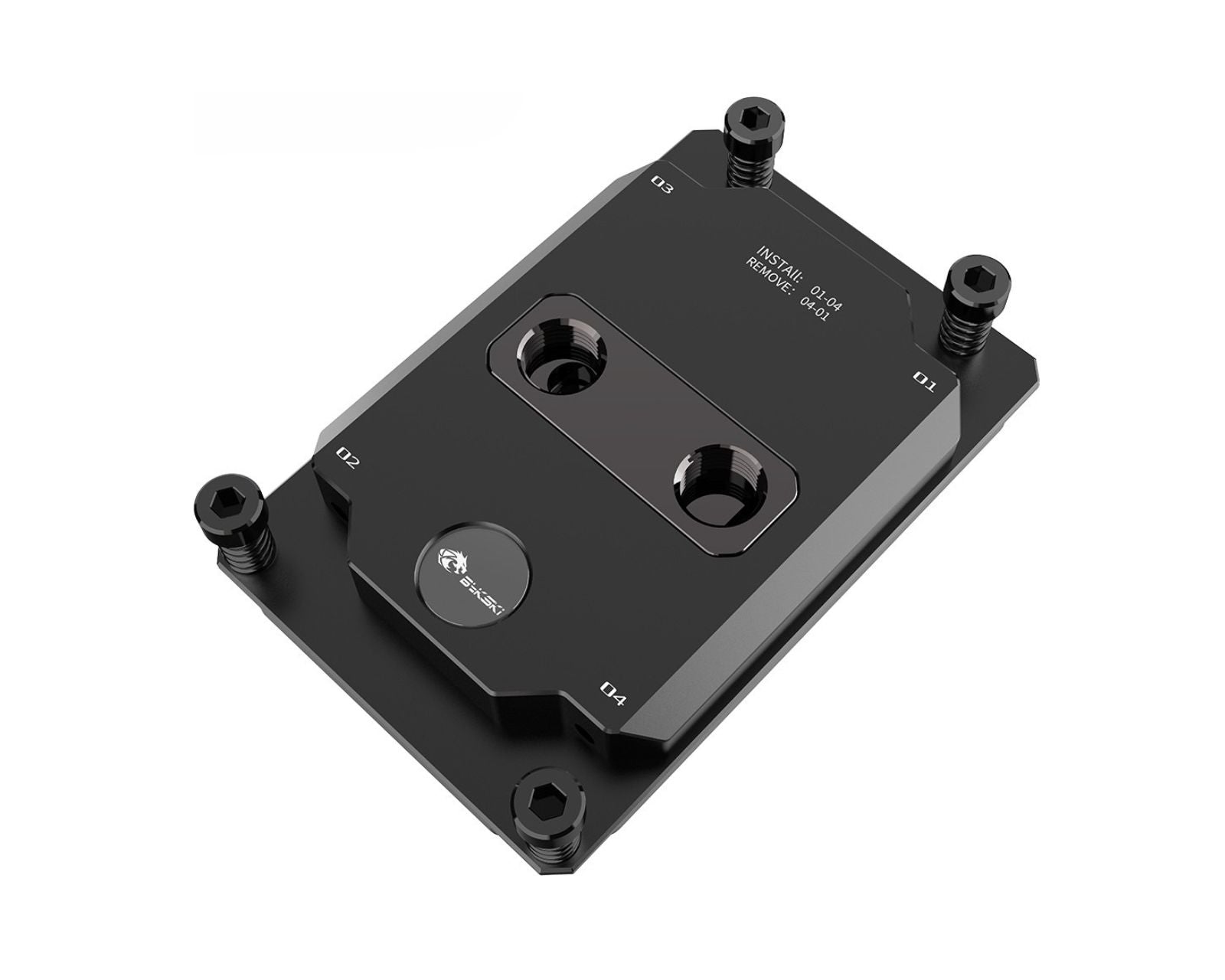

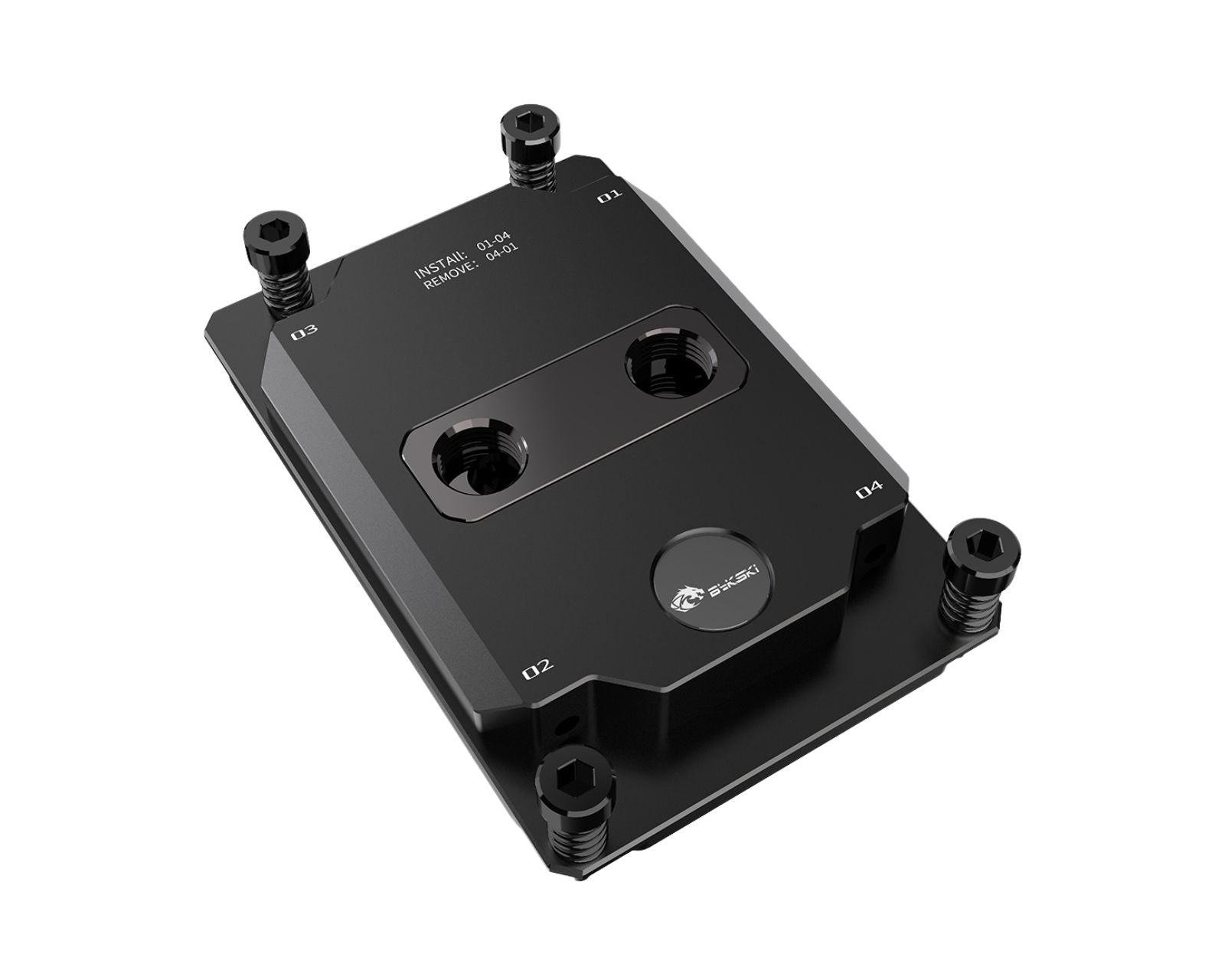

The Bykski CPU-SP3-SR fits AMD EPYC 7001, 7002 and 7003 and Threadripper 1000, 2000, 3000 and PRO 3000WX / 5000WX processors on the TR4, sTRX4, sWRX8 and SP3 sockets.

Nickel-plated T2 copper cold plate with 60 micro-channels, 0.3 mm wide, on a 0.35 mm base, for a channel area of 23662.4742 mm². Electroless nickel plating is 0.001-0.002 mm thick. The top is all-metal and the block measures 115.40 x 76.00 x 27.00 mm with screws and springs.

Specifications

• Block Material: Nickel-plated T2 copper

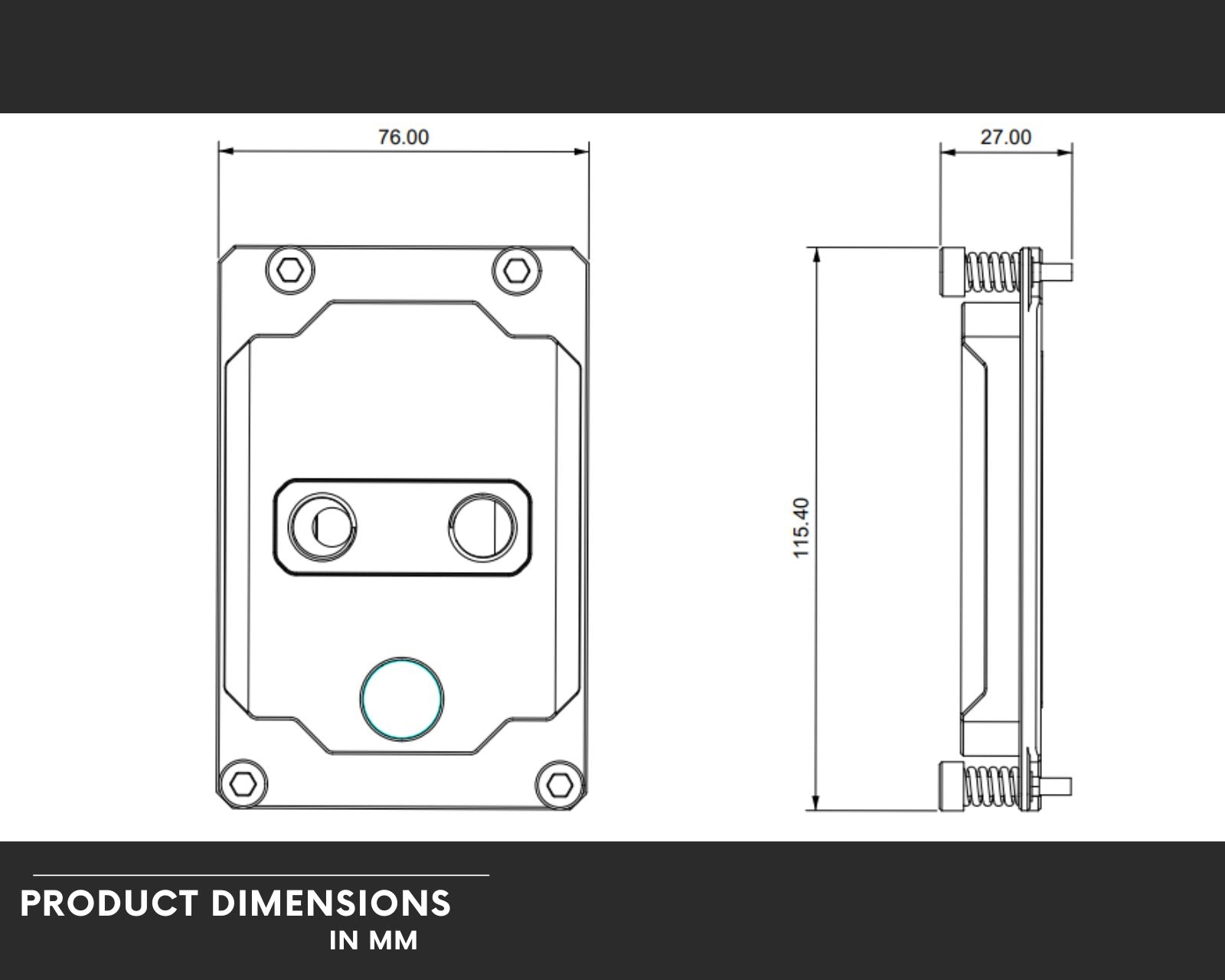

• Dimensions: 115.40 x 76.00 x 27.00 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• AMD EPYC 7001 / 7002 / 7003 Any EPYC 7xxx
• AMD Threadripper 1000 / 2000 Threadripper 1xxx / 2xxx
• AMD Threadripper 3000 Threadripper 39xx
• AMD Threadripper PRO 3000WX / 5000WX Threadripper PRO 3xxx / 5xxx

Parts Included

• CPU water block

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

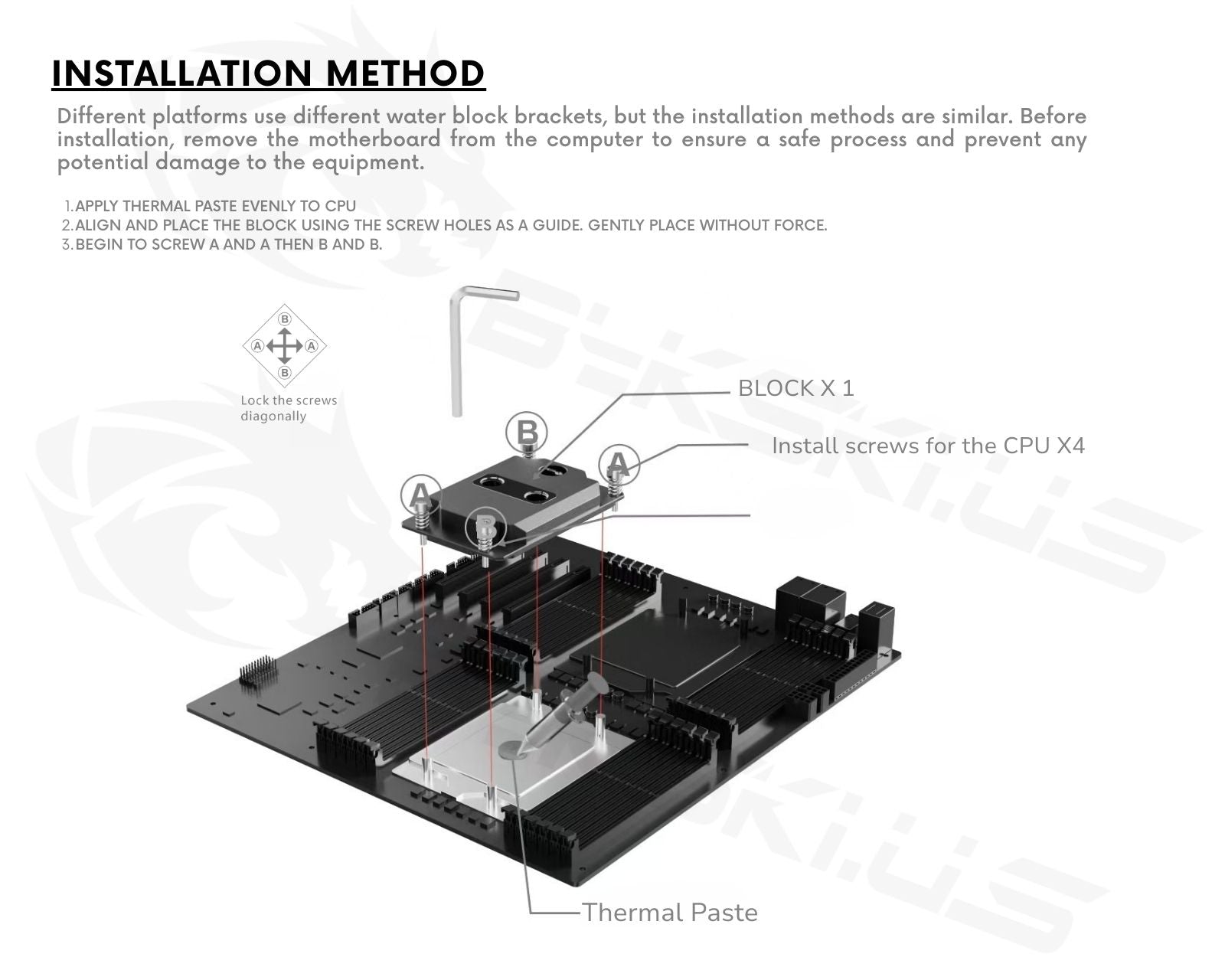

No printed instructions are included; the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
