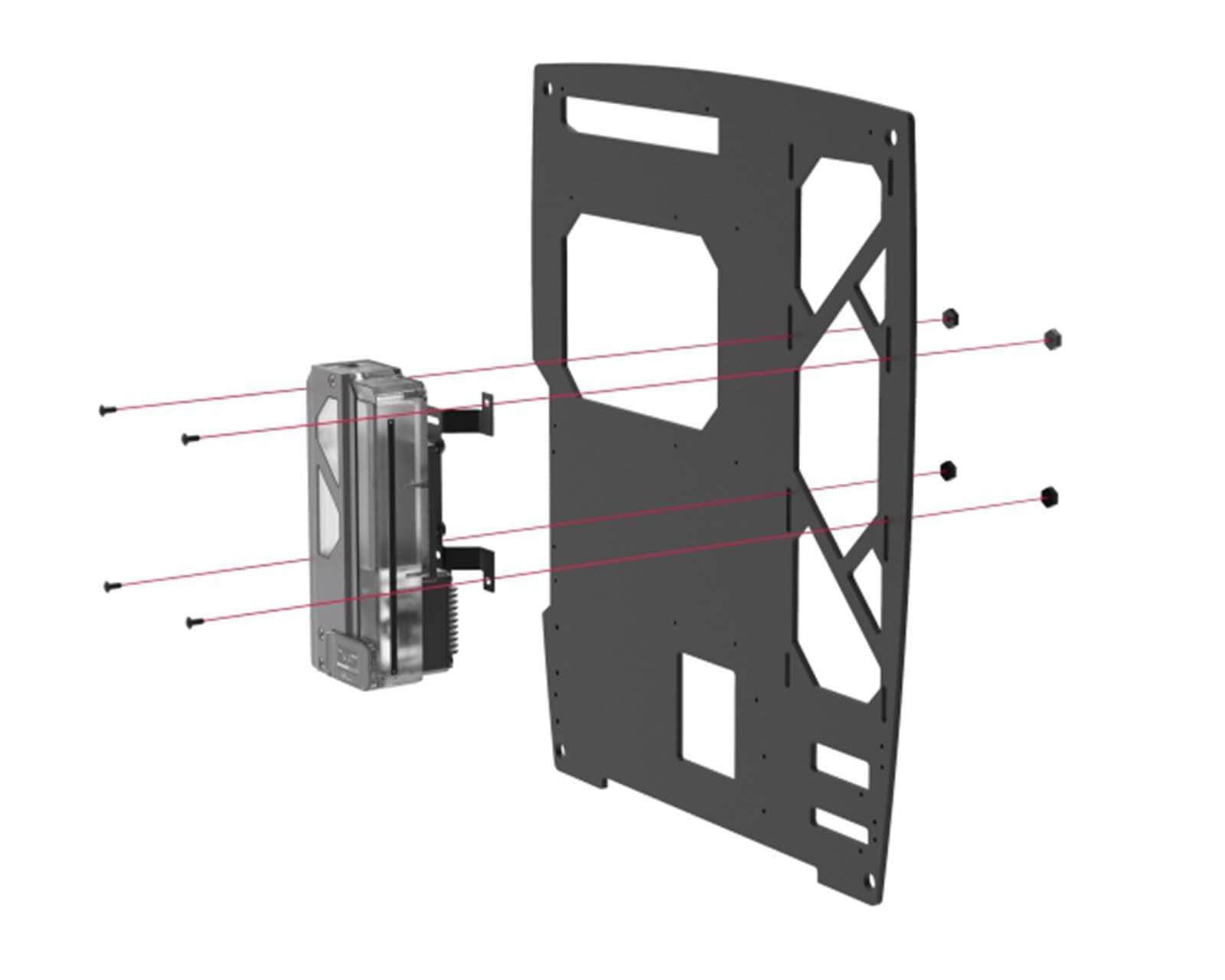

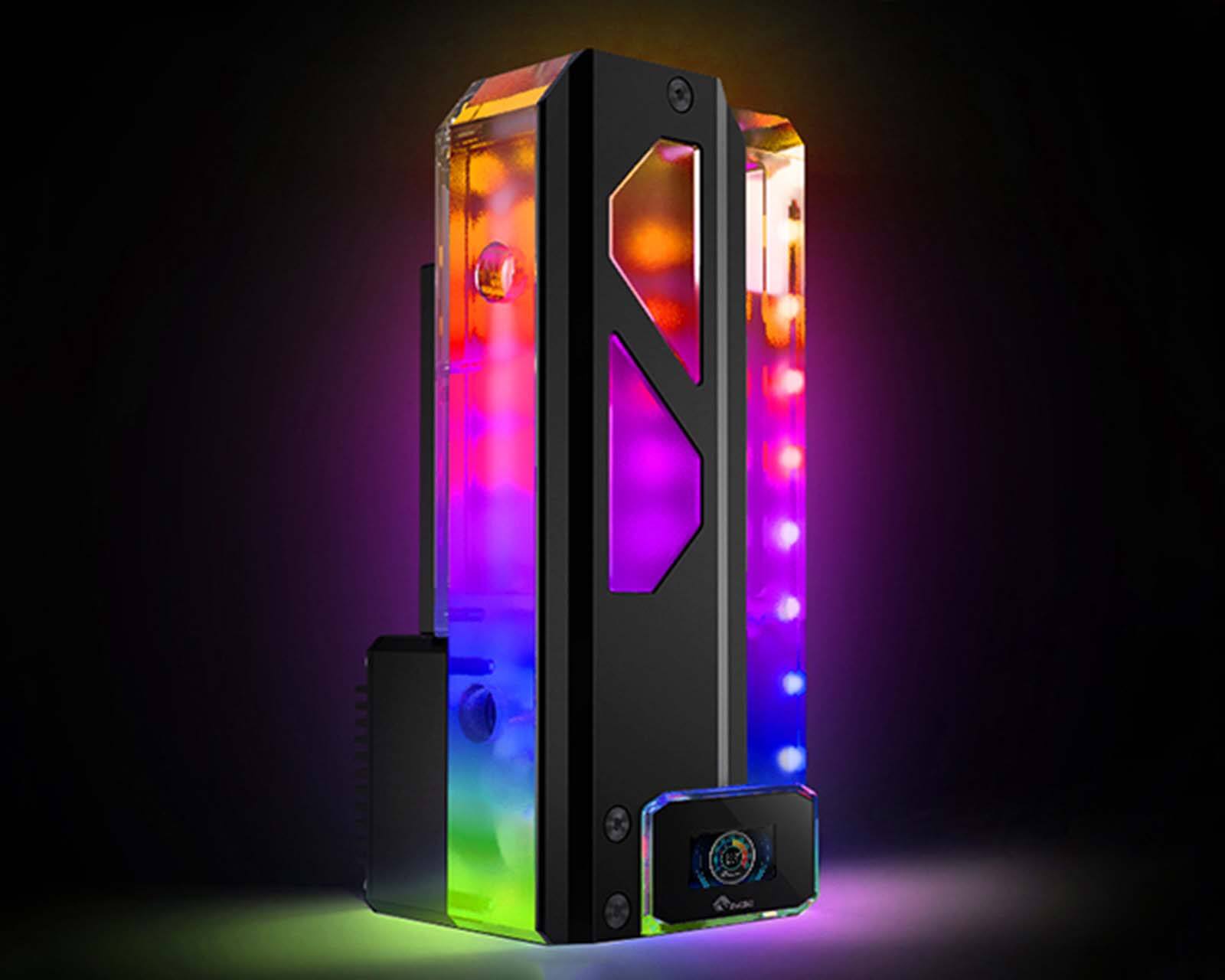

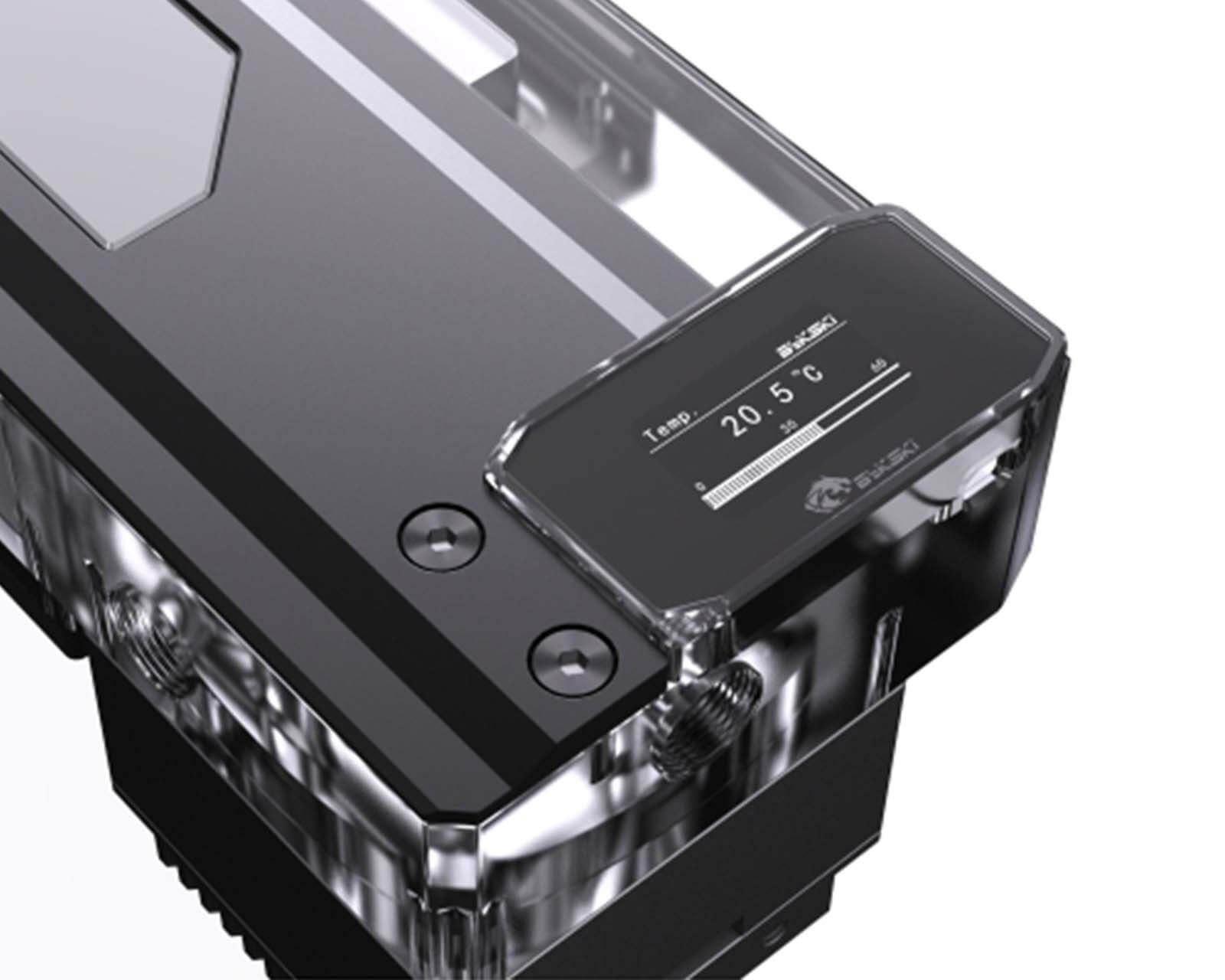

This latest iteration to the Bykski DDC Pump Station Kit comes with power, versatility and real time temperature display. The clear PMMA body showcases whatever fluid you run with. Aluminum cover plates and pump armor give the reservoir a distinct look and design. On the bottom right of the station is a temperature gauge giving you real time read outs of your current temperature. The included powerful DDC pump powers the station delivering excellent flow across your loop. Multiple mounting options are included with an 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.

Features

• Low Vibration / Quiet Operation
• Ultra Bright 5v A-RGB Integrated LEDs
• Digital Temperature Read Out

Specifications

• Material: Mitsubishi Acrylic / Black Anodized Aluminum (not in contact with coolant)

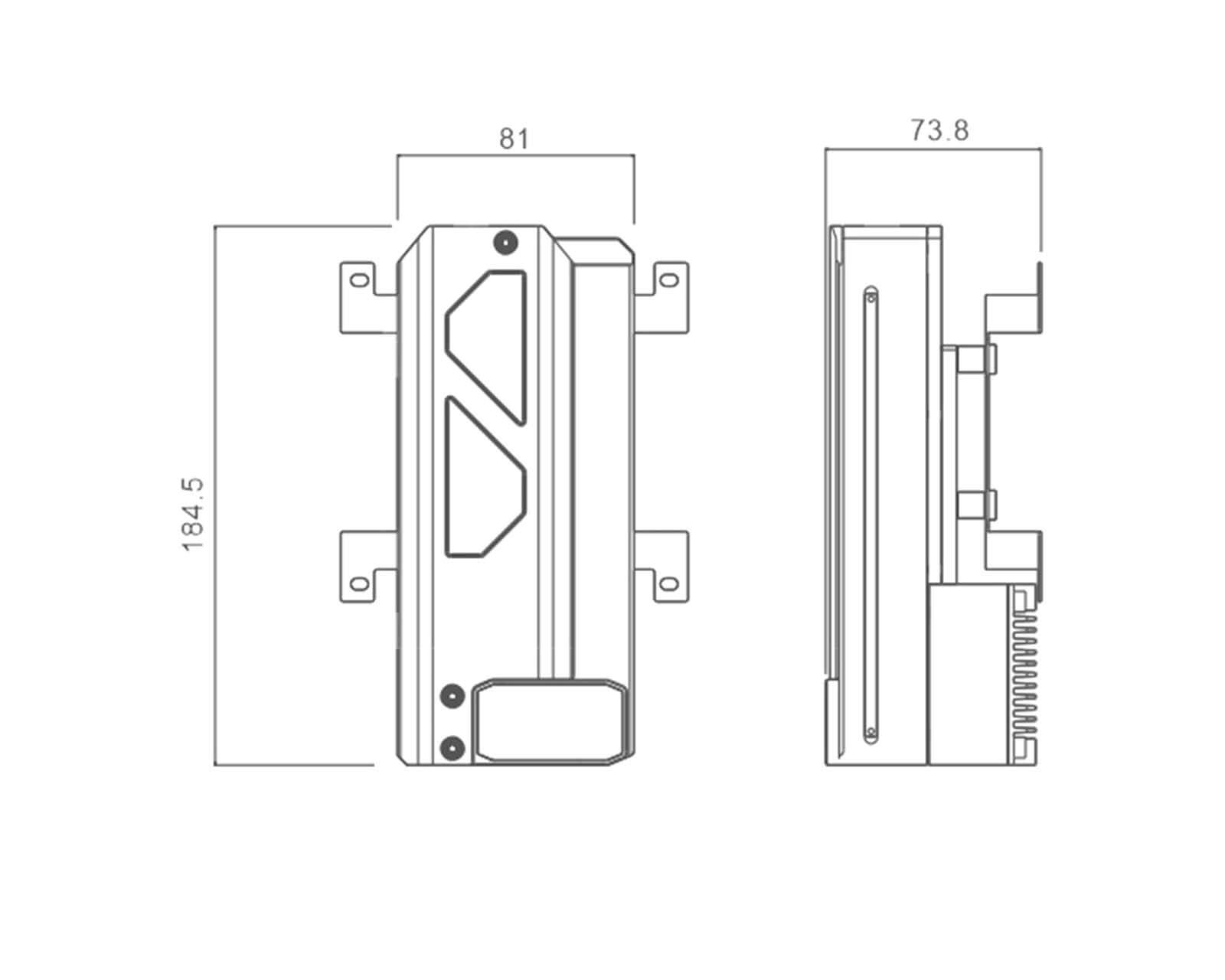

• Dimensions: 184.5mm(H) x 81mm(W) 73.8mm(D)
• Thread: G 1/4in.
• Inlets: 3
• Outlets: 1

Pump Specifications: CP-PMD3COV-X with heatsink

• Max RPM: 5000
• Temperature: 45°C @ 4000RPM

• Power: 12V (TDP15W)
• Power Connector: 4-Pin PWM
• Voltage Consumption: DC12v, TDP 15W
• Voltage Range: 10-15v
• Flow Rate: 600L/H
• Output Head: 6 Meters
• Connector: 4-Pin Molex and 4-pin fan (Tach+PWM only)
• MTBF 50,000 Hours

Compatibility

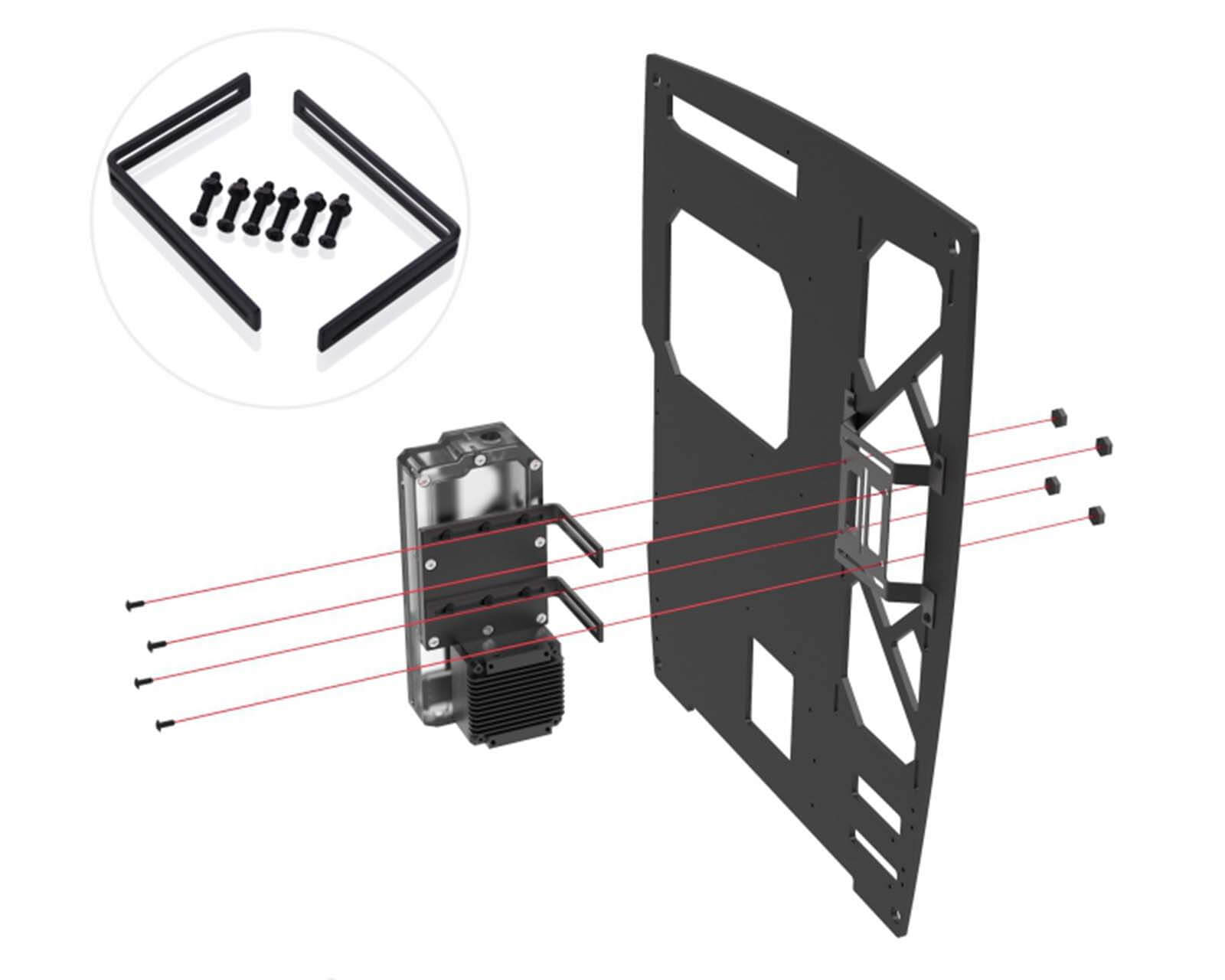

• Mount Type: 120mm Mount Bracket or DIY
• Loop: Non-Aluminum

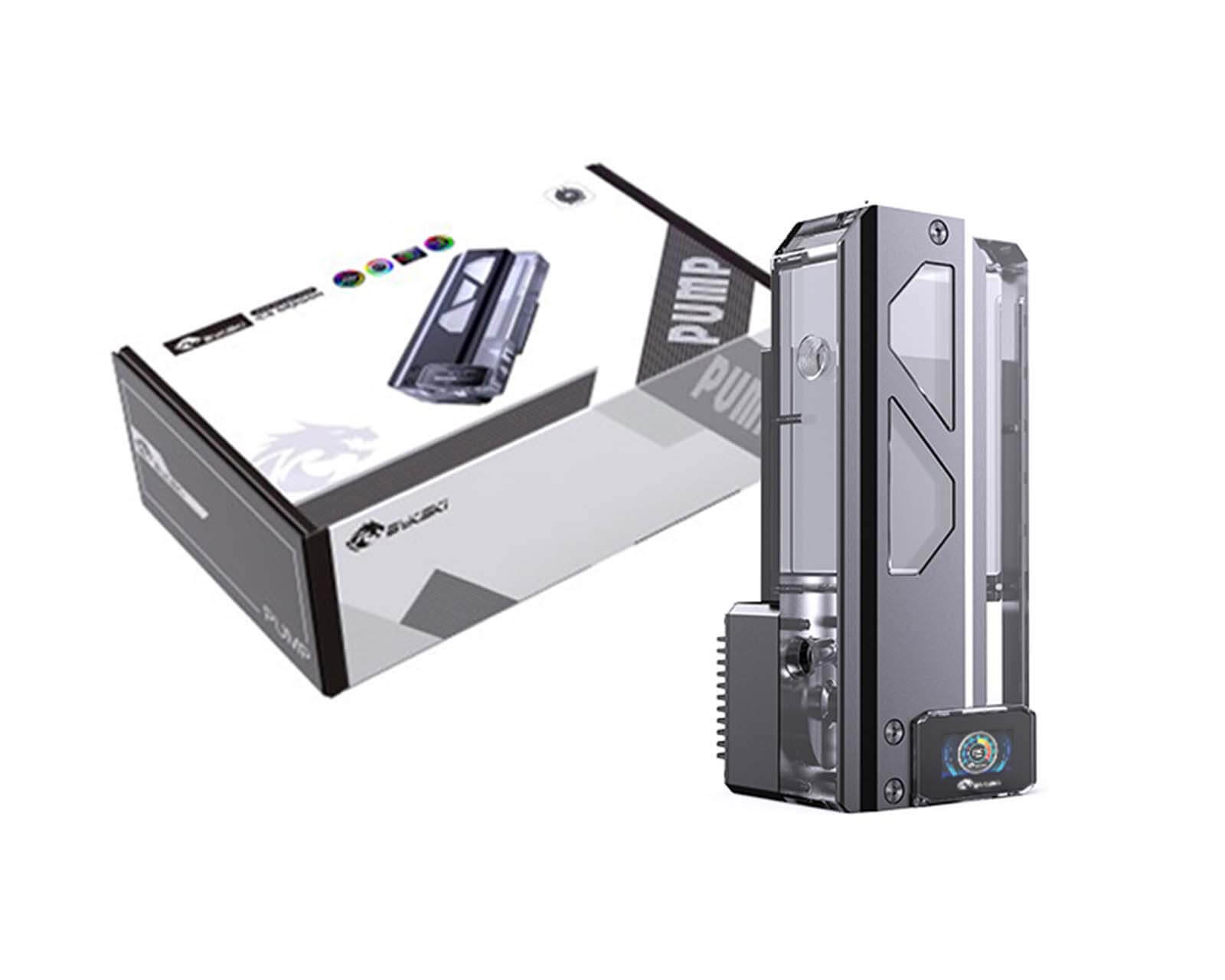

Included Parts

• 1x 180mm Reservoir Station
• DDC Pump w/ Heatsink (installed)

Warnings

Not responsible for any hardware damage. Use at your own risk.
