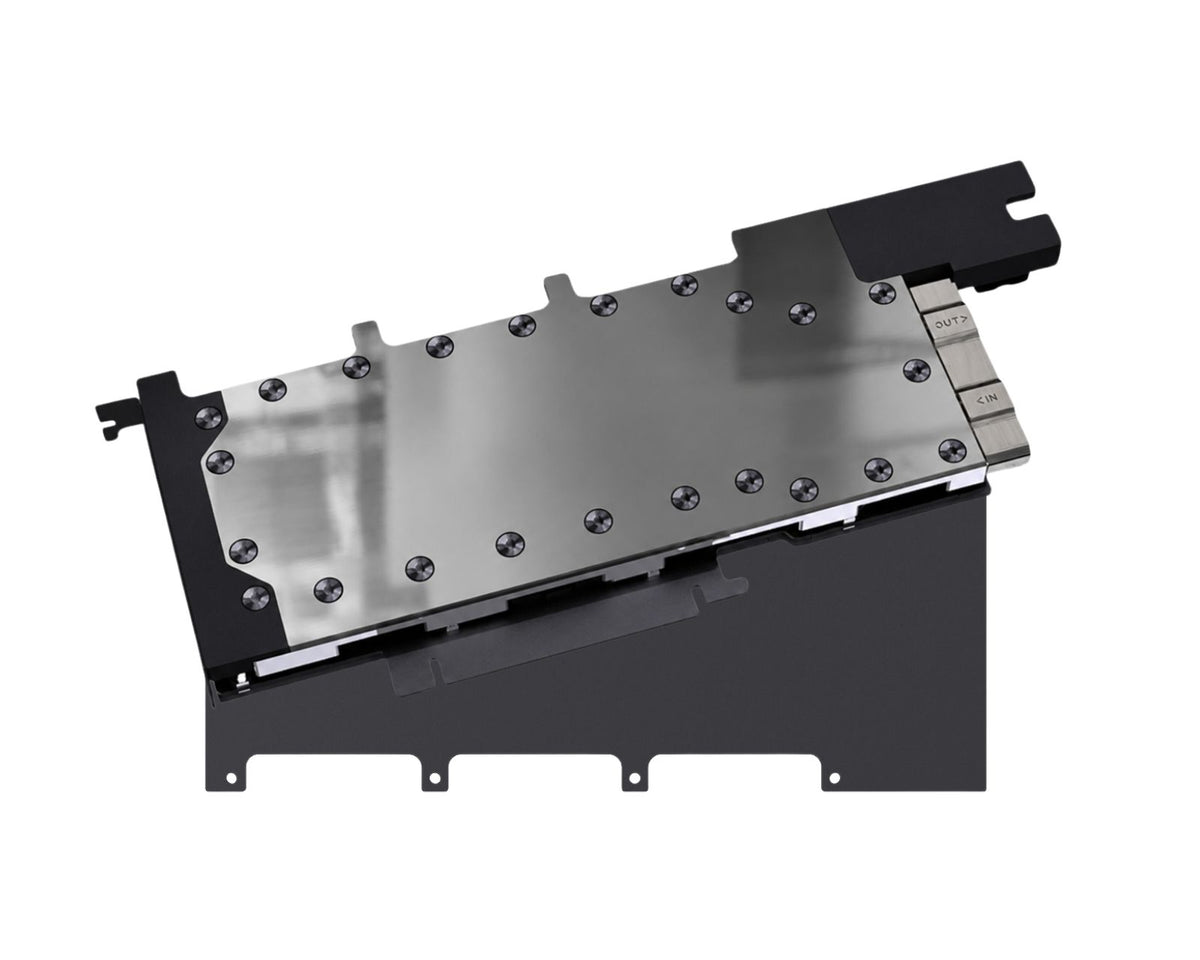

Bykski Durable Metal GPU Water Block and Backplate For NVIDIA TESLA A100 40GB (N-TESLA-A100-40G-SR) - Continuous Usage
US import duties and tariffs are included in every price.
PrimoChill SX fittings for the G1/4 ports, in stock in Boise. Pick a finish and how many you need; 6+ in any mix and the price drops.
About this part

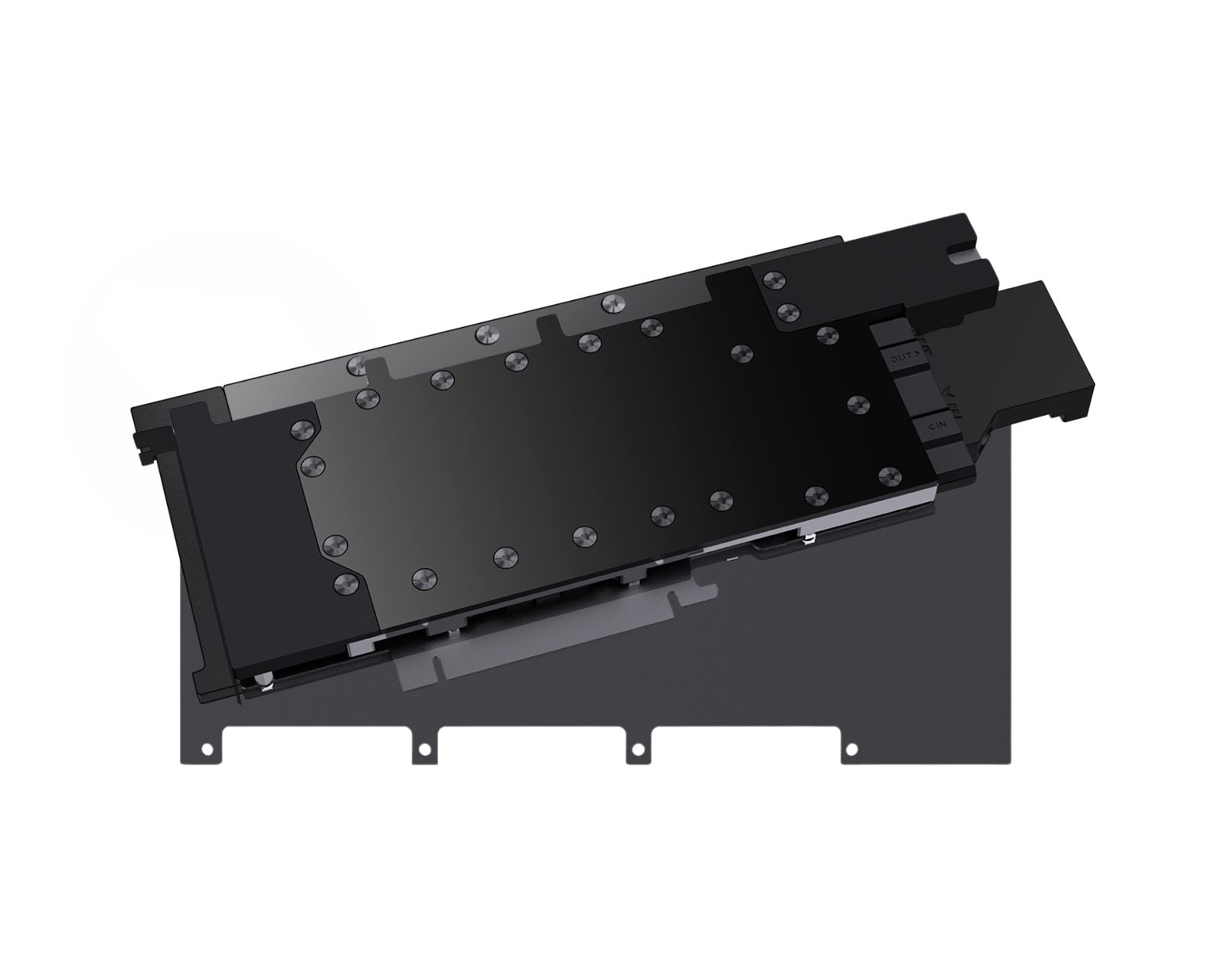

Full-coverage GPU water block with backplate for the cards listed under Compatibility. One block covers the GPU chip, the memory and the power stages in one pass. Fitting it removes the stock heatsink, so the loop becomes the card's only cooling path.
The T2 copper cold plate is electroless nickel plated and has a 0.35 mm base, with 0.3 mm jet channels that carry heat into the coolant. A nickel-plated copper top and an aluminum backplate hold the board for continuous use.
GPU water block with backplate: 1
Thermal pads: 1.5 mm, 5 pieces
Washers: 0.5 mm, 4 pieces
Spring screws: M2 x 5 mm, 4 pieces
Backplate screws: M2 x 10.3 mm, 8 pieces
Technical specifications 15 specs
| Block Material | Nickel-plated T2 copper, nickel-plated copper top |
|---|---|
| Top Panel Material | Nickel-Plated Copper |
| Base Thickness | 0.35 mm |
| Surface Treatment | Electroless nickel plating, 0.001-0.002 mm layer |
| Micro-channels | Jet type, 0.3 mm wide, up to 56 channels |
| Backplate Material | Aluminum (not in contact with coolant) |
| Dimensions | 264.67 x 95.29 x 16.98 mm (L x W x H, width includes ports) |
| Net Weight | 1.3 kg |
| Port Thread | G1/4 internal |
| Max Working Pressure | 4 bar |
| Working Temperature | -20 C to 60 C |
| Compatible Fluids | Water, ethylene glycol, propylene glycol, fluorinated fluid, mineral oil |
| Heat-Transfer Method | Jet impingement |
| Seal Material | EPDM |
| Warranty | 1 year |
What buyers said
Left by people who bought this part here. Compatibility reports are the useful ones — if you fitted it, say which board.
What installing it actually involves
Three steps, in the order that matters. The one people get wrong is the first.
This block fits 3 boards:
- NVIDIA TESLA - A100 40GB
- NVIDIA CMP - 170HX 8GB
- NVIDIA TESLA - A30 24GB
Match your exact model — not the family.
Thermal interface material as supplied. Even mounting pressure, correct bracket orientation, no over-torquing.
Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.
Questions people ask about this part
Answers specific to N-TESLA-A100-40G-SR. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.
What does this part fit?
It is machined for 3 boards:
- NVIDIA TESLA - A100 40GB
- NVIDIA CMP - 170HX 8GB
- NVIDIA TESLA - A30 24GB
These are machined to a specific hardware layout, so match your exact model rather than the family before ordering. Part number N-TESLA-A100-40G-SR.
Is it in stock, and when will it ship?
Can I cancel my pre-order?
Will I pay import duties or customs charges on delivery?
Who handles the warranty?
Is shipping free?
Are printed instructions included?
Do I need anything else to use it?
Ask us before you order
Send your exact hardware model and we'll confirm the right part before you spend $311.99 — or tell you honestly that this isn't the one.
Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used.
