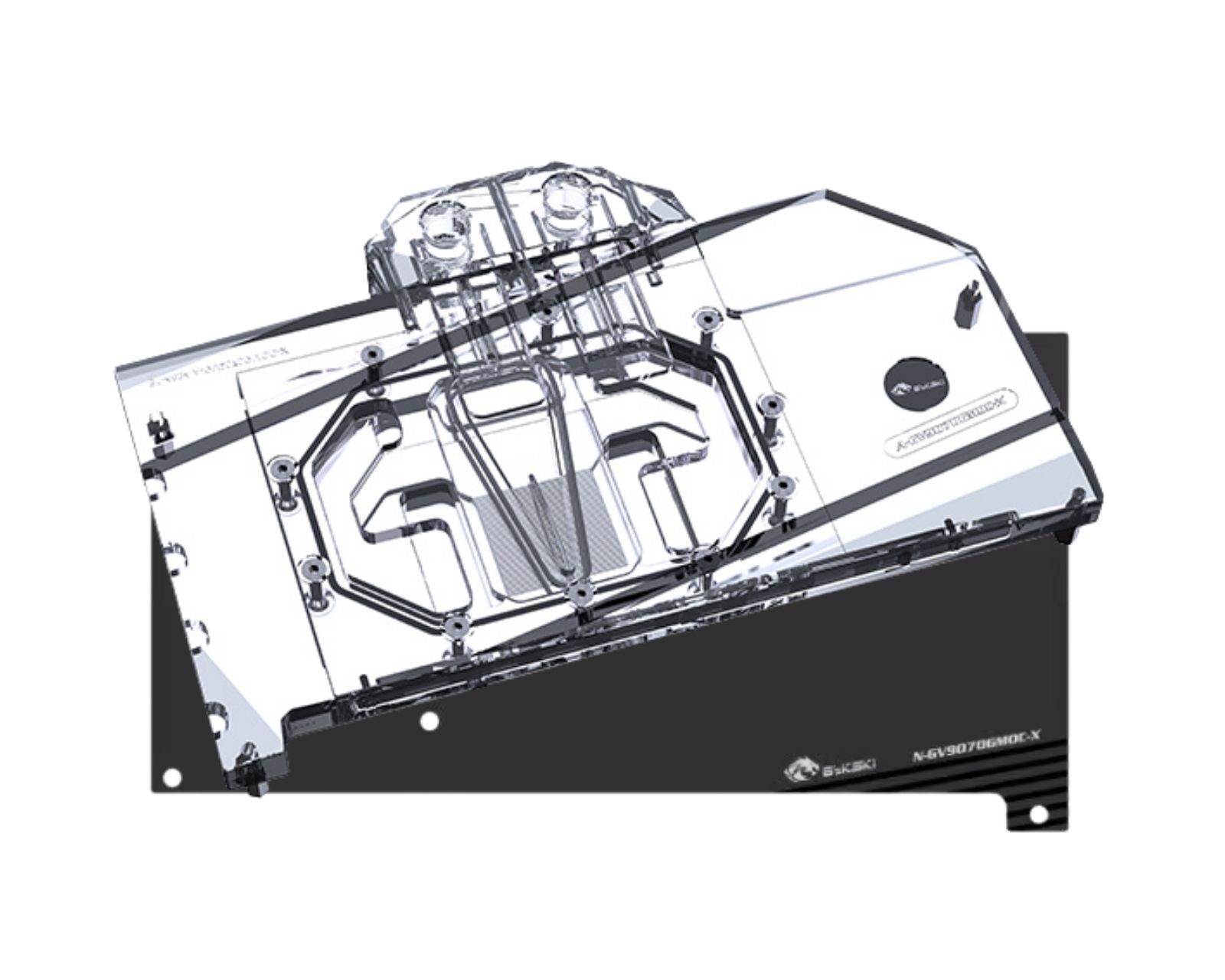

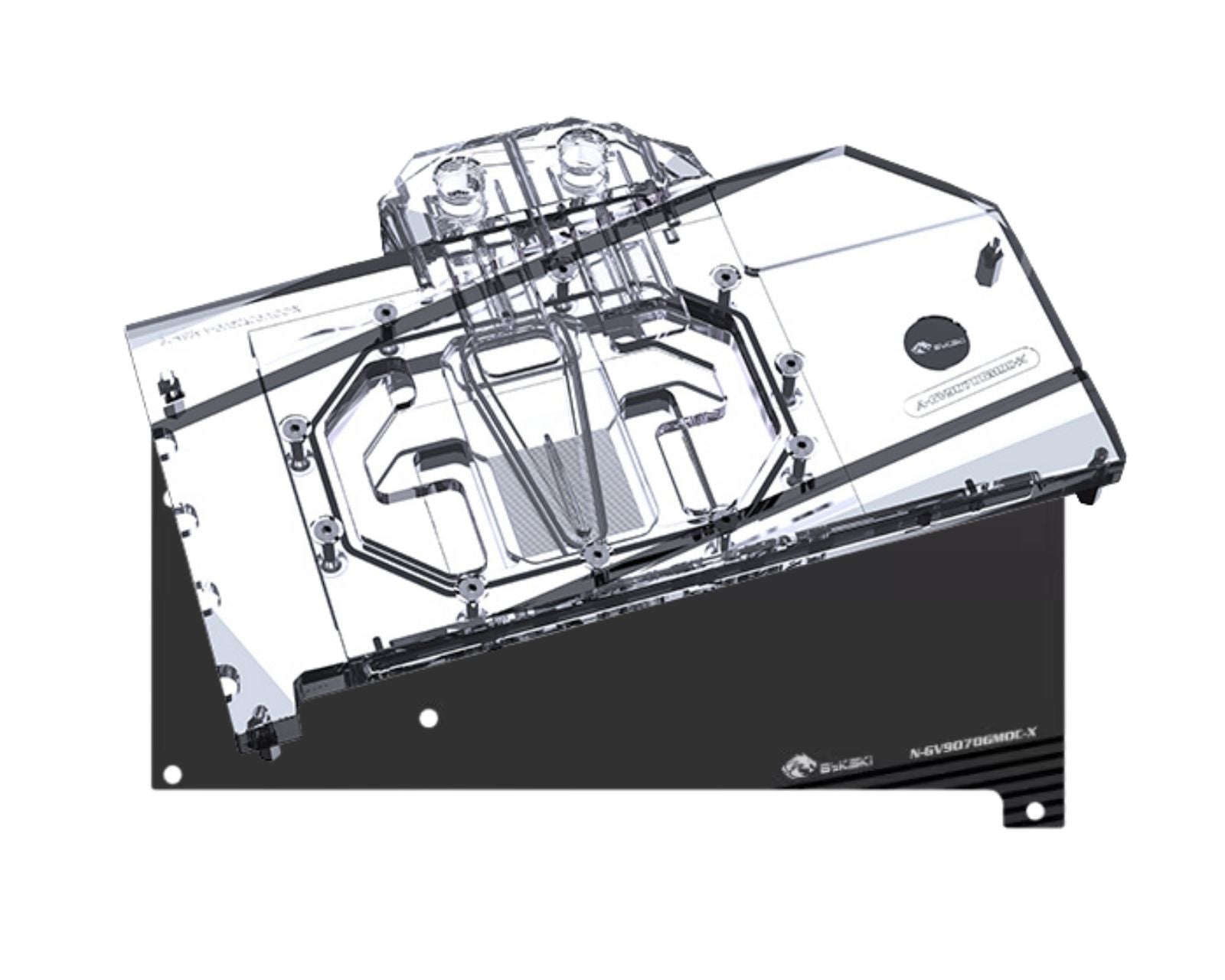

The Bykski A-GV9070GMOC-X is a full-coverage GPU water block with a matching aluminum backplate. Its copper base covers the GPU chip, the memory and the power stages, and the transparent top shows the coolant loop.

Cooling the memory and power stages directly, not only the GPU chip, lowers card temperatures under load and removes the stock cooler's fan noise from the build. It is the choice for a custom loop over an AIO.

Specifications

• Block Material: Nickel-plated T2 copper, acrylic top

• Backplate Material: Black anodized aluminum (not in contact with coolant)

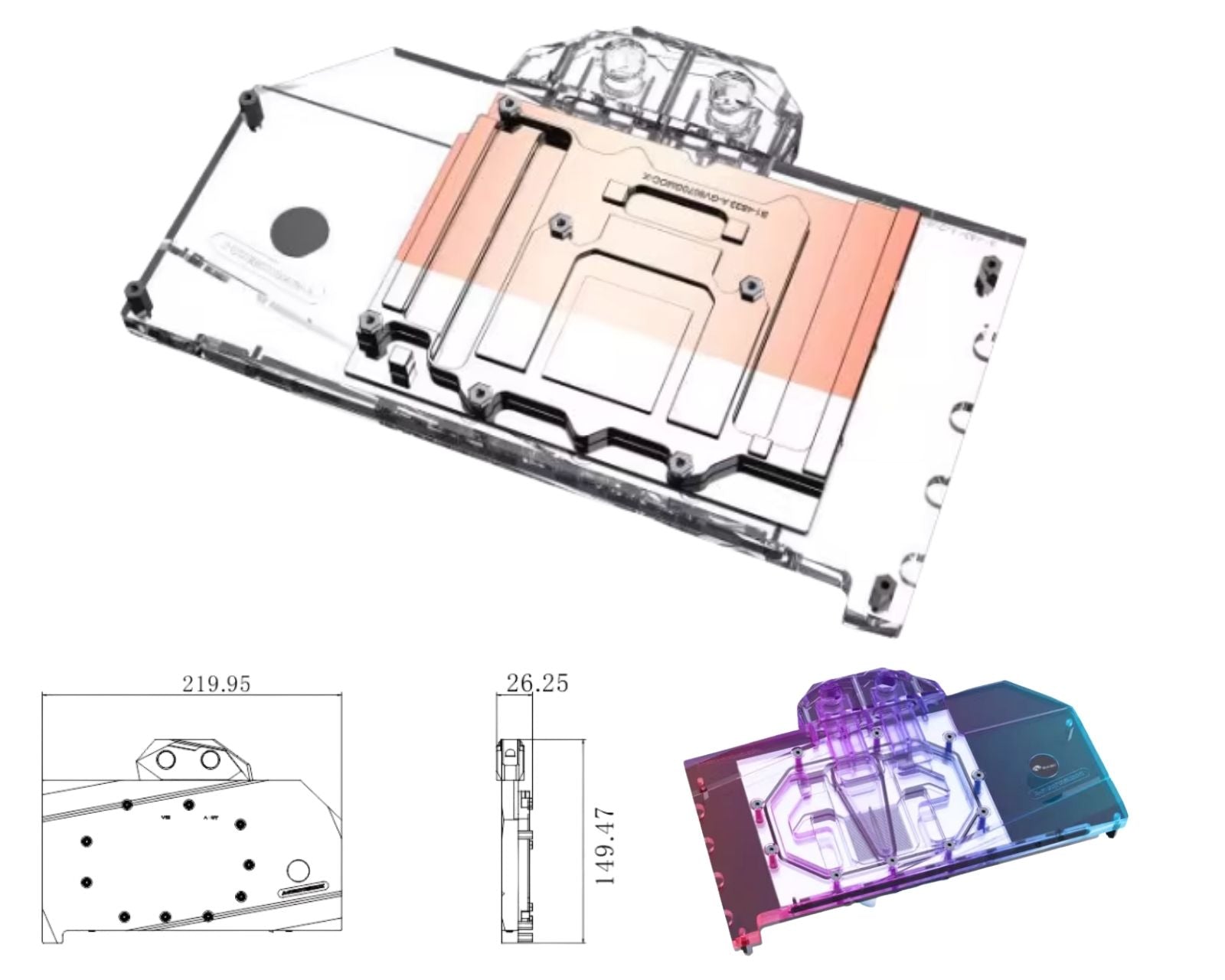

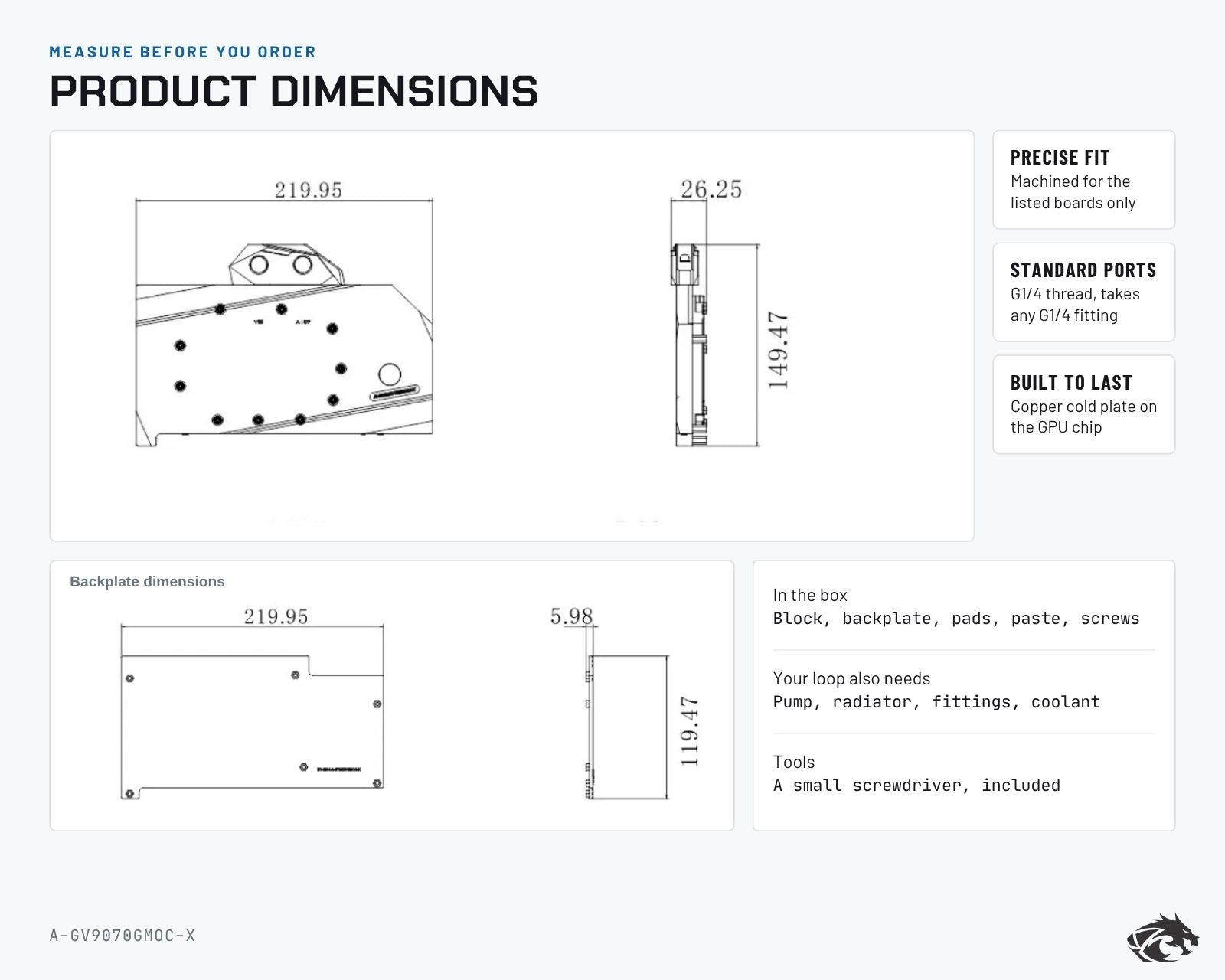

• Dimensions: 219.95 x 149.47 x 26.25 mm

• Port Thread: G1/4

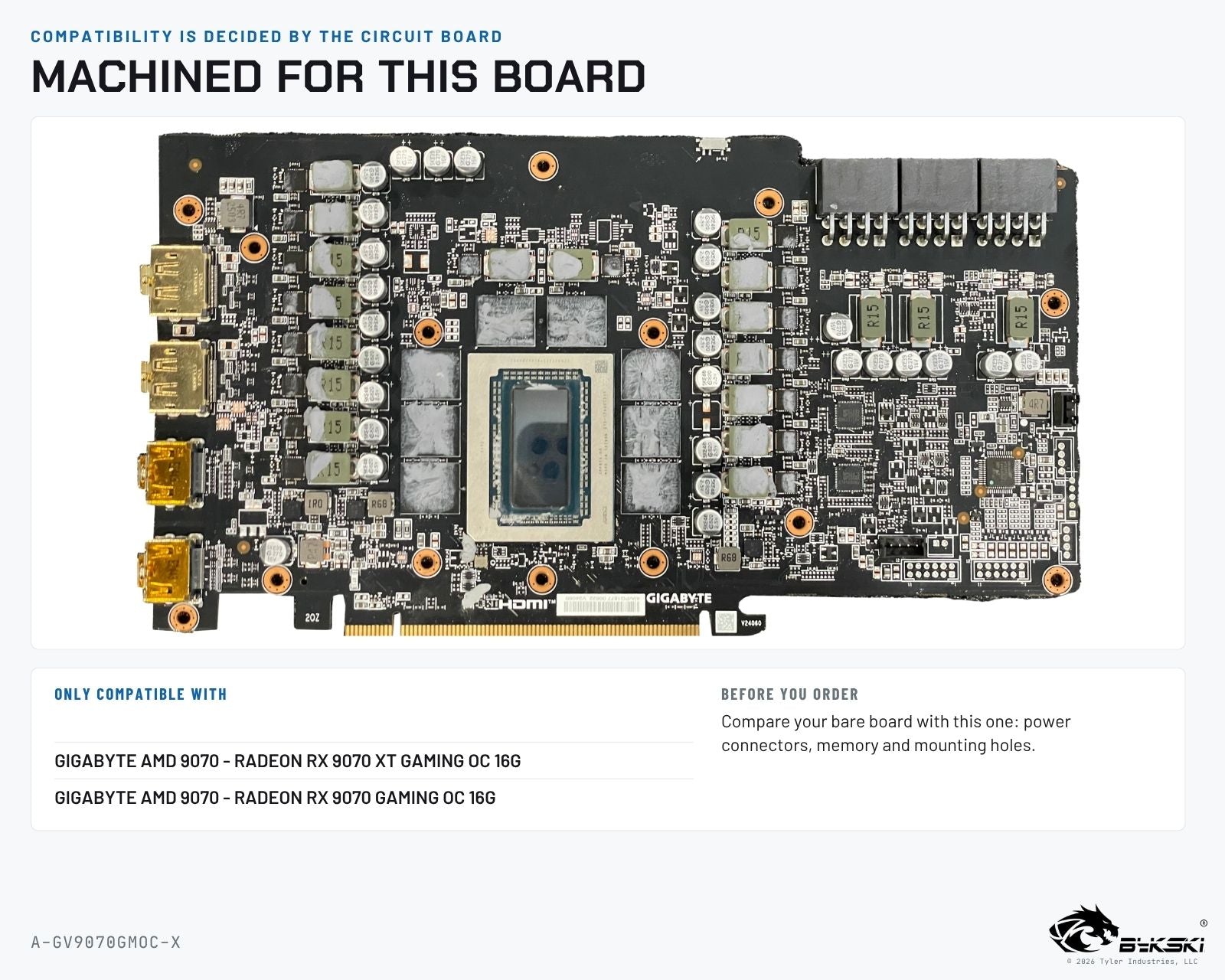

Compatibility

ONLY Compatible with:

• GIGABYTE AMD 9070 - RADEON RX 9070 XT GAMING OC 16GB

• GIGABYTE AMD 9070 - RADEON RX 9070 GAMING OC 16GB

Parts Included

• GPU water block with backplate: 1

• Aluminum backplate: 1

• Thermal paste: included

• 1.5 mm thermal pad: 4

• 0.5 mm washer: 4

• M2 x 5 mm coil spring screw: 4

• M2 x 9.5 mm backplate screw: 6

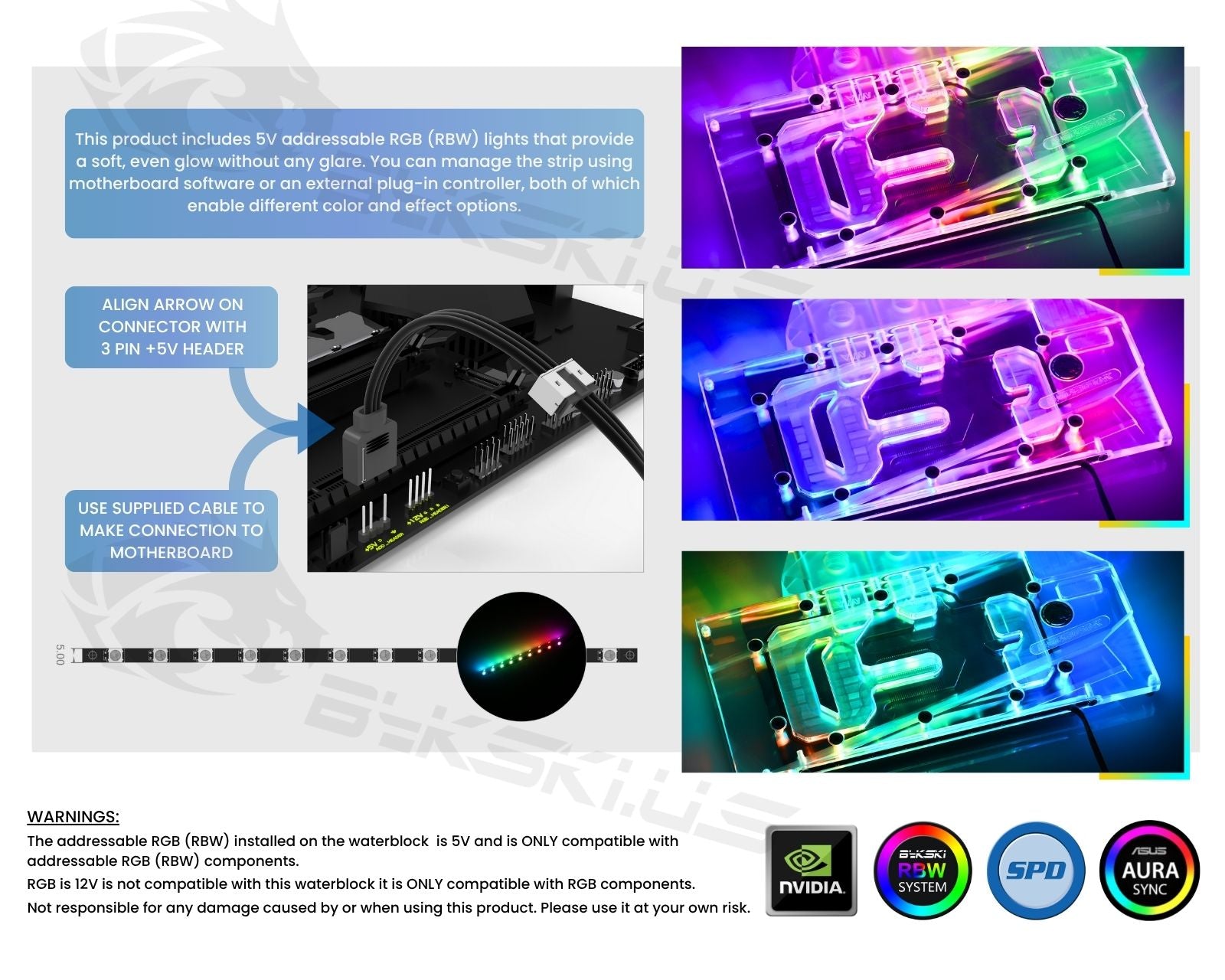

• 5V addressable RGB (RBW) strip: 1

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

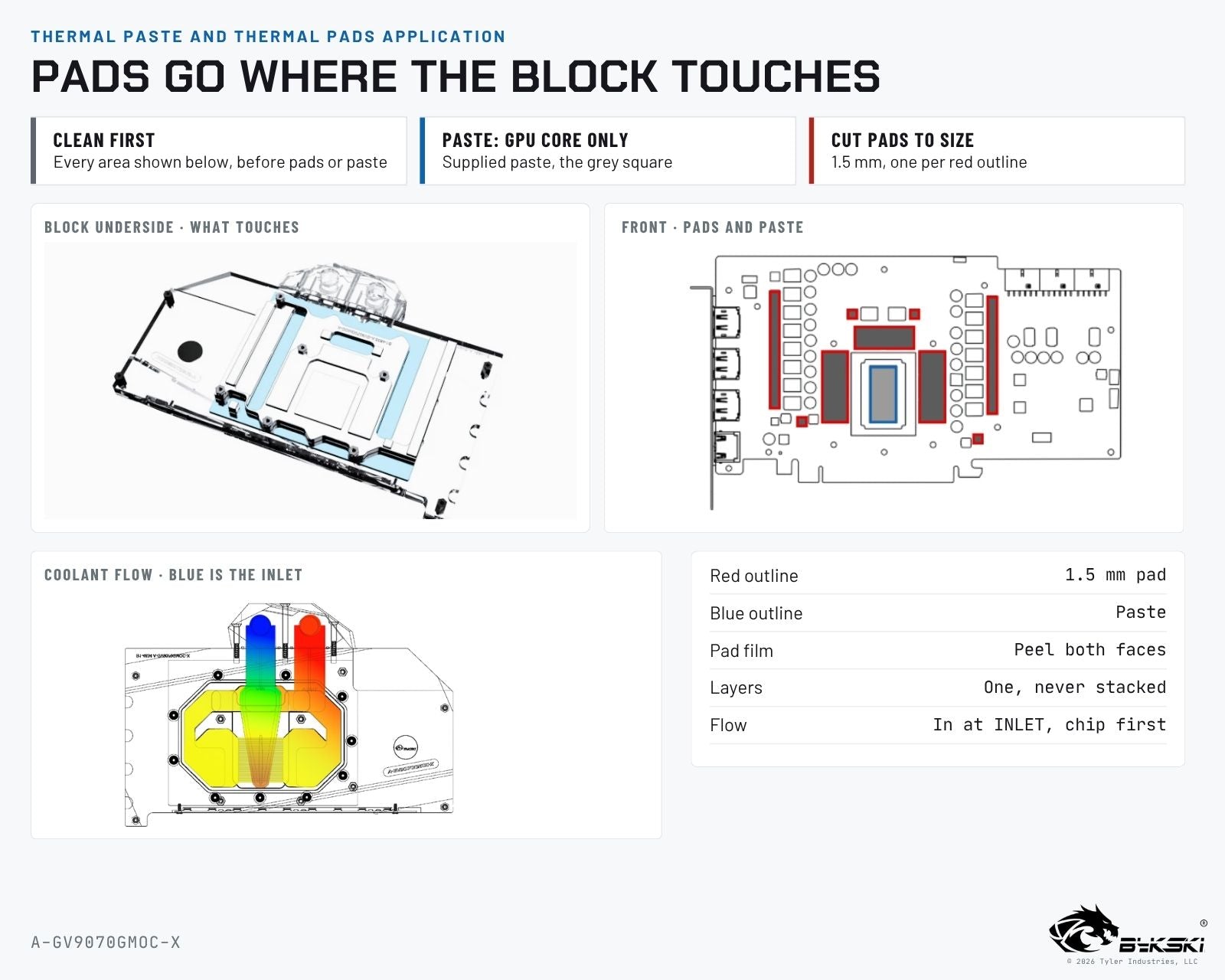

The top is acrylic. Tighten mounting screws evenly and finger tight - over-tightening cracks acrylic, and a cracked top is not covered. Installation removes the card's stock cooler, so never power the card without the loop installed and the pump running. Thermal pads go where the block has corresponding raised contact points; the GPU chip uses thermal paste.

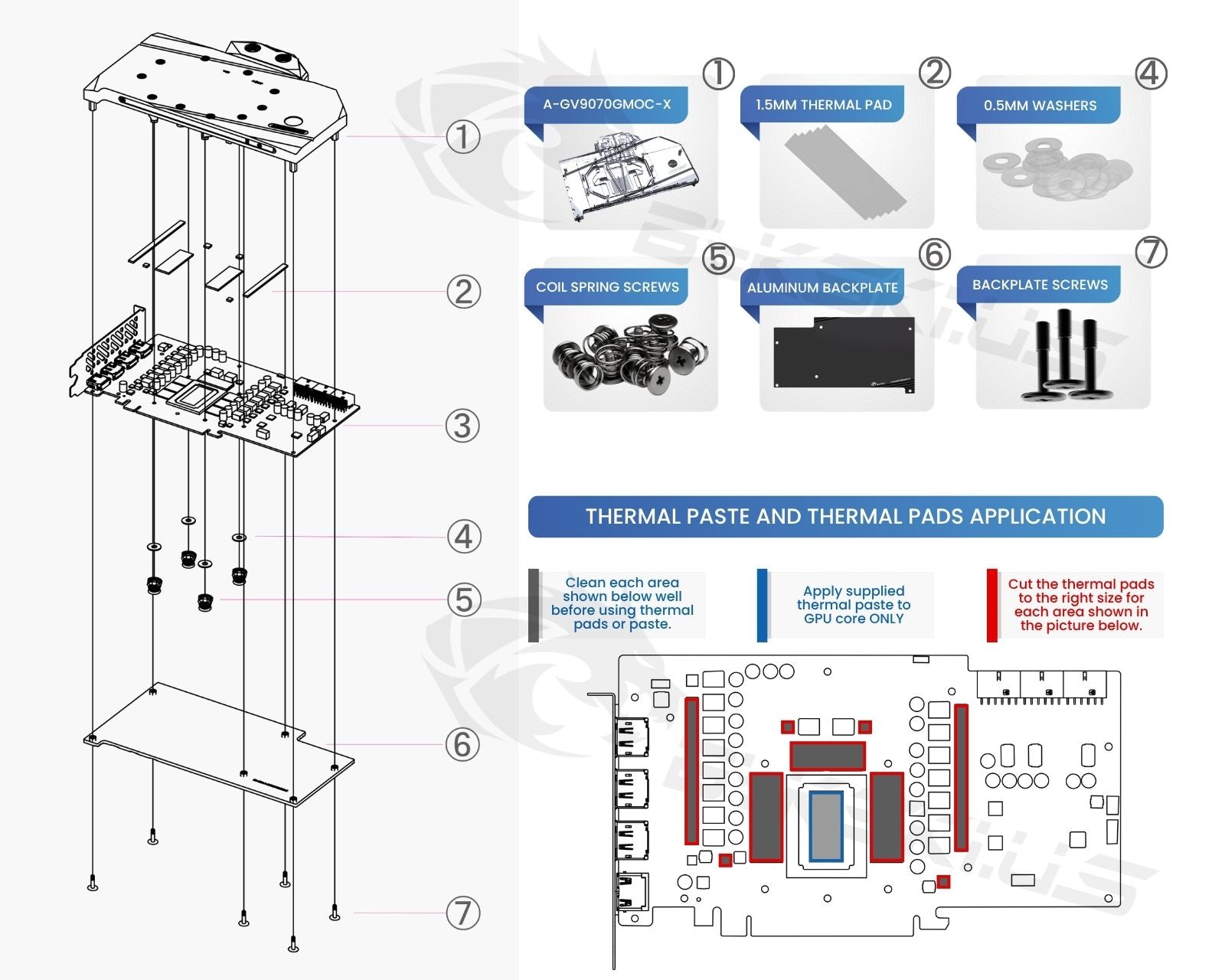

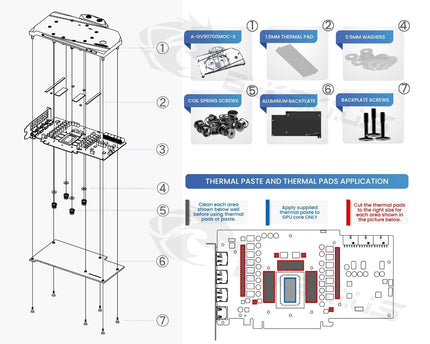

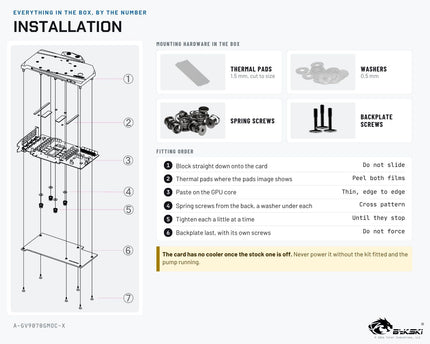

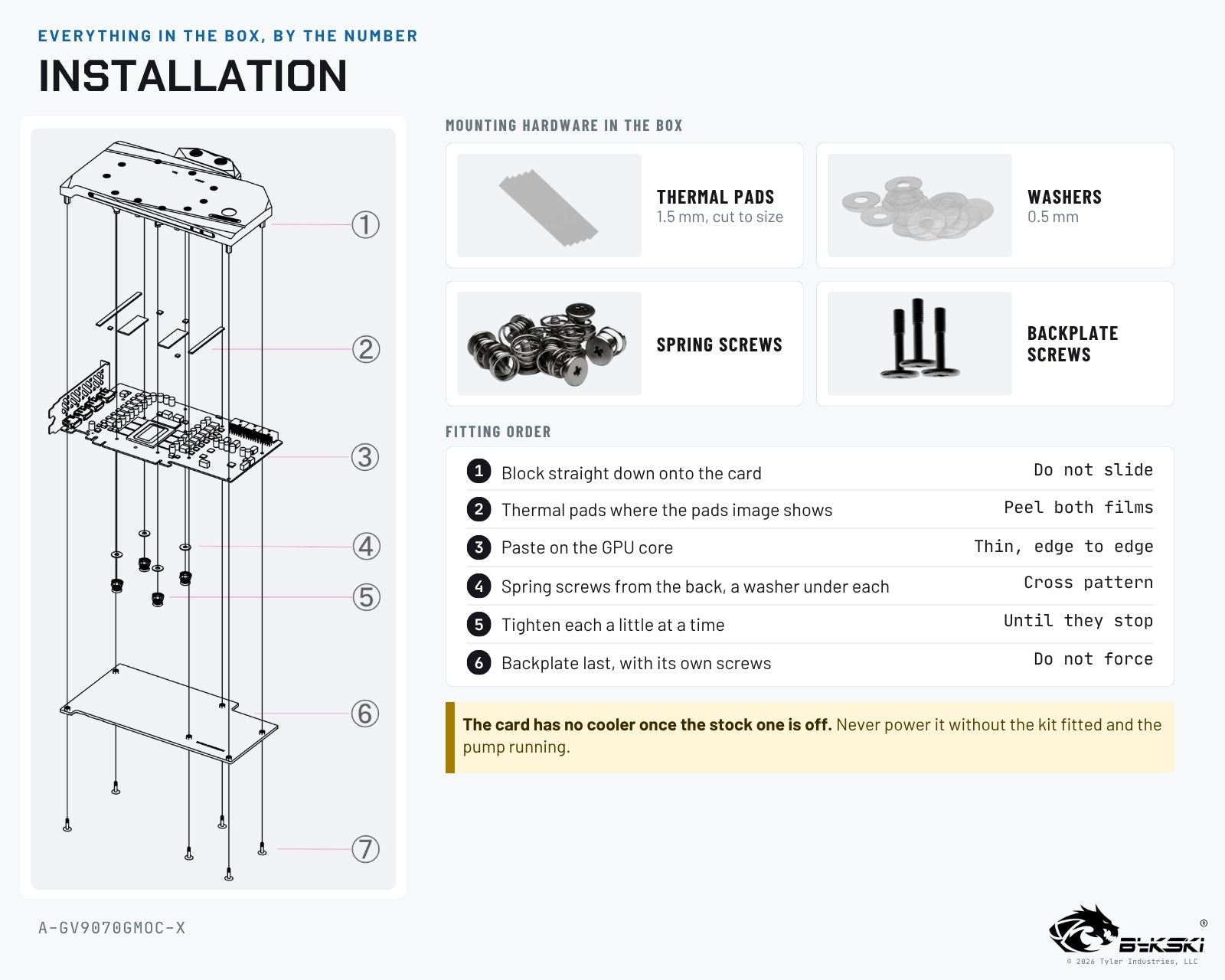

No printed instructions are included; the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
