The Bykski N-TESLA-V100-32G-SR is a continuous-duty GPU water block for NVIDIA Tesla V100 32GB FHHL accelerators. It cools the GPU chip, onboard memory, and power stages in one direct flow pass.

Engineered for 24/7 compute loads, the block features a 9.5 mm T2 copper base with electroless nickel plating to prevent oxidation. Internal 0.3 mm jet microchannels across 56 channels distribute coolant over a 13,036.95 mm² surface area. Removing the stock passive heatsink directs heat dissipation entirely to your liquid cooling loop.

Specifications

• Block Material: Nickel-plated T2 copper, Nickel-plated copper top
• Backplate Material: Black anodized aluminum (not in contact with coolant)

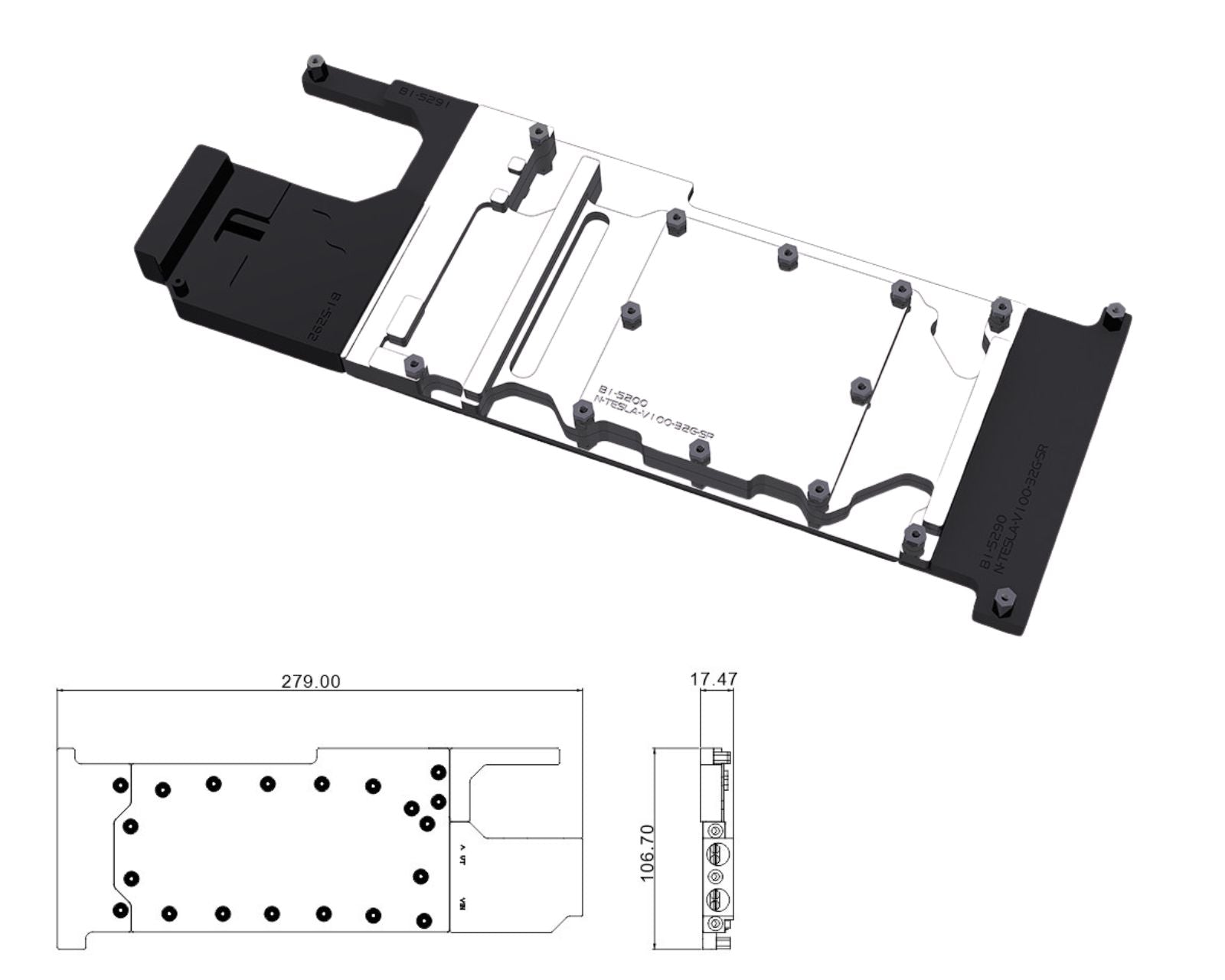

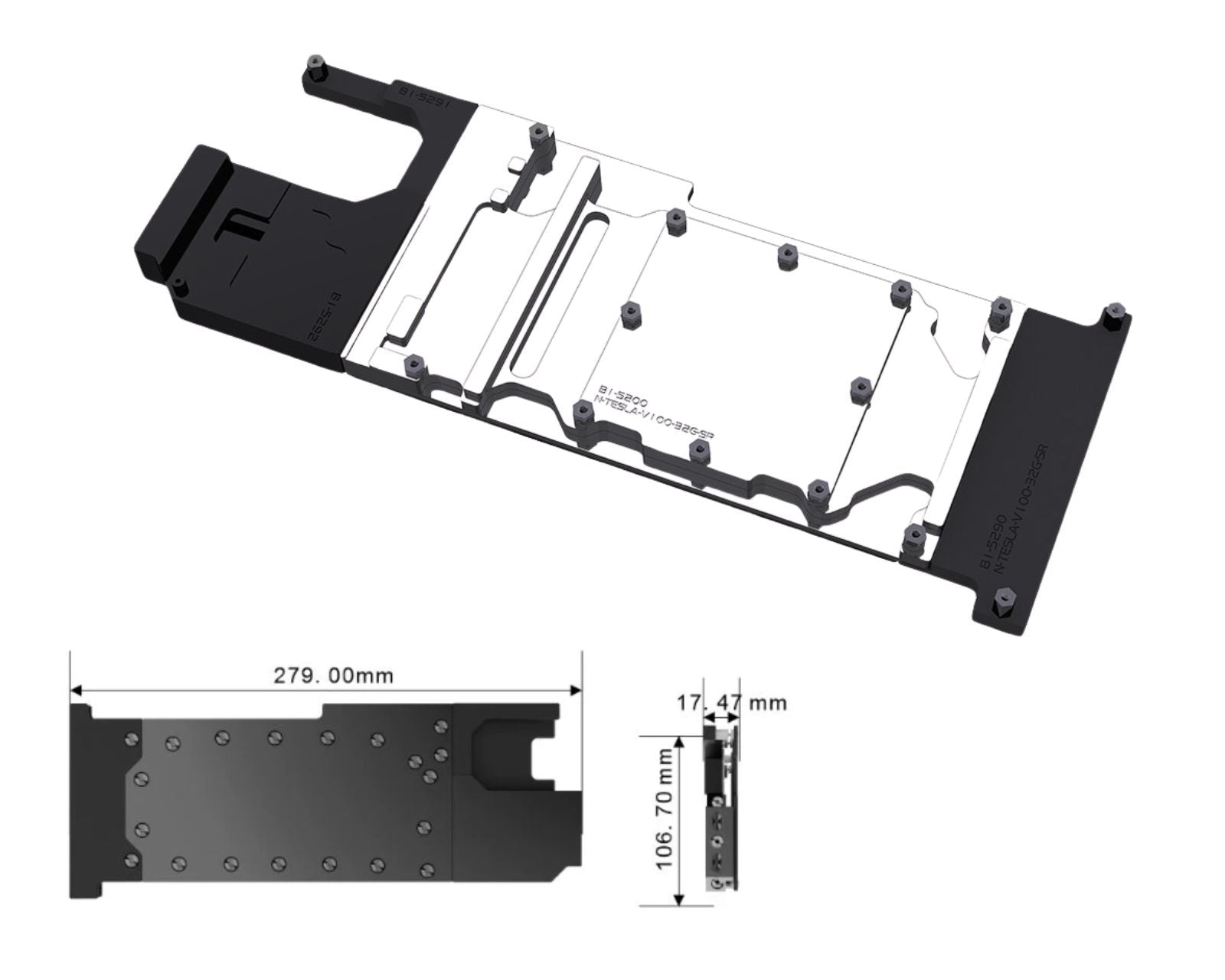

• Dimensions: 279.00 x 106.70 x 17.47 mm
• Port Thread: G1/4

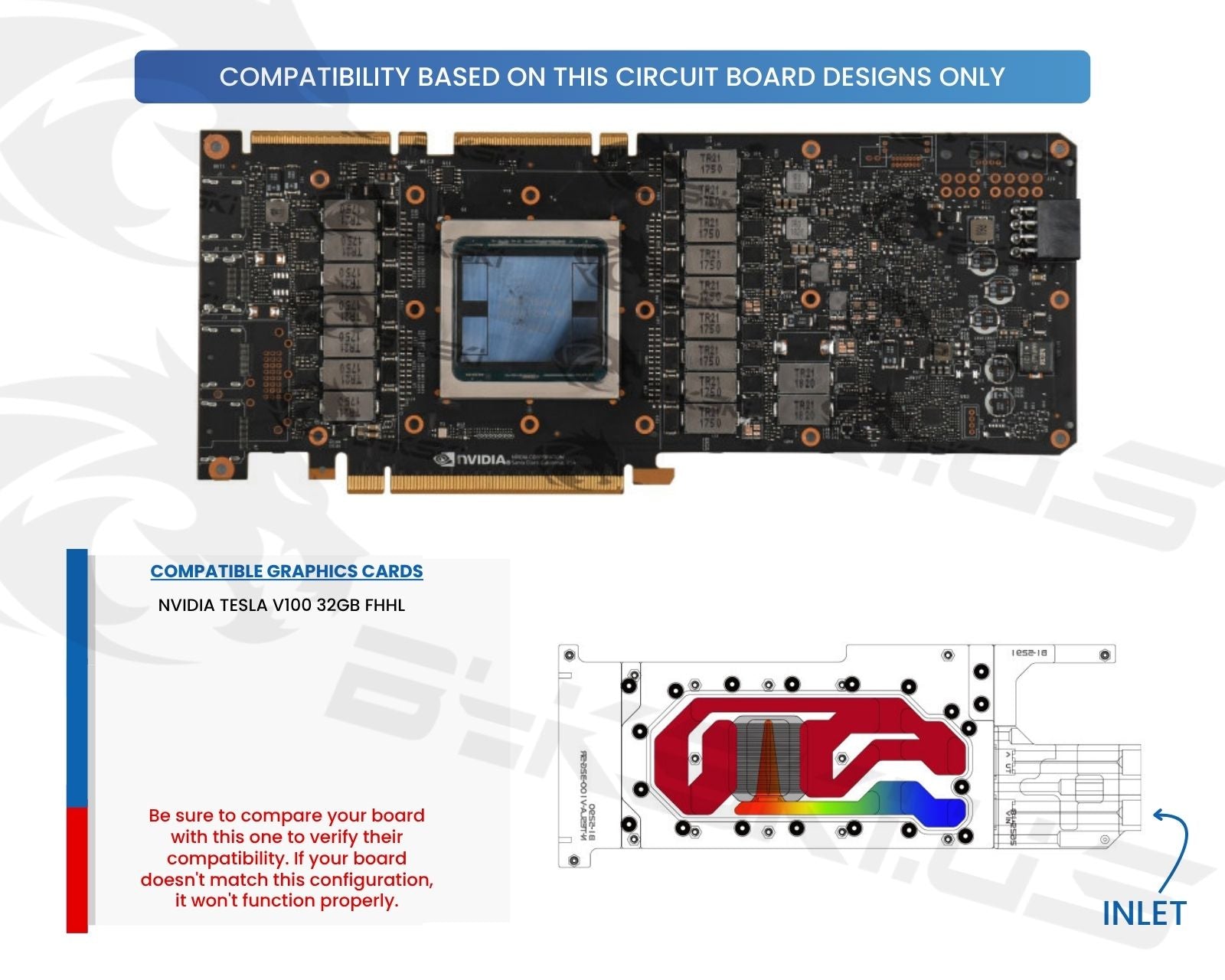

Compatibility

ONLY Compatible with:

• NVIDIA TESLA - V100 32GB FHHL

Parts Included

• GPU water block with backplate: 1
• Thermal pads: 5x 1.5 mm
• Thermal paste: 1
• Washers: 8x 0.5 mm
• Spring screws: 8x M2 x 5 mm
• Backplate screws: 8x M2 x 10.3 mm

Warnings

Warranty is repair or replacement. All returns are accepted within 30 days, no questions asked. An installed or used item comes back at a higher restocking fee.

Installation removes the card's stock heatsink, after which it can no longer be cooled by chassis air. Never power the card without the loop installed and the pump running. Thermal pads go where the block has corresponding raised contact points; the die itself uses thermal paste.

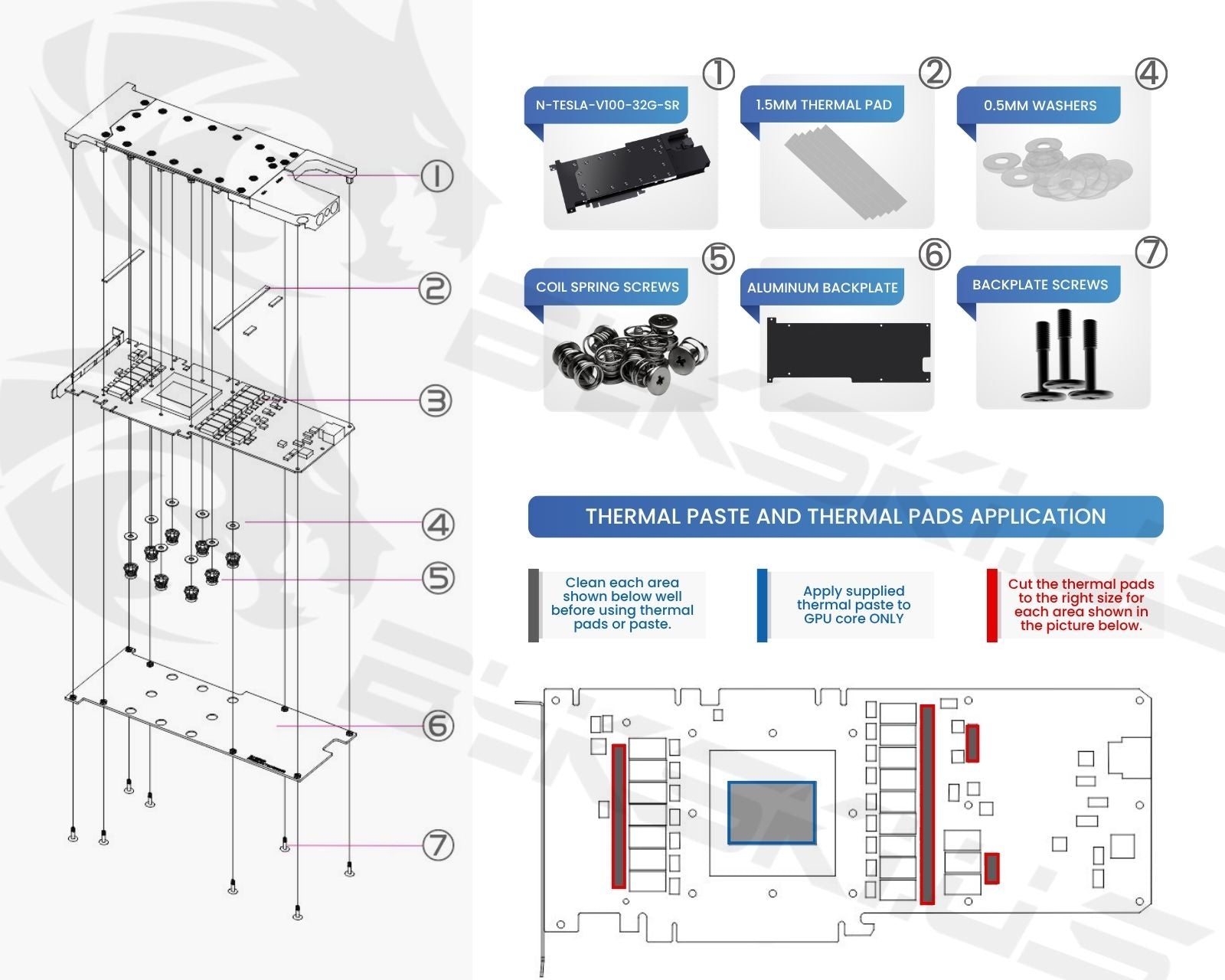

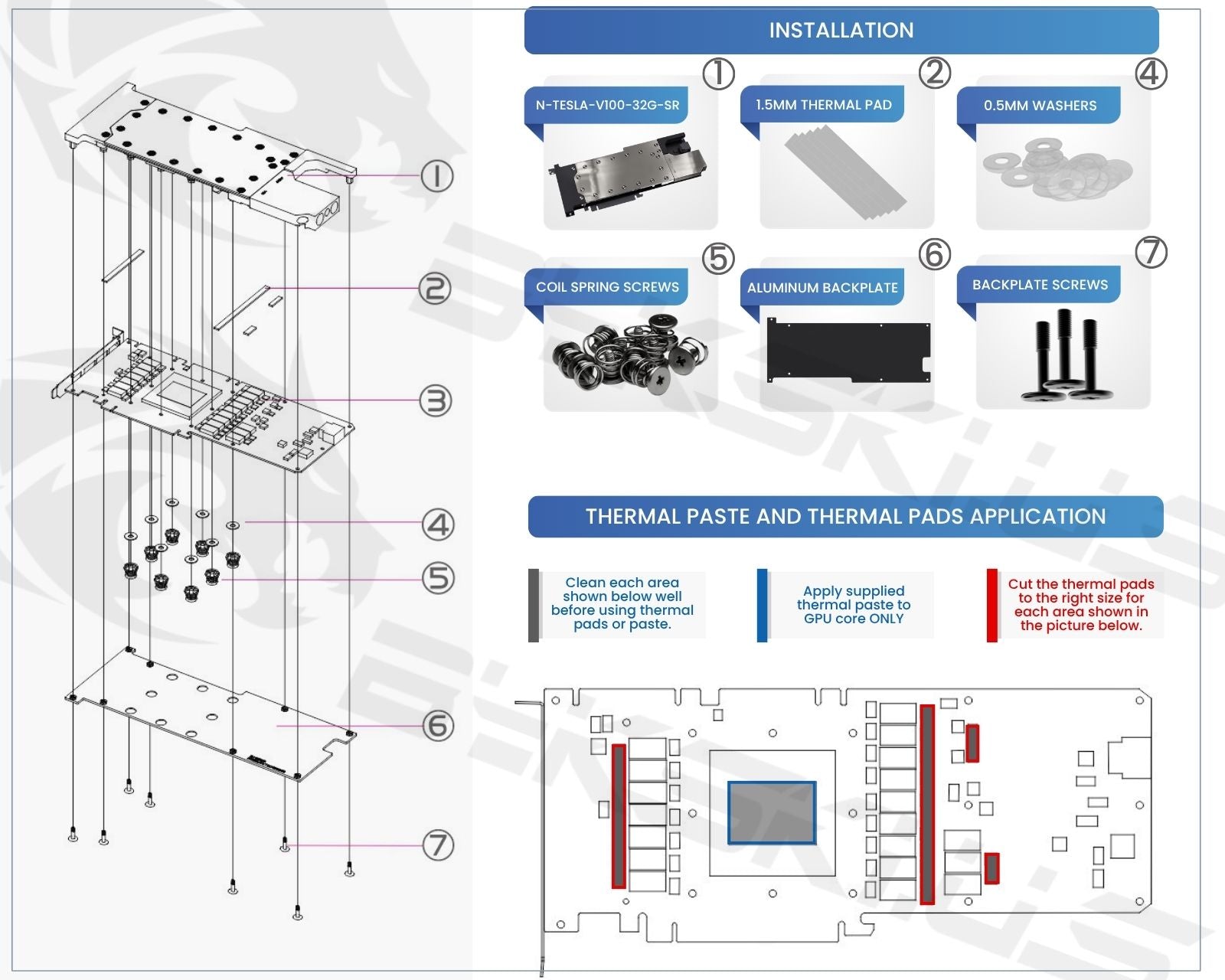

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
