Granzon GH series radiators are designed as a modular solution. Optional parts can be installed to expand the function of the radiator. The thickness of the radiator is 30mm which gives this radiator ultimate flexibility. The radiator sports 14 fins per inch and also has 14 channels.
- 14 Channel Design
- Industry Standard G1/4 Thread
- High Temperature Soldering
- Scalable, Unlimited Potential

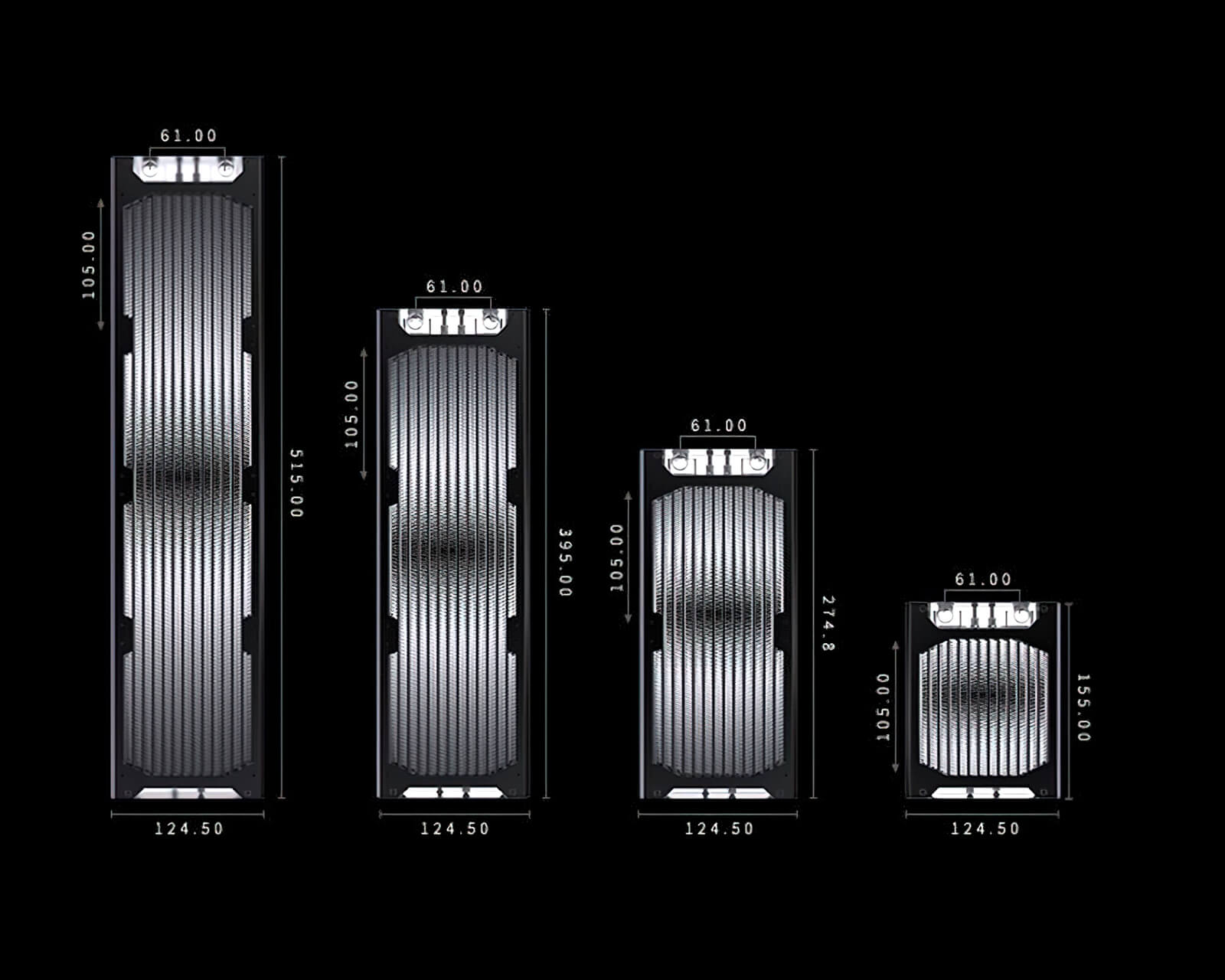

- Dimensions: 395mm x 124.5mm x 30mm
- Ports :4
- Port Thread: G 1/4
- Mount Thread: M3
- Channels: 14
- Pressure: 1.5bar
- Fin Density: 14FPI
- Fans: 120mm
- 1x Mounting Hardware

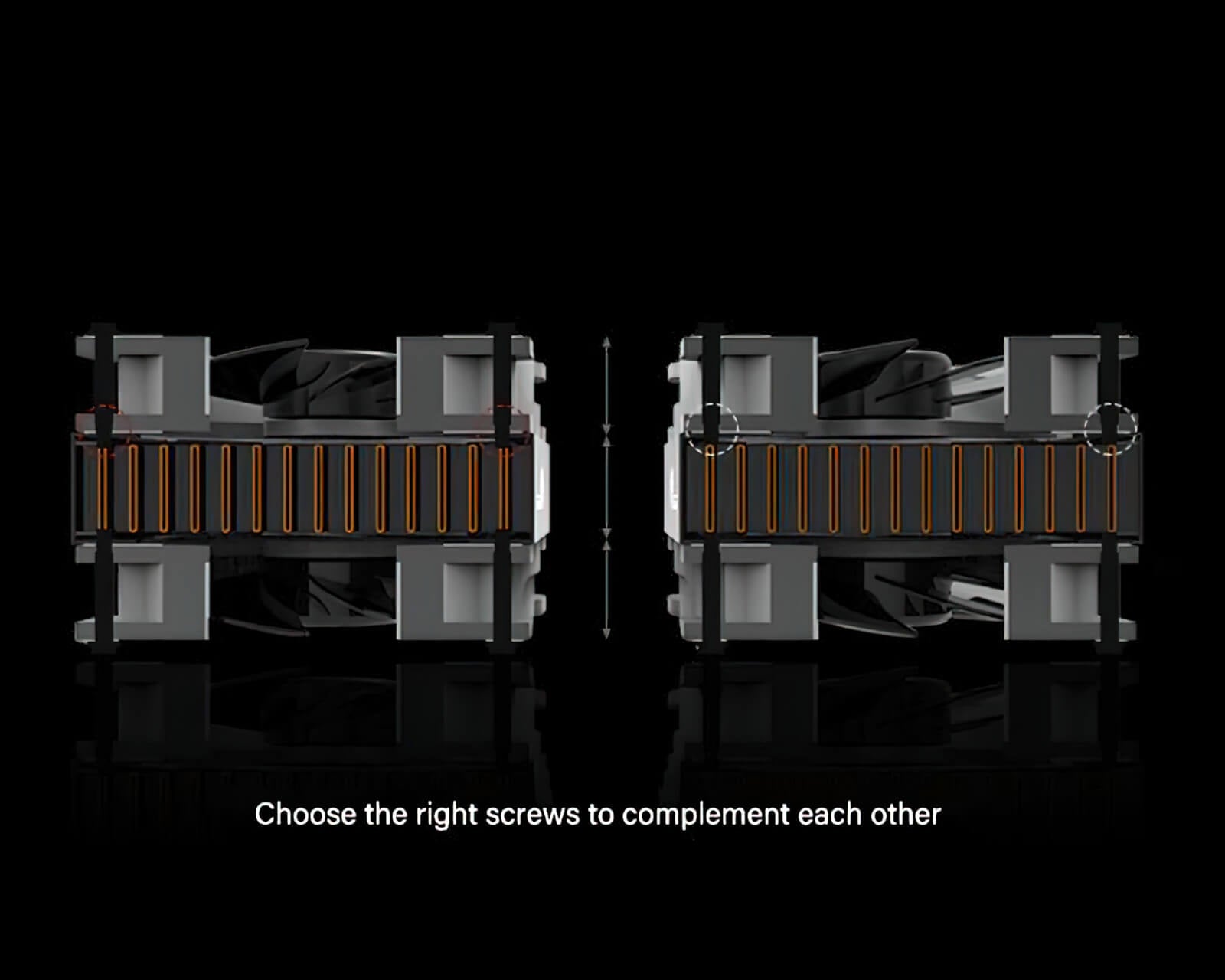

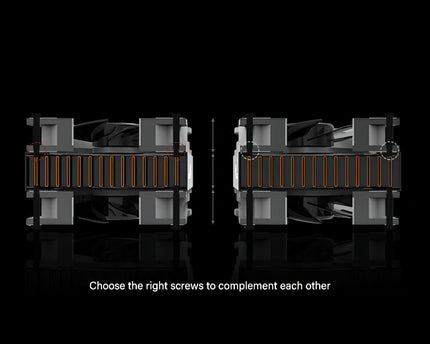

Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding warranty. Radiator comes with M3X30mm screws suitable for 120mm fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, not included).Some secondary images show optional modular parts to illustrate expandability.Not responsible for any hardware damage. Use at your own risk.
