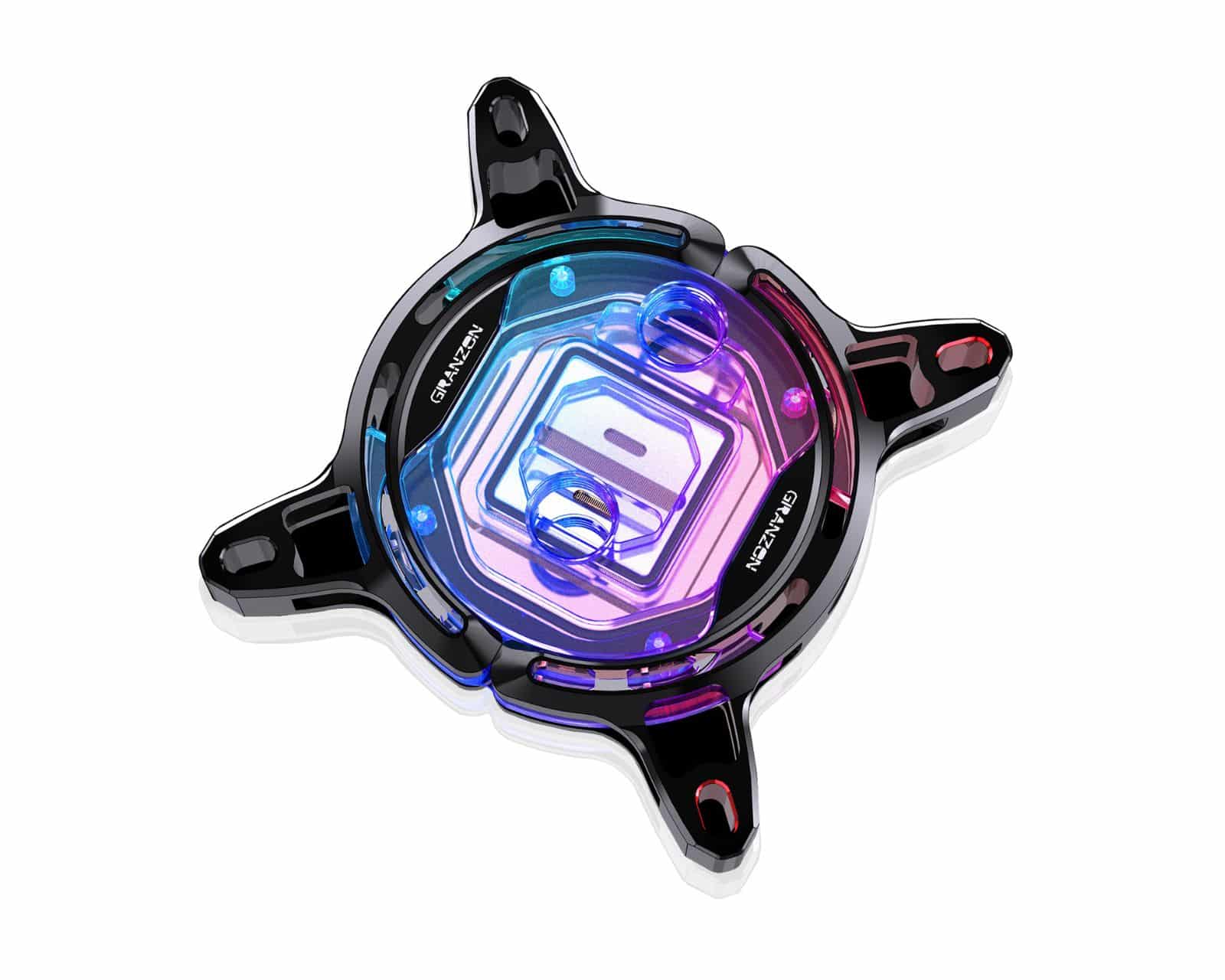

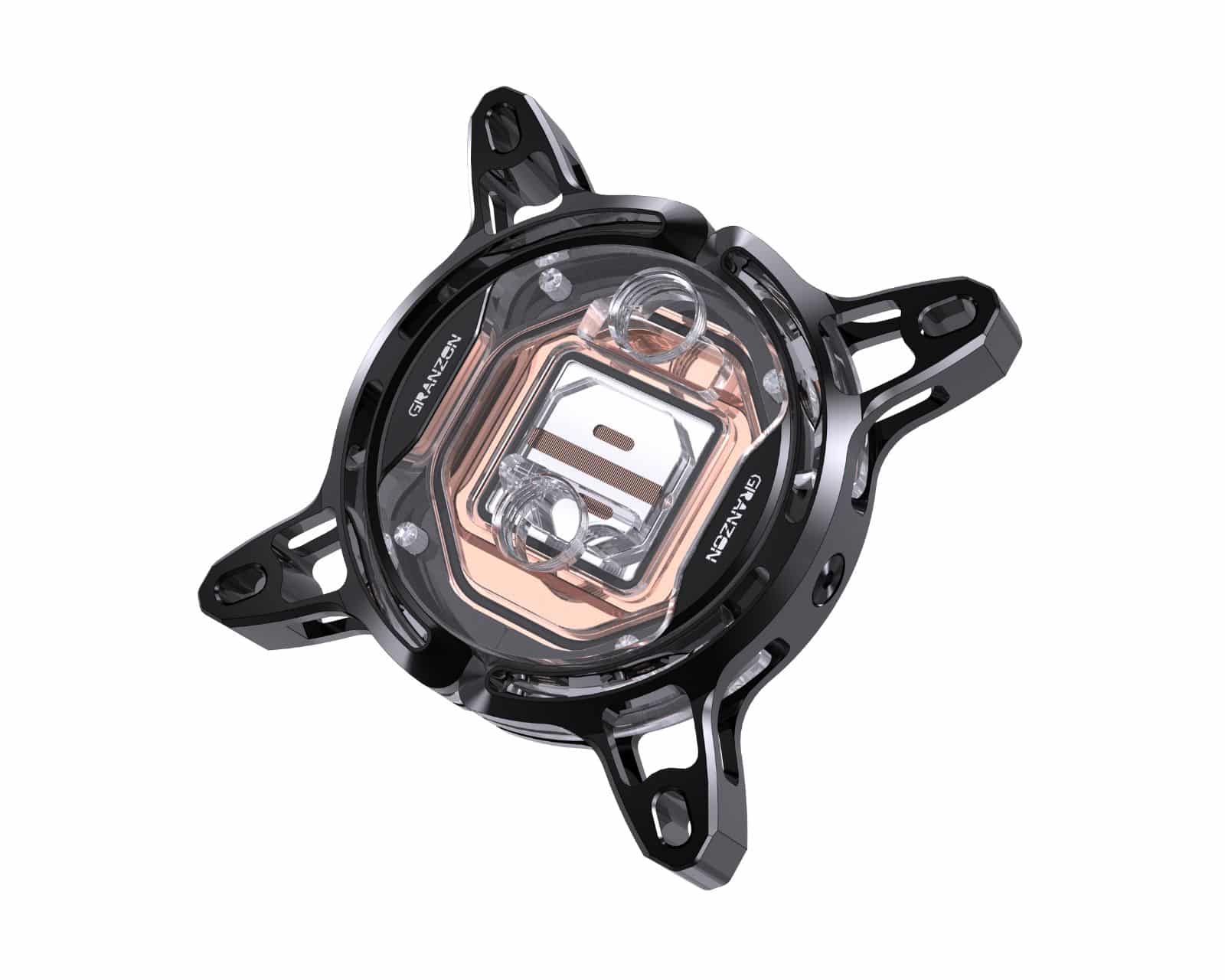

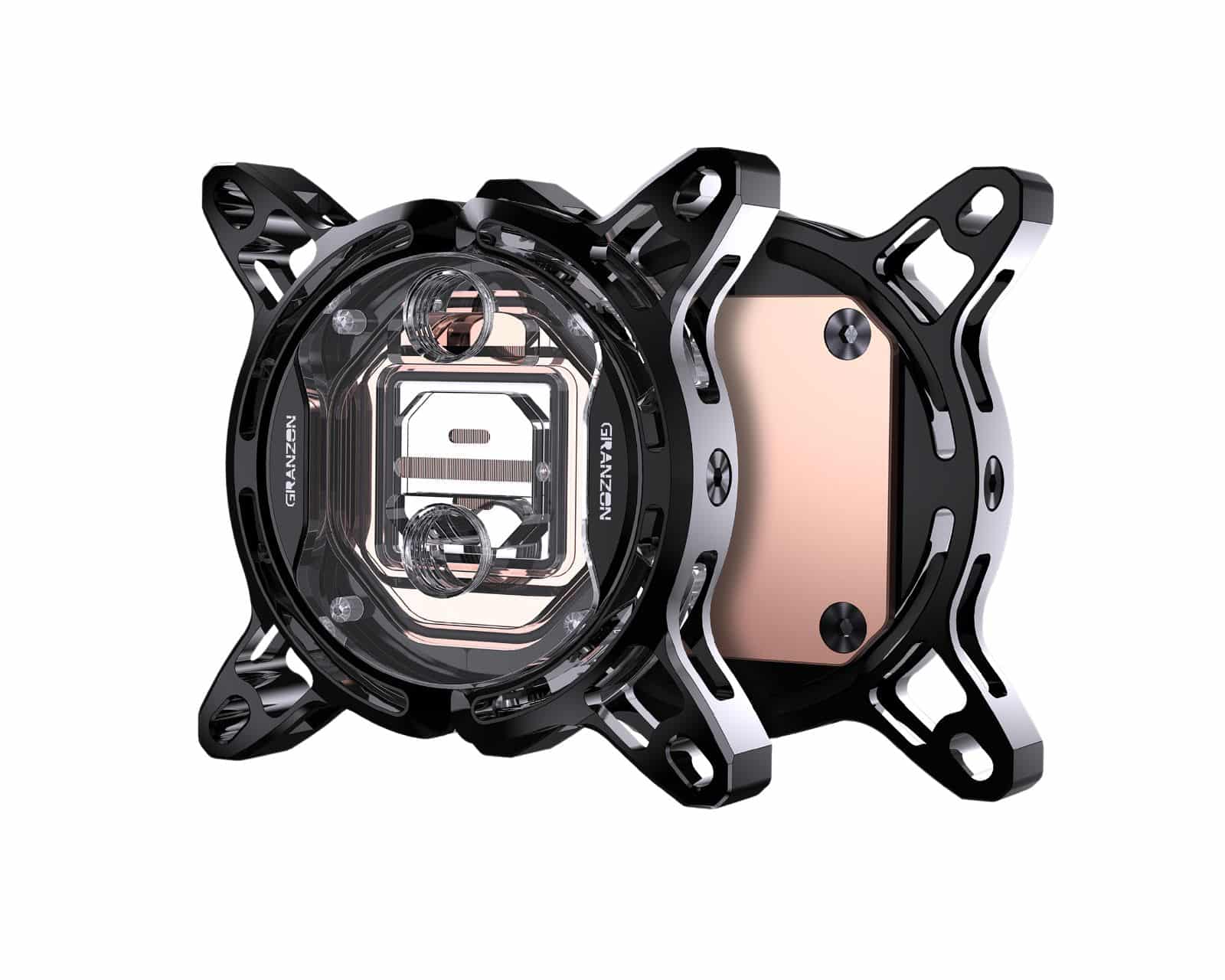

The Granzon GAI0.1 CPU water block fits 1st through 9th Gen Intel Core processors (LGA 115x), with hardware supporting LGA 1200, LGA 1700, LGA 2011, and LGA 2066. A pure red copper cold plate and an aluminum alloy frame deliver direct heat transfer from the CPU IHS.

Coolant enters through G1/4 ports spaced 33.56 mm apart, feeding a jet plate and micro-channels 0.1 mm in the copper base. Integrated 5V addressable RGB lighting illuminates the acrylic chamber. (Not available in POM top).

Specifications

• Block Material: Pure copper

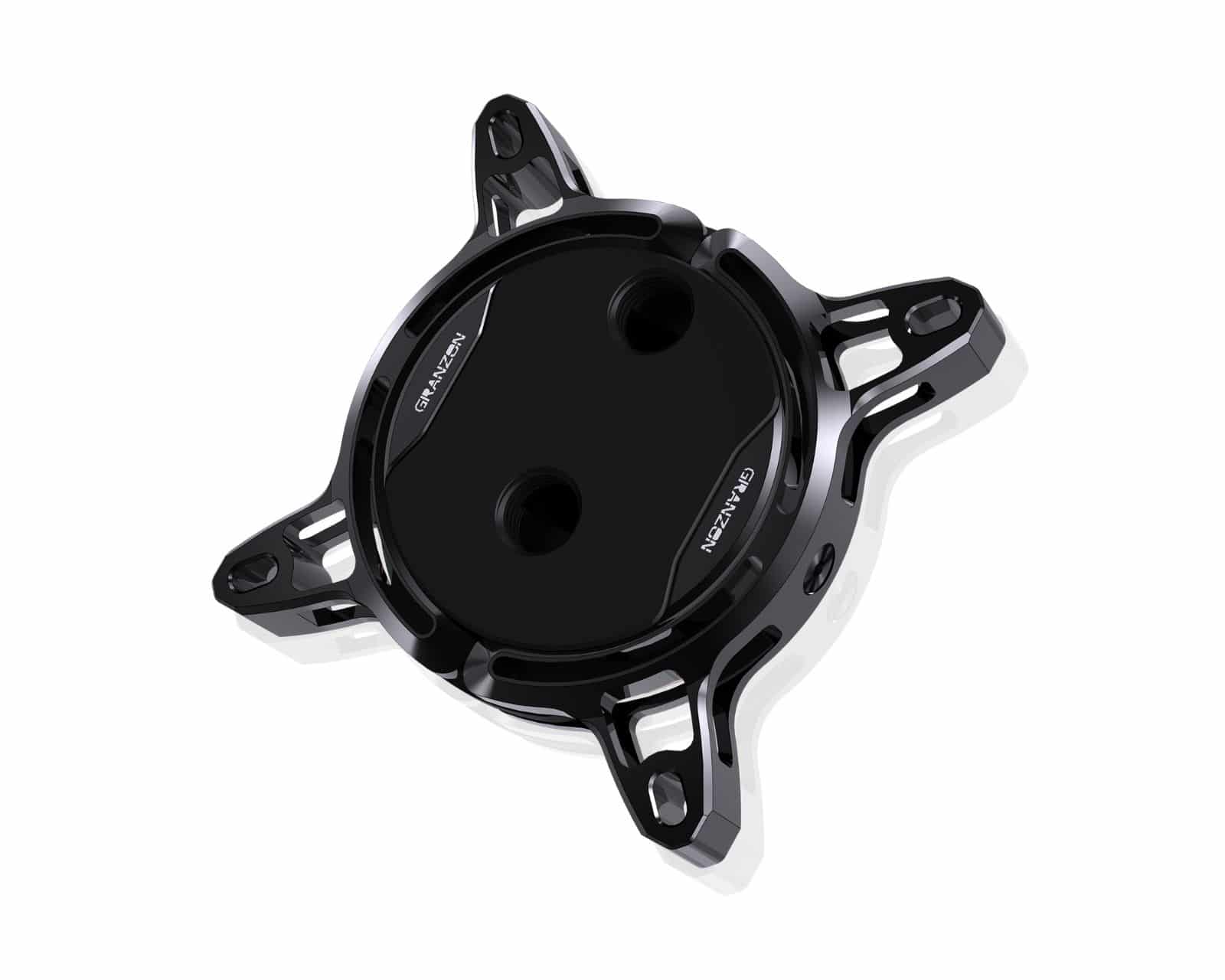

• Top Options: PMMA/acrylic (A-RGB), Black POM

• Dimensions: 90.00 x 90.00 x 18.50 mm

• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• Intel 1st gen Core LGA 1156 i7-8xx / i5-7xx / i3-5xx

• Intel 2nd gen Core i7-2xxx / i5-2xxx / i3-2xxx

• Intel 3rd gen Core i7-37xx / i5-3xxx / i3-3xxx

• Intel 4th gen Core i7-47xx / i5-4xxx / i3-4xxx

• Intel 5th gen Core i7-57xx / i5-5xxx

• Intel 6th gen Core i7-67xx / i5-6xxx / i3-6xxx

• Intel 7th gen Core i7-77xx / i5-7xxx / i3-7xxx

• Intel 8th gen Core i7-8xxx / i5-8xxx / i3-8xxx

• Intel 9th gen Core i9-9xxx / i7-9xxx / i5-9xxx

Parts Included

• 1x CPU Water Cooling Block

• 1x Mounting Hardware

• 1x 5v Addressable RGB (RBW)

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

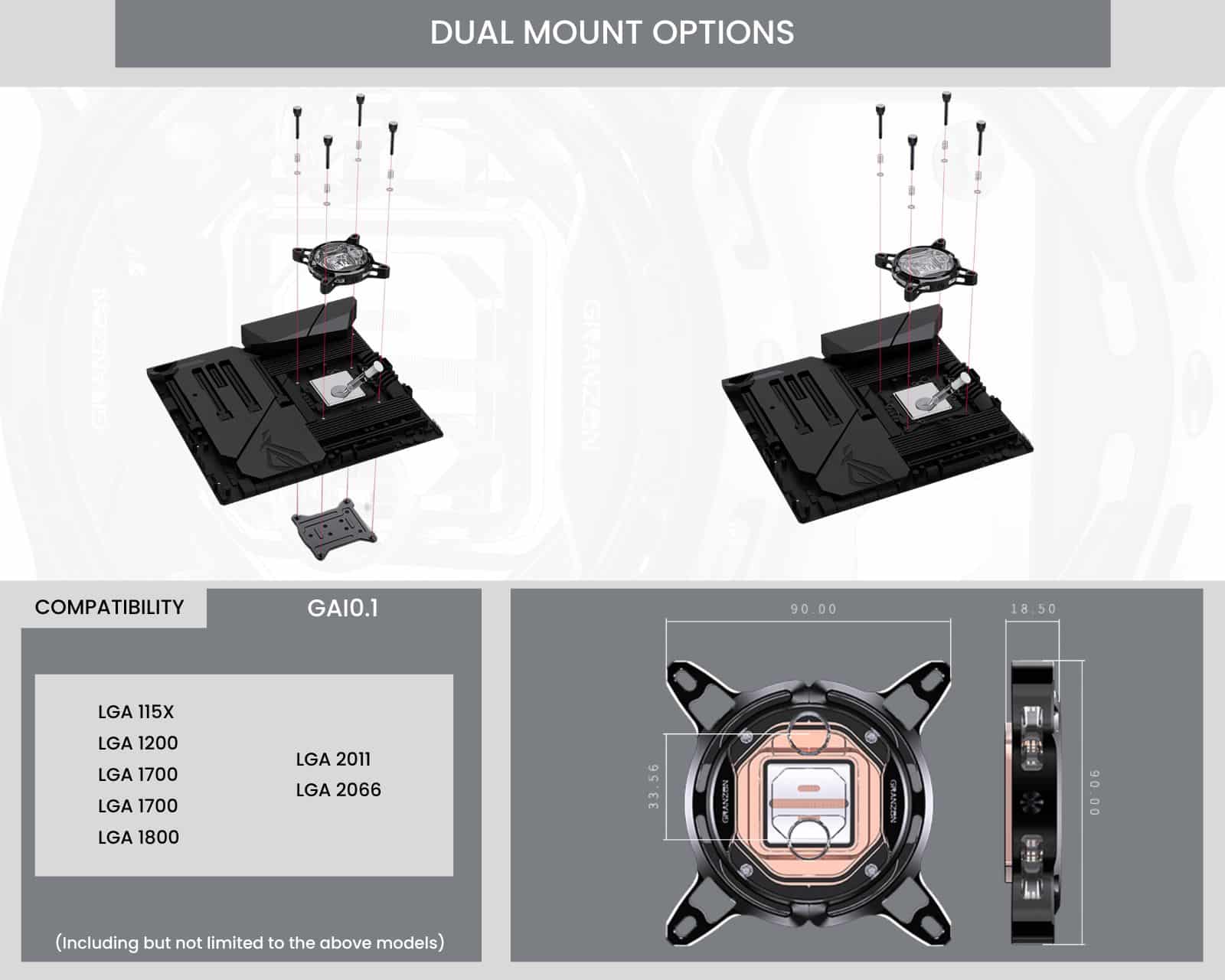

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
