The Granzon GAMS CPU water cooling block fits AMD Ryzen desktop processors from Ryzen 1000 through Ryzen 9000 series (AM4 and AM5). It mounts to standard AMD socket configurations for custom liquid loops.

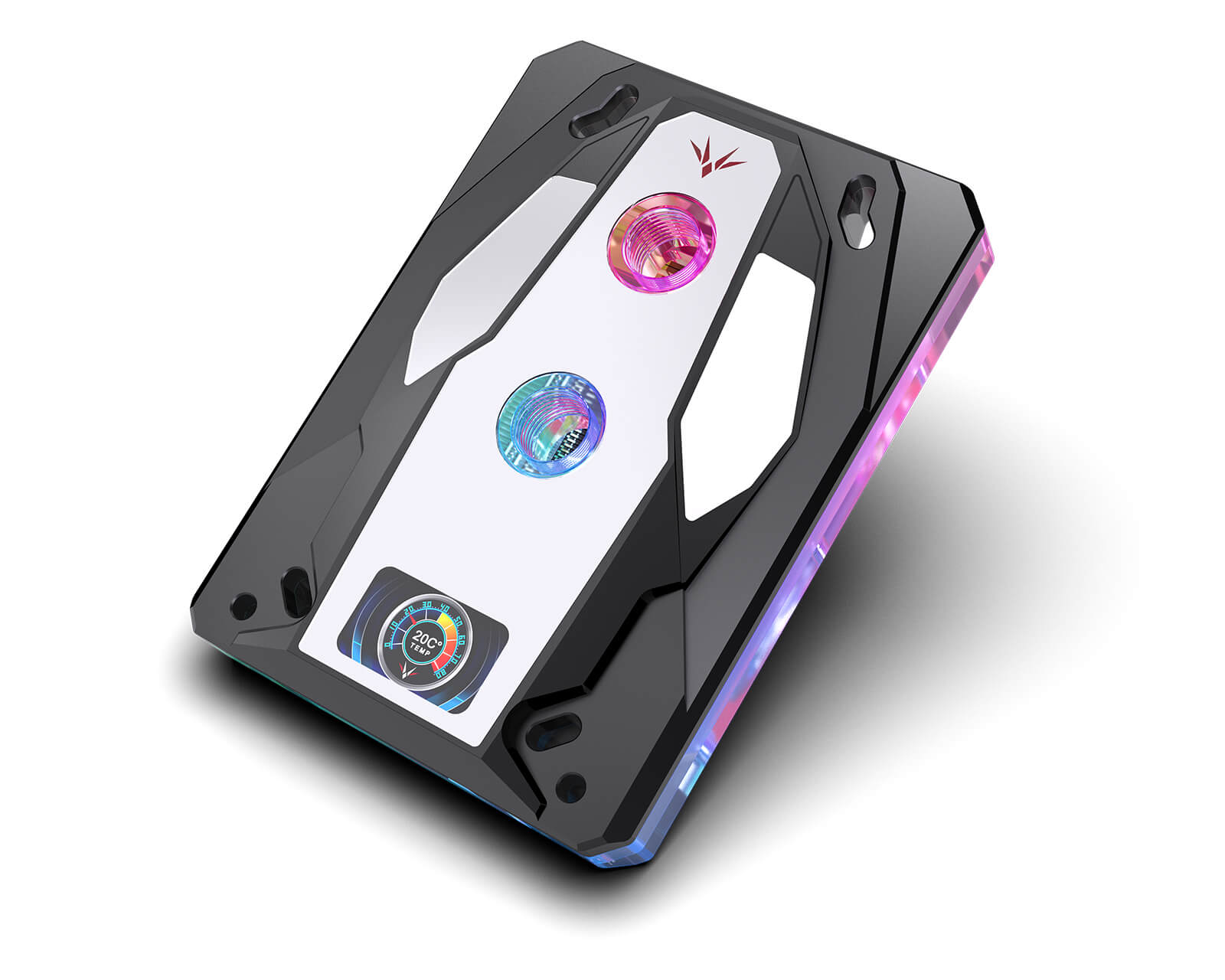

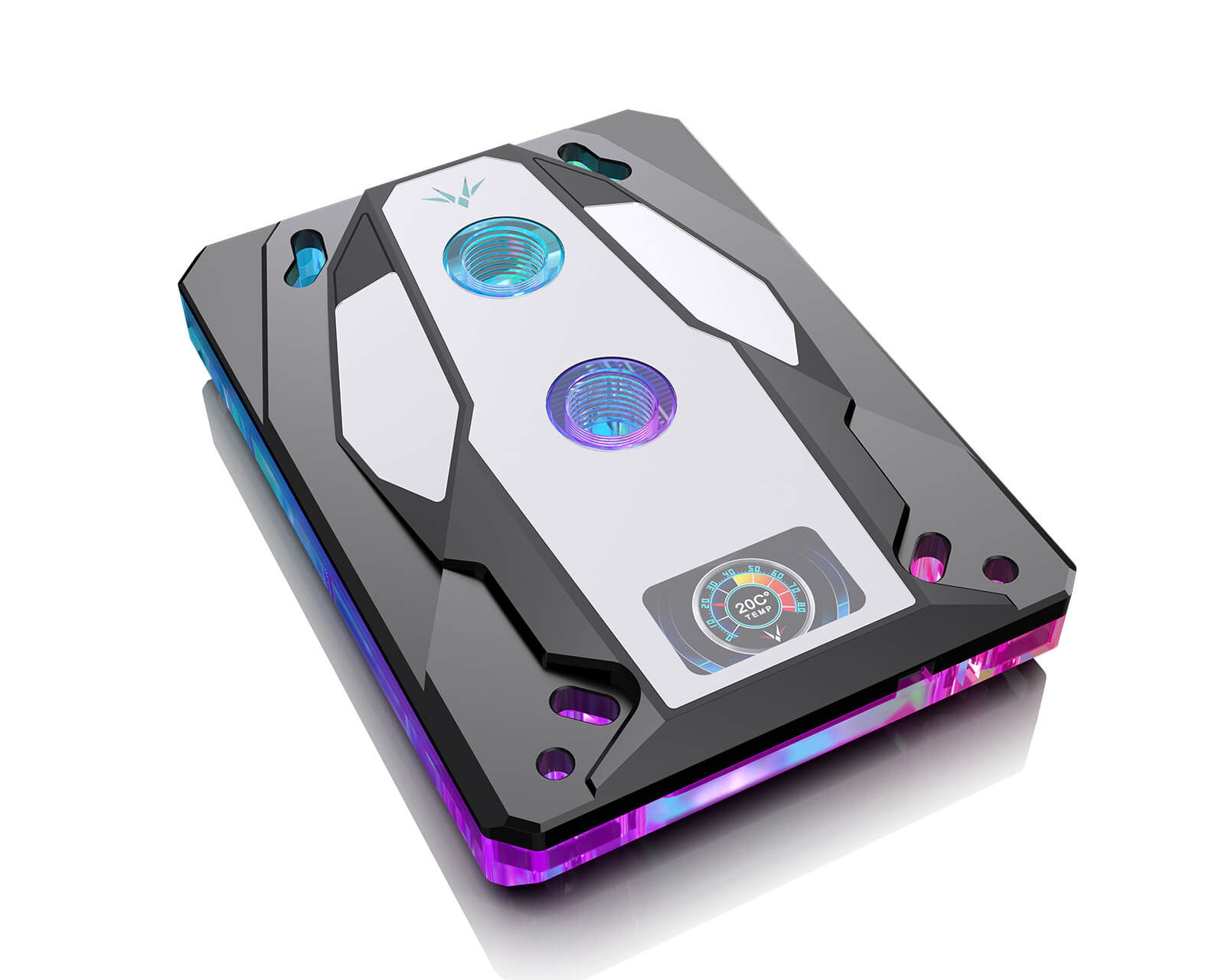

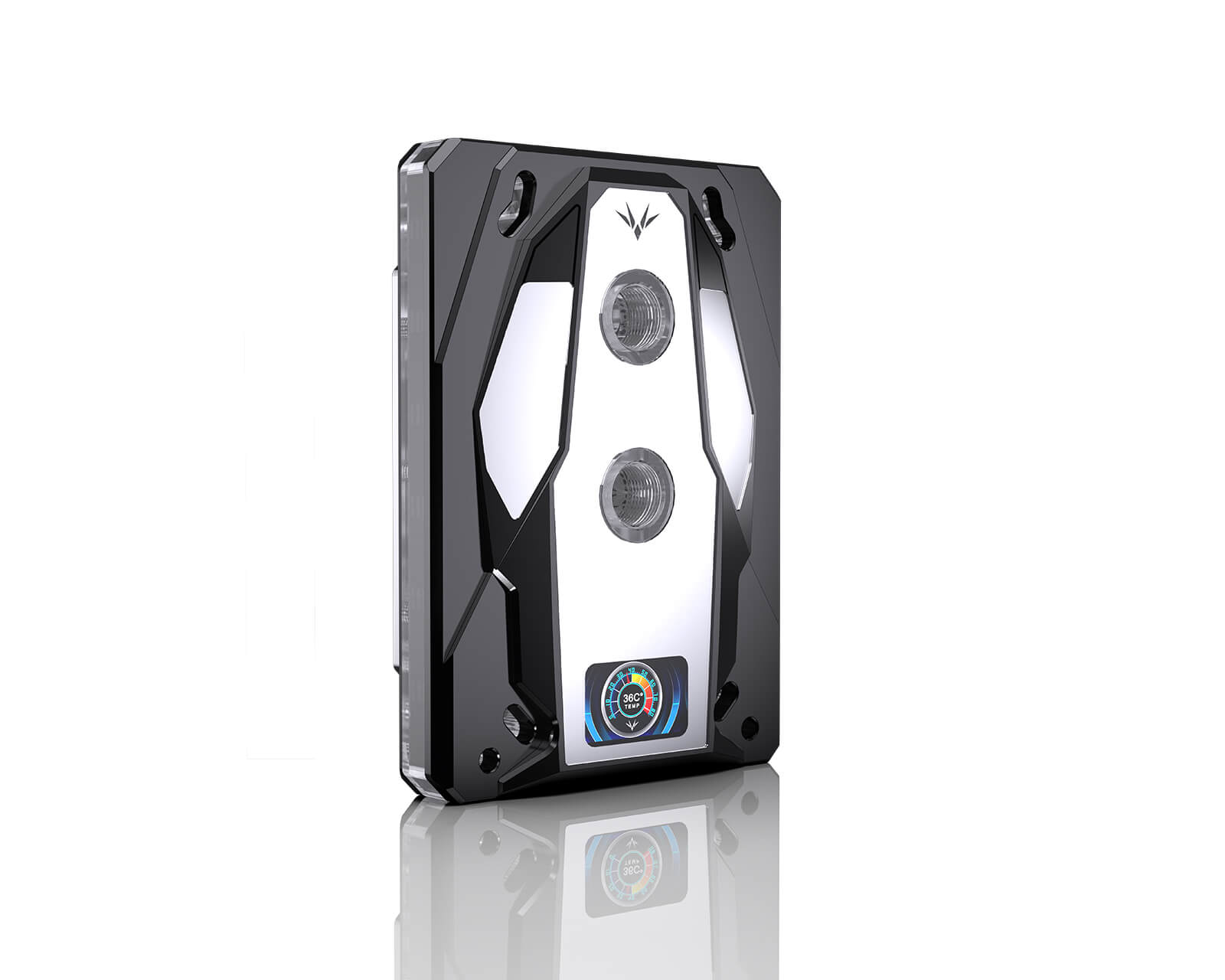

The pure copper cold plate features 0.3 mm jet micro-channels to draw thermal loads away from the IHS. An anodized aluminum armor frame holds an 8K mirror faceplate with a real-time digital temperature display and integrated 5V addressable RGB lighting.

Specifications

• Block Material: Copper, aluminum top

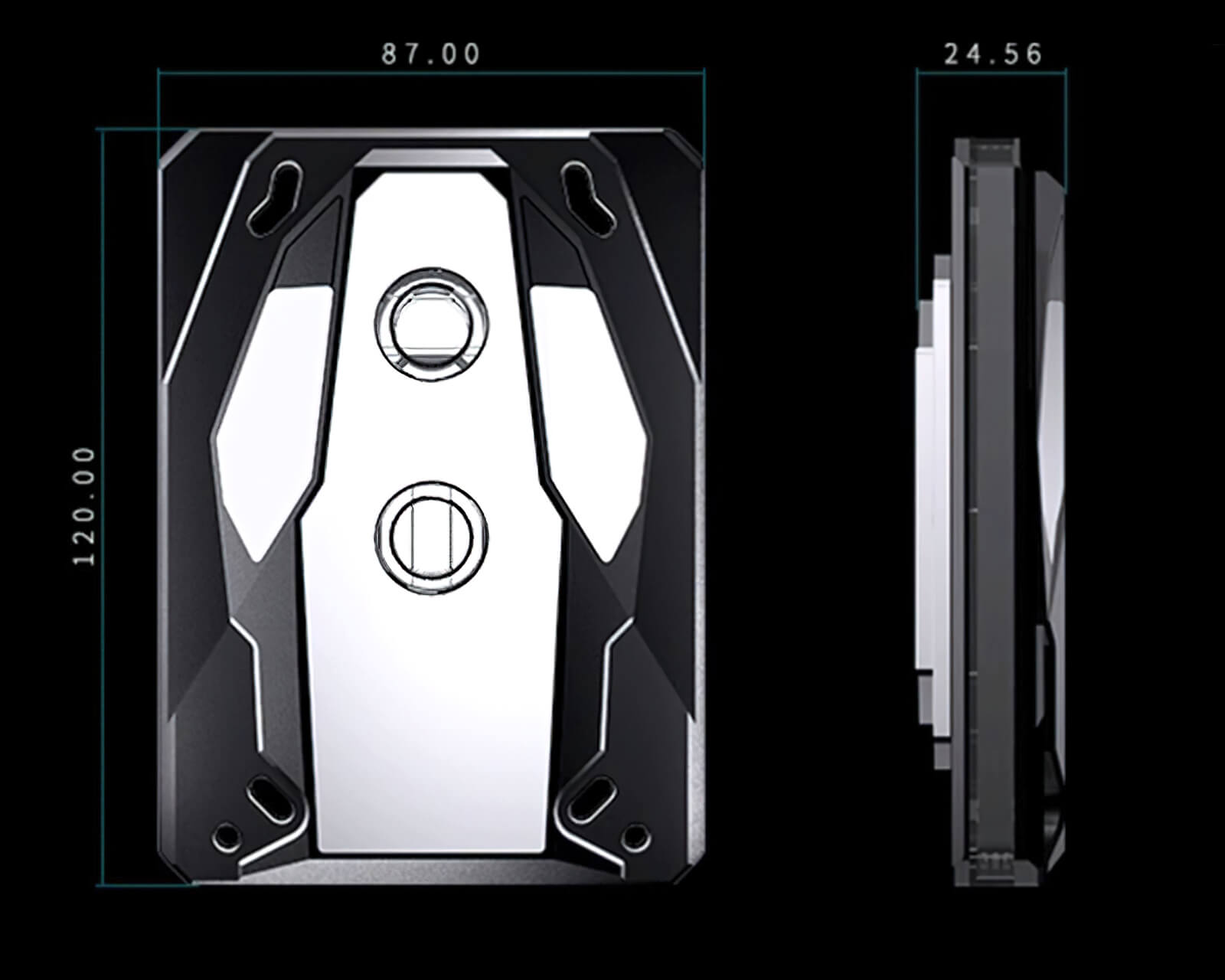

• Dimensions: 120.00 x 87.00 x 24.56 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• AMD Ryzen 1000 Ryzen 7 / 5 / 3 1xxx
• AMD Ryzen 2000 Ryzen 7 / 5 / 3 2xxx
• AMD Ryzen 3000 Ryzen 9 / 7 / 5 / 3 3xxx
• AMD Ryzen 4000 Ryzen 7 / 5 / 3 4xxx
• AMD Ryzen 5000 Ryzen 9 / 7 / 5 5xxx
• AMD Ryzen 7000 Ryzen 9 / 7 / 5 7xxx
• AMD Ryzen 8000 Ryzen 7 / 5 8xxx
• AMD Ryzen 9000 Ryzen 9 / 7 / 5 9xxx

Parts Included

• 1x CPU Water Cooling Block w/ Temp Digital Display
• 1x Mounting Hardware
• 1x 5v Addressable RGB (RBW)

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

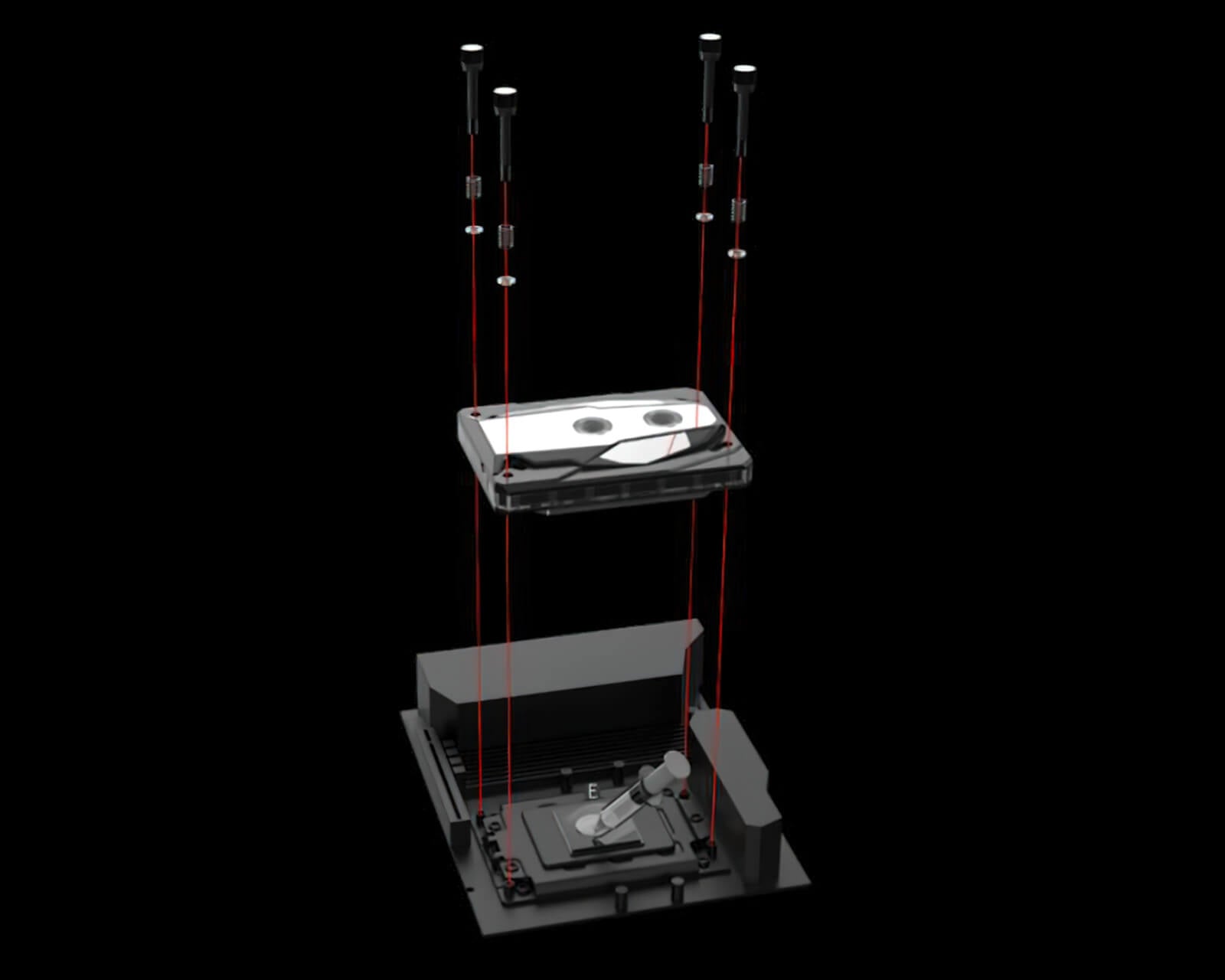

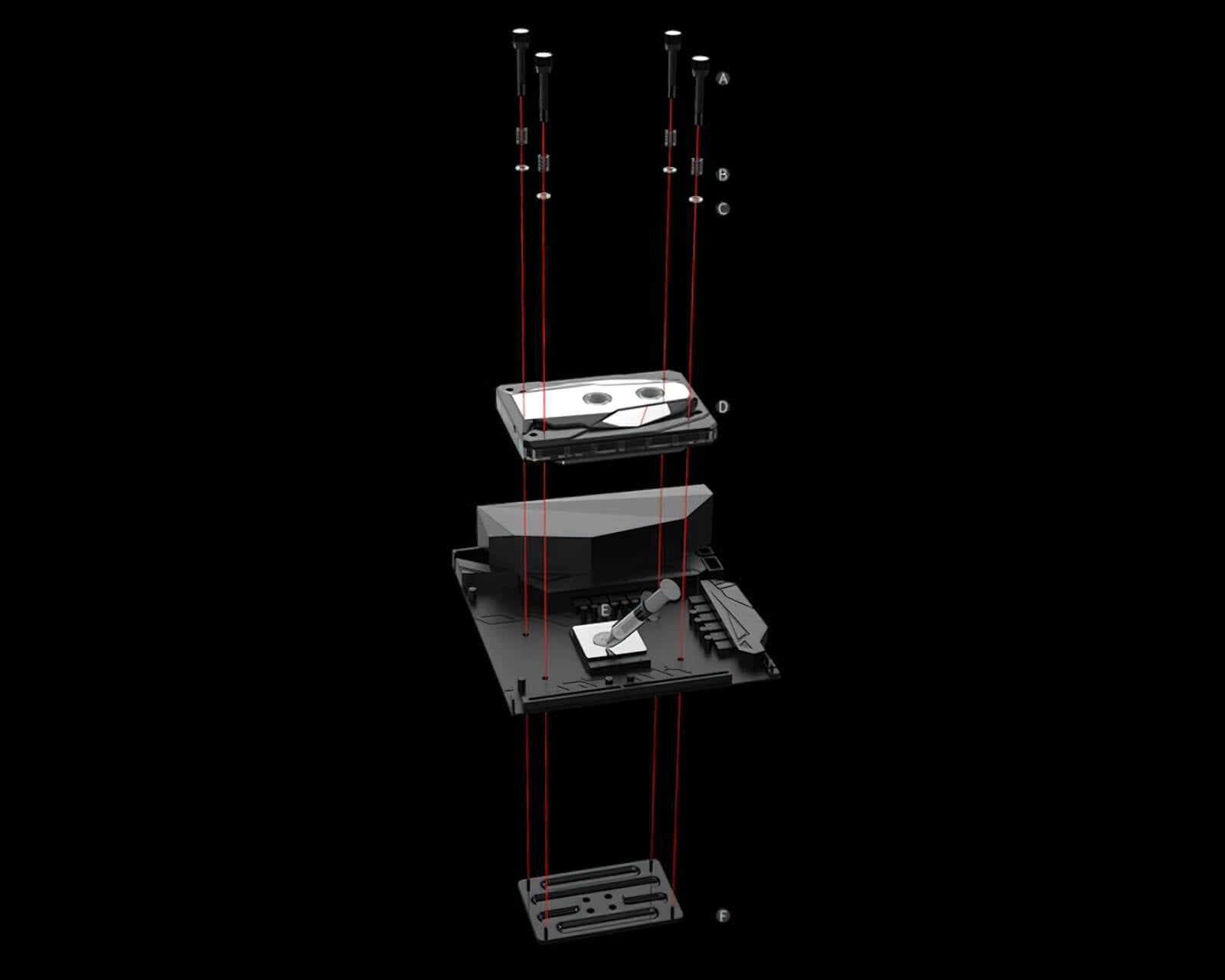

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
