PrimoChill SXT DDC Pump Reservoir Combo Builder – Clear PMMA – 9 Tube Heights, Choose your color

In stock in Boise, ID

$194.98USDFree shipping, lower 48

Ships the same business day on orders placed before 2:00 PM MST. Overnight delivery available at checkout.

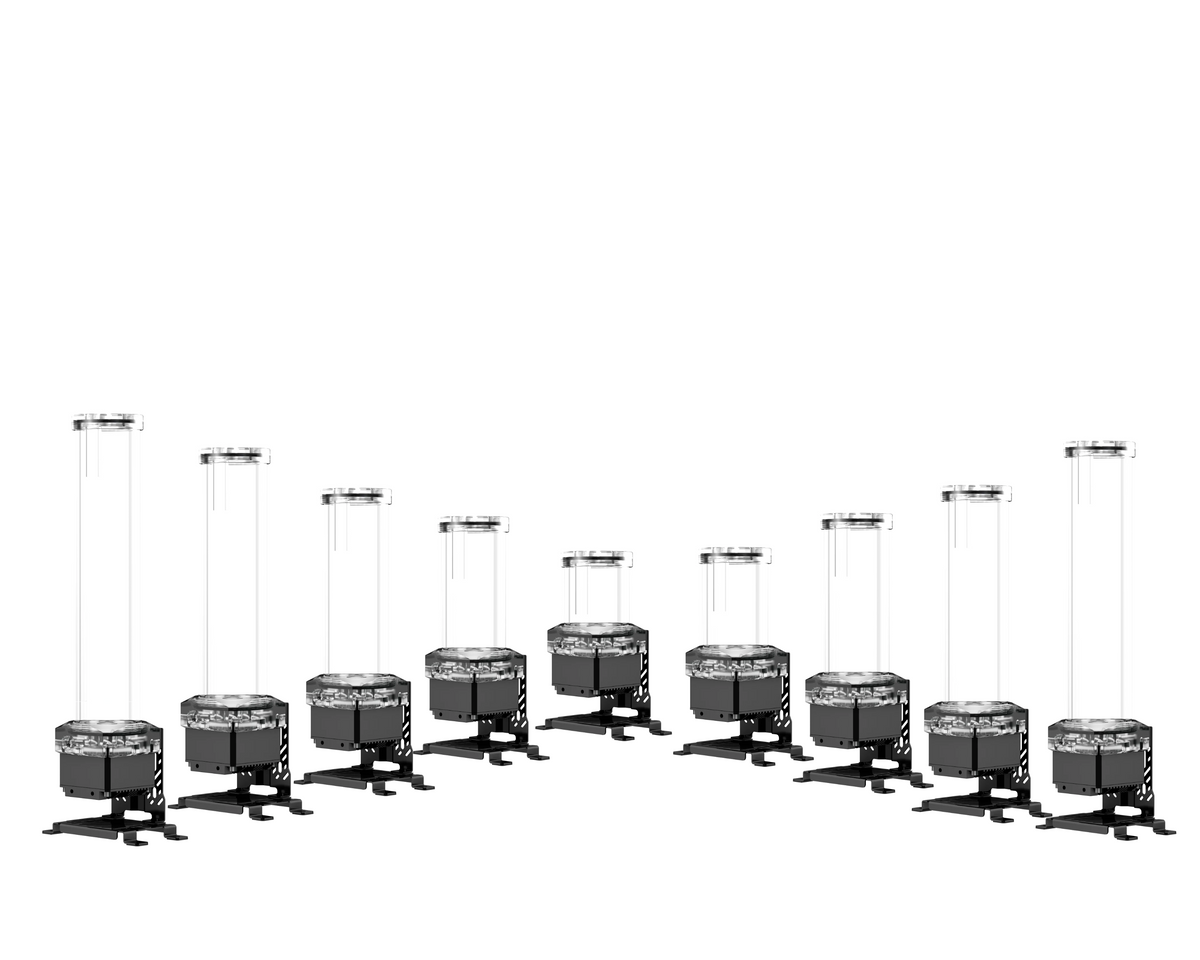

Pick Tube Height

Overall height with the 60 mm tube: 124 mm, or 164 mm on the mounting bracket.Includes the DDC pump, caps and tube.

Heights for every tube size

Tube	Overall height	On the bracket
60 mm	124 mm	164 mm
90 mm	154 mm	194 mm
120 mm	184 mm	224 mm
150 mm	214 mm	254 mm
180 mm	245 mm	285 mm
210 mm	275 mm	315 mm
240 mm	305 mm	345 mm
270 mm	335 mm	375 mm
300 mm	365 mm	405 mm

or ready to checkout now

Building your first loop? Plan the rest of it

Why buy it here

US warranty, handled in Boise

Claims are settled here, by the people who sold it to you.

Custom watercooling since 2002

PrimoChill, from Boise, Idaho.

Before you install it

This kit is the plumbing between your parts, not the loop itself. Plan and dry-fit every run before you cut or bend, and whatever the build, the last step does not change: leak test before power. Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.

Custom water cooling is installed by you, at your own risk. We are not responsible for leaks, or for damage to your parts or system. If you're unsure at any step, ask before you power the loop.

About this kit

PMMA Build: Crafted from high-quality PMMA for excellent transparency and dependable operation. An armored pump cover and tube ring finish off its clean, modern appearance.

DDC Pump Compatibility: Ready to house any standard DDC pump, the SXT Reservoir is designed for easy installation and impeccable performance, ensuring a reliable and powerful cooling solution.

Easy Installation Maintenance: It includes mounting hardware, making it easier to integrate into your custom build regardless of the layout of your case. Setting up and maintaining your reservoir is a breeze, and the clear tube also makes it easy to monitor coolant levels and maintain cleanliness.

Color Options: Available in over 20 colors, our wide range of colors guarantees that you will find the ideal match for your project. Mixing and matching different color combinations can help you achieve a distinctive look that distinguishes your build.

Pump Head: Premium Acrylic
Pumo Armor: Powder Coated Aluminum
Pump RPM: 5000 max
Pump Power: DC12v, TDP15W
Pump Voltage Range: 10v-15v
Pump Flow Rate: 600L/h
Pump Connector: 4-Pin Molex and 4-pin fan (Tach+PWM only)

1x - DDC Pump Head (Installed)
1x - Custom-Length Tube
1x - Top 3 Port Cap (Installed)
1x - DDC Pump (Installed)
1x - SXT Colored Armor (DDC Cover) (Installed)
1x - SXT Colored Rad/Wall/Floor Mounting System w/all hardware

This product is designed for self-installation. The manufacturer is not liable for any damages resulting from misuse, including, but not limited to, improper installation or the use of incompatible hardware or fluids. By using this product, you accept all related risks.

Pump Specific Warnings
Use of caustic and/or abrasive coolant will void your warranty (see warranty section) and may cause your pump to fail. Do not run the pump dry.

The D5 and DDC range of pumps are designed to be self-lubricating, meaning the fluid that the pump is designed to move is also used to lubricate its internal parts.

Therefore, you should not run the pumps without fluid for any reason. Running these pumps dry creates internal friction between the ceramic bearing and bearing housing, and that heat can quickly crack or melt the bearing housing.

Running pumps dry (without fluid) immediately voids the warranty. Replacements will not be provided under these condition

Datasheet

Typeproduct

What buyers said

Left by people who bought this part here. Compatibility reports are the useful ones — if you fitted it, say which board.

Questions people ask about this kit

Answers specific to this kit. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.

What's in this kit?

Everything listed under What's in the kit at the top of this page, with the fittings in the finish you choose. Each line links to that part on its own, so you can add spares or a second pack.

What else do I need for a loop?

The kit covers the tubing side: the tube, the fittings and the tools to cut and bend it. You still need a pump and reservoir, a radiator, water blocks and coolant. The Build planner works out the rest from the parts you have.

Can I return it if it turns out not to fit?

Yes. Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used. So we would rather check the fit with you first: send us the model and we will check it against this part.

Who handles the warranty?

PrimoChill covers this part for 1 year. Every warranty claim is handled directly by our support team, so you deal with us from start to finish.

Is shipping free?

Yes — shipping is included at this price for addresses in the lower 48 US states.

Are printed instructions included?

No printed manual is included. Installation references are in the product gallery images, and the install guides on this site cover the process step by step.

Do I need anything else to use it?

Check the parts list above against what you already have. If you are building a loop from scratch, send us the full parts list and we will tell you what is missing before you order.

Ask us before you order

Send your exact hardware model and we'll confirm the right part before you spend $194.98 — or tell you honestly that this isn't the one.

Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used.
