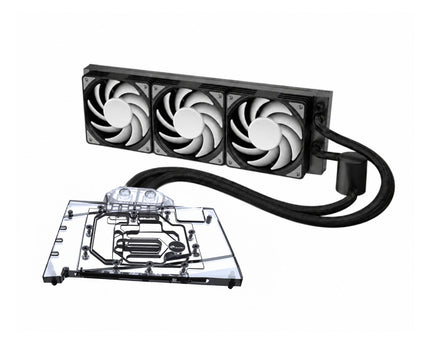

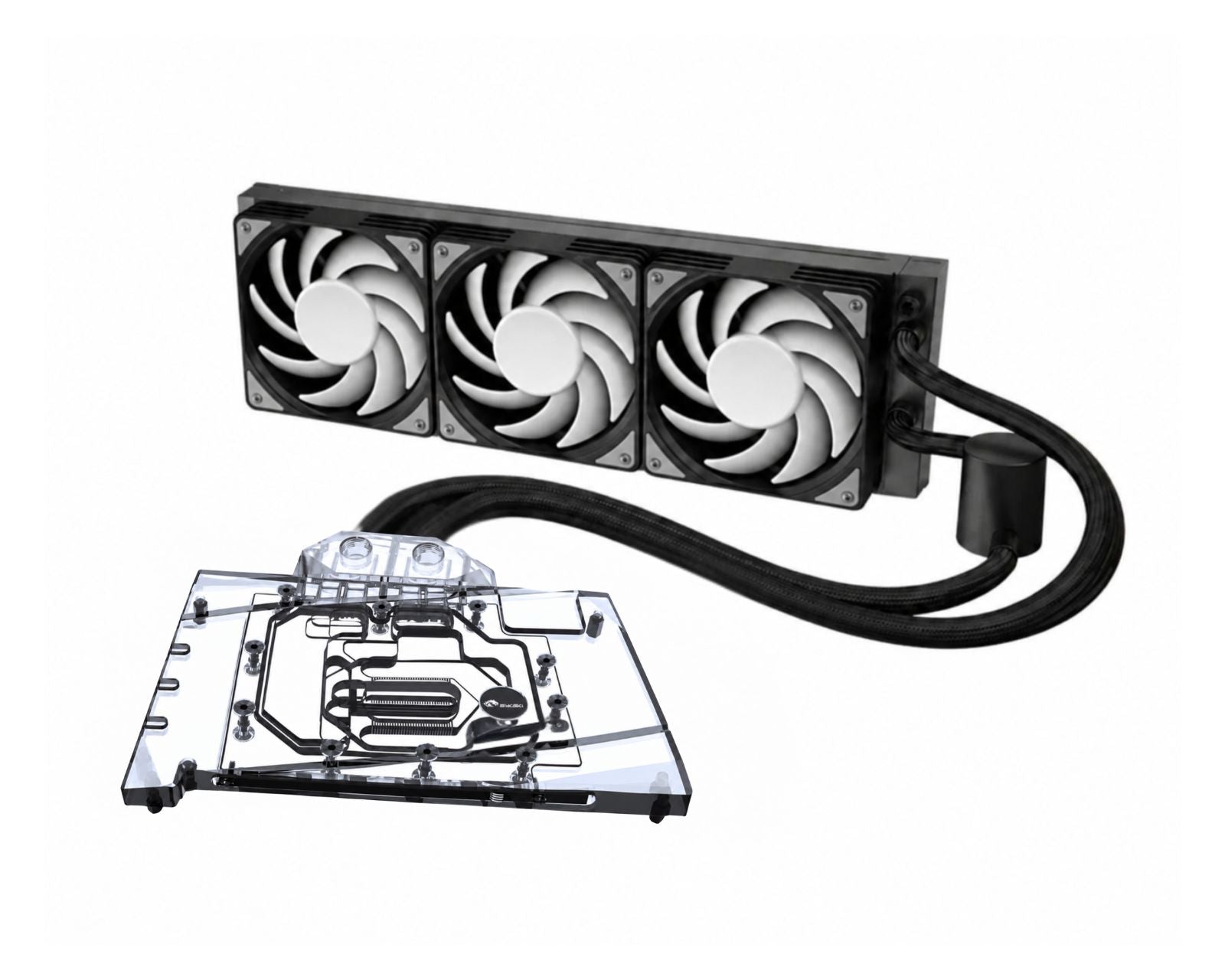

Bykski 360 mm AIO liquid cooler for the Gigabyte AMD 9070 - Radeon RX 9070 XT Gaming OC 16G and Radeon RX 9070 Gaming OC 16G. The block, inline pump, tubing and radiator arrive as one sealed loop, pre-assembled, pre-filled and pre-bled. There is nothing to open, fill, bleed or top up.

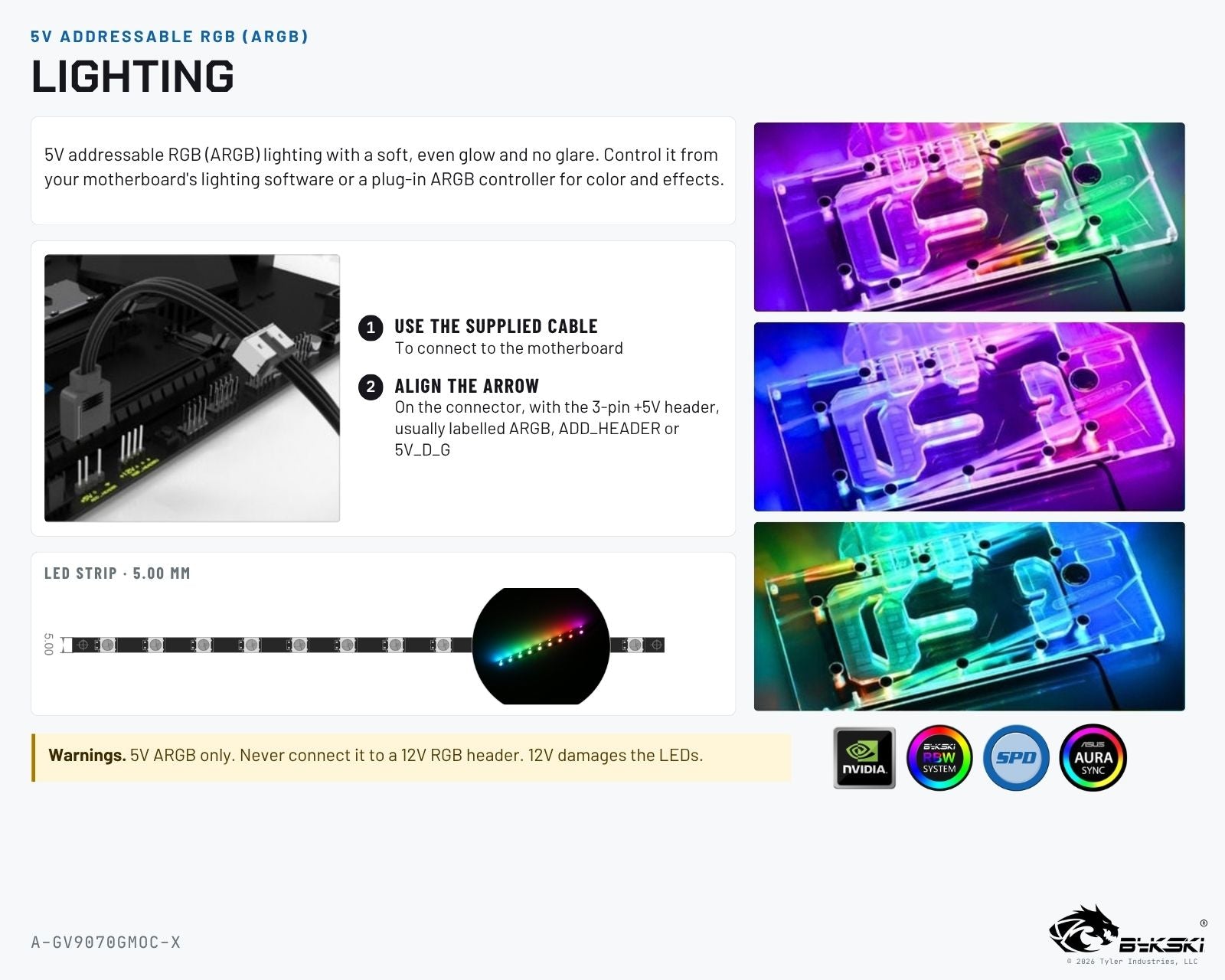

The pump sits inline in the tubing between the block and the radiator, with nothing mounted to the card. The T2 copper cold plate has a 0.35 mm base at the GPU chip and a clear acrylic top that shows the coolant channels over the chip. Thermal pads cool the memory and the power stages, and the fans are 5V ARGB.

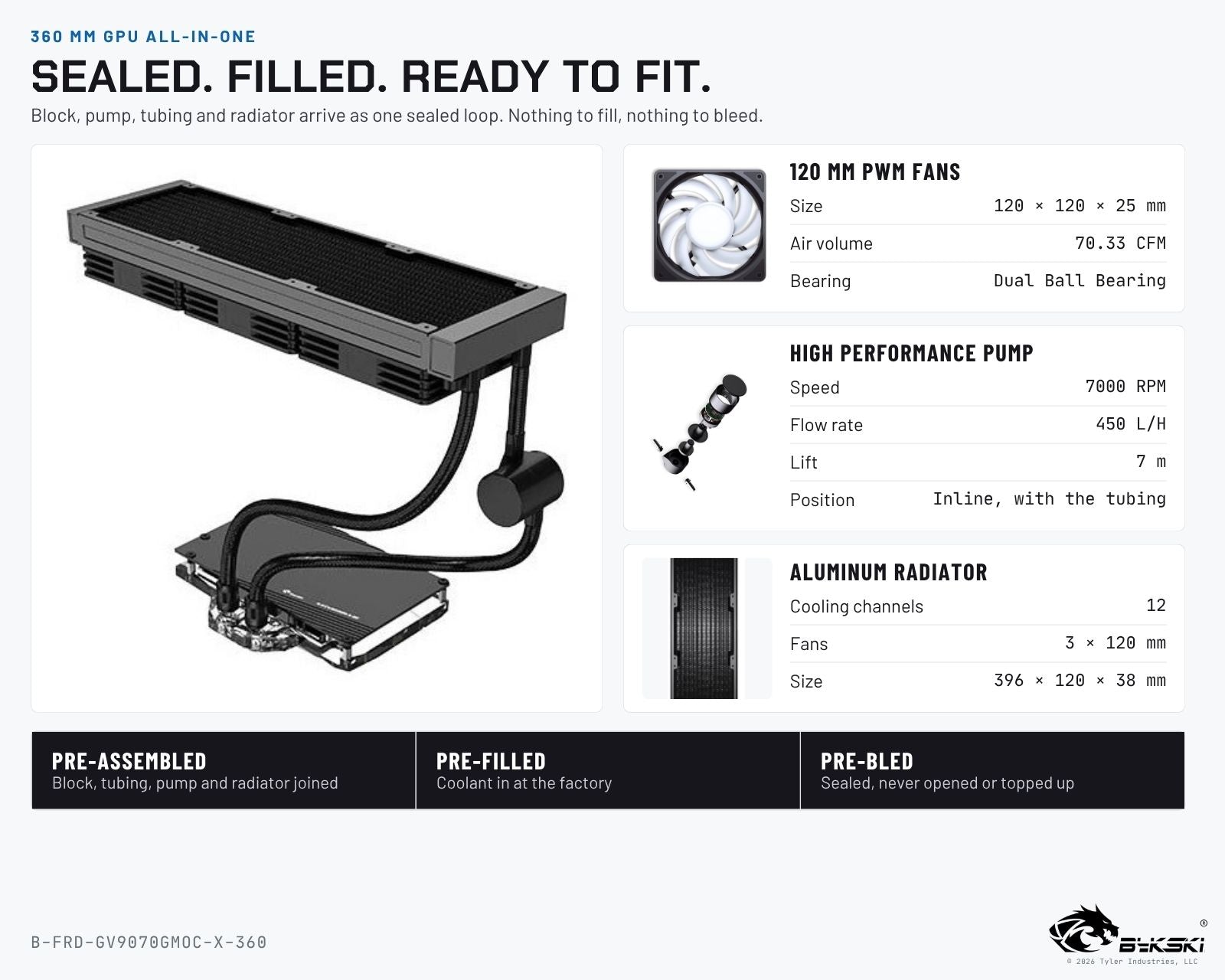

Specifications

• Radiator: 396 x 120 x 38 mm, 63 mm with fans

• Fans: 3 x 120 mm PWM

• Pump: Inline, 7000 RPM

• Fits: a 360 mm radiator position with 63 mm of depth, plus the card with the block on it

Compatibility

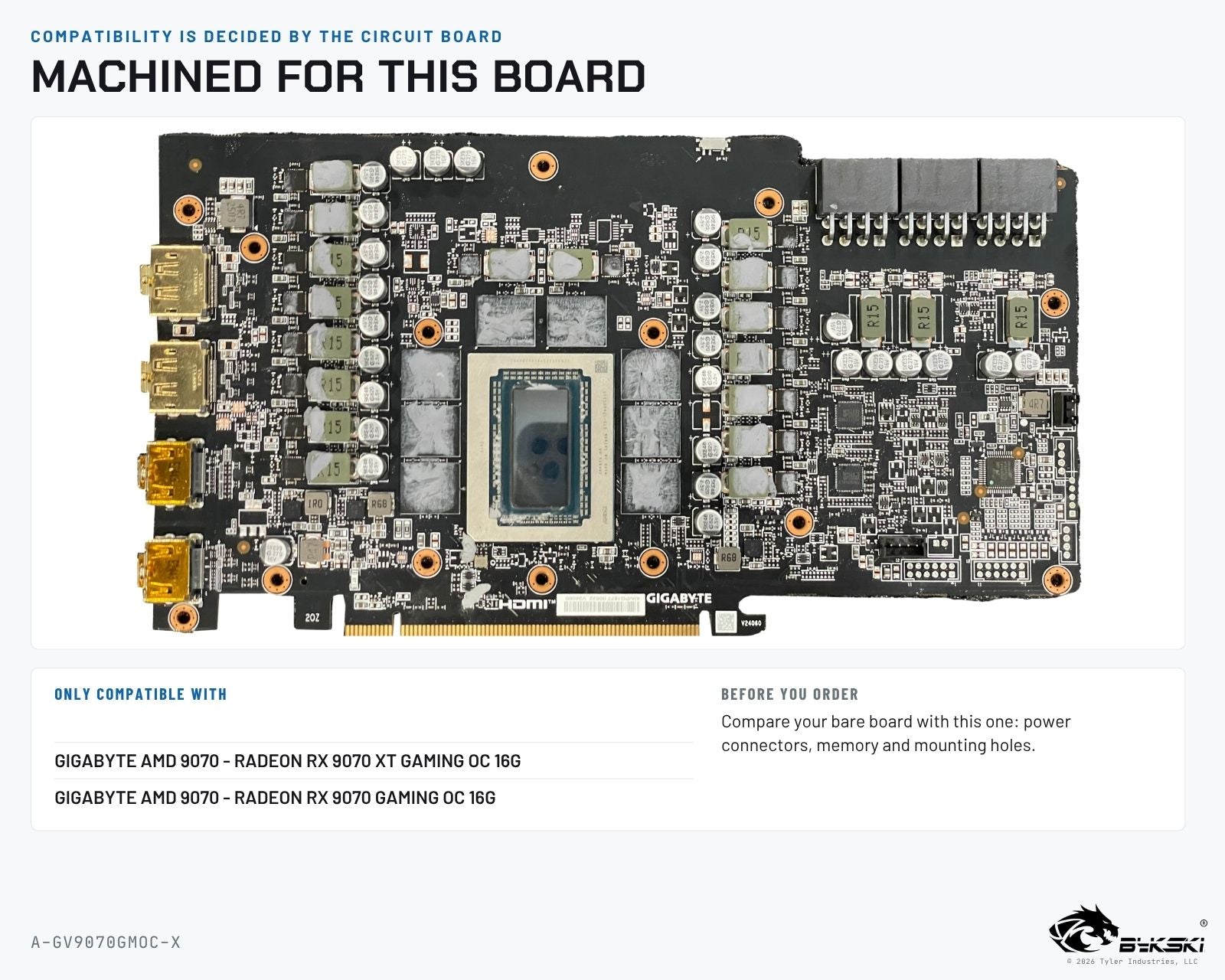

ONLY Compatible with:

• GIGABYTE AMD 9070 - RADEON RX 9070 XT GAMING OC 16GB
• GIGABYTE AMD 9070 - RADEON RX 9070 GAMING OC 16GB

Parts Included

• Sealed 360 mm AIO kit: radiator, inline pump, EPDM braided tubing (12 mm OD) and GPU water block, pre-assembled and pre-filled

• 3 x 120 mm PWM fans

• GPU water block with backplate: aluminum backplate on the back of the card

• Thermal pads: 1.5 mm, cut to size, for the memory and the power stages

• Thermal paste: for the GPU chip, plus spring screws, washers and backplate screws

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

The loop is sealed, pre-filled and pre-bled. Do not open it, do not modify the tubing and do not attempt to top it up. Doing so can cause a leak or a pump failure.

The top of the block is acrylic. Tighten the mounting screws evenly and finger tight - over-tightening cracks acrylic, and a cracked top is not covered by the warranty.

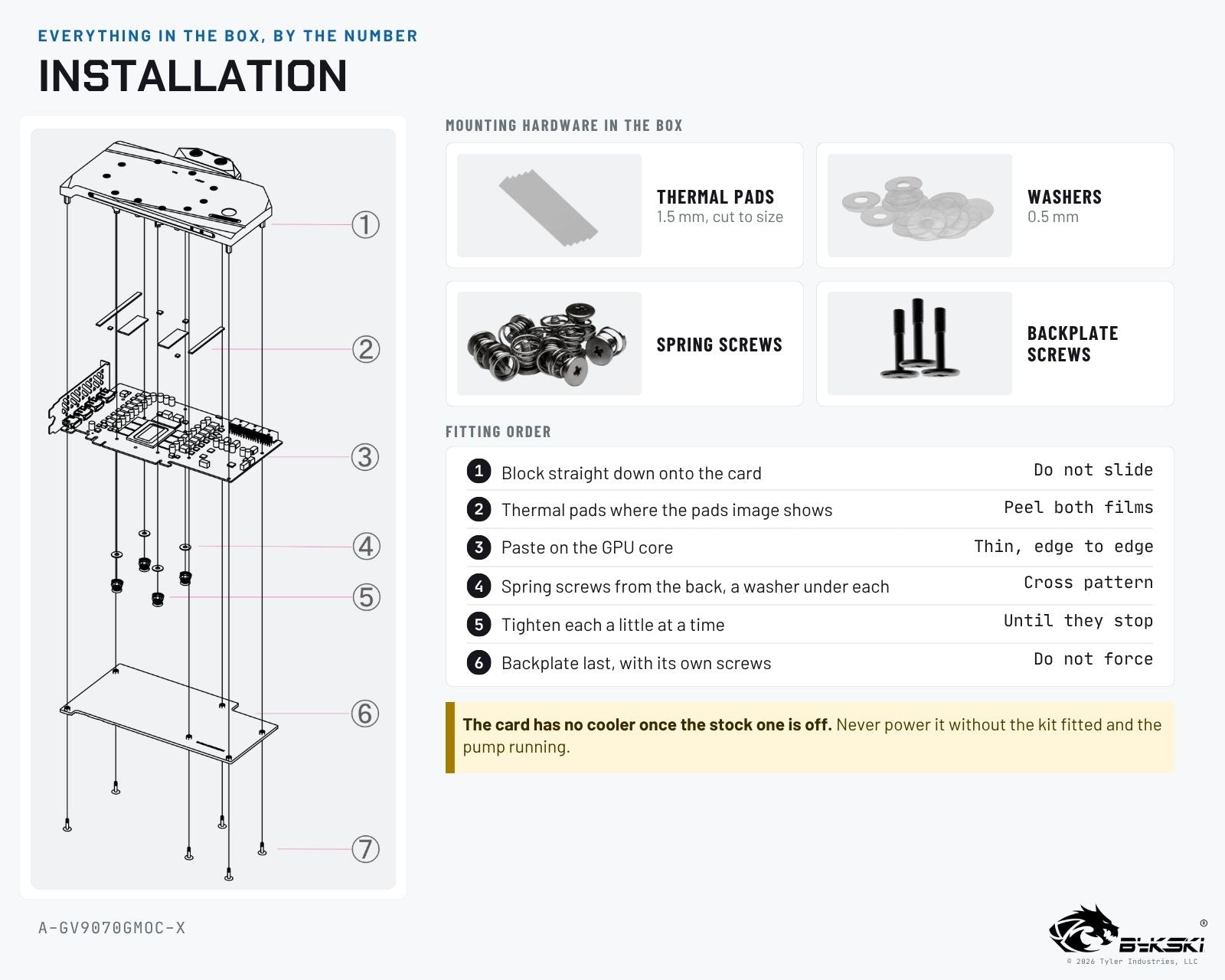

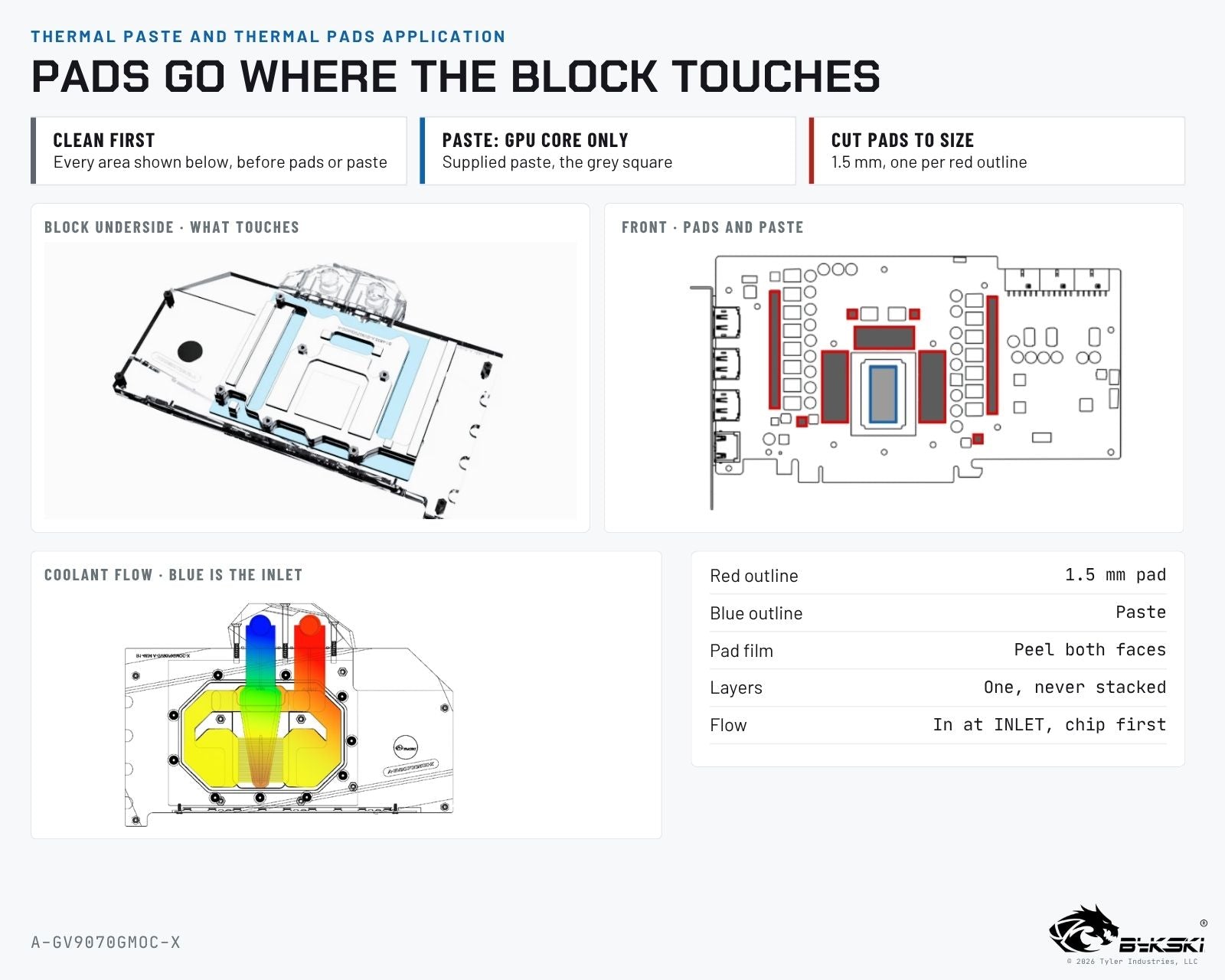

Fitting the kit means removing the stock cooler and exposing the GPU chip. Thermal pads go on the memory and the power stages; thermal paste goes on the GPU chip.

The manufacturer reserves the right to alter the design to expand compatibility, so the delivered item may not match the pictured item exactly.

This product is for self-installation by qualified users. Not responsible for any damage caused by or when using this product. Please use at your own risk.
