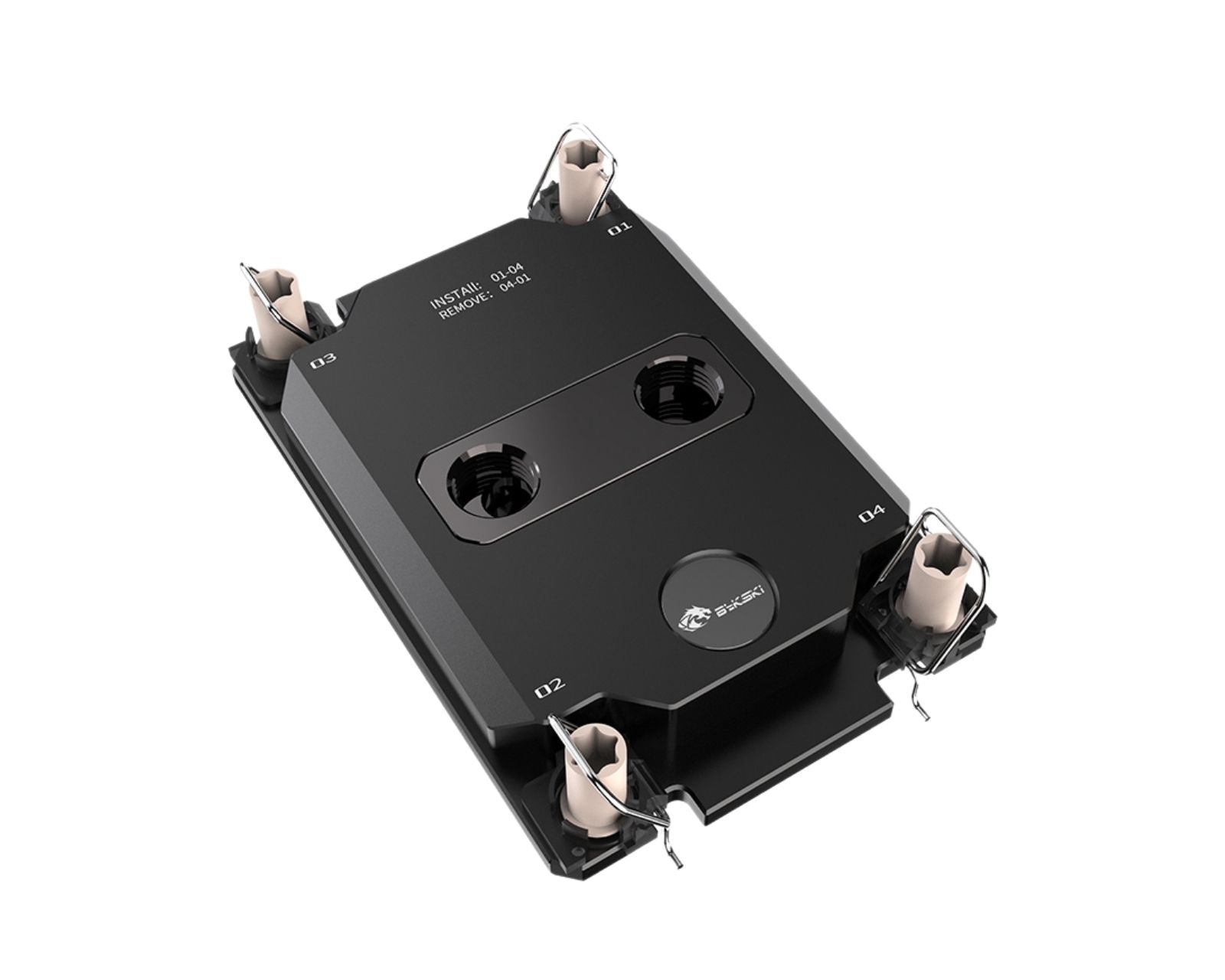

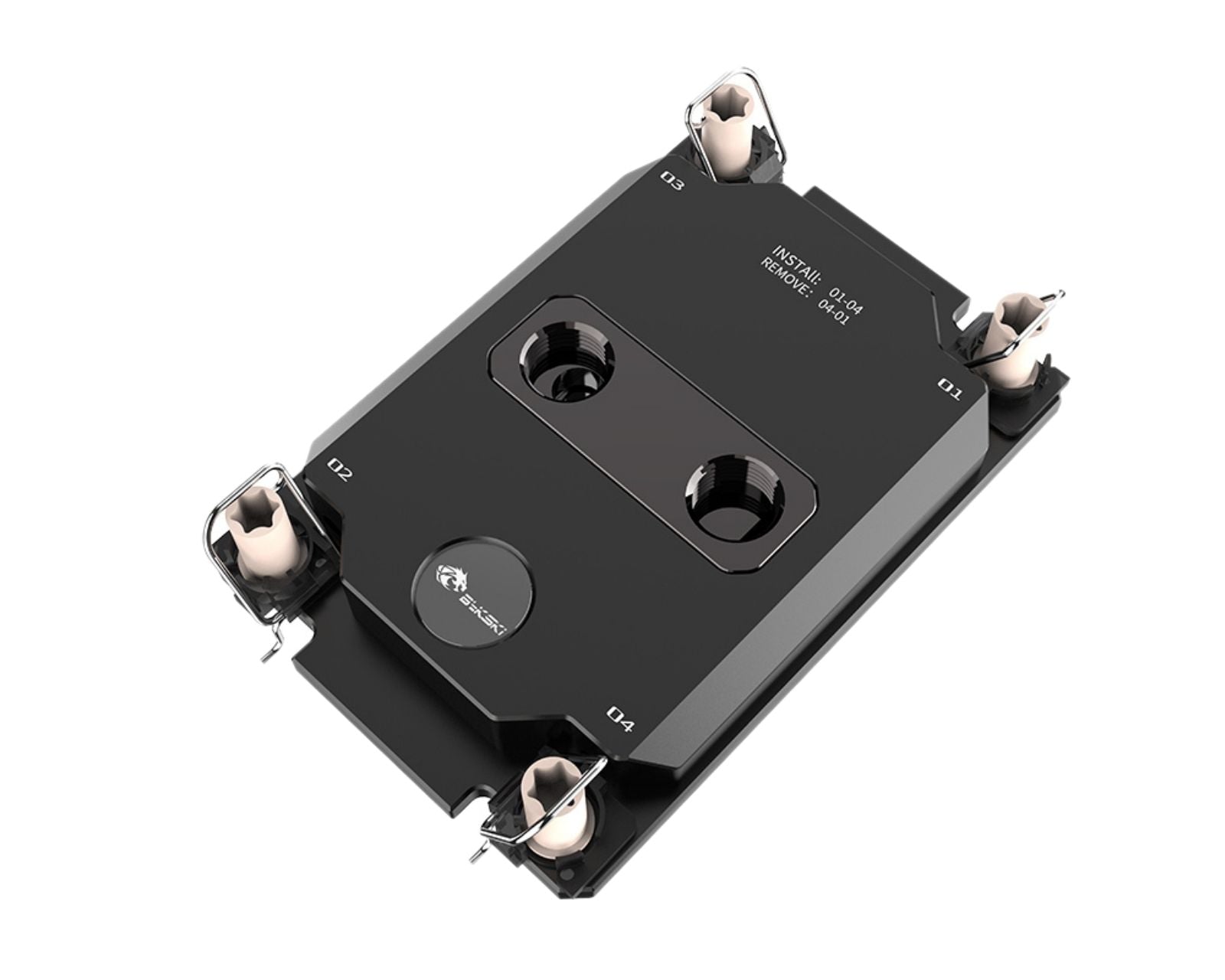

The Bykski CPU-4189-SR is an all-metal CPU water cooling block engineered for 3rd Gen Intel Xeon Scalable processors on socket LGA 4189.

Heat transfers through an electroless nickel-plated T2 copper cold plate featuring a 0.35 mm base thickness and 60 jet micro-channels measuring 0.3 mm wide. The channel array delivers 23,662.47 mm² of fluid contact area. Built for continuous operation, the block features an anodized all-metal brass and aluminum top rated to 6.0 bar working pressure.

Specifications

• Block Material: Nickel-plated T2 copper, brass and aluminum top

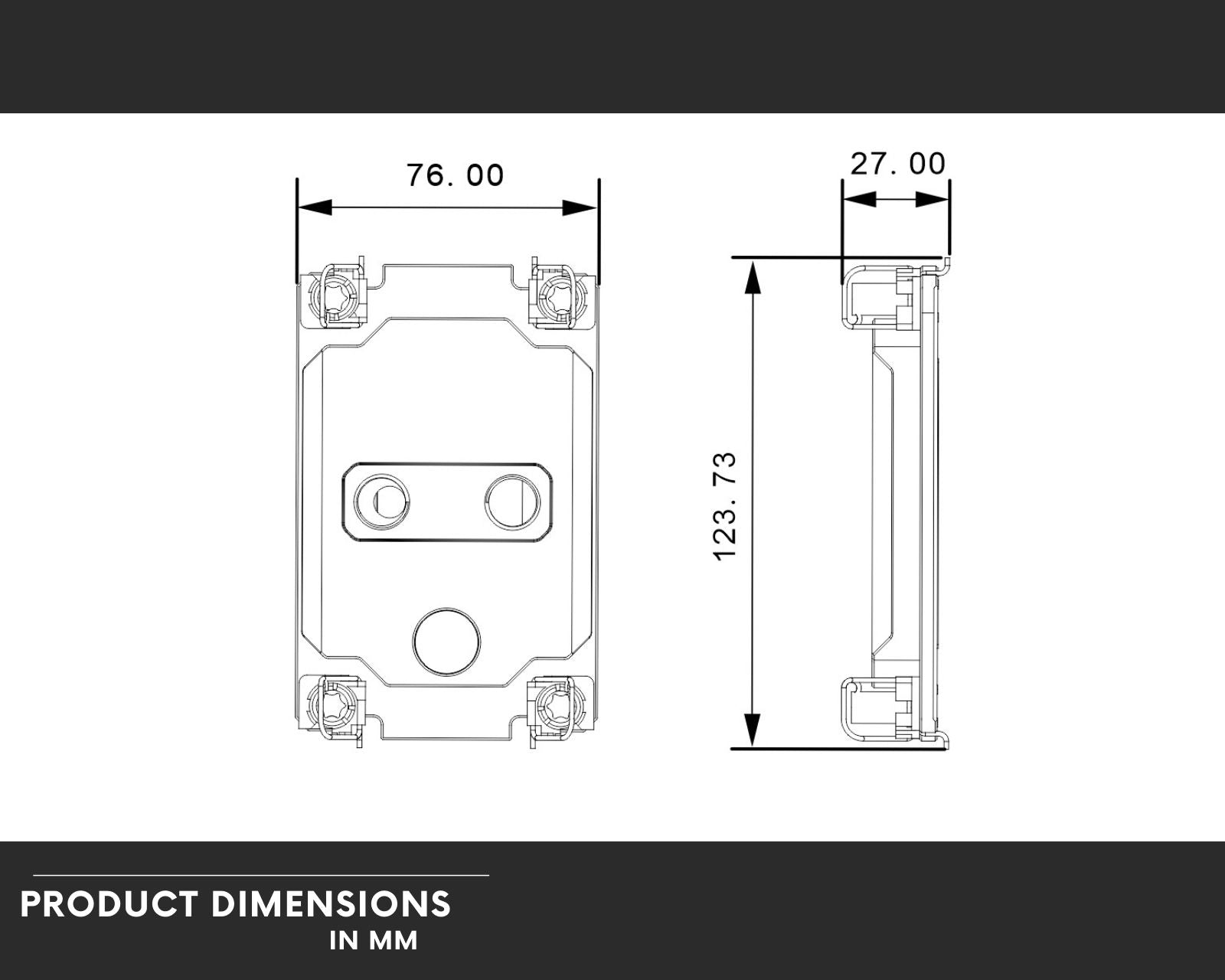

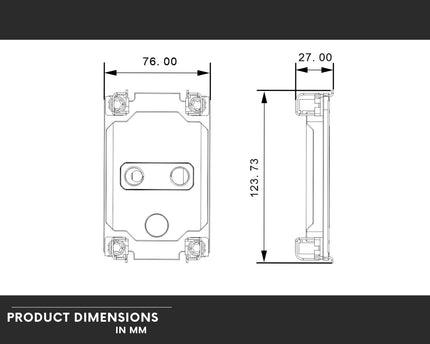

• Dimensions: 123.73 x 76.00 x 27.00 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• Intel Xeon Scalable 3rd gen Any 83xx / 63xx

Parts Included

• CPU Water Cooling Block
• Installation Hardware, including thermal paste

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

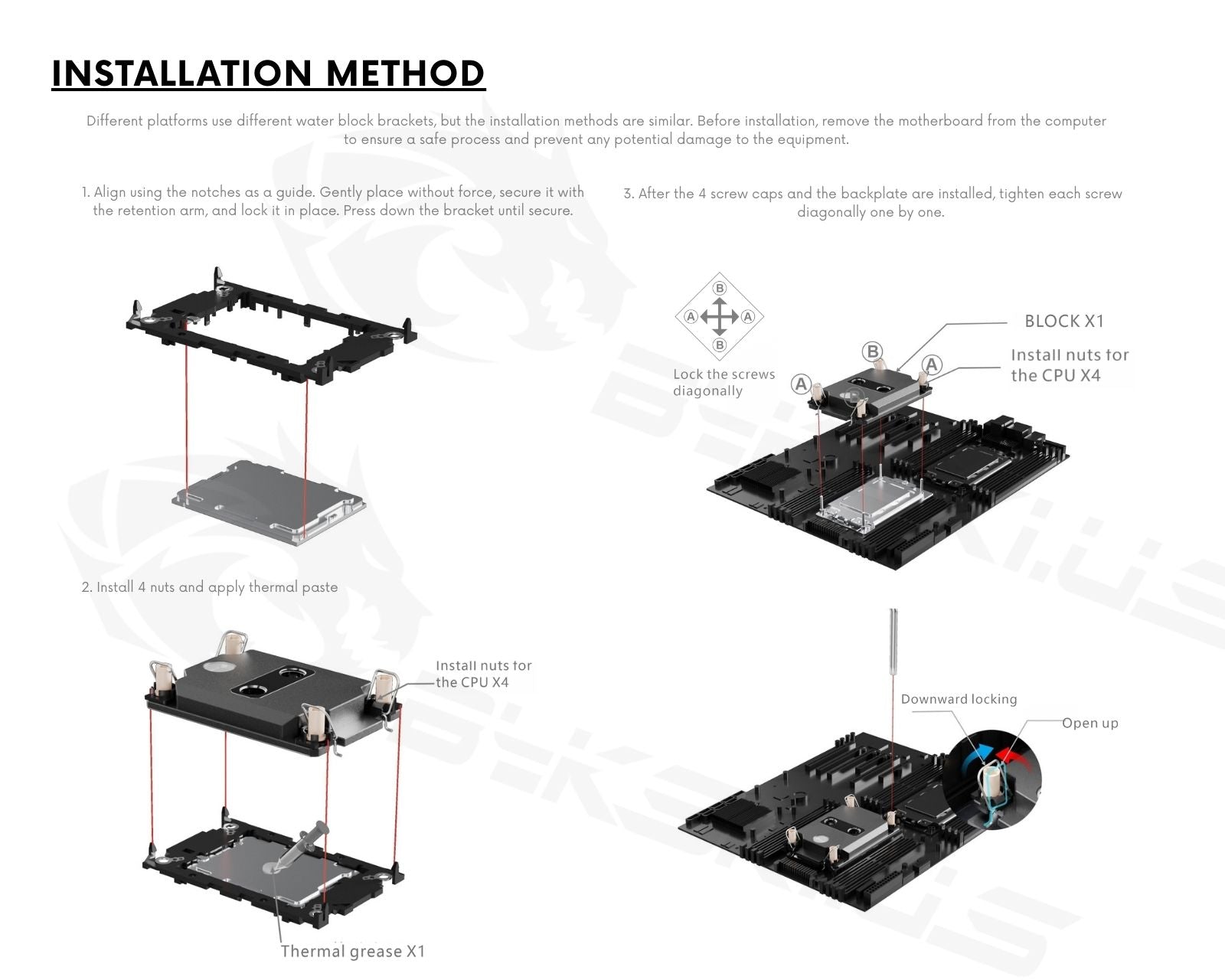

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
