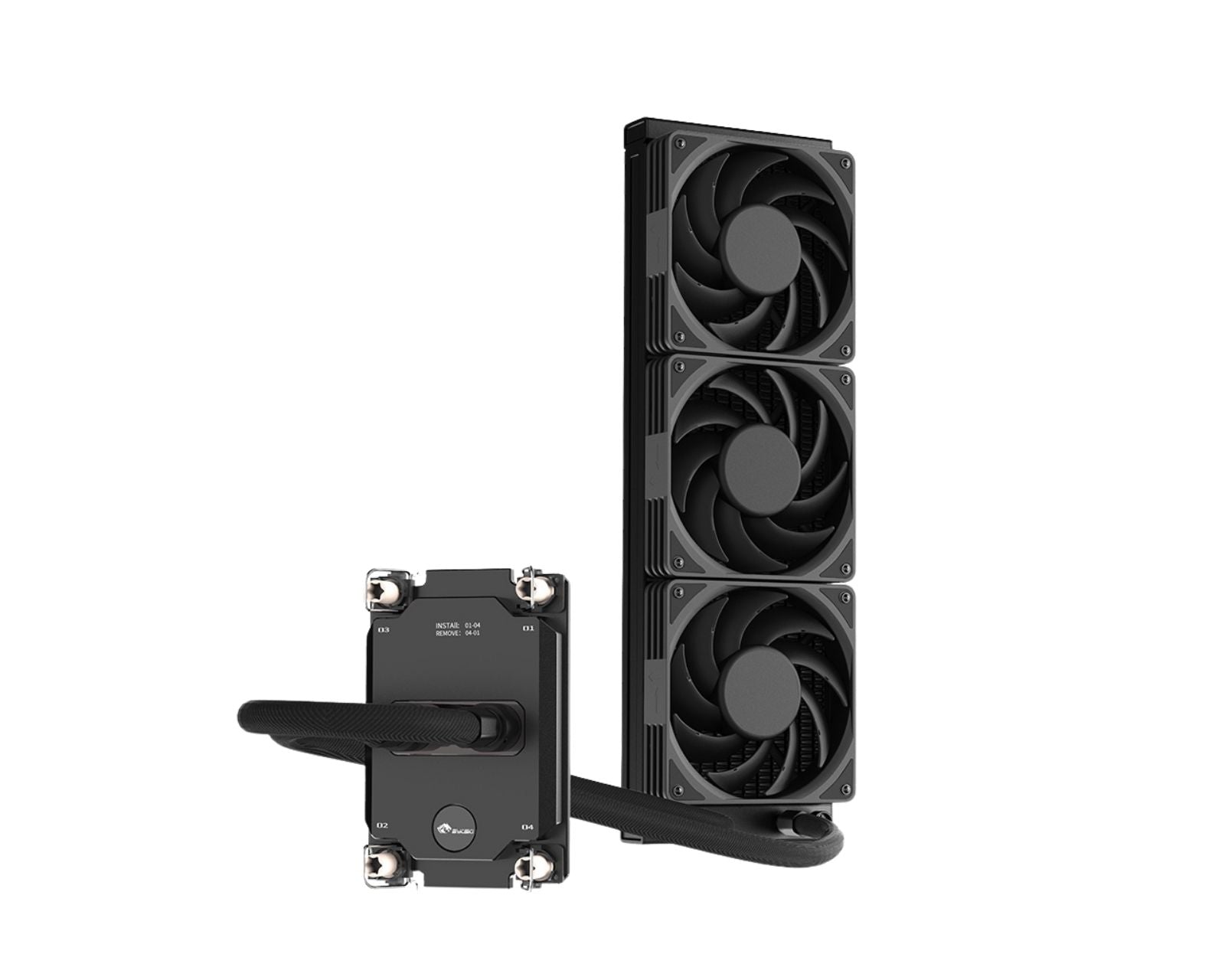

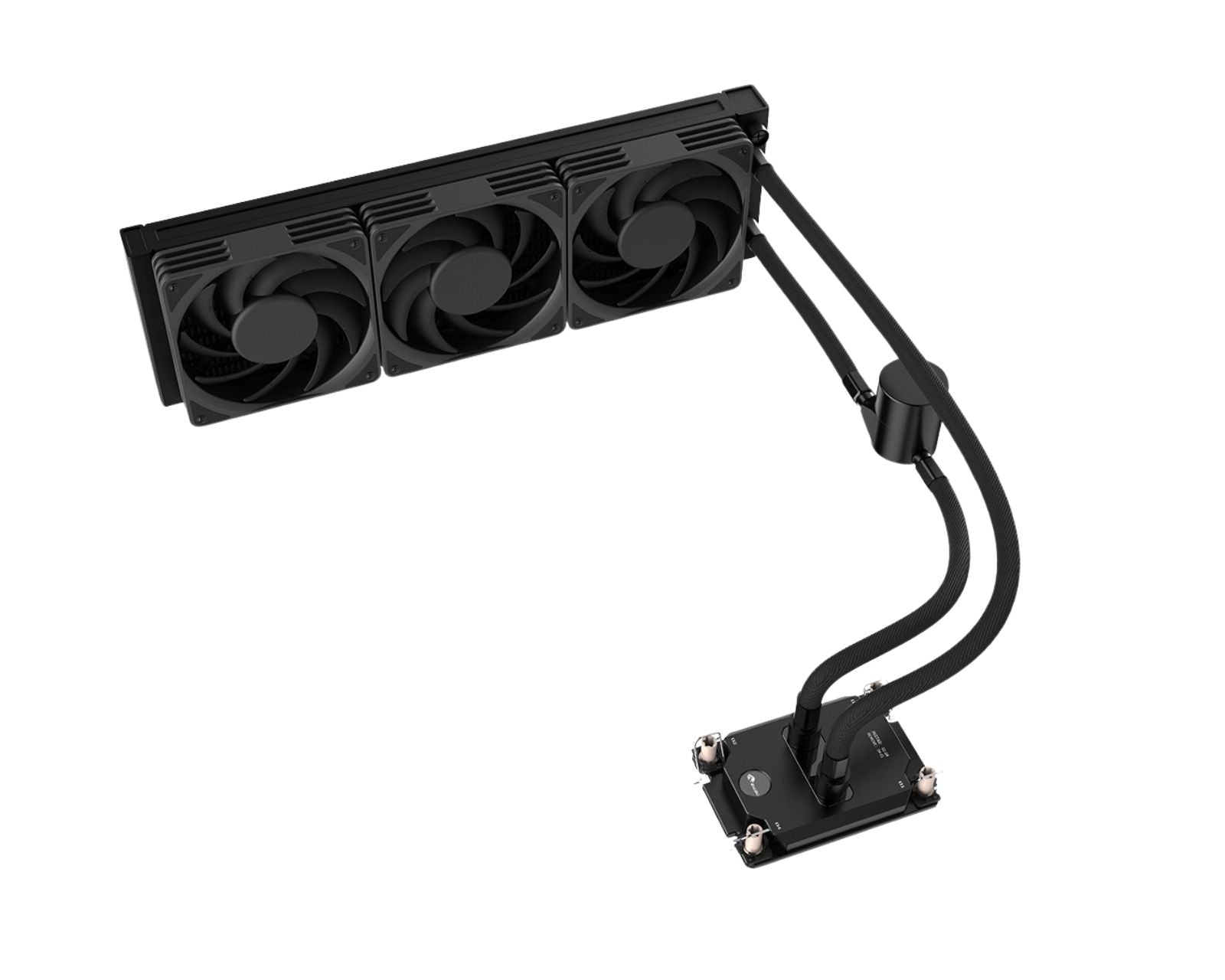

The Bykski B-FRD4189-SR-360-V3 is a factory-sealed server liquid CPU cooler built for Intel LGA 4189 processors. The loop arrives pre-assembled, pre-filled, and pre-bled, connecting a 360 mm radiator to a nickel-plated copper cold plate.

Sustained high-core server workloads generate heavy thermal output that saturates standard passive heatsinks. This closed loop transfers heat away from the CPU IHS directly to a 360 mm radiator, venting thermal load out of the chassis to keep system memory and storage drives cool.

Specifications

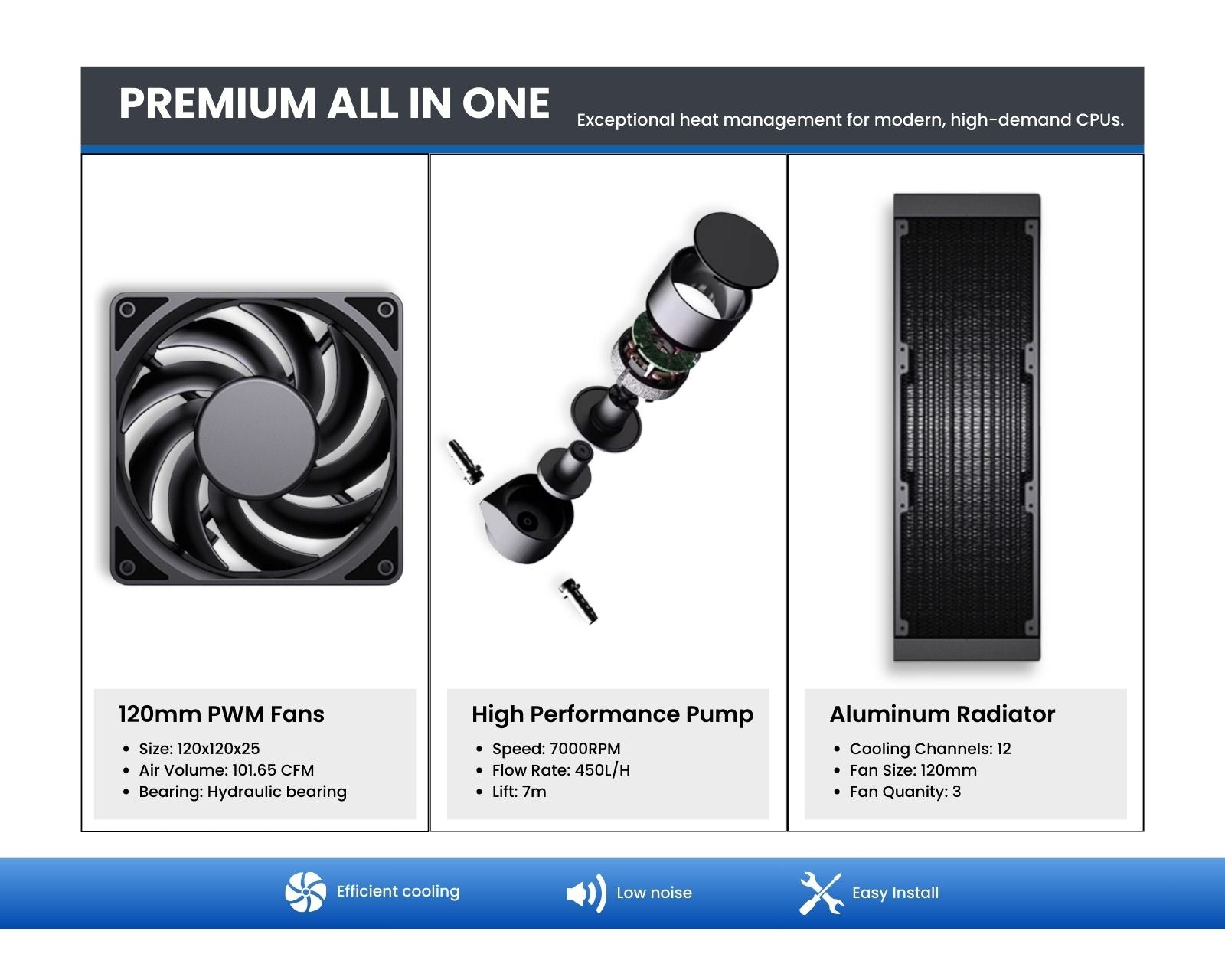

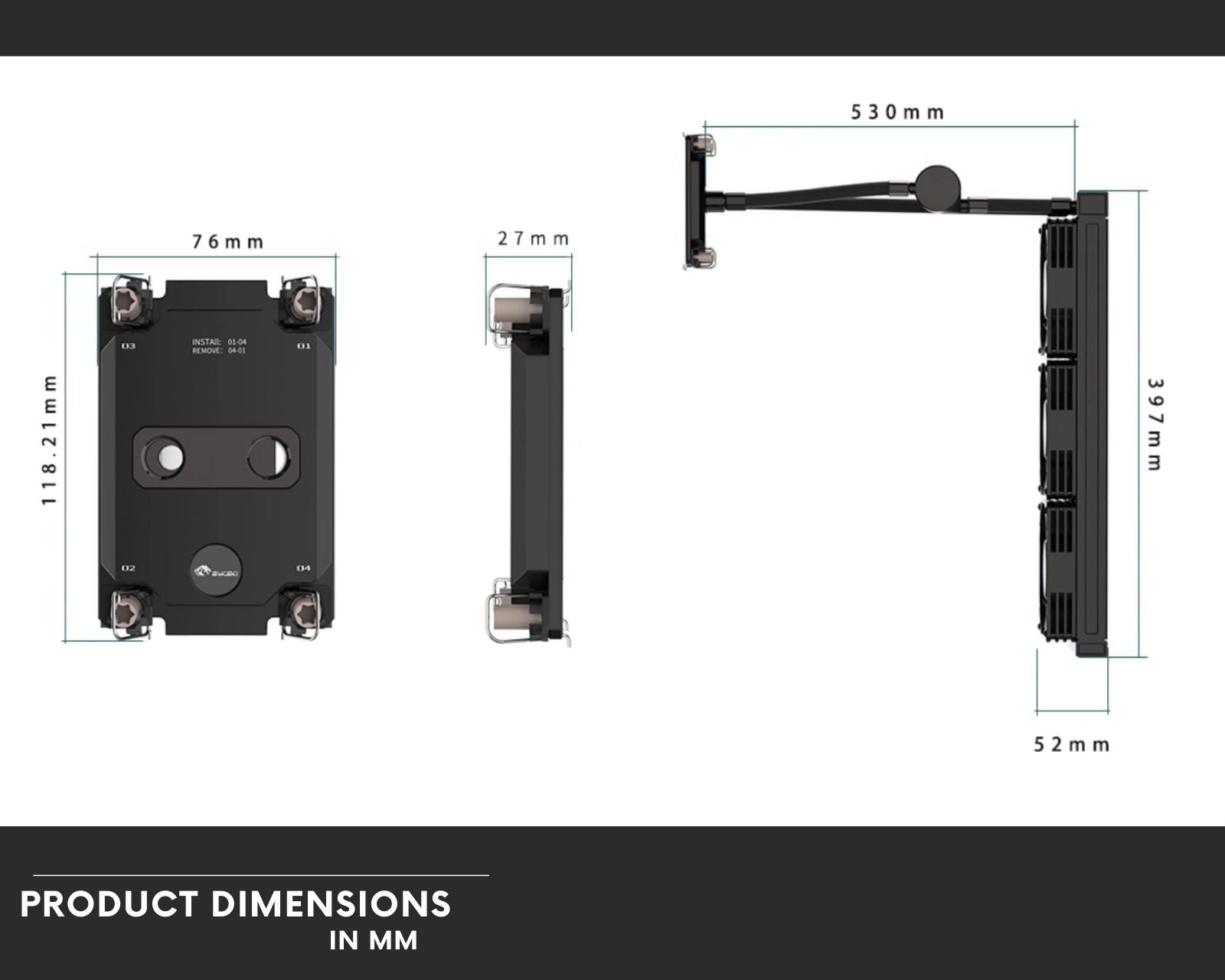

• CPU Water Block: T2 copper, electroless nickel, 123.73 x 76.00 x 27.00 mm
• Radiator: 396 x 120 x 38 mm, 63 mm with fans
• Fans: 3 x 120 mm PWM
• Pump: Inline, 7000 RPM
• Fits: a 360 mm radiator position with 63 mm of depth, in a 4U chassis or a tower

Compatibility

ONLY Compatible with:

• Intel Xeon Scalable 3rd gen Any 83xx / 63xx

Parts Included

• Bykski 360 mm server liquid CPU cooler (radiator, inline pump, tubing, and CPU water block pre-assembled)
• Three 120 mm PWM fans
• Intel LGA 4189 mounting hardware
• Thermal paste

Warnings

Warranty is repair or replacement. All returns are accepted within 30 days, no questions asked. An installed or used item comes back at a higher restocking fee.

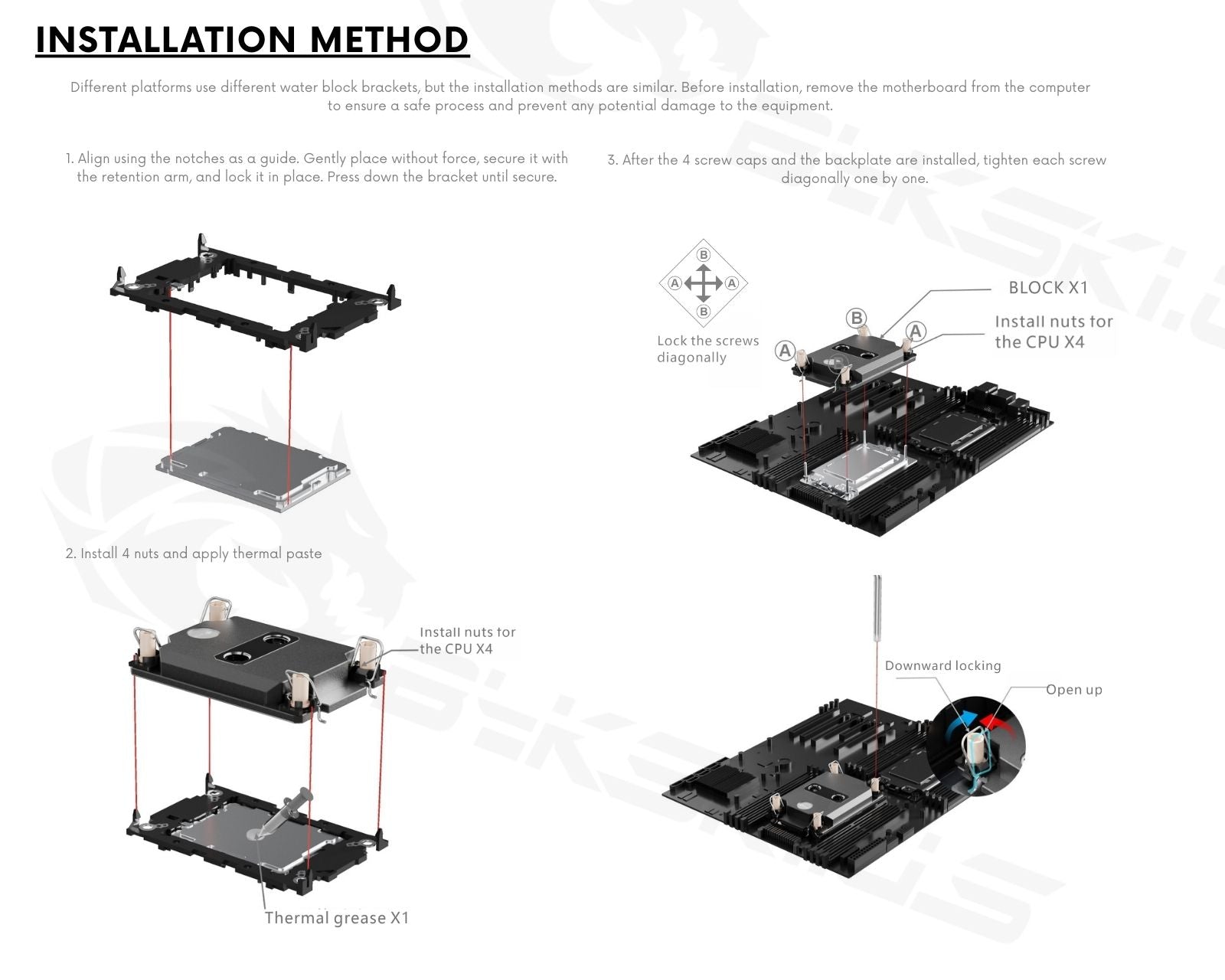

The loop is sealed, pre-filled and pre-bled: do not open it, modify the tubing or top it up, which can cause a leak or a pump failure. Thermal paste goes on the CPU's integrated heat spreader; there are no thermal pads. Tighten the four mounting screws in their numbered order, in a cross pattern, finger tight.

The manufacturer reserves the right to alter the design to expand compatibility, so the delivered item may not match the pictured item exactly.

This product is for self-installation by qualified users. Not responsible for any damage caused by or when using this product. Please use at your own risk.
