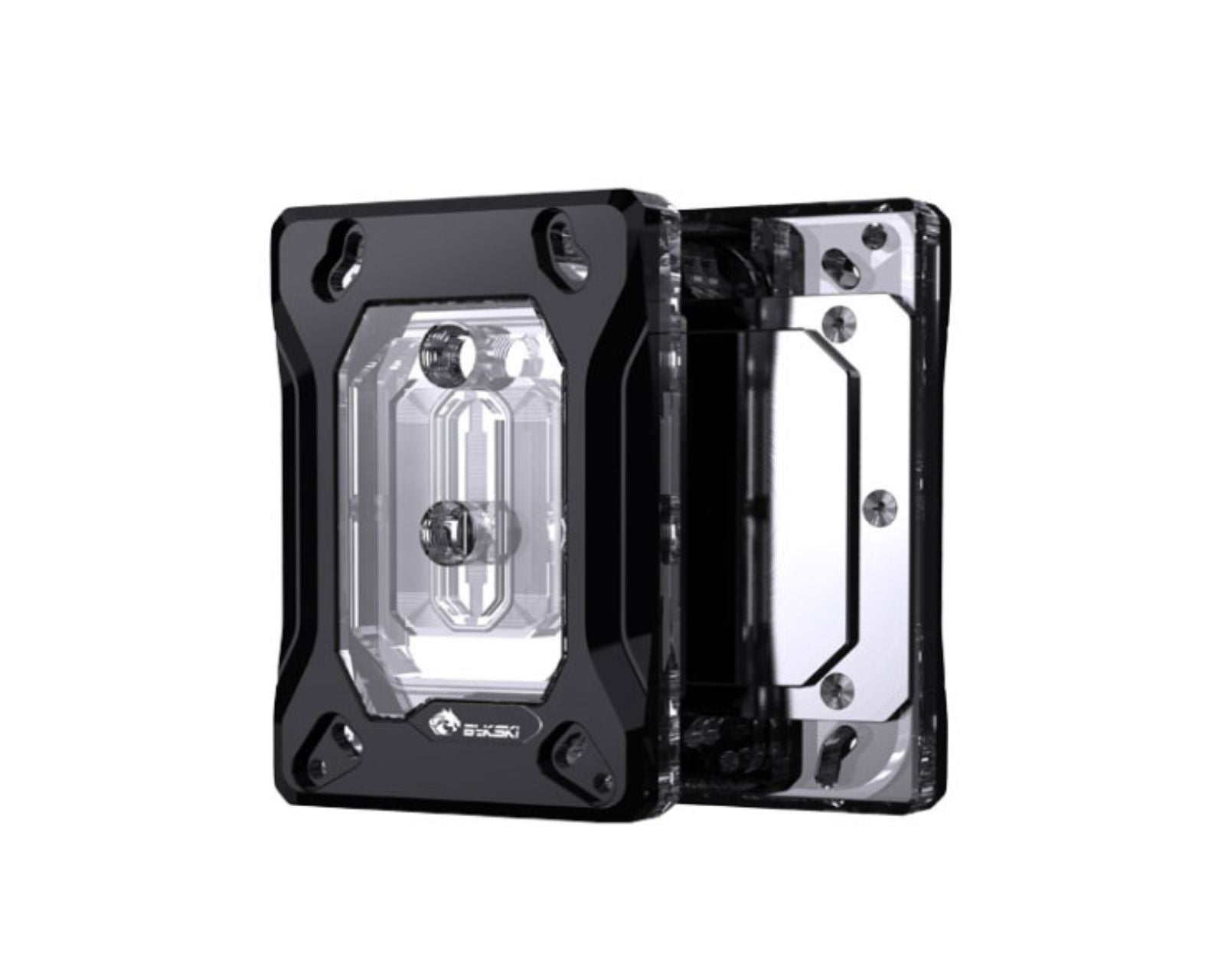

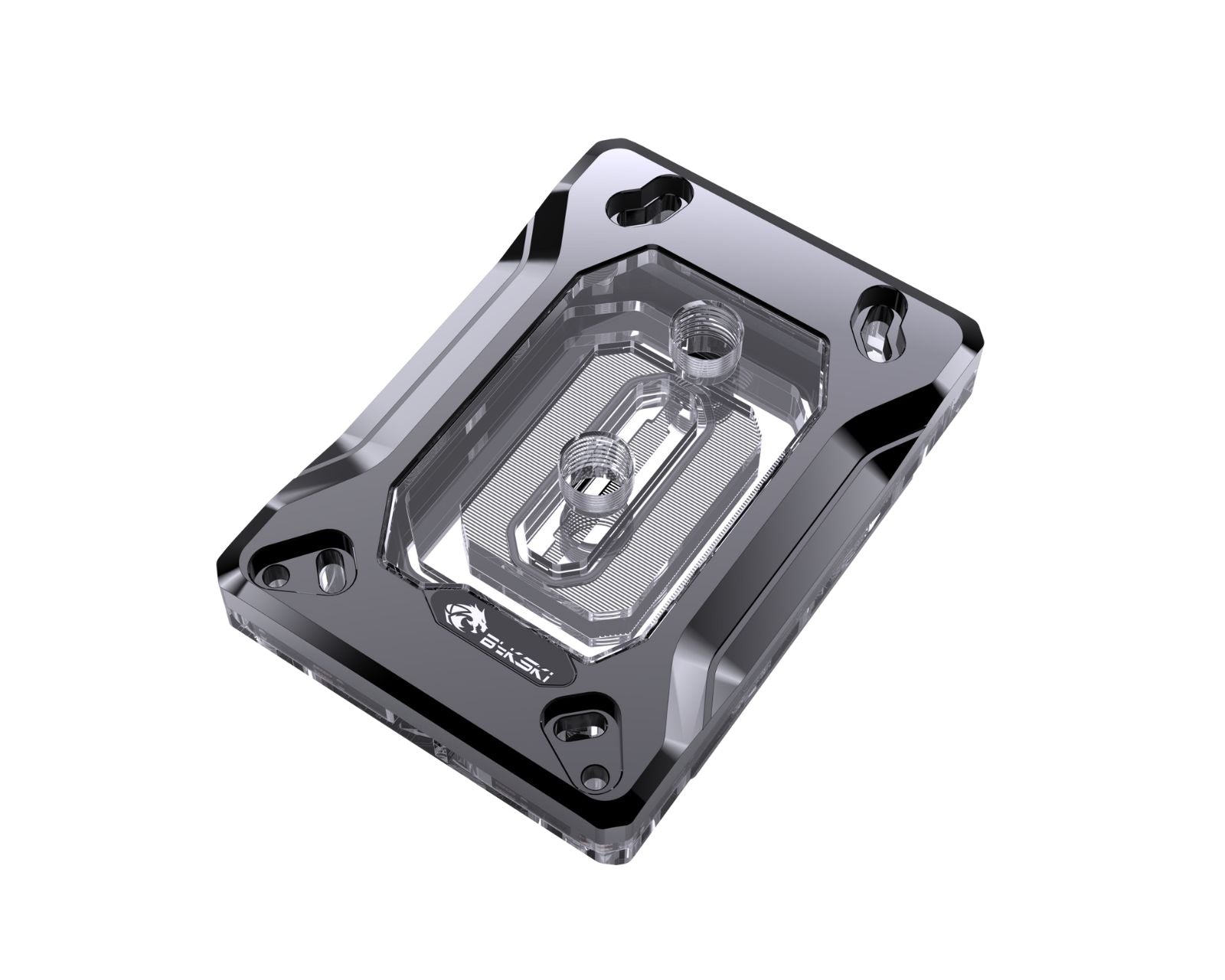

Fits AMD Ryzen 1000 through 9000 series, Threadripper, and EPYC processors across AM4, AM5, TR4, sTRX4, sWRX8, and SP3 sockets. The Bykski CPU-RAY-MK-M delivers targeted cooling directly over the CPU integrated heat spreader using an electroless nickel-plated T2 copper base.

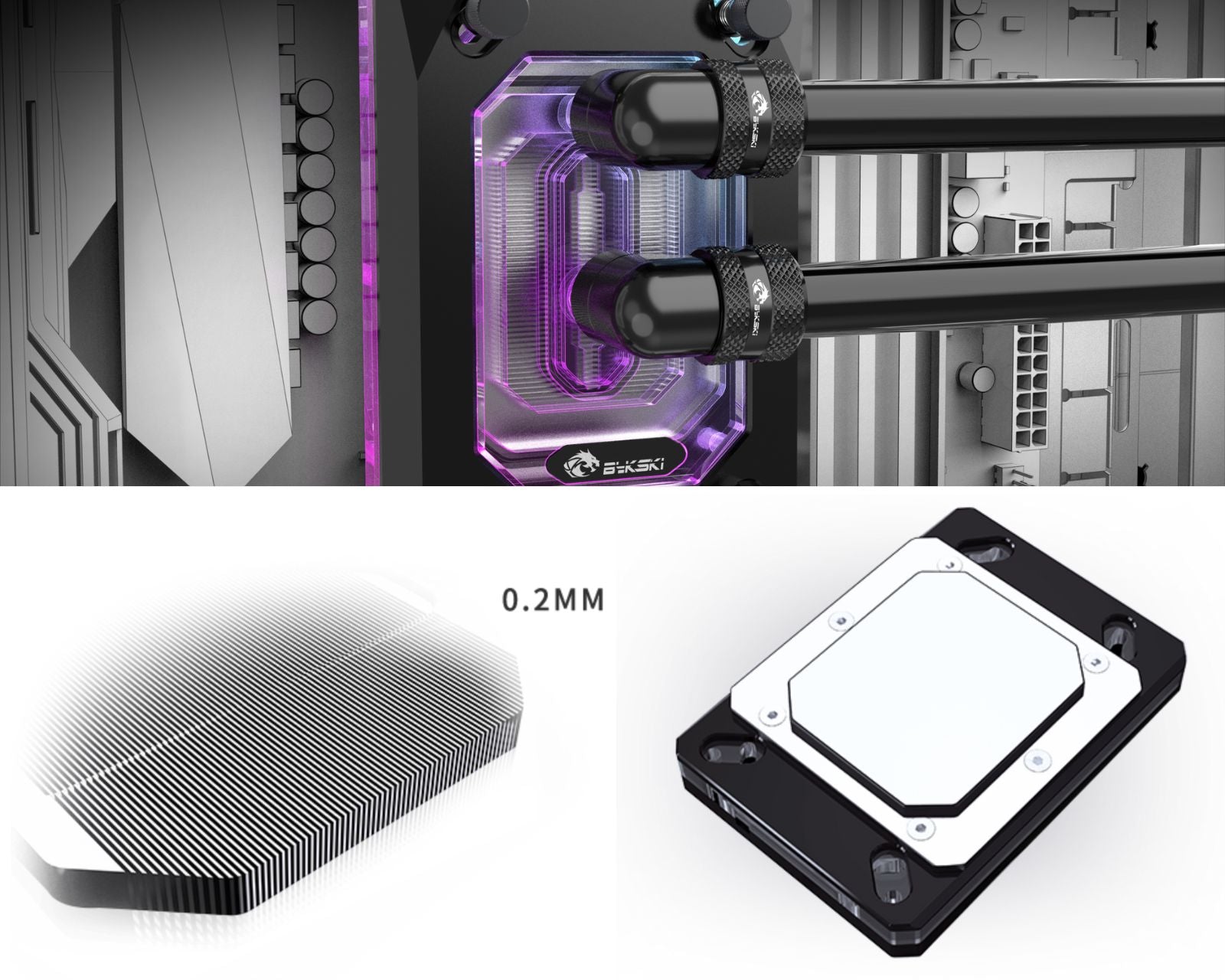

A 0.35 mm base thickness shortens the conductive path between the IHS and the coolant loop. The jet micro-channel array features 113 channels cut to 0.2 mm fin width, yielding 37,699.052 mm² of heat dissipation area fed through a center G1/4 inlet port.

Specifications

• Block Material: Nickel-plated T2 copper, PMMA top with aluminum armor
• Dimensions: 120.00 x 84.00 x 23.80 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• AMD EPYC 7001 / 7002 / 7003 Any EPYC 7xxx
• AMD Ryzen 1000 Ryzen 7 / 5 / 3 1xxx
• AMD Ryzen 2000 Ryzen 7 / 5 / 3 2xxx
• AMD Ryzen 3000 Ryzen 9 / 7 / 5 / 3 3xxx
• AMD Ryzen 4000 Ryzen 7 / 5 / 3 4xxx
• AMD Ryzen 5000 Ryzen 9 / 7 / 5 5xxx
• AMD Ryzen 7000 Ryzen 9 / 7 / 5 7xxx
• AMD Ryzen 8000 Ryzen 7 / 5 8xxx
• AMD Ryzen 9000 Ryzen 9 / 7 / 5 9xxx
• AMD Threadripper 1000 / 2000 Threadripper 1xxx / 2xxx
• AMD Threadripper 3000 Threadripper 39xx
• AMD Threadripper PRO 3000WX / 5000WX Threadripper PRO 3xxx / 5xxx

Parts Included

• CPU Water Cooling Block
• Installation Hardware, including thermal paste
• 5v Addressable RGB (RBW)

Warnings

Warranty is repair or replacement. All returns are accepted within 30 days, no questions asked. An installed or used item comes back at a higher restocking fee.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
