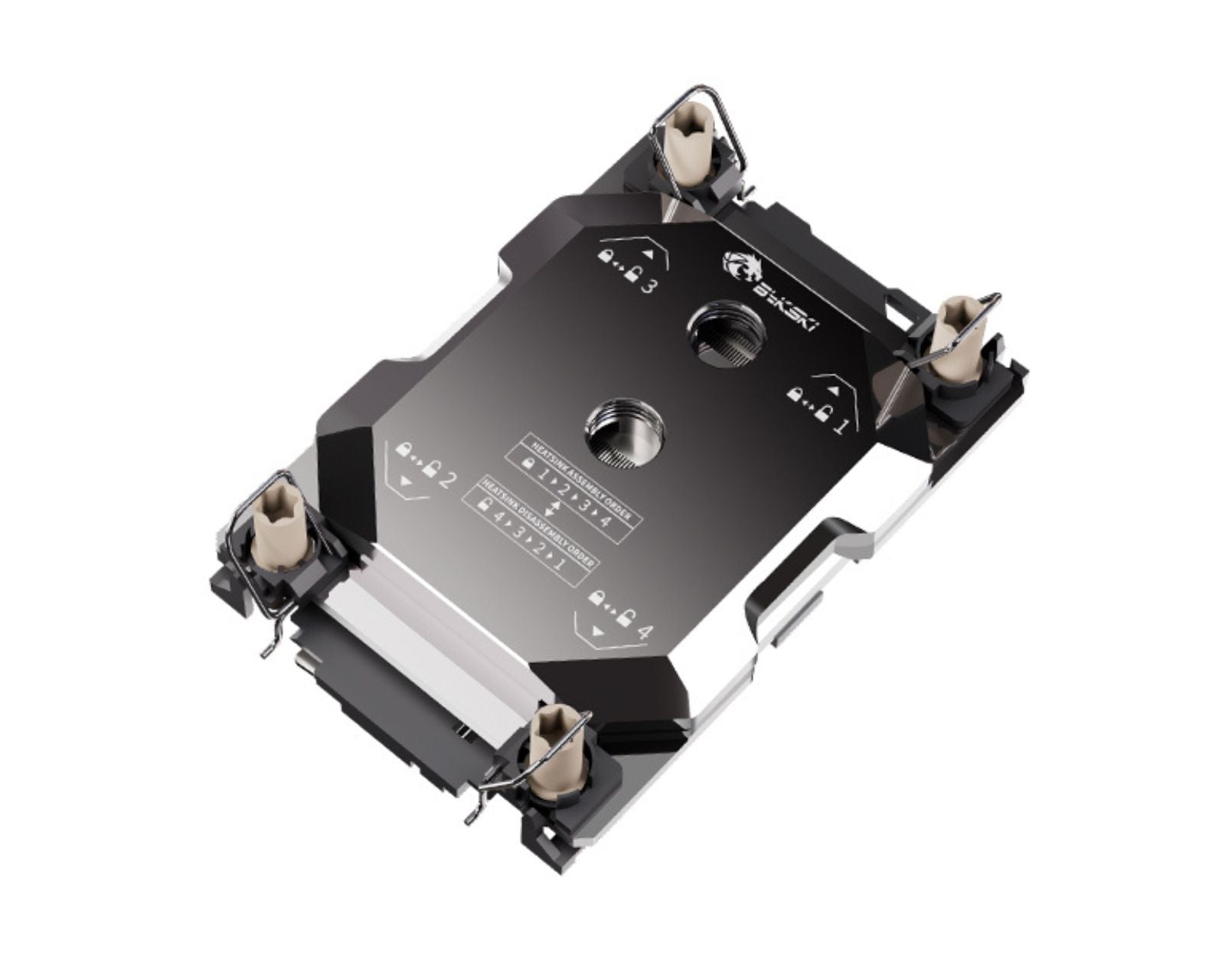

The Bykski CPU-SR4189-X is a dedicated CPU water cooling block built for 3rd Gen Intel Xeon Scalable processors on socket LGA 4189. It mounts directly to server and workstation motherboards running Ice Lake-SP silicon.

The cooling engine utilizes an electroplated T2 copper cold plate with 54 micro-channels spaced at 0.3 mm and a jet-type flow diversion structure to spread coolant over the die area. A CNC-machined brass top with anti-corrosion electroplating delivers an all-metal build without acrylic components.

Specifications

• Block Material: Nickel-plated T2 copper, brass top

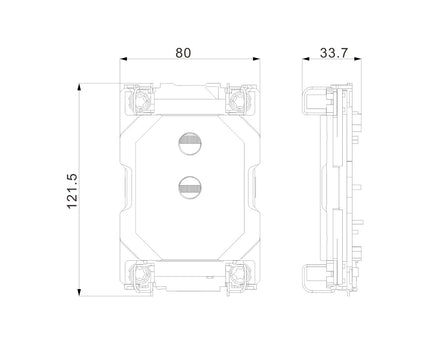

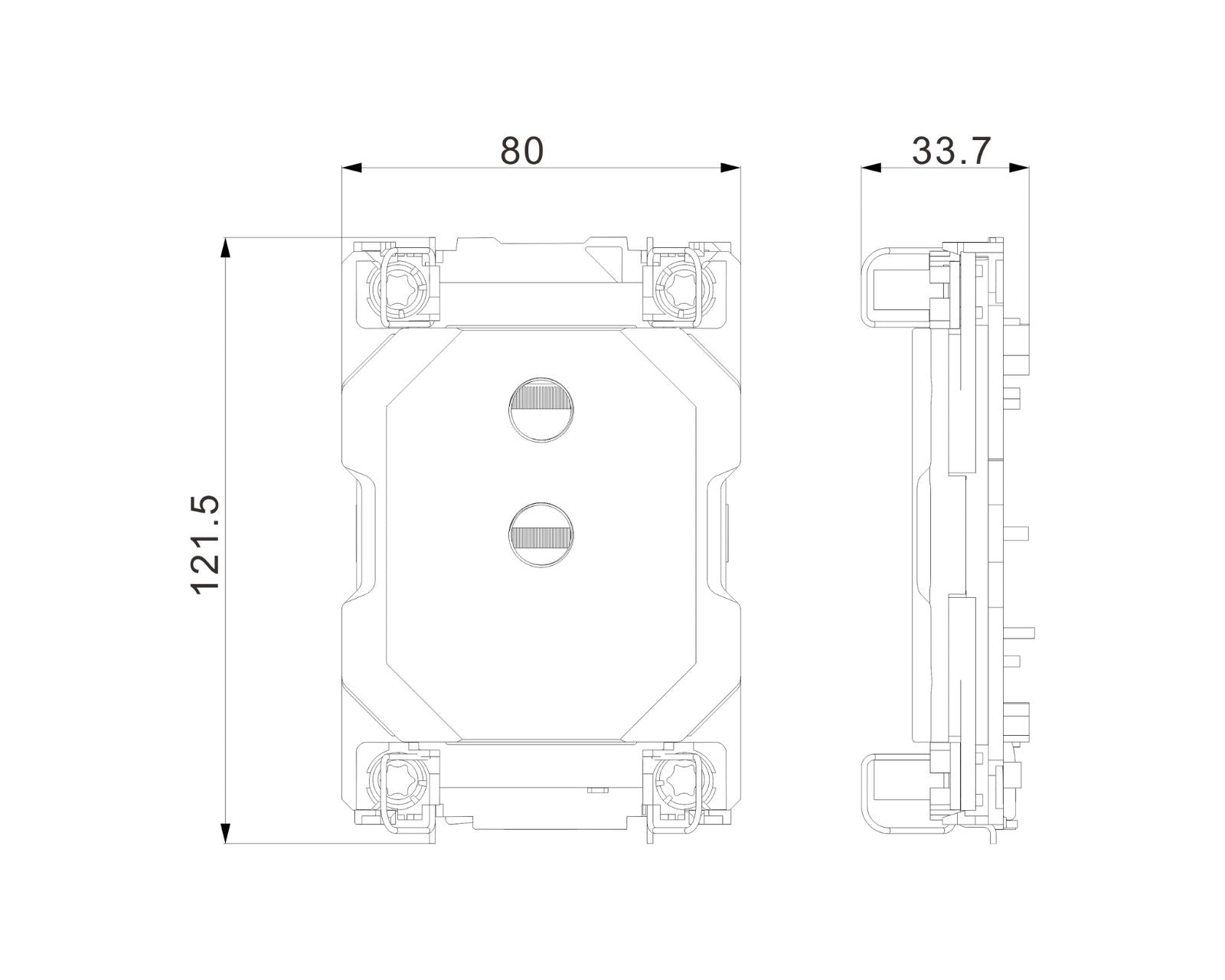

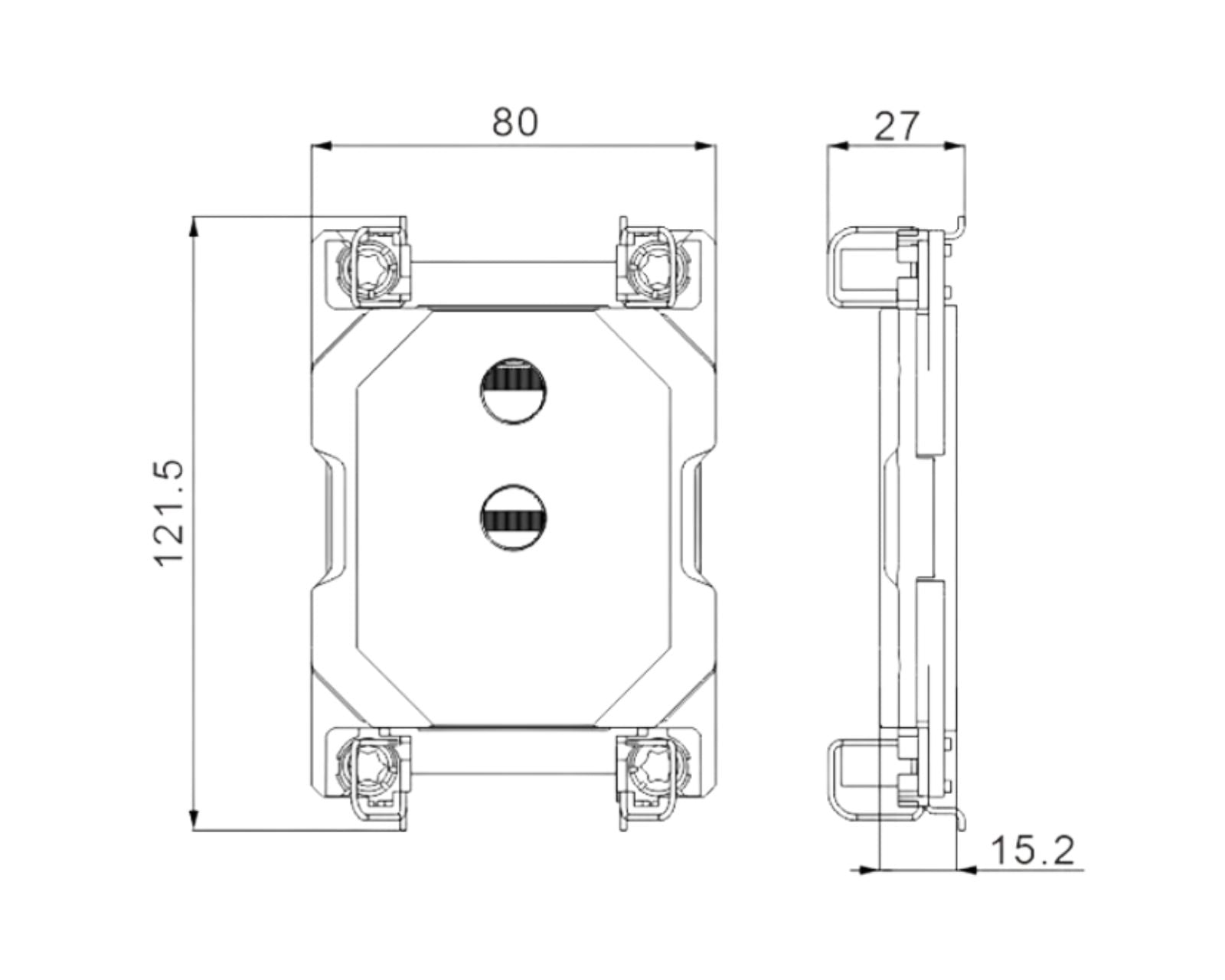

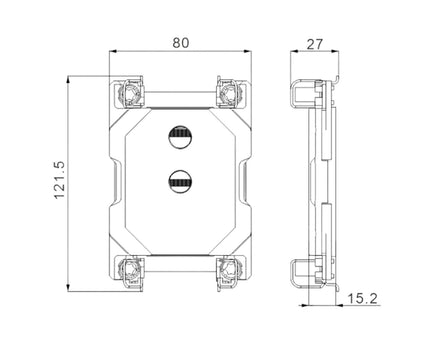

• Dimensions: 121.5 x 80 x 27 mm
• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• Intel Xeon Scalable 3rd gen Any 83xx / 63xx

Parts Included

• 1x CPU Water Cooling Block
• 1x Mounting Hardware

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

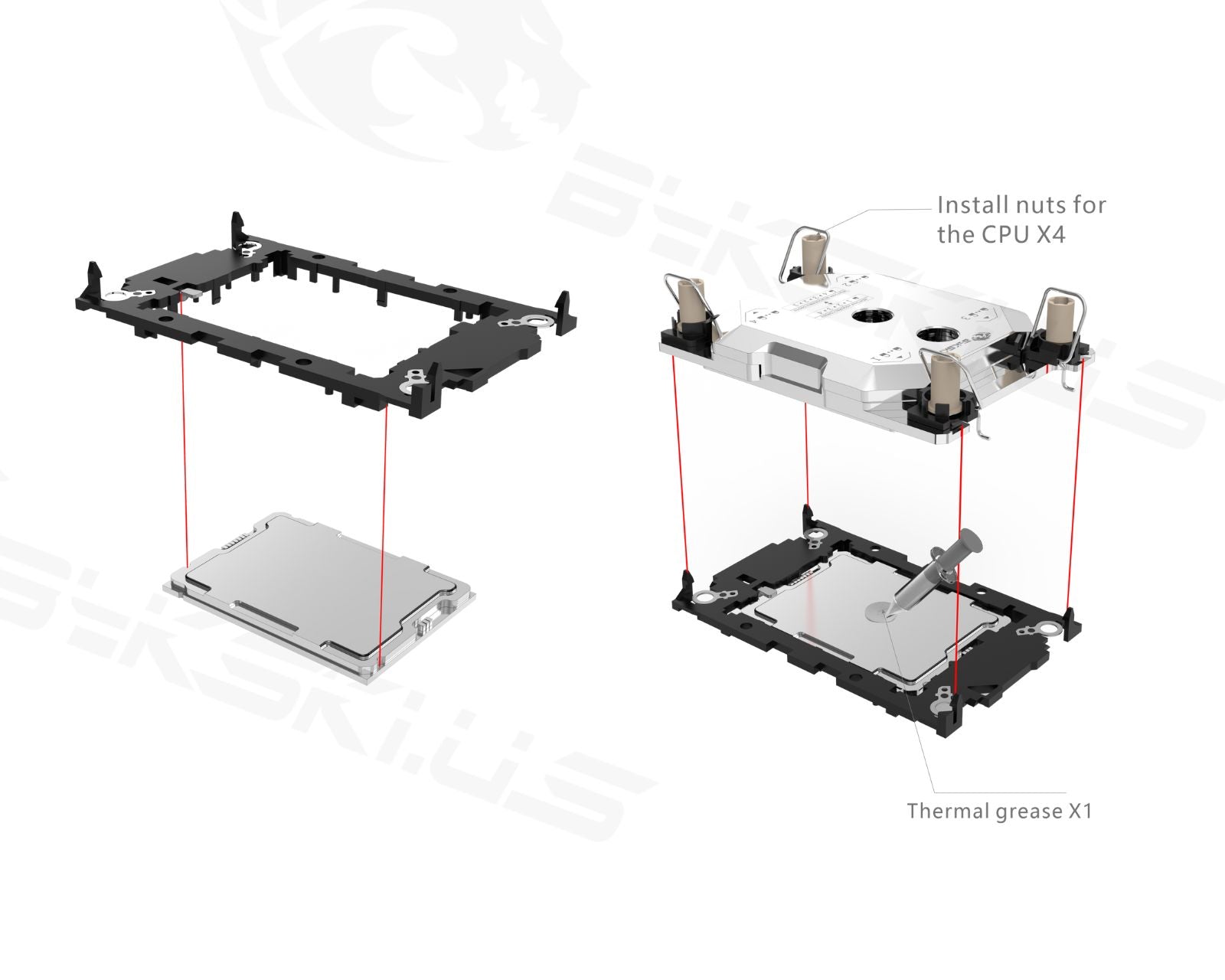

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

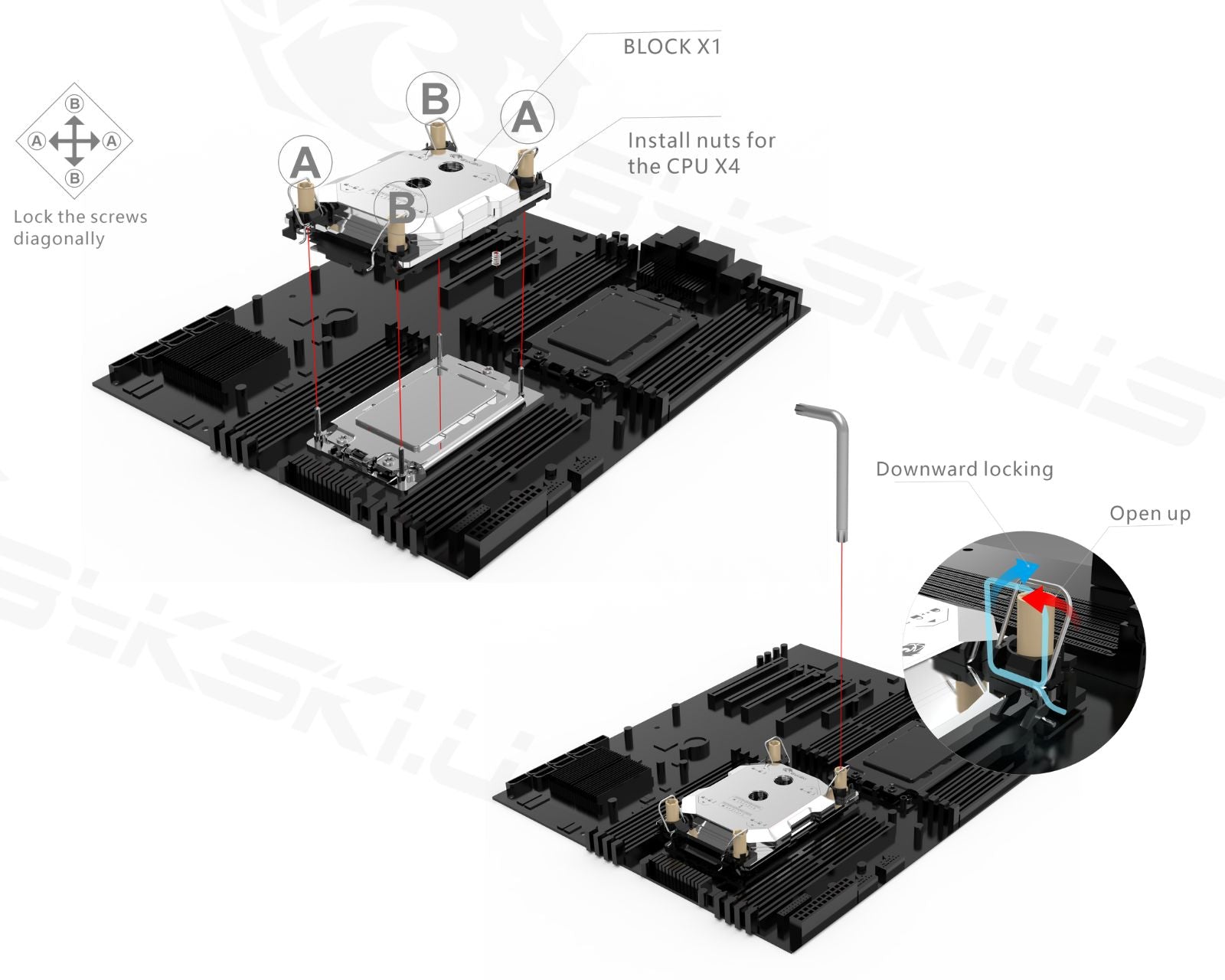

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
