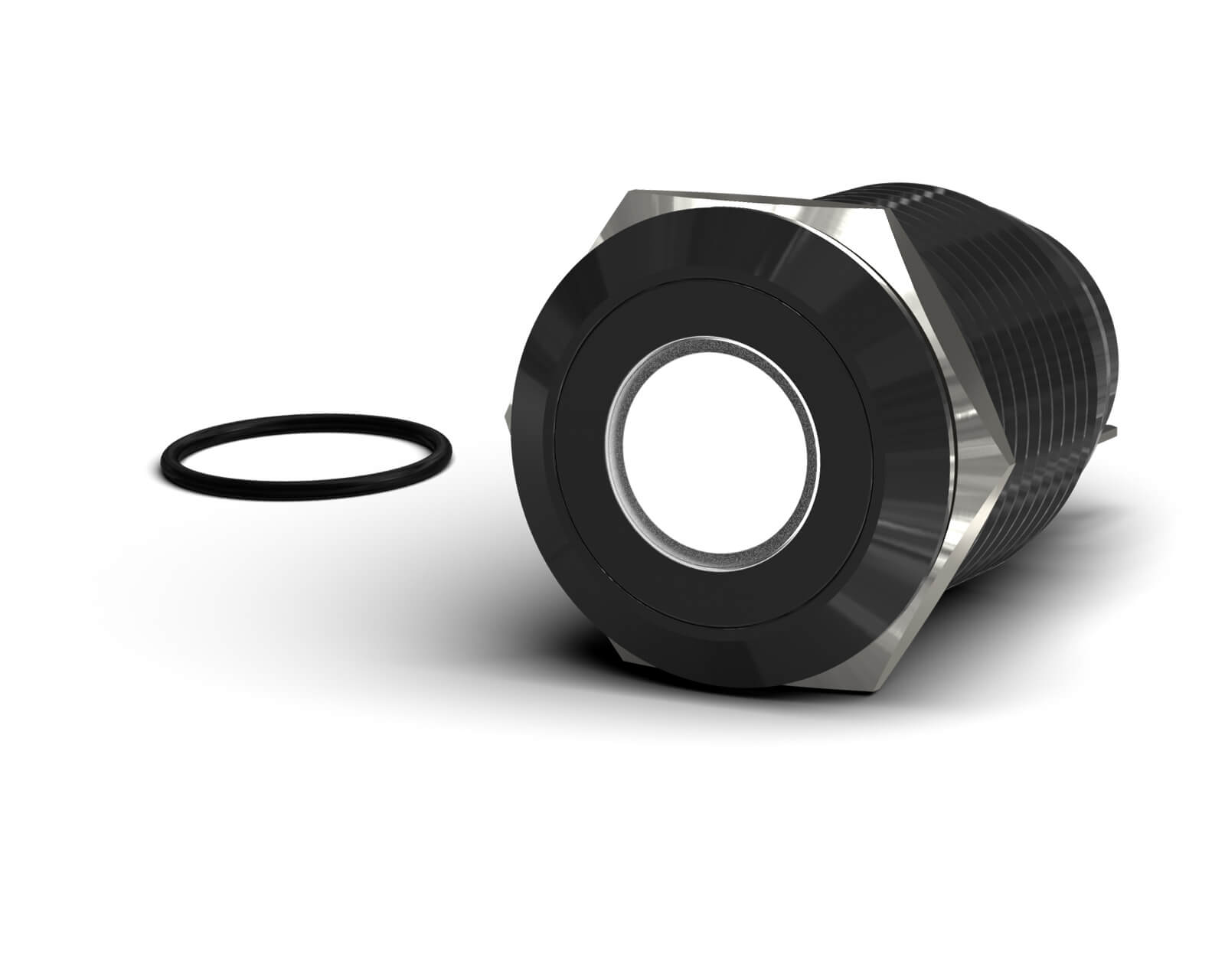

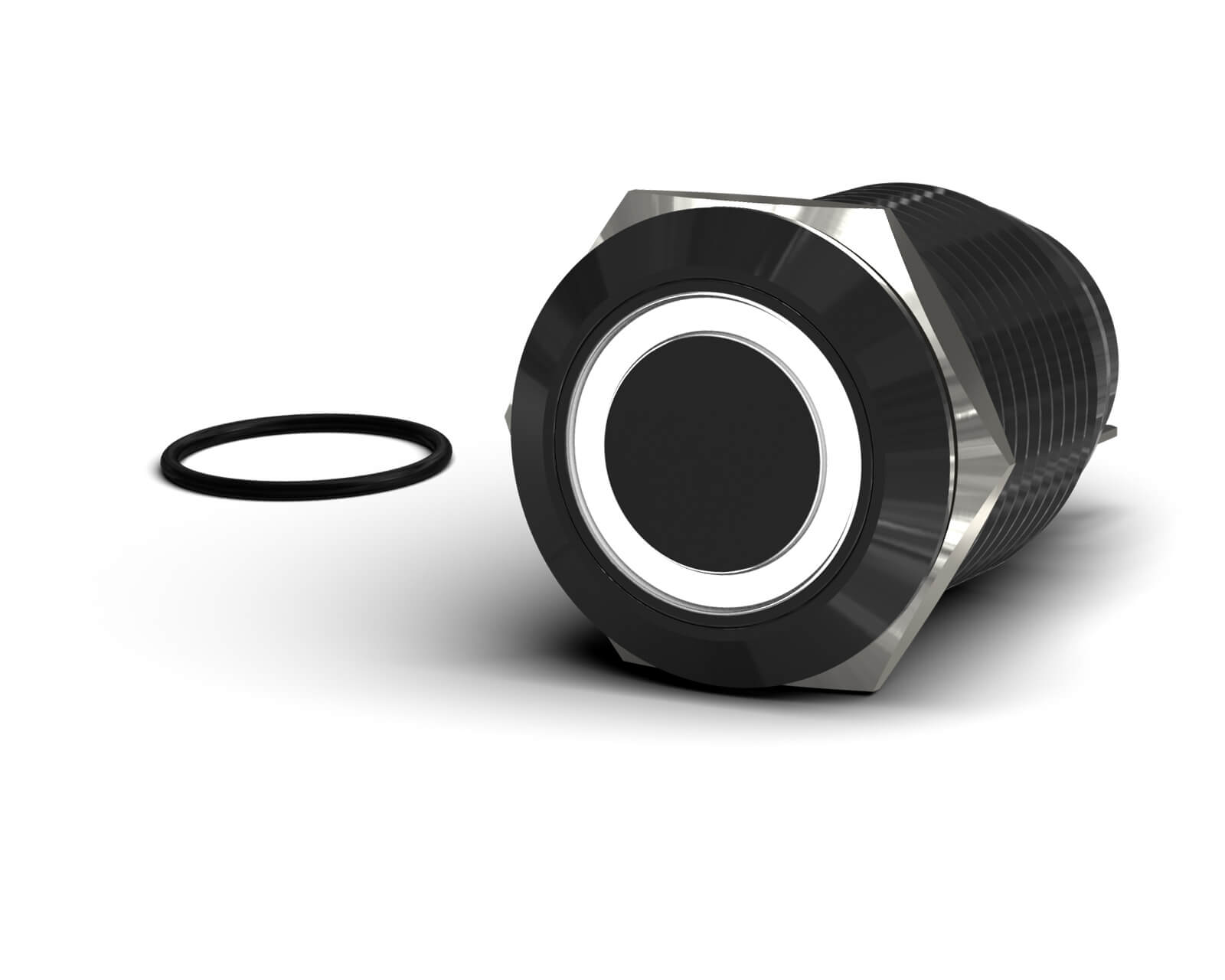

The Black Aluminum Momentary Vandal Resistant Switch momentarily depresses and bounces back when pressed. Easy to install and will fit on a regular 5.25 drive cover or wherever you chose.

Features

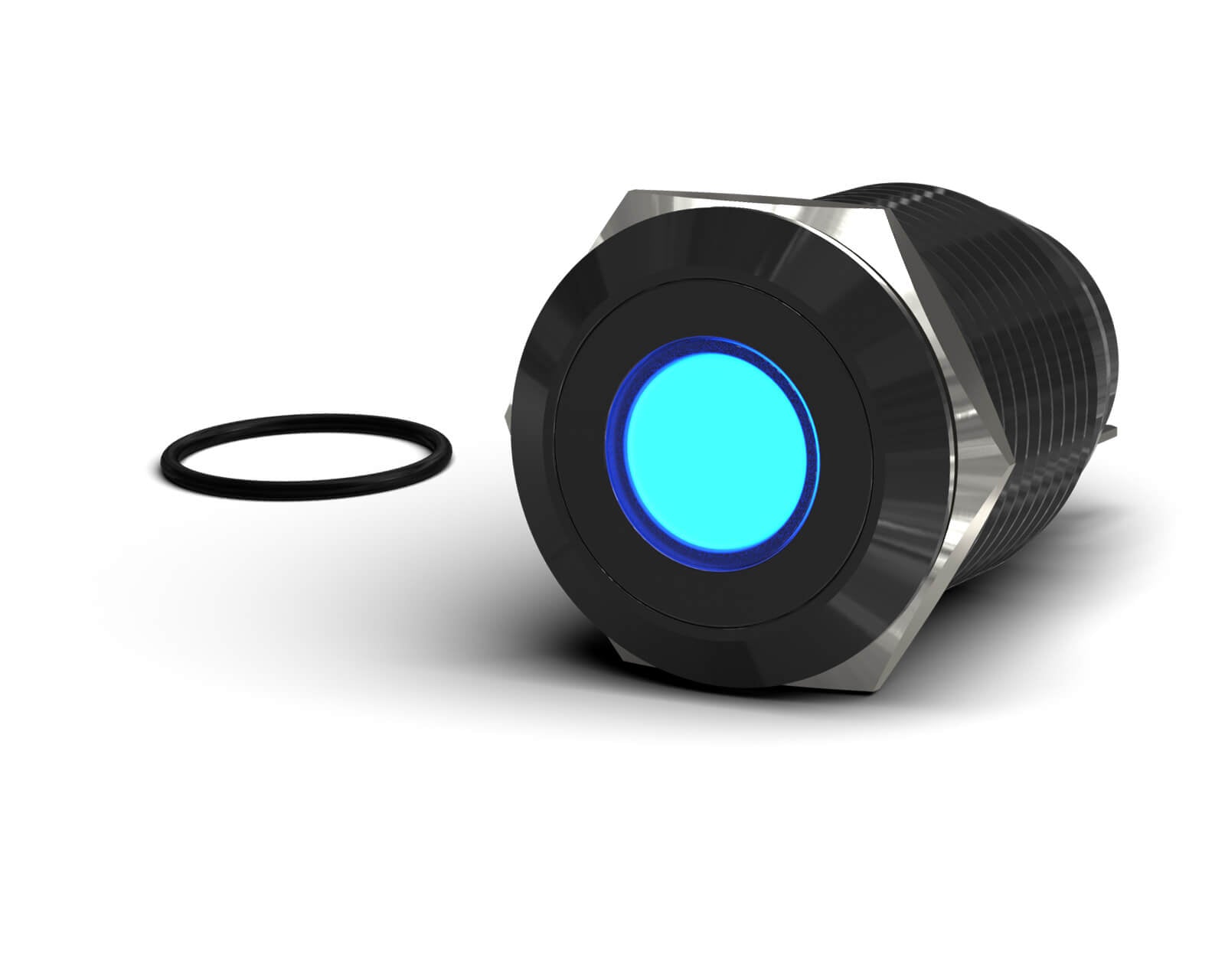

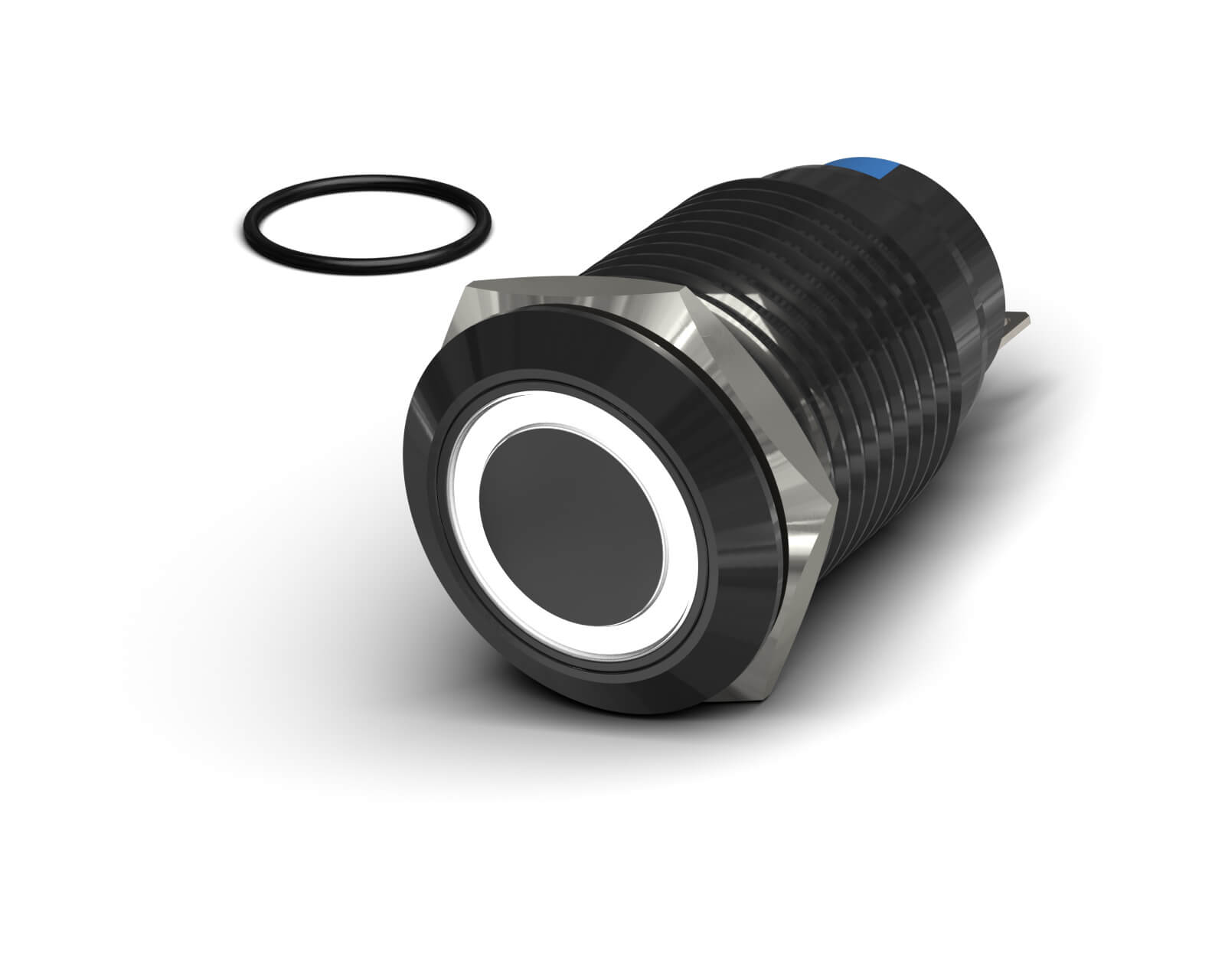

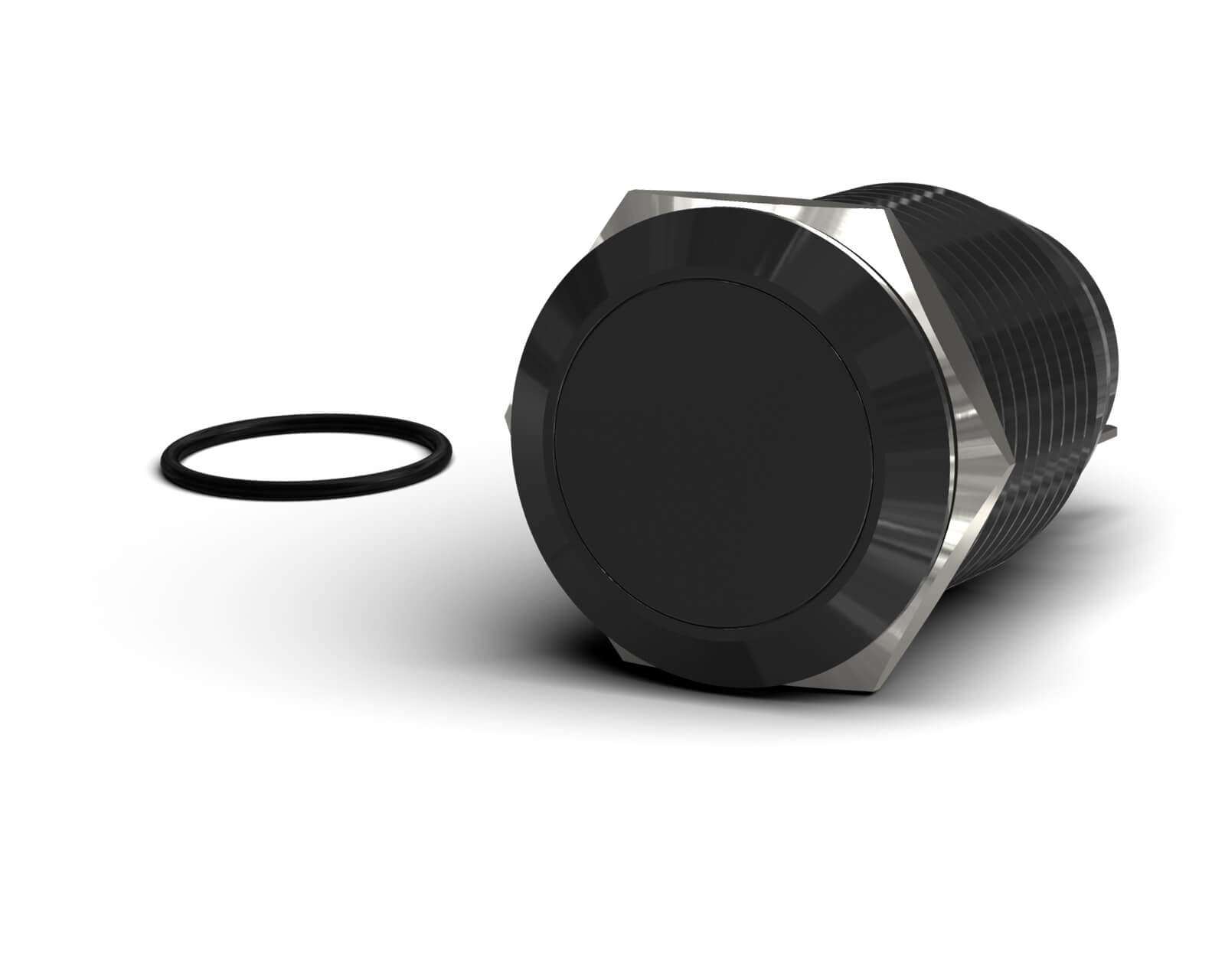

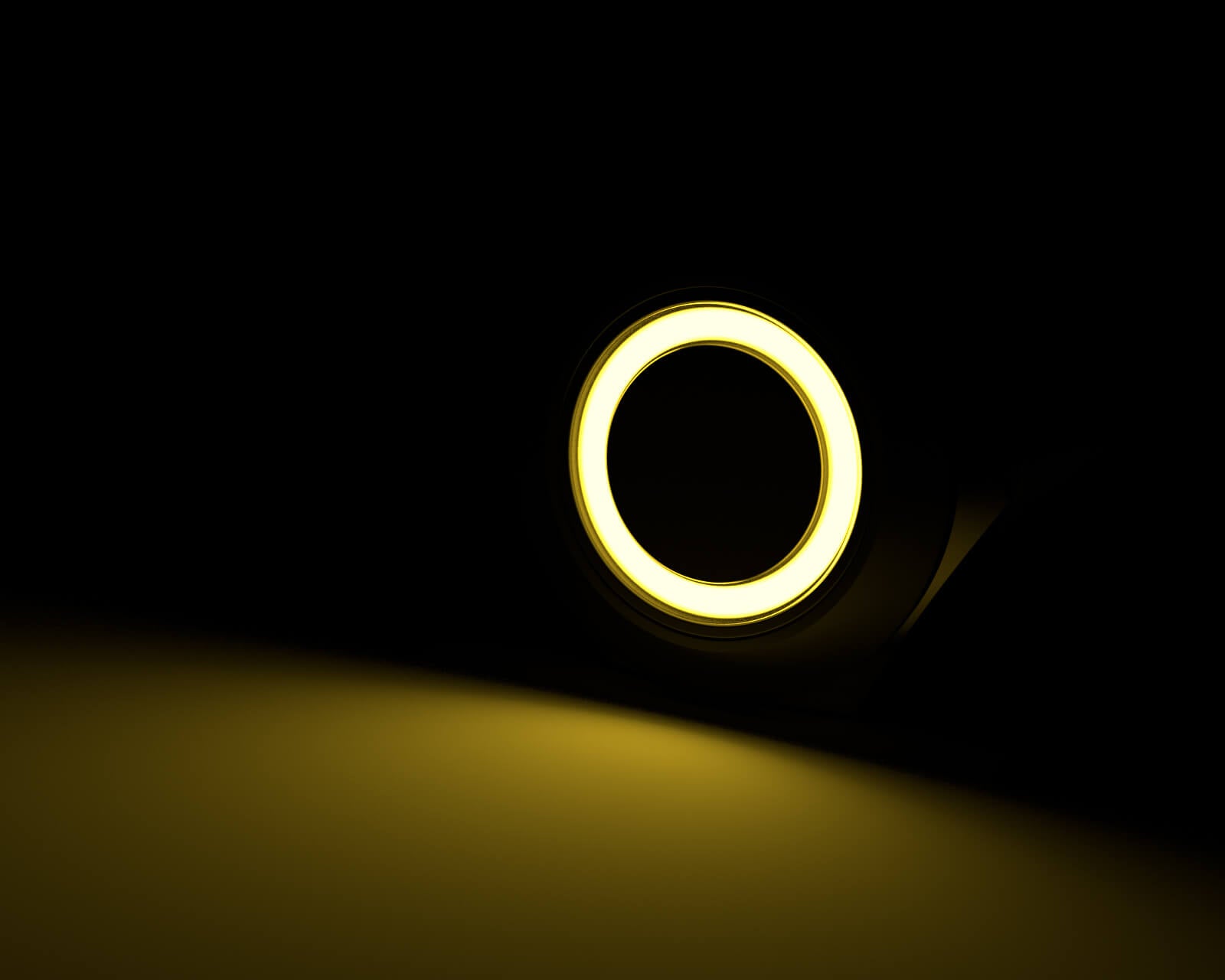

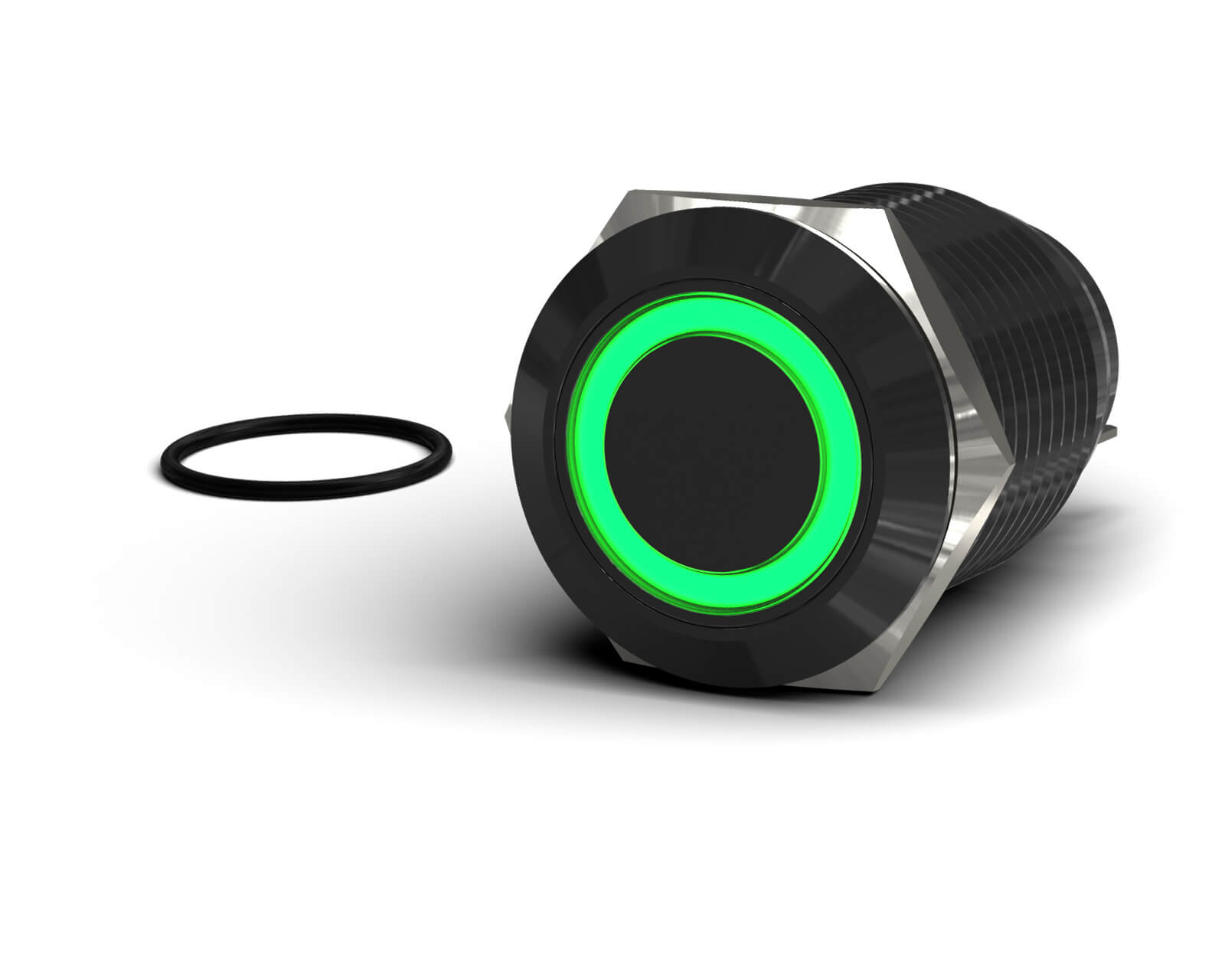

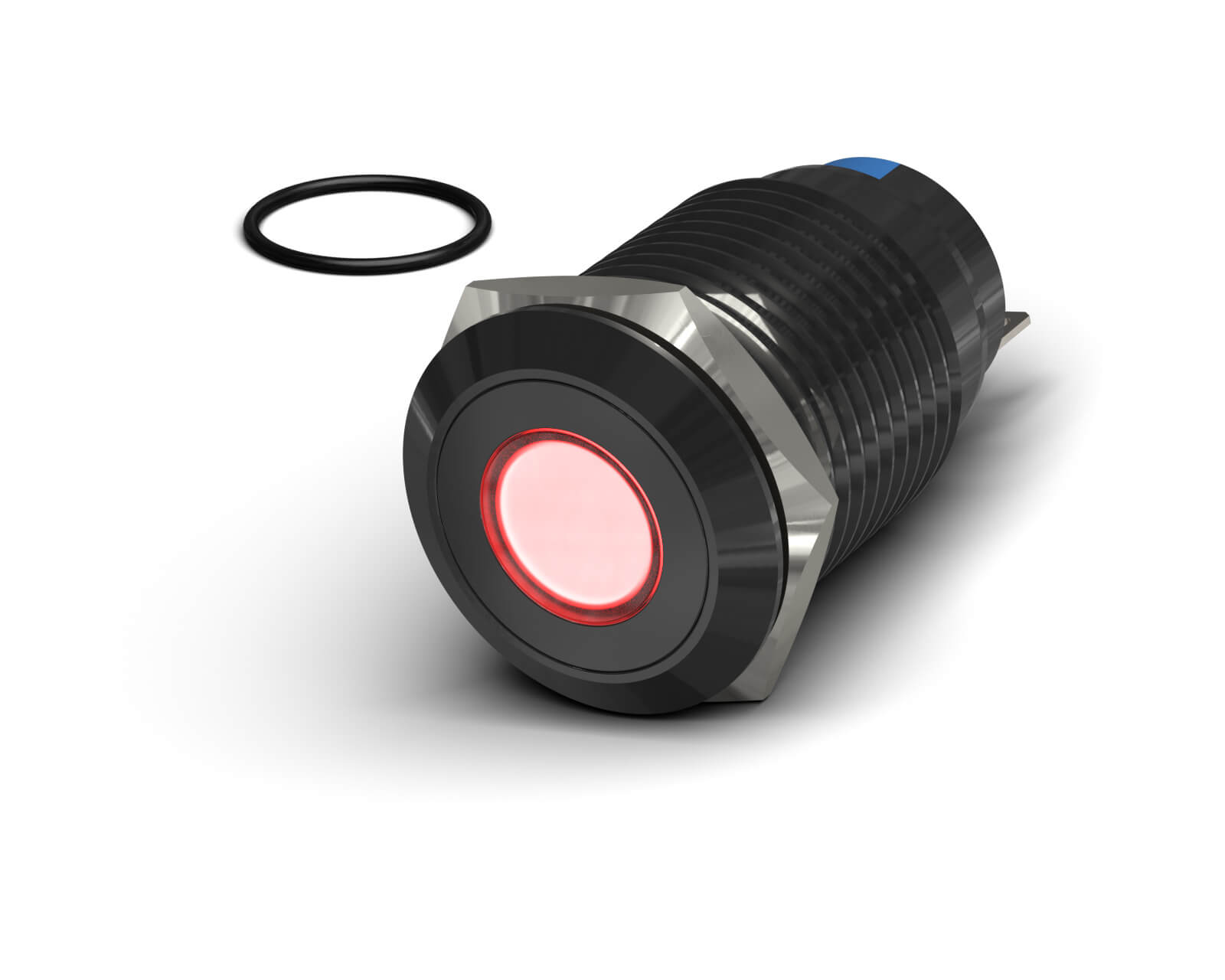

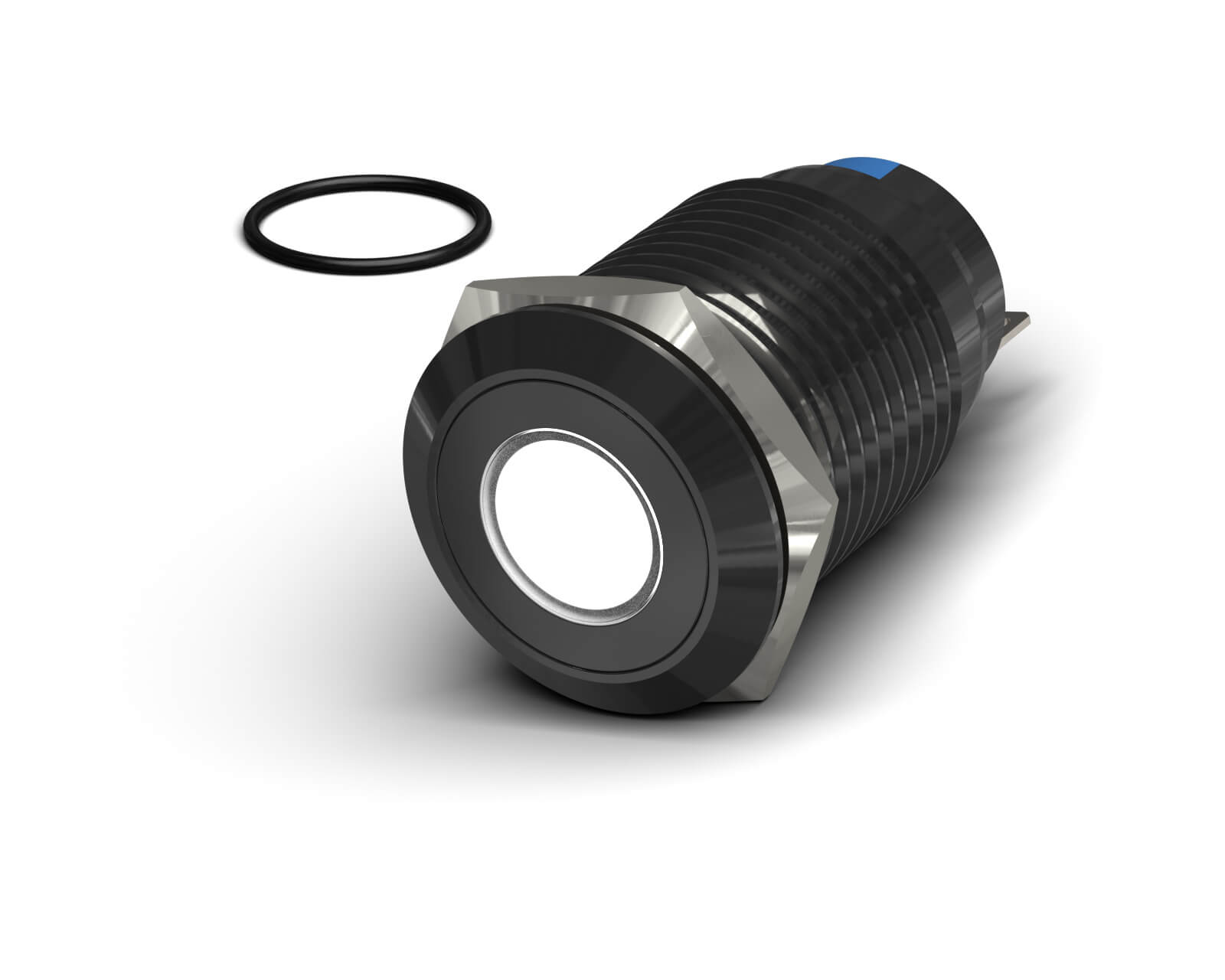

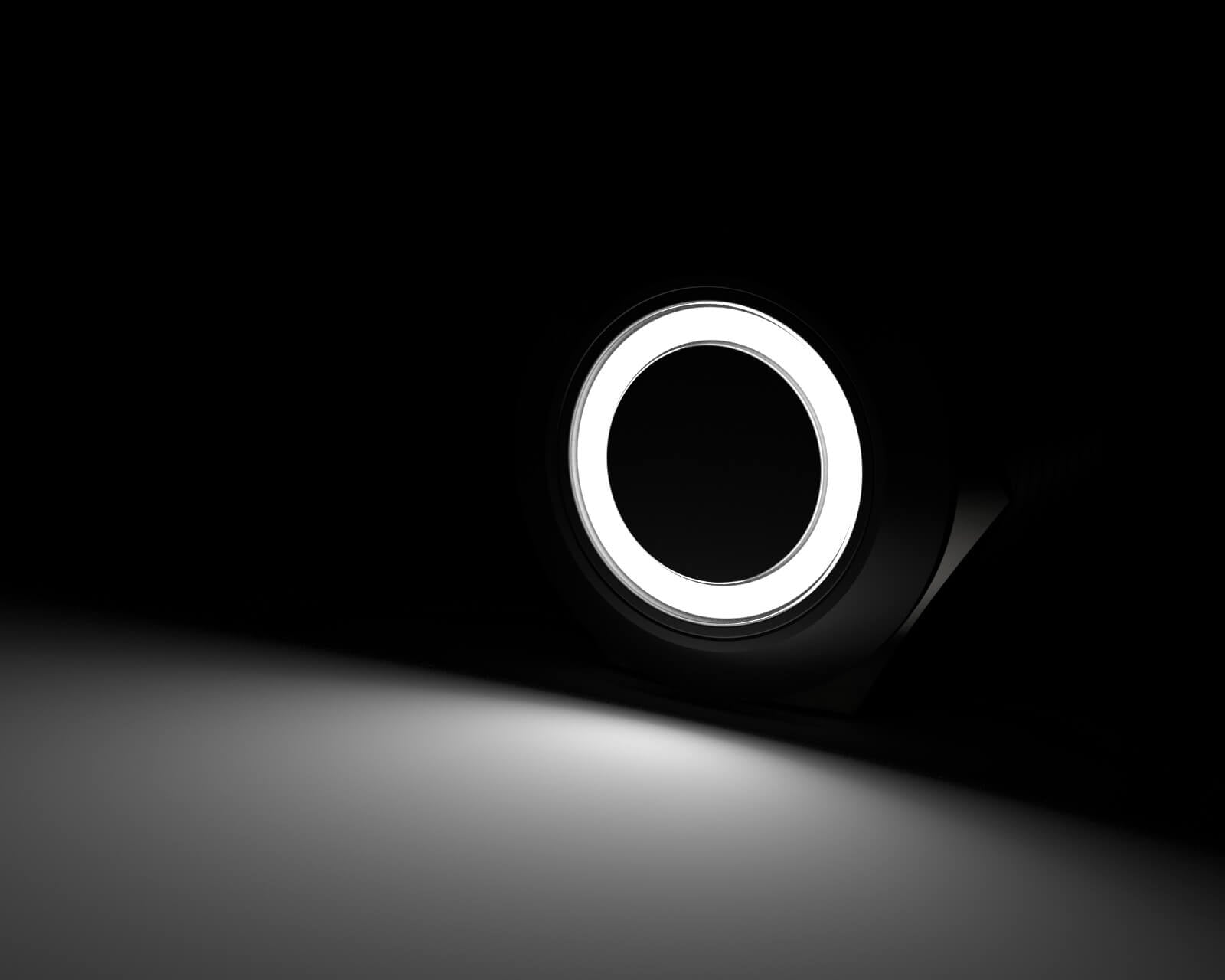

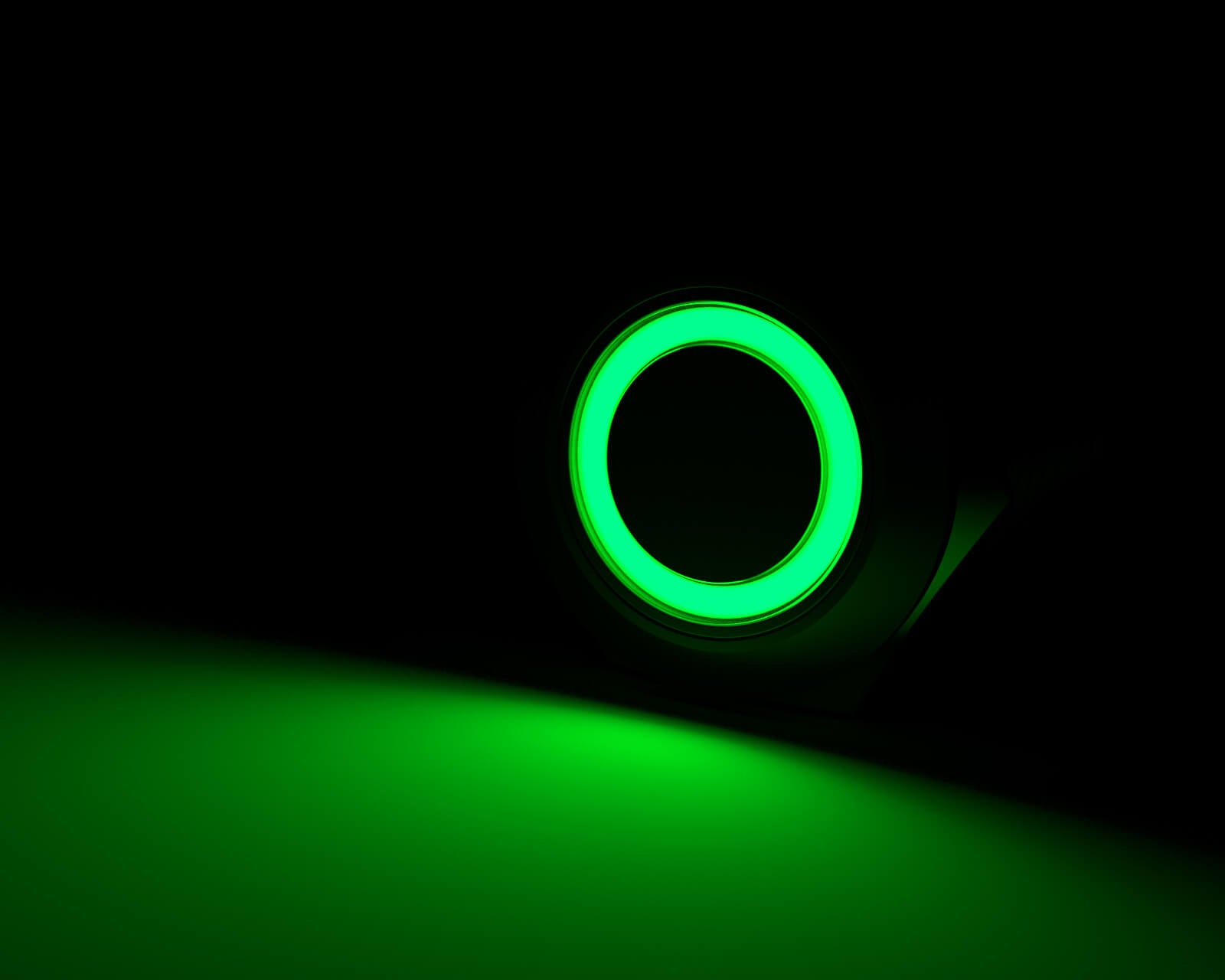

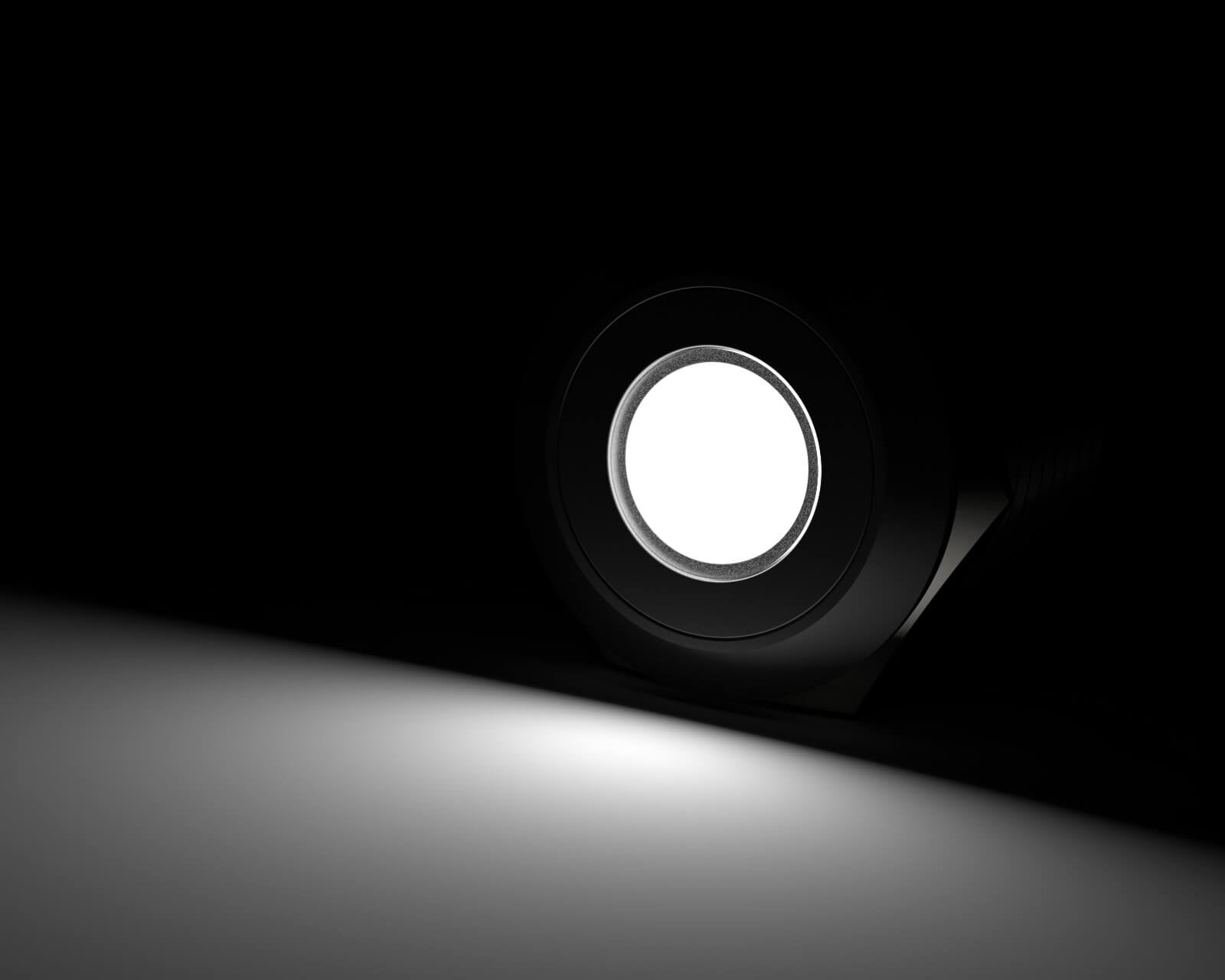

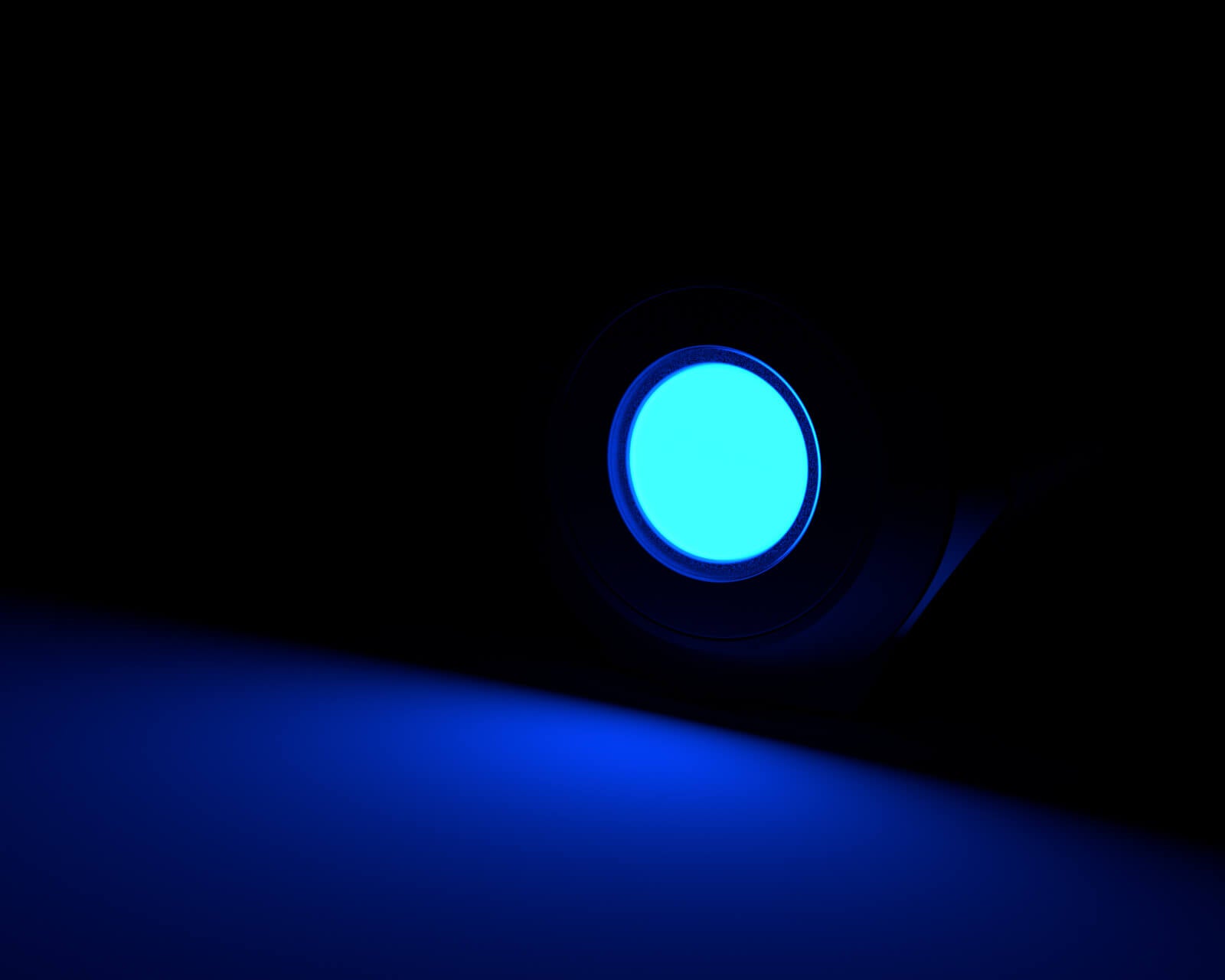

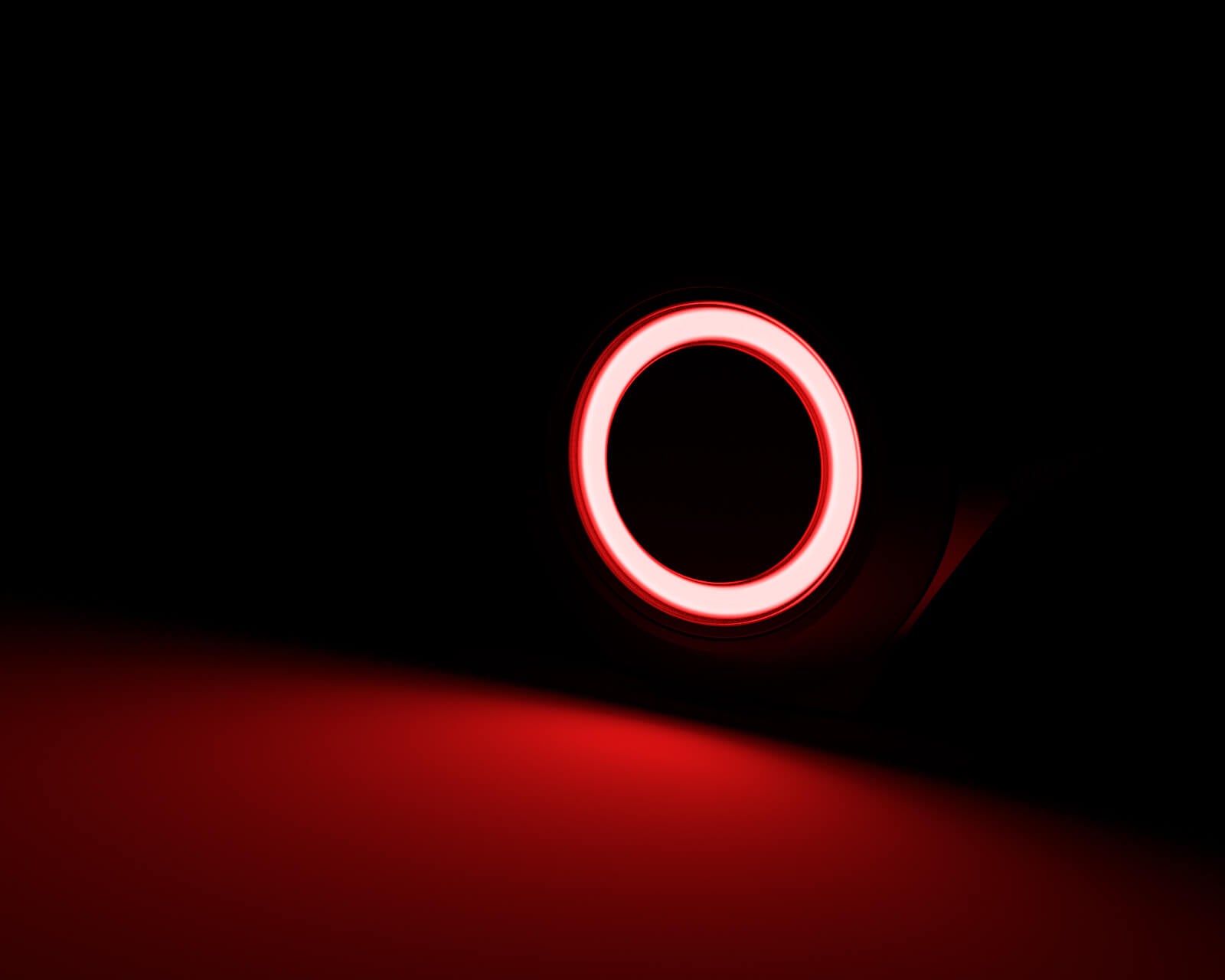

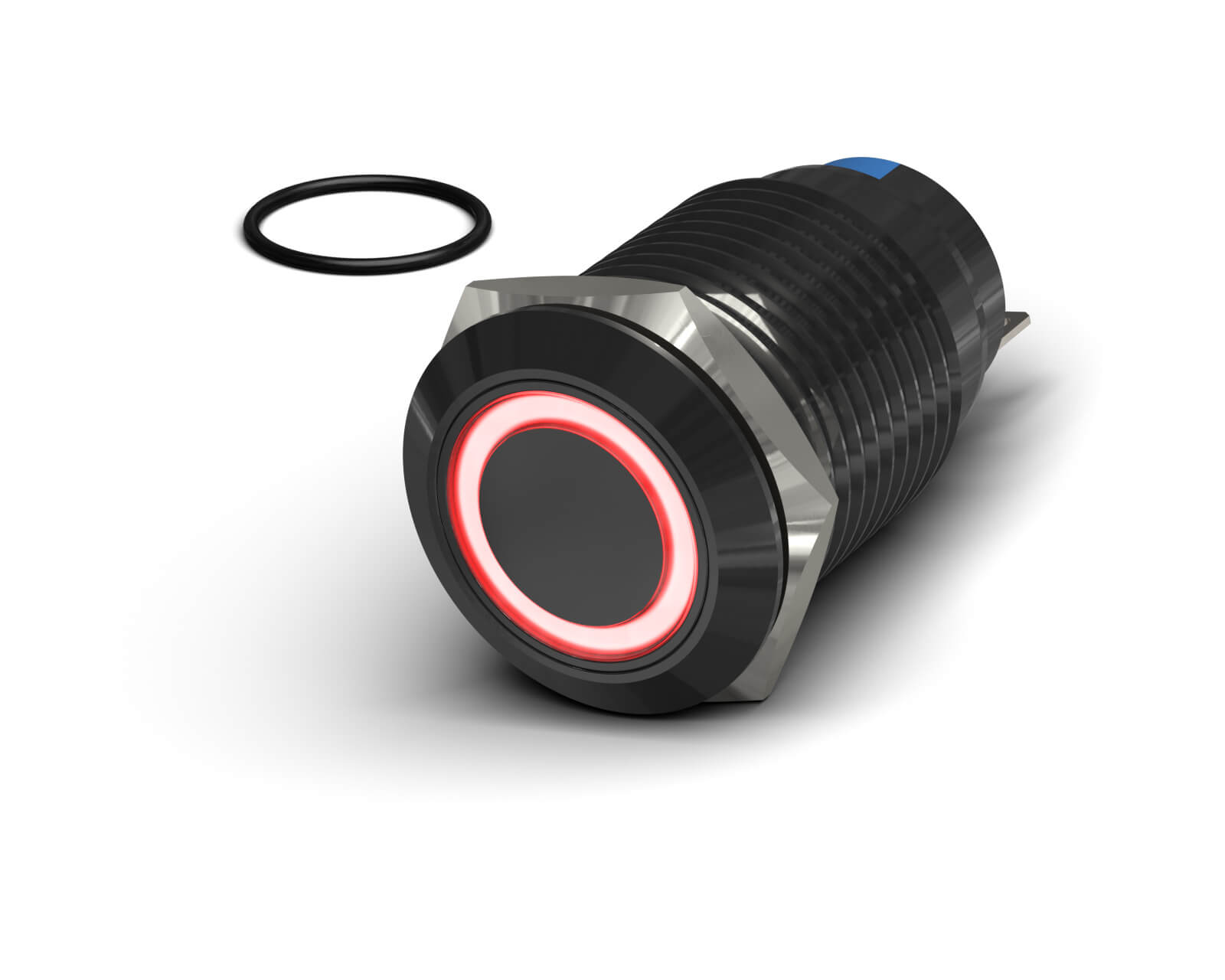

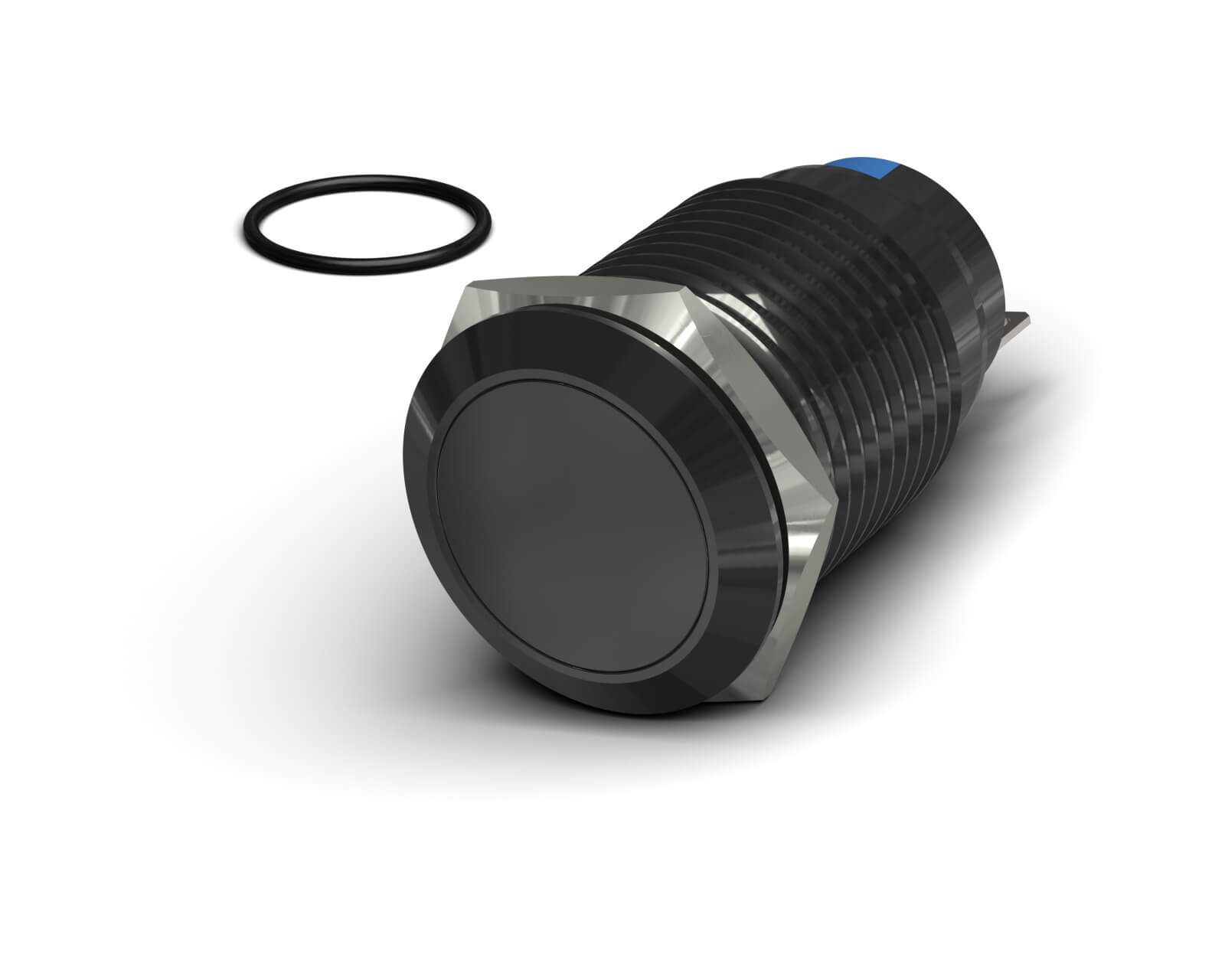

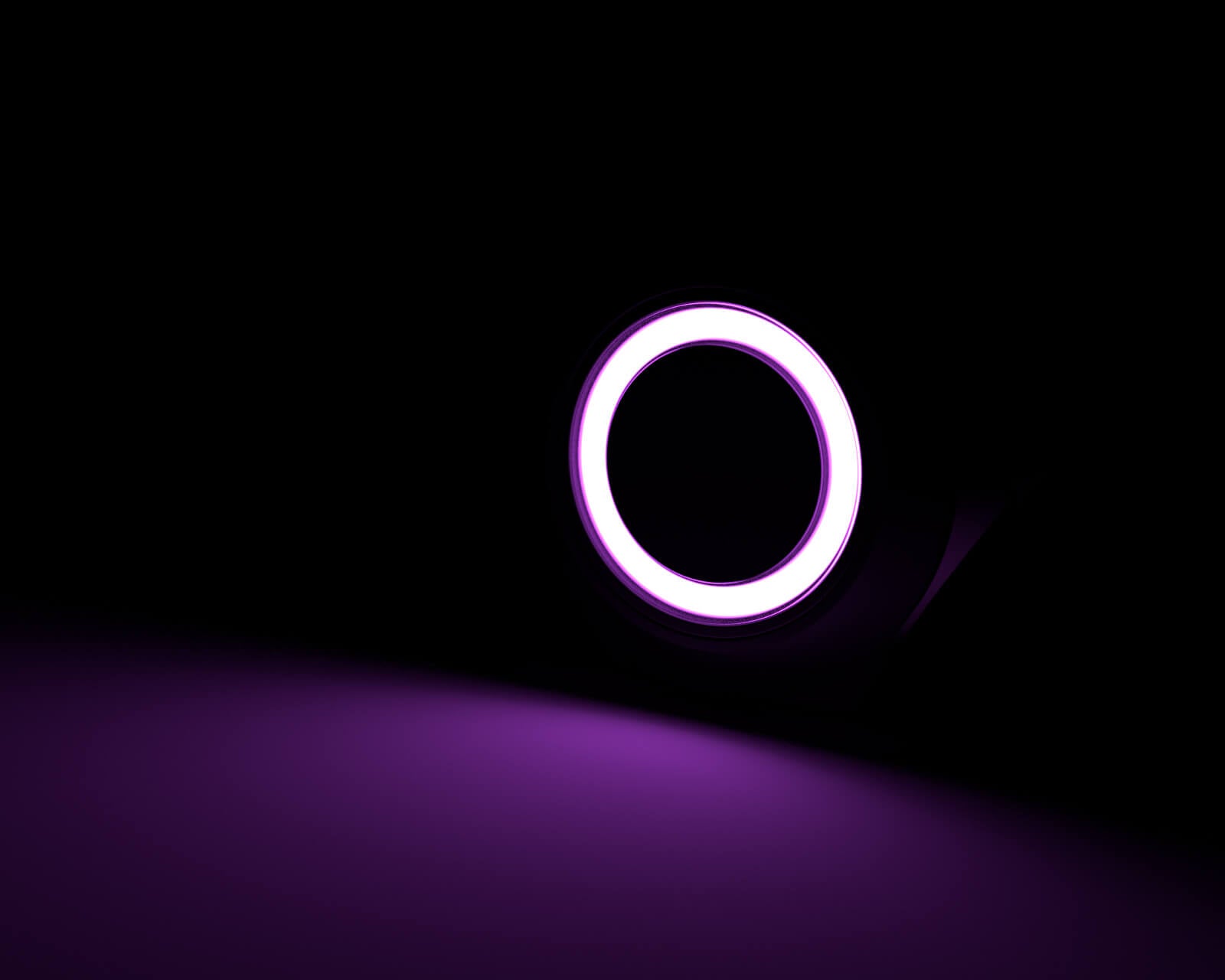

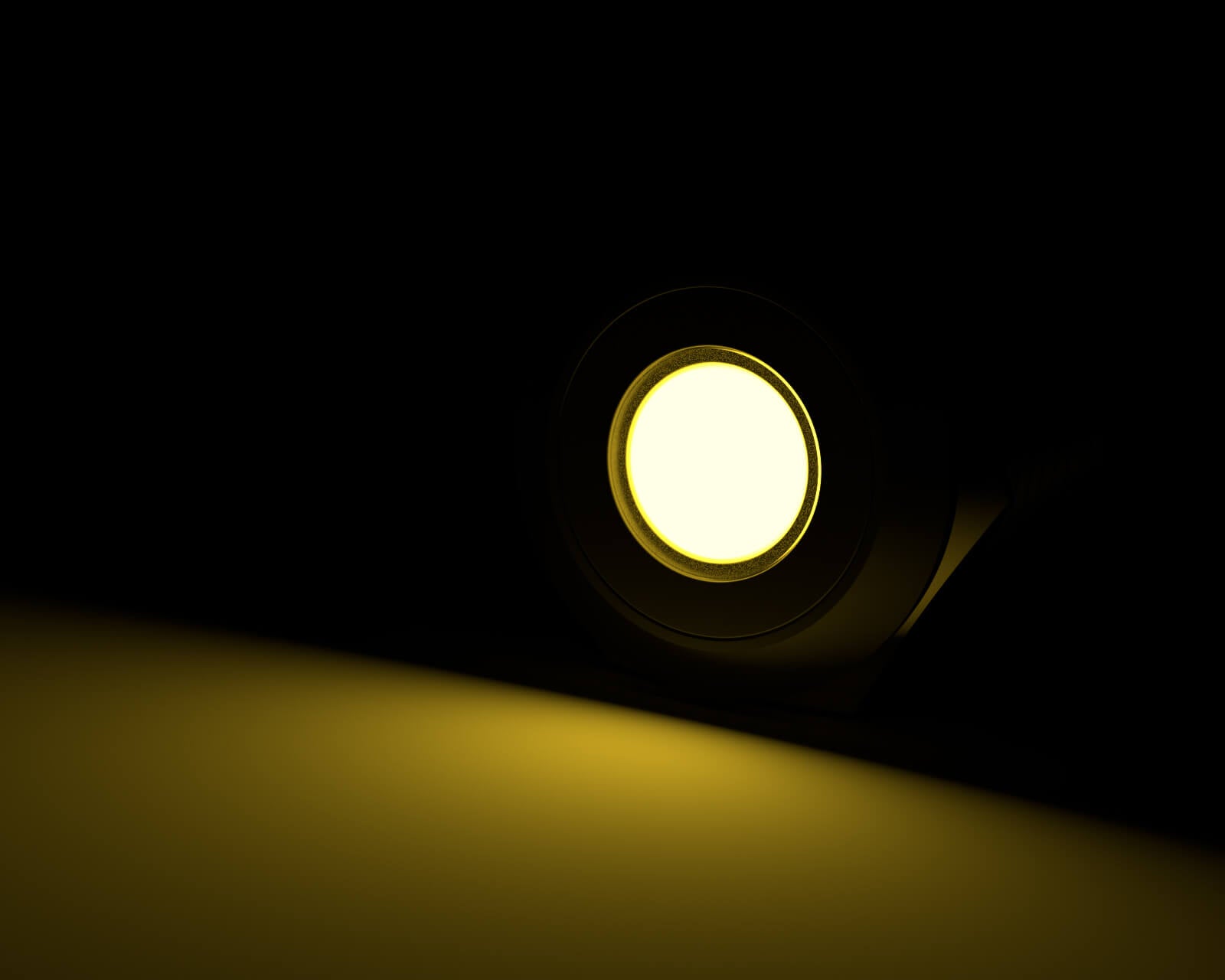

• Available in always on Illuminated (Dot and Ring Style LED) and Non-Illuminated

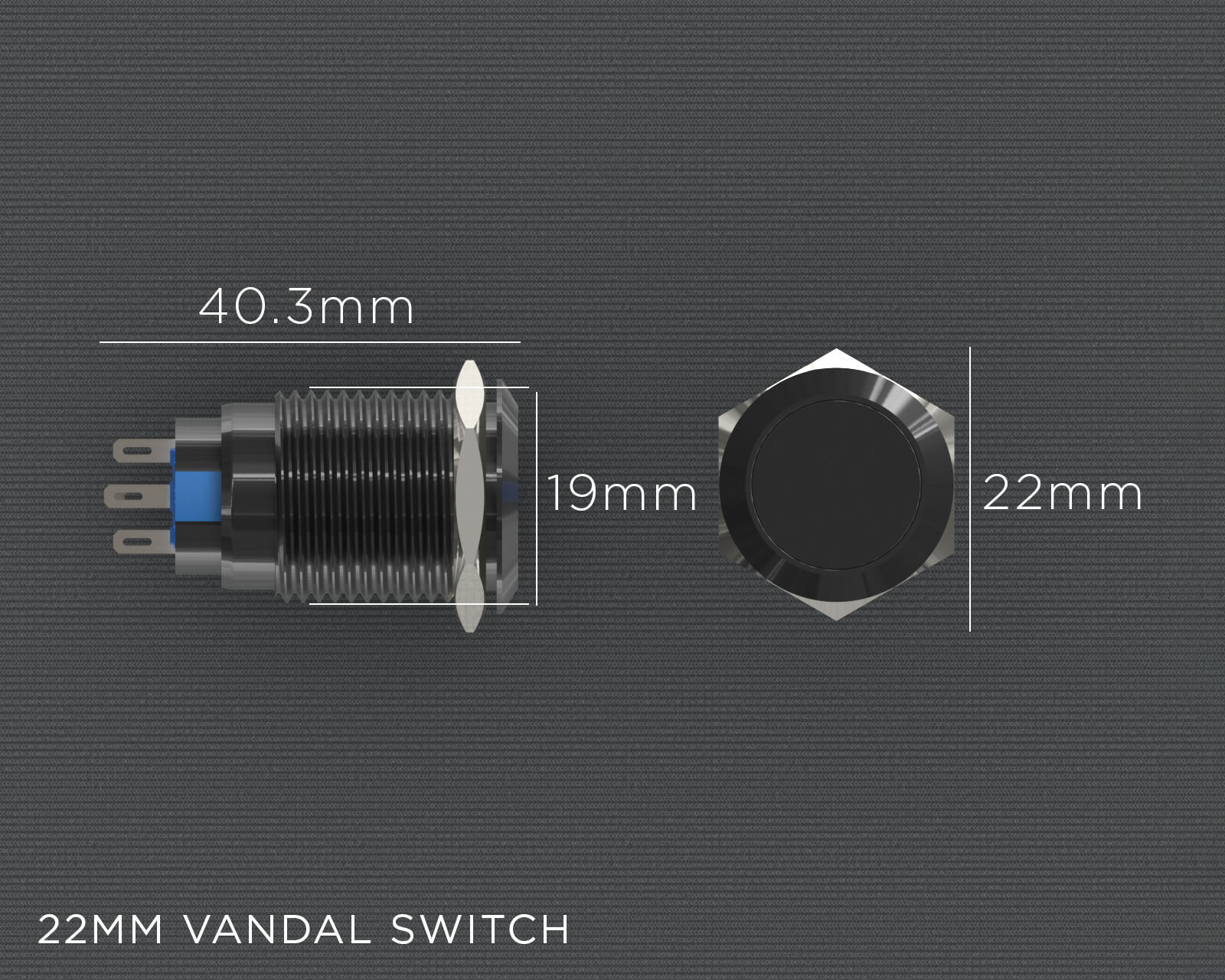

• Size: 22mm diameter
• S.P. Push to Make (Latching)
• Daylight LEDs (in Illuminated version)
• LED Terminals (in Illuminated version)
• Front Panel Mounting
• Switch harnesses with motherboard headers sold separately

Specifications

• Mount Hole: 18.75mm
• Switch Structure: No. 3
• Current: 5 A Maximum
• 24V DC contact rating (for switch, not LED)
• LED Voltage: 3.3V , 5V, 12V
• LED Lifetime: 1,000,000 hours
• Switch Depression Lifetime: 50,000 cycles
• Connection Material: Silver

Parts Included

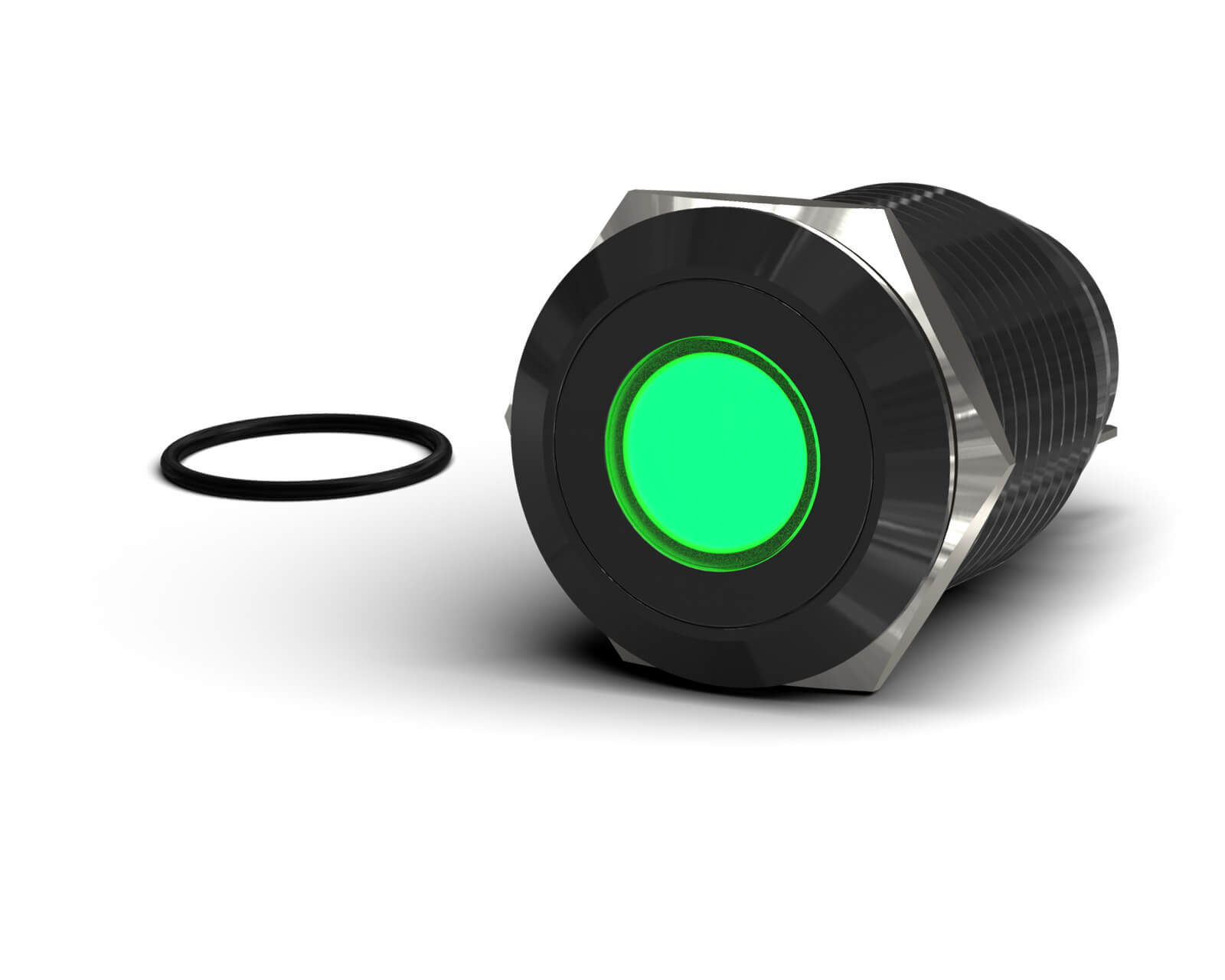

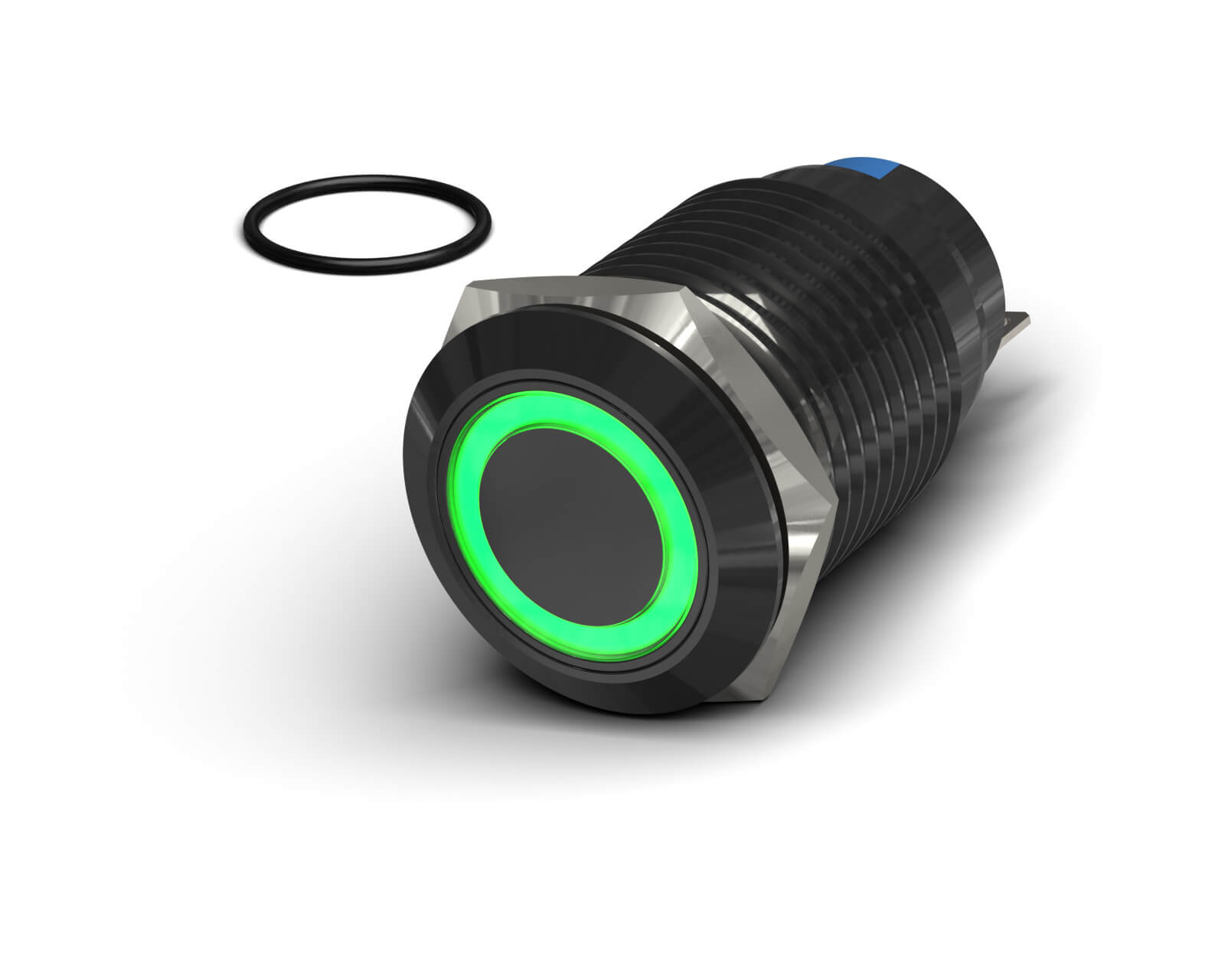

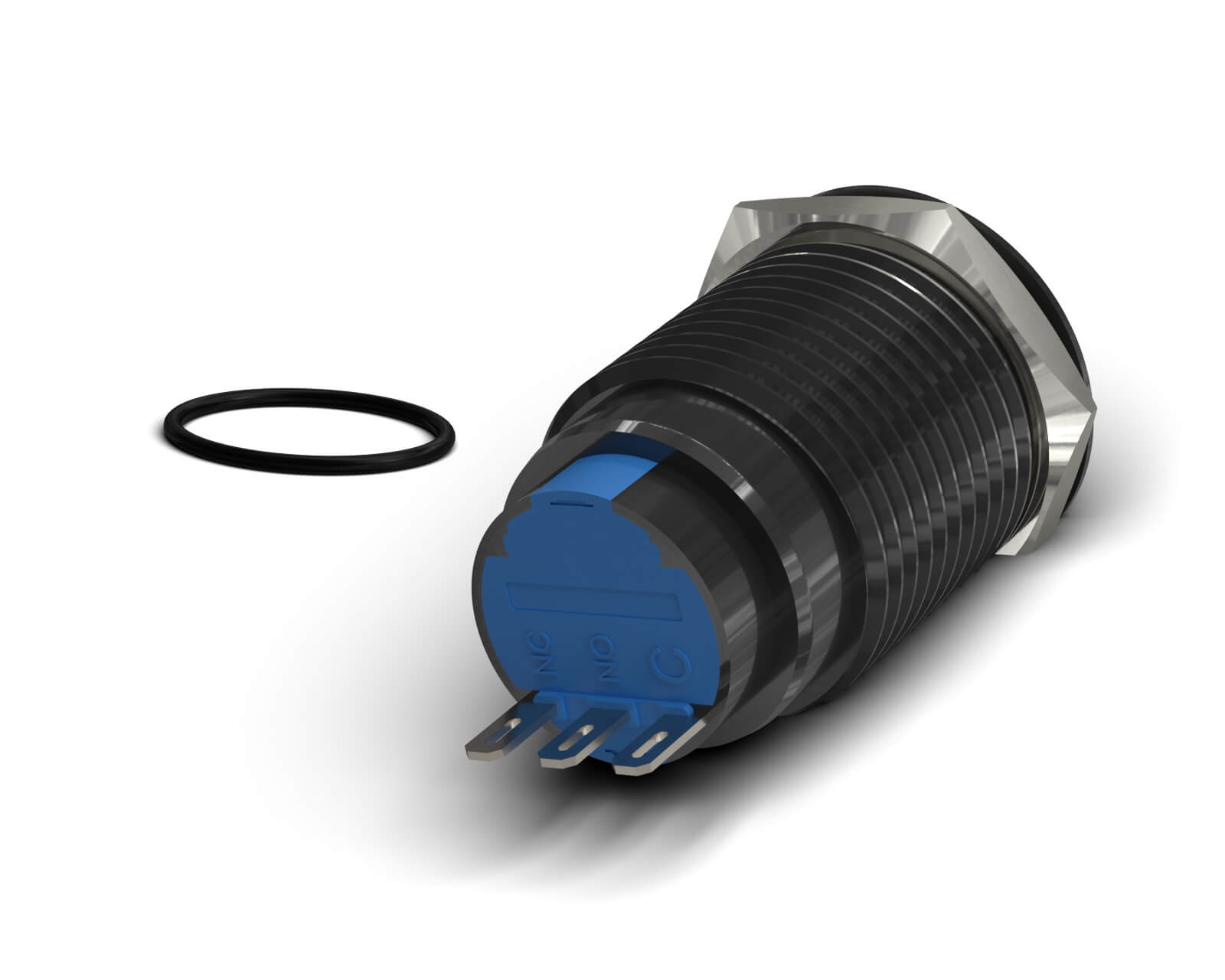

• 1x Vandal switch with oring and mount nut
• 1x Wiring diagram

Warnings

*Please be very careful with the power you apply to the LED - Returns will not be accepted of switches that have a burnt out LED. Max Voltage is 12V!

Not responsible for any hardware damage. Use at your own risk.

Installation

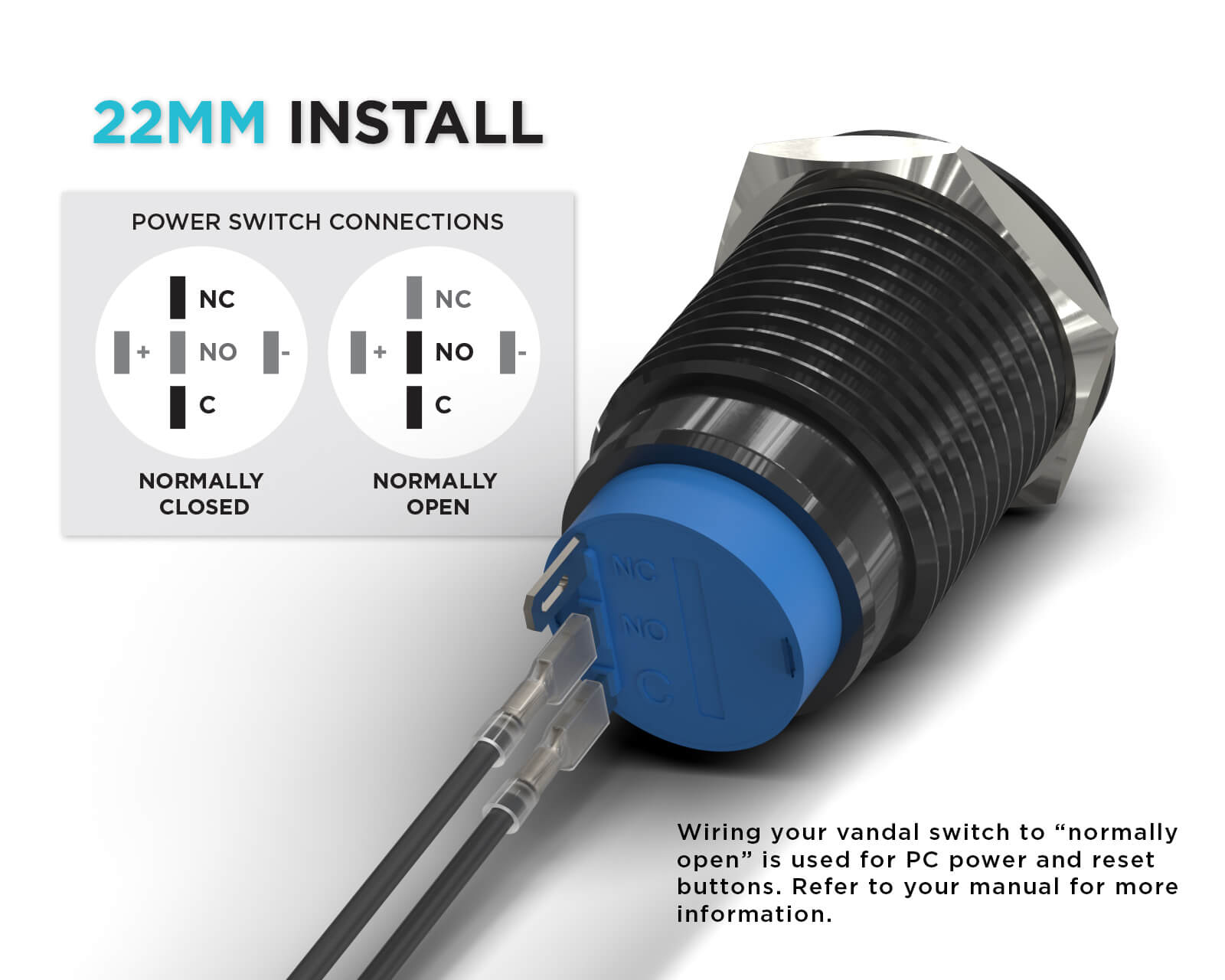

Wiring Diagram
