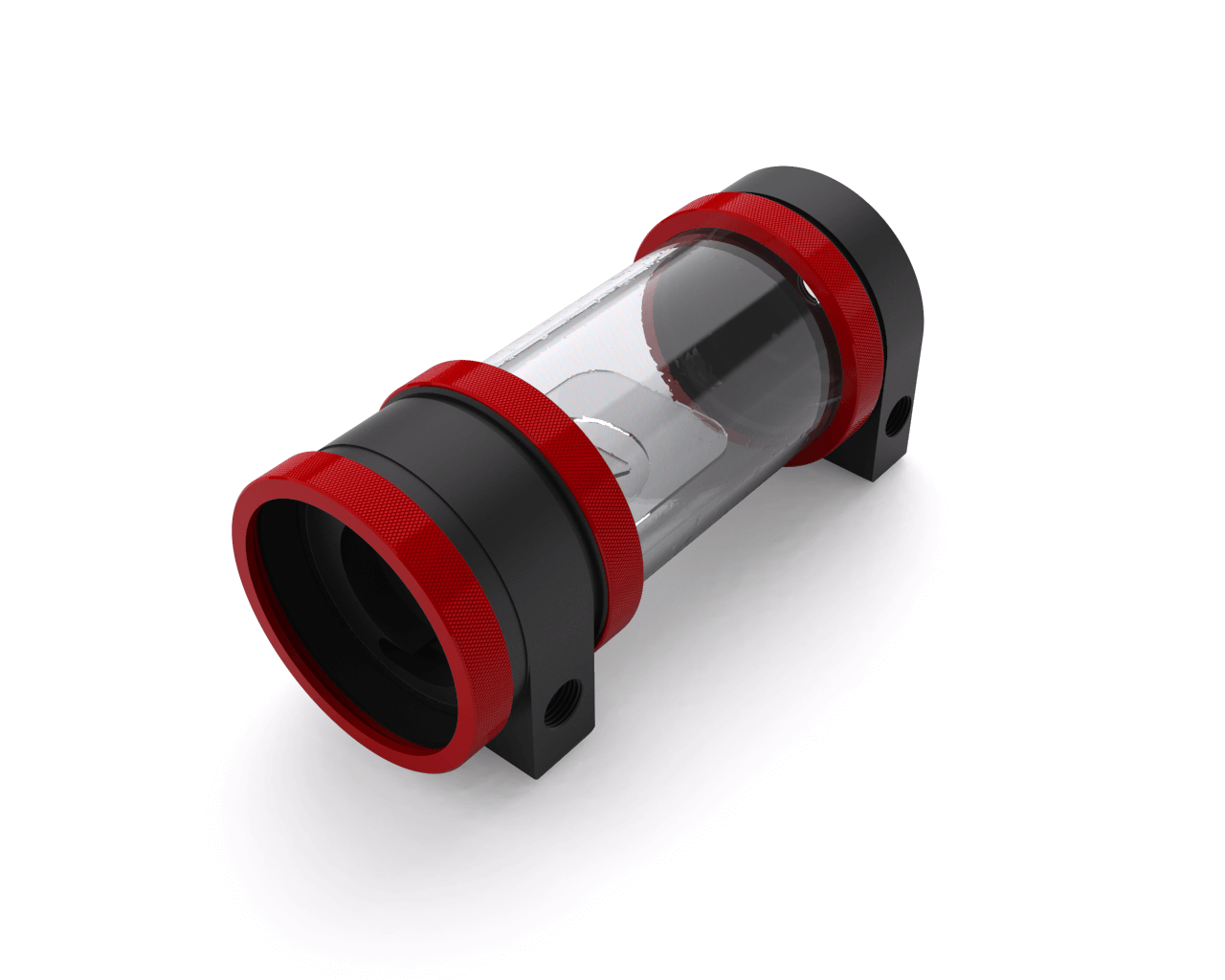

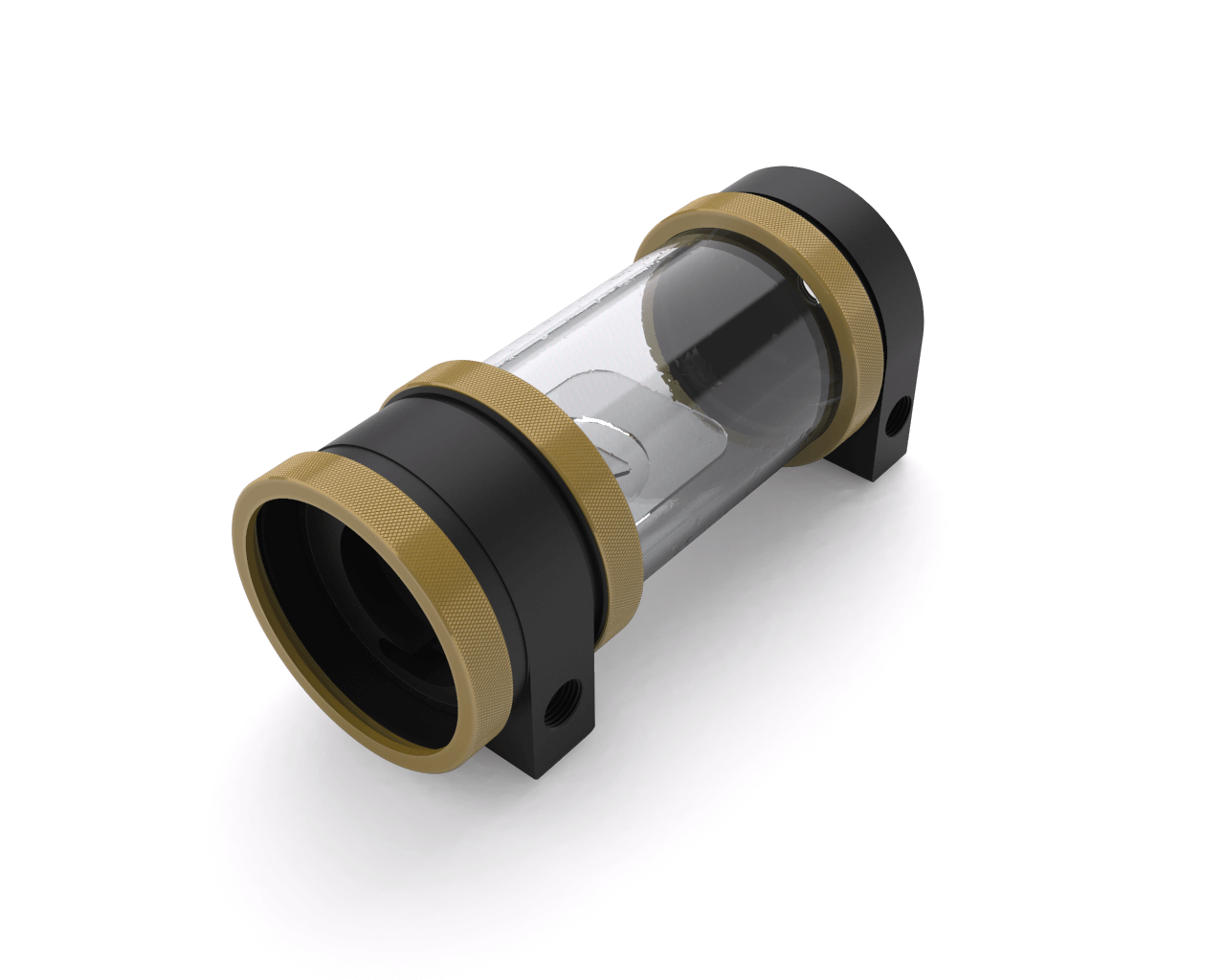

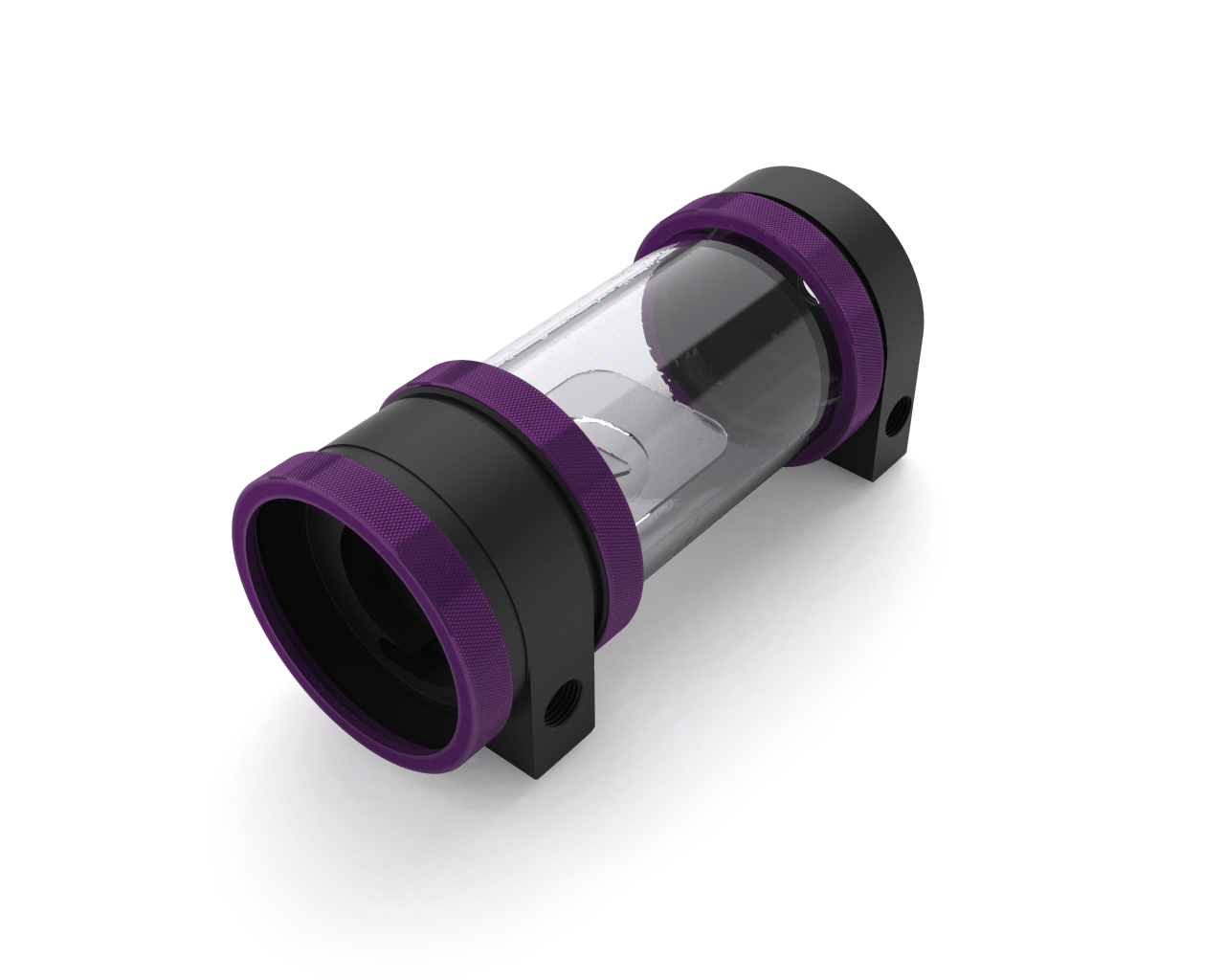

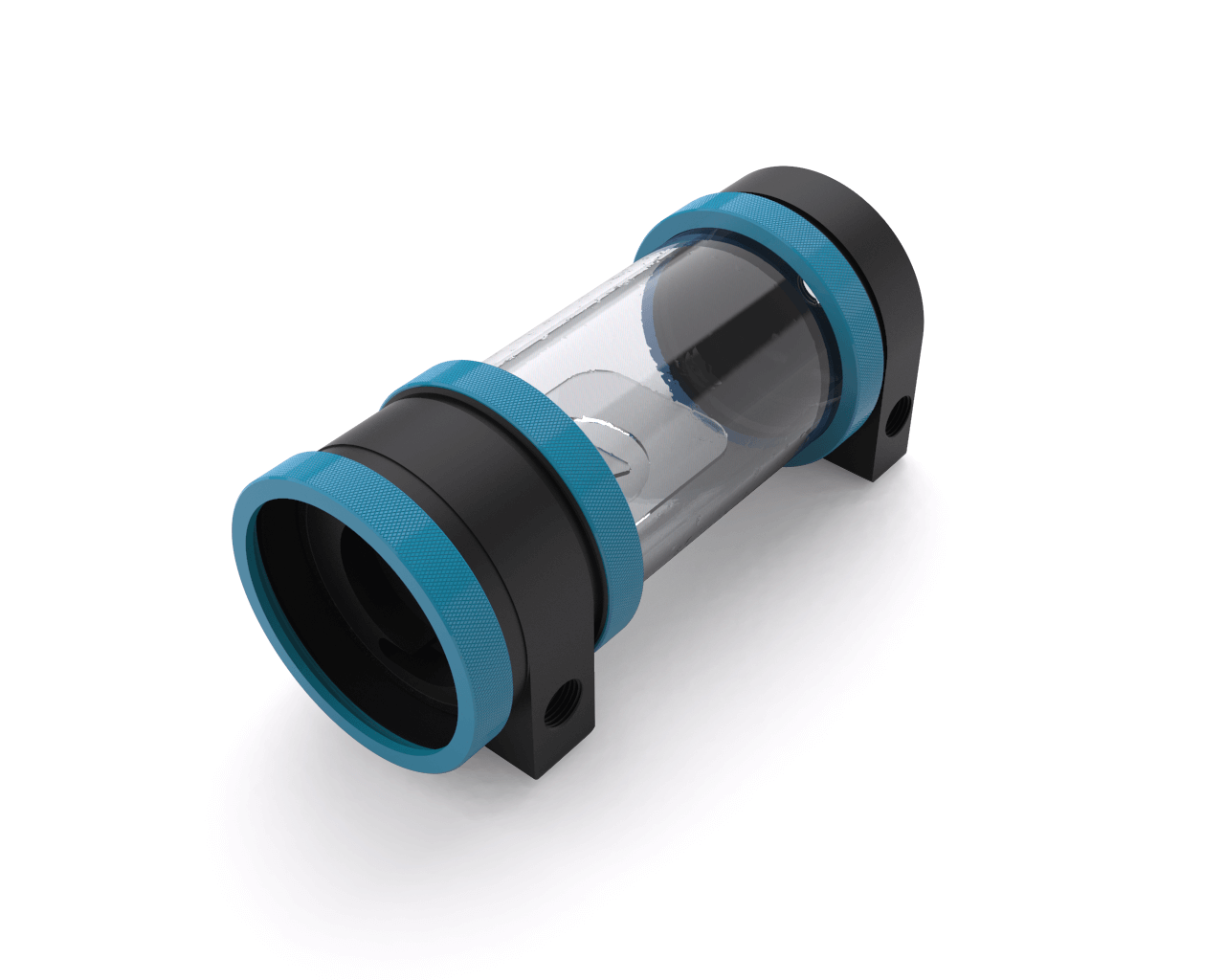

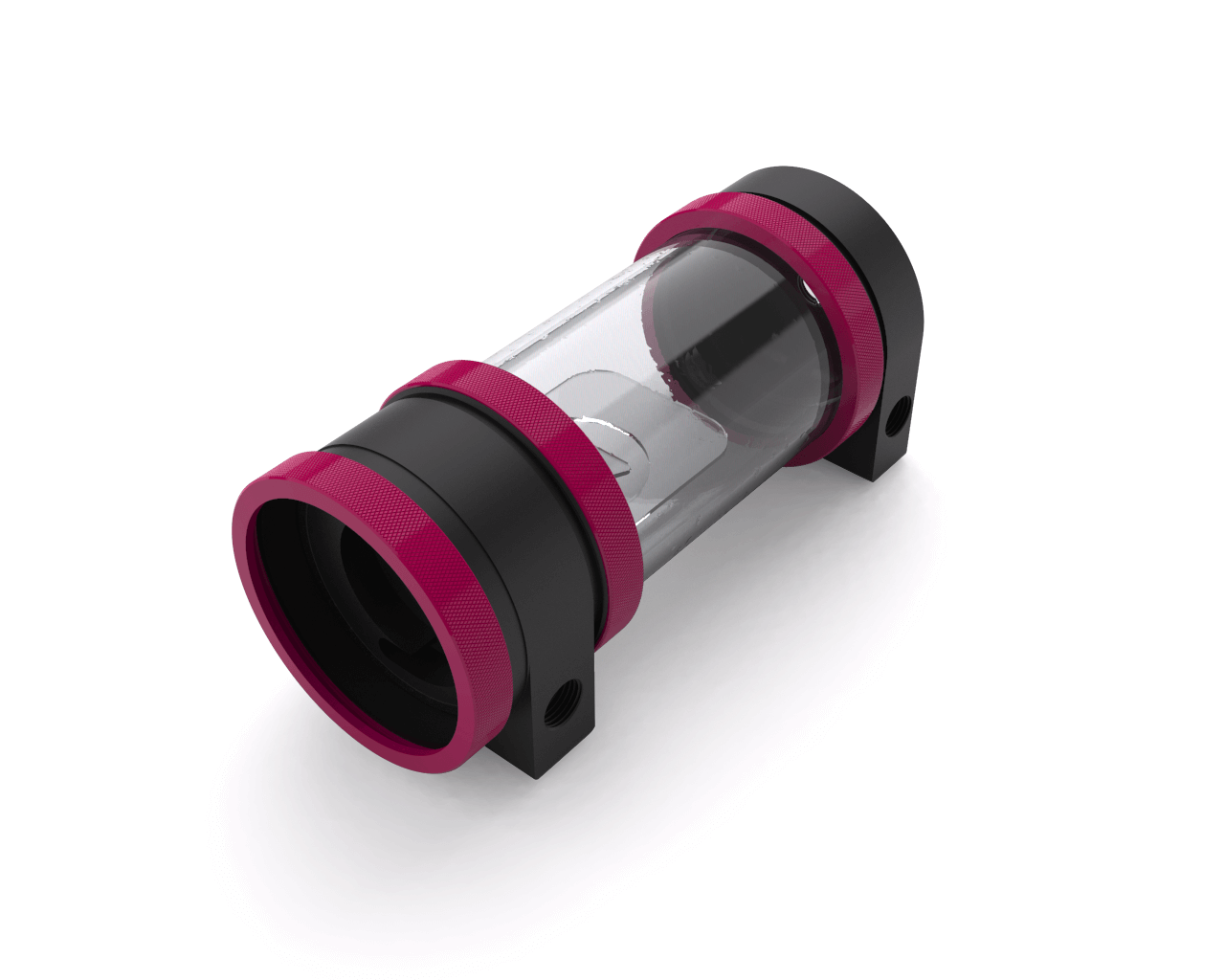

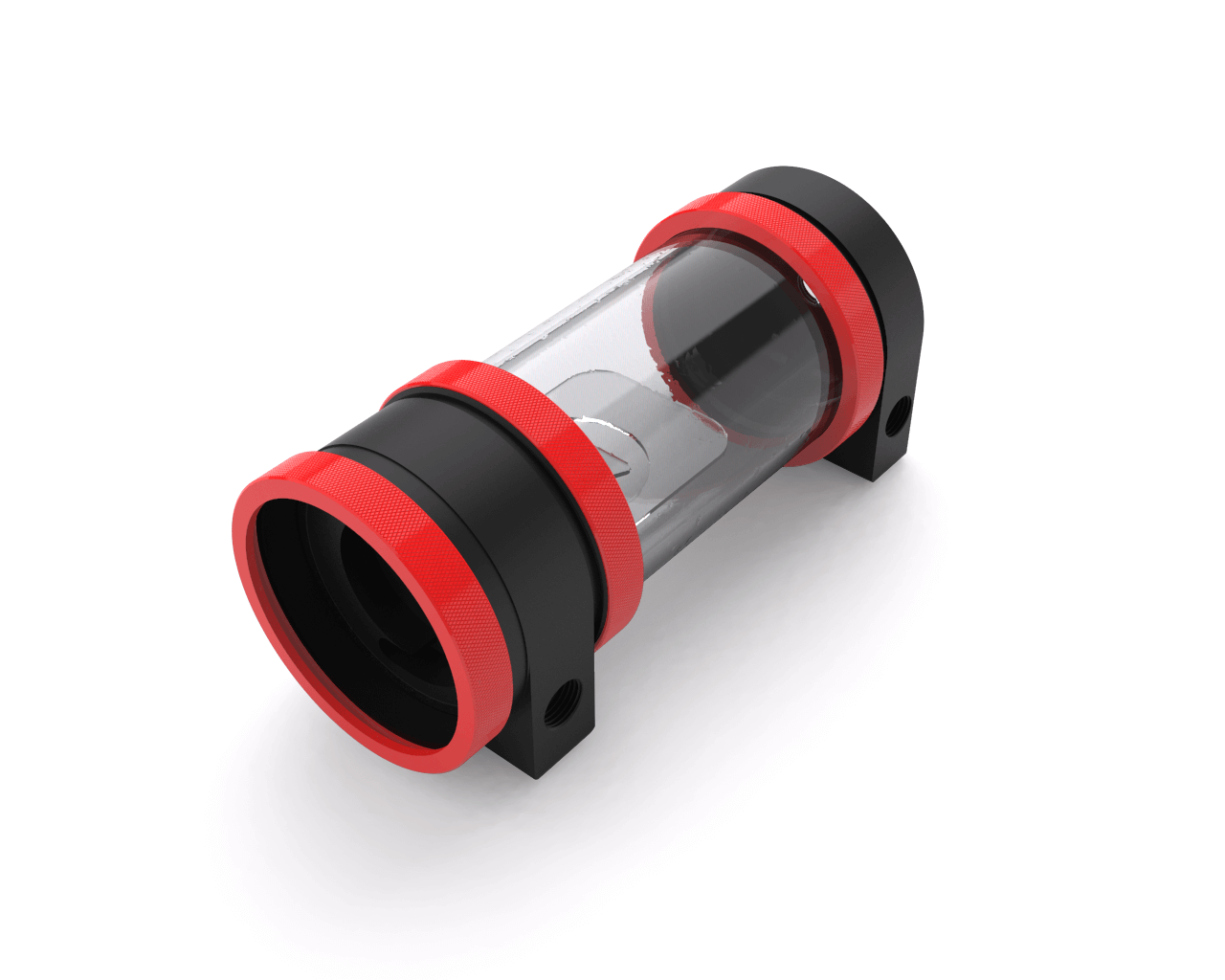

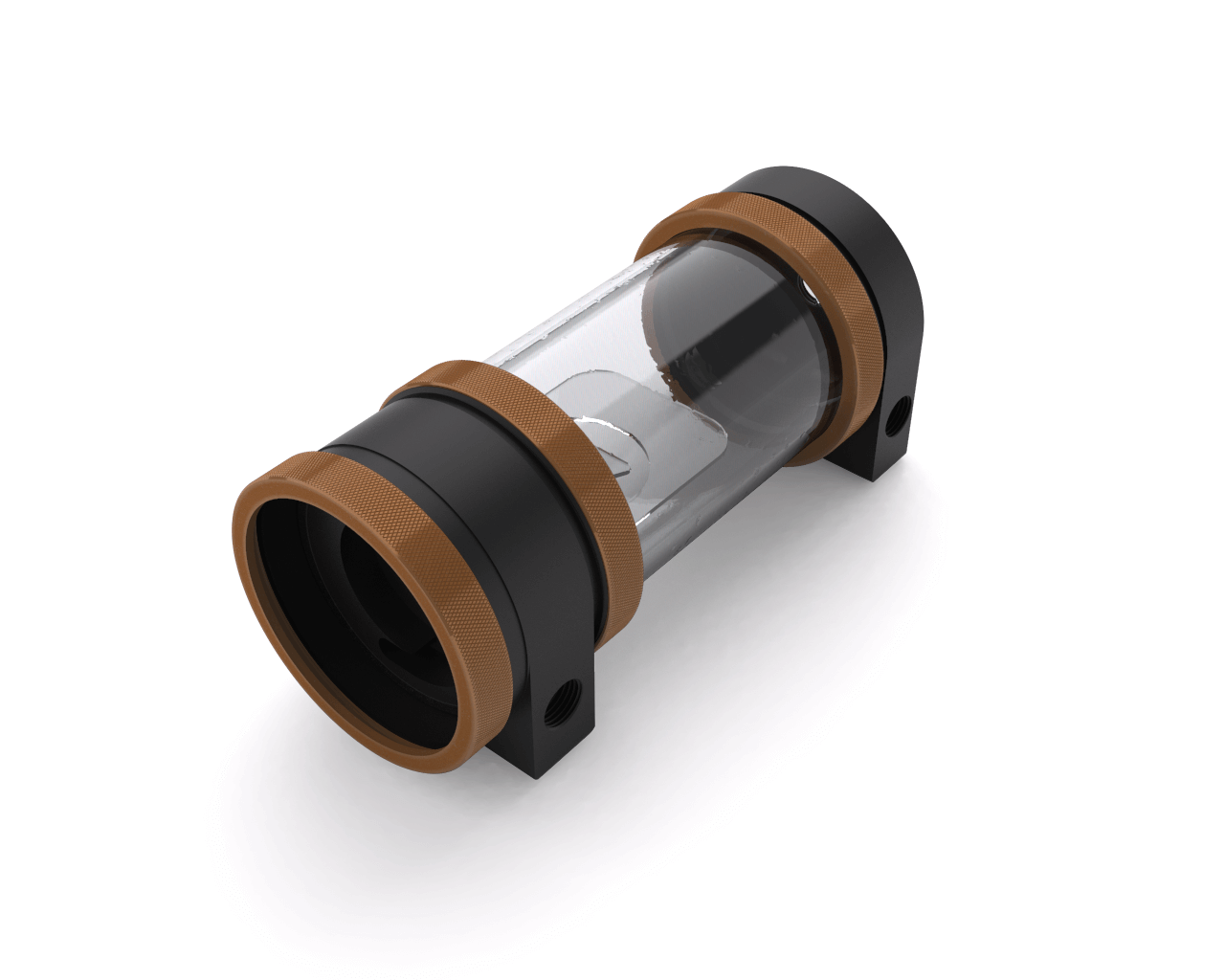

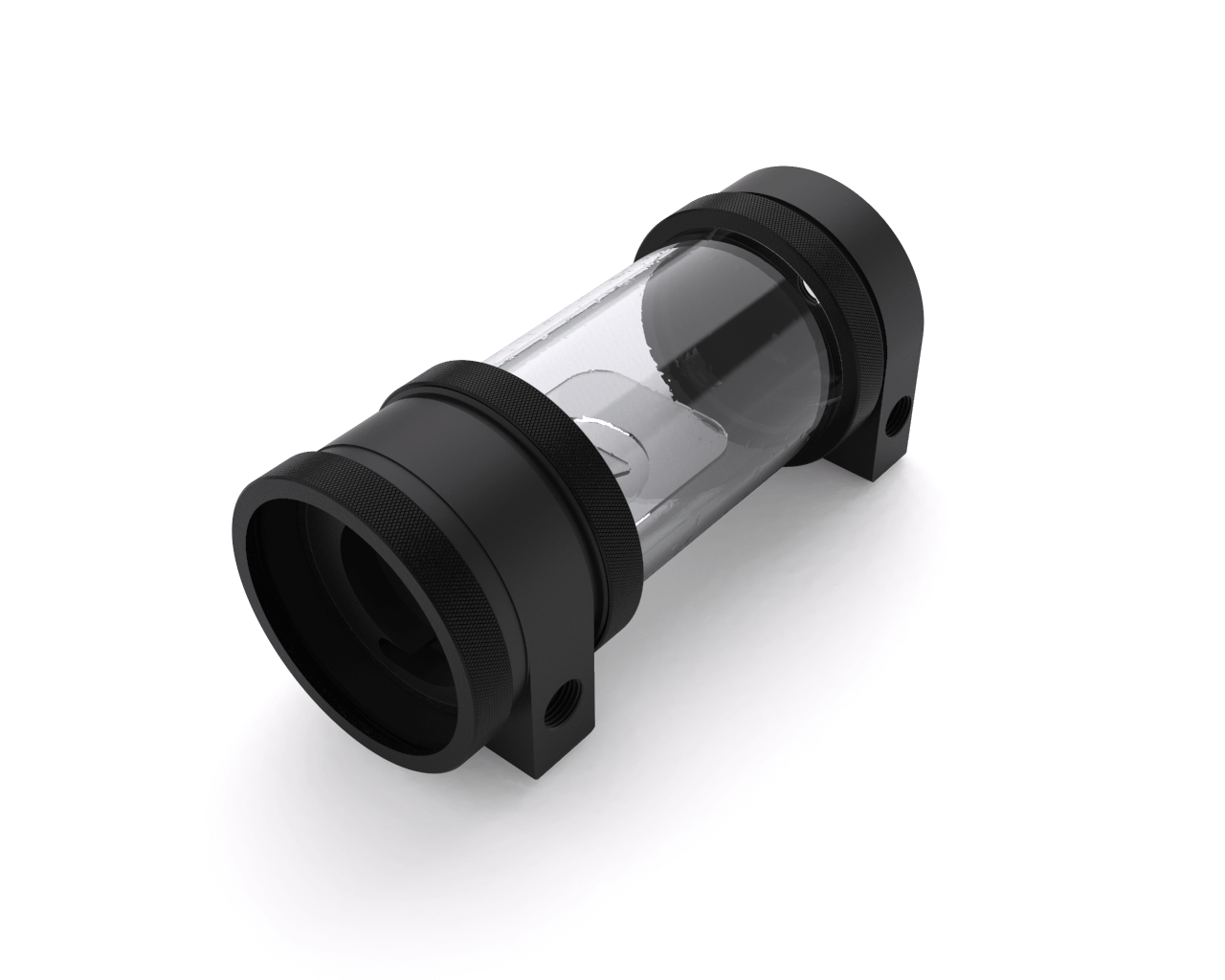

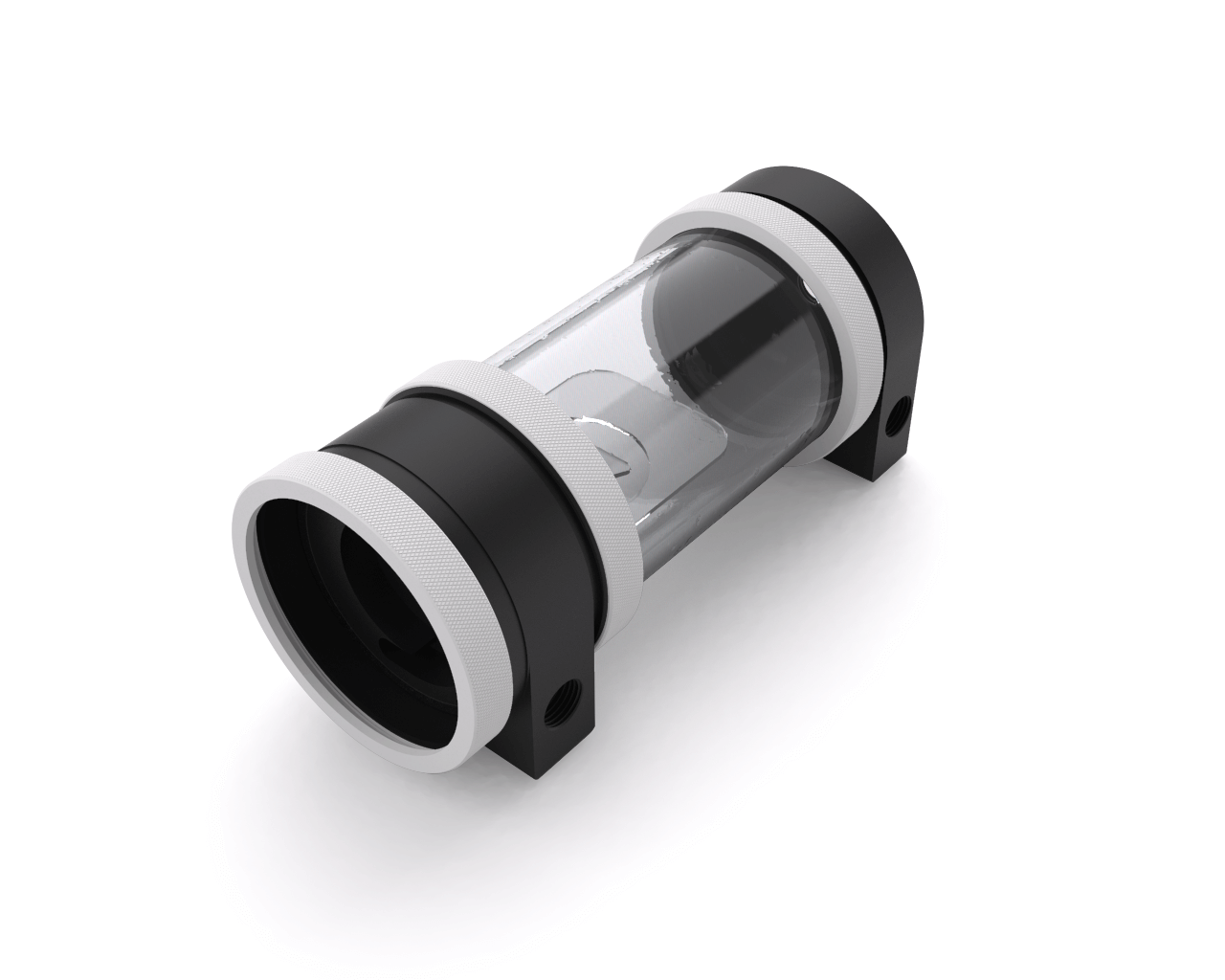

PrimoChill CTR Hard Mount Phase II High Flow D5 Enabled Reservoir - Black POM - 120mm

PrimoChill CTR Hard Mount Phase II High Flow D5 Enabled Reservoir - Black POM - 120mm - PrimoChill - KEEPING IT COOL Satin Black
In this gallery — tap to open full size
5.0 (2) 5.0 out of 5 stars, 2 reviews Read the reviews
CTR2-DBK12-SBK Only 4 left in Boise, ID
$79.99USDFree shipping over $125
Ships the same business day on orders placed before 2:00 PM MST. Overnight delivery available at checkout.
What this works with

Check these against your build before you order. If anything here does not match what you have, ask us first — it is cheaper than a return.

  • Fittings: G1/4 thread
  • Pump: Laing D5 variants / PrimoChill PWM D5

Not sure? Send us your model/part number and we'll confirm it for you.
or ready to checkout now
Building your first loop? Plan the rest of it
Why buy it here
US warranty, handled in Boise
Claims are settled here, by the people who sold it to you.
Custom watercooling since 2002
PrimoChill, from Boise, Idaho.

About this part

PrimoChill CTR™ (Compression Tube Reservoir) System Phase II is the latest in a slew of new products that PrimoChill is catering towards the modders and their need for color!!! What makes the NEW CTRs so unique and not like anything on the market today is the ingenious compression ring end caps that make a water tight seal without the need to cut or tap the end of the reservoir. Similar to the PrimoChill Rigid fittings, the CTR Phase II uses the same principal for securing and sealing off the acrylic tube with little to no force on the tube which prevents cracking. CTRs are the next best thing in the water cooling industry giving the user the flexibility of color as well as sizes to fit their build perfectly. CTRs are certain to be copied, but remember that PrimoChill’s are Made in the USA, by Americans..

Datasheet
Inner Diameter (ID)2.25 inches / (57mm)
Outer Diameter (OD)2.5 inches / (63mm)

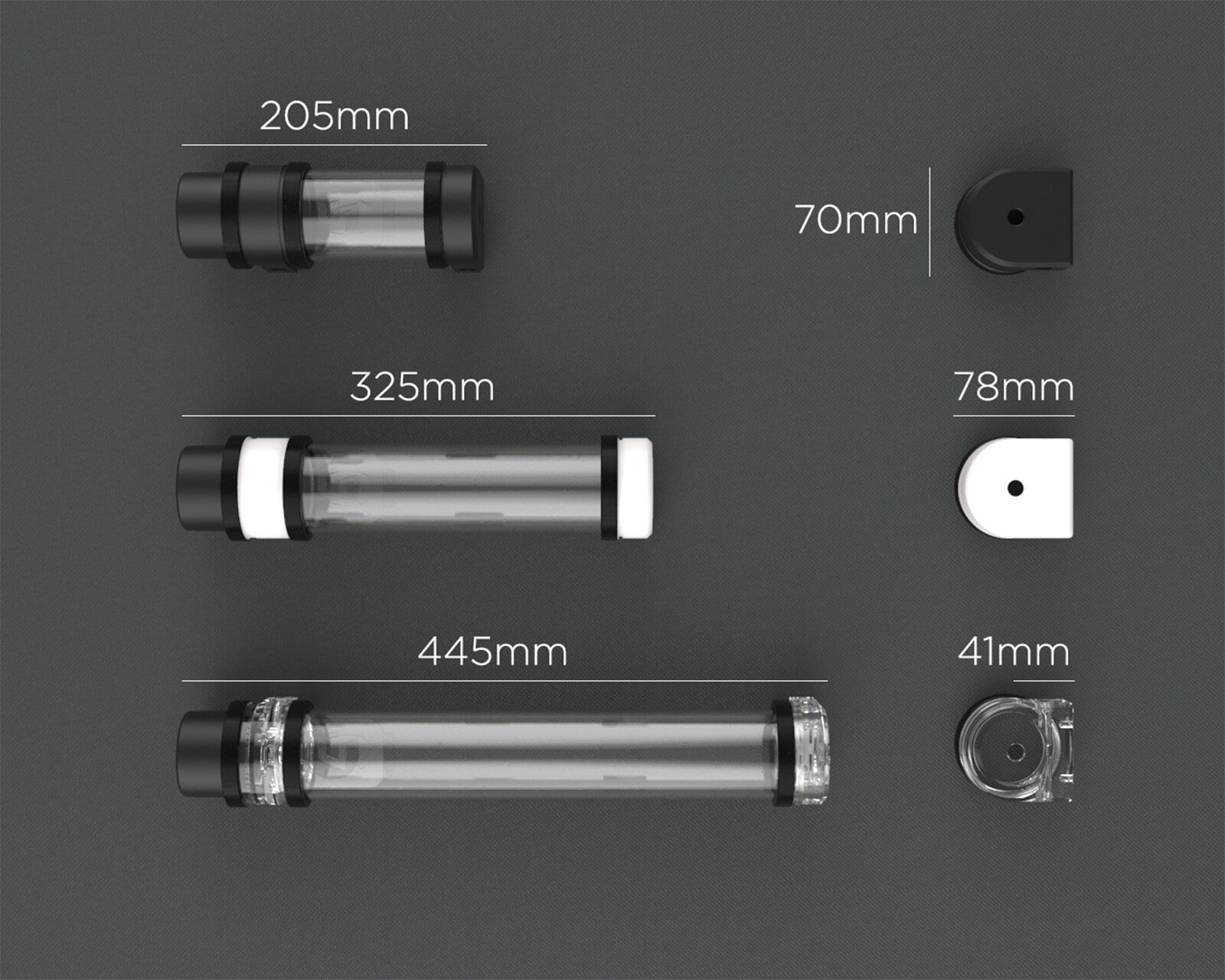

Overall Length205mm (with pump installed)
Fitting ThreadG 1/4
Warranty1 year
MaterialLaser Cut Acrylic Tubes
Fluid Capacity12-15oz (depending on endcap)
SKUCTR2-DBK12-SBK

What buyers said

Left by people who bought this part here. Compatibility reports are the useful ones — if you installed it, say which board.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
p
pozdroszejset (Warsaw, PL)
good one

was wondering if its compatible with alphacool vpp apex pump and it is. about to assemble my uv pink build

B
Brenner F.
Excellent D5 Enabled Reservoir

After having purchased a couple of Praxis WetBench, (one traditional and one flat version,) I already had confidence in the PrimoChill brand. But, I am very particular about things. I had a difficult time choosing a suitable replacement for the XSPC D5 Photon reservoir and I am glad that I landed on the PrimoChill CTR Hard Mount Phase II High Flow D5 Enabled Reservoir. I do not care for most of the options available from competitors and the D5 Photon is a tough act to follow. The build quality, appearance, and performance are all superior. Going forward, I will look no further than this product when I need another D5 tube reservoir. It's excellent and I am pleased with it.

I would like to see a thick-wall glass tube offering for it at some point. They should include three chrome G1/4 hole plugs instead of only two. Luckily, I had a spare available. (I could have used the included clear plexi hole plug designed to hold an LED in a pinch.)

Before you install it

This is a component, not an assembly — how it goes in depends on the loop it is joining. What does not change is the last step: leak test before power. Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.

Custom water cooling is installed by you, at your own risk. We are not responsible for leaks, or for damage to your parts or system. If you're unsure at any step, ask before you power the loop.

Questions people ask about this part

Answers specific to CTR2-DBK12-SBK. If yours isn't here, ask — we'd rather talk you out of the wrong part than sell you one.

What does this part fit?
This part is specified by what it connects to, not by a card model:
  • Fittings: G1/4 thread
  • Pump: Laing D5 variants / PrimoChill PWM D5

Check those against your build before you order. If anything does not match, ask us first — it is cheaper than a return. Part number CTR2-DBK12-SBK.

Is it in stock, and when will it ship?
Yes — only 4 left in Boise, Idaho. Orders placed before 2:00 PM MST on a business day ship the same day — we do not ship weekends or US holidays. Overnight delivery is available at checkout.
Can I return it if it turns out not to fit?
Yes. Returns are accepted within 30 days and are easy to start in the support center. Unopened items can be returned for store credit with no restocking fee; other returns carry a restocking fee, higher for items that have been installed or used. So we would rather check the fit with you first: send us the model and we will check it against this part.
Who handles the warranty?
PrimoChill covers this part for 1 year. Every warranty claim is handled directly by our support team, so you deal with us from start to finish.
Is shipping free?
Shipping is free on orders over $125 to addresses in the lower 48 US states.
Are printed instructions included?
No printed manual is included. Installation references are in the product gallery images, and the install guides on this site cover the process step by step.
Do I need anything else to use it?
Check the parts list above against what you already have. If you are building a loop from scratch, send us the full parts list and we will tell you what is missing before you order.
