Description
PrimoChill CTR™ (Compression Tube Reservoir) System Phase II is the latest in a slew of new products that PrimoChill is catering towards the modders and their need for color!!! What makes the NEW CTRs so unique and not like anything on the market today is the ingenious compression ring end caps that make a water tight seal without the need to cut or tap the end of the reservoir. Similar to the PrimoChill Rigid fittings, the CTR Phase II uses the same principal for securing and sealing off the acrylic tube with little to no force on the tube which prevents cracking. CTRs are the next best thing in the water cooling industry giving the user the flexibility of color as well as sizes to fit their build perfectly. CTRs are certain to be copied, but remember that PrimoChill’s are Made in the USA, by Americans..
Features
- Compression Ring End Caps
- NEW D5 Compatible Pump Head Easy end cap removal for cleaning
- Multi-Port Top End Cap: 3 Ports
- Colored Compression Rings Easy End Cap Removal for Cleaning
- Simple Reservoir Mounting System, Hardware and Template Included
- Made in the USA
Specifications
- Inner Diameter (ID): 2.25 inches / (57mm)
- Outer Diameter (OD): 2.5 inches / (63mm)
- Overall Length: 445mm (with pump installed)
- Fitting Thread:G 1/4
- Warranty: 1 year
- Material:Laser Cut Acrylic Tubes
- Fluid Capacity: 37.25-40.75oz (depending on endcap)

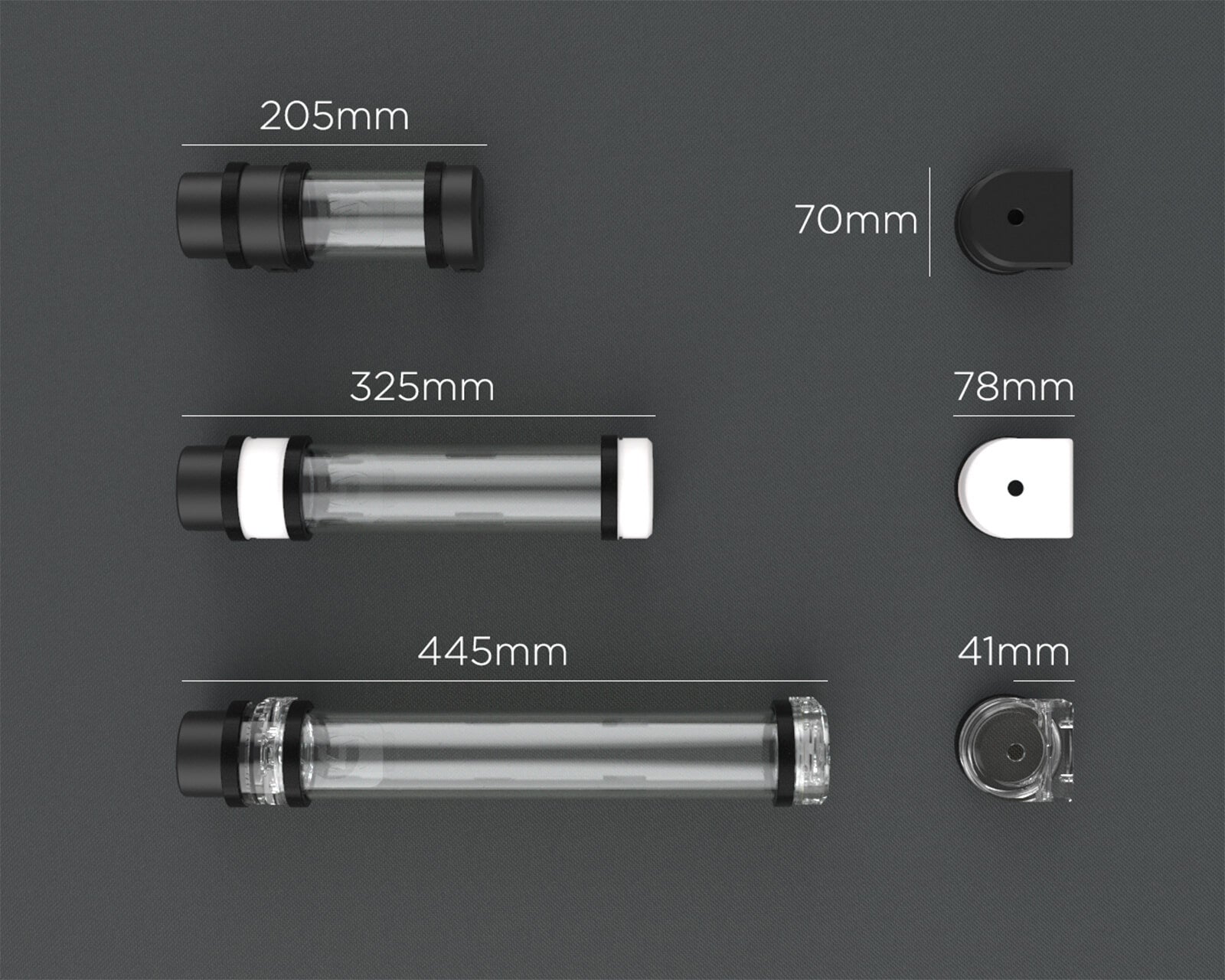

Specification Drawing
Compatibility
- Fittings: G1/4 thread
- Pump:Laing D5 variants / PrimoChill PWM D5
Parts Included
- 3x Low Profile Port Caps w/ O-ring
- 1x 3 Port Mountable End Cap - White POM (Installed)
- 1x D5 Pump Head - White POM (Installed)
- 3x Knurled Mount Ring - Color Based on Option (2x Installed)
- Mounting Hardware
- 2x Rubber Anti-Vibration Pad
- 4x CTR O-rings (Installed)
- 1x Pump O-ring (Installed)
- 1x360mm CTR Tube - Clear (Installed)
- 1x Acrylic Shim
- 1x Rubber Shim
- 1x Internal Vortex Break (Installed)
Warnings
Use of caustic coolant will void your warranty and cause your reservoir to crack. Not responsible for any damage caused by or when using this product. Please use at your own risk.
Installation
Installation
Flow Direction
Video
