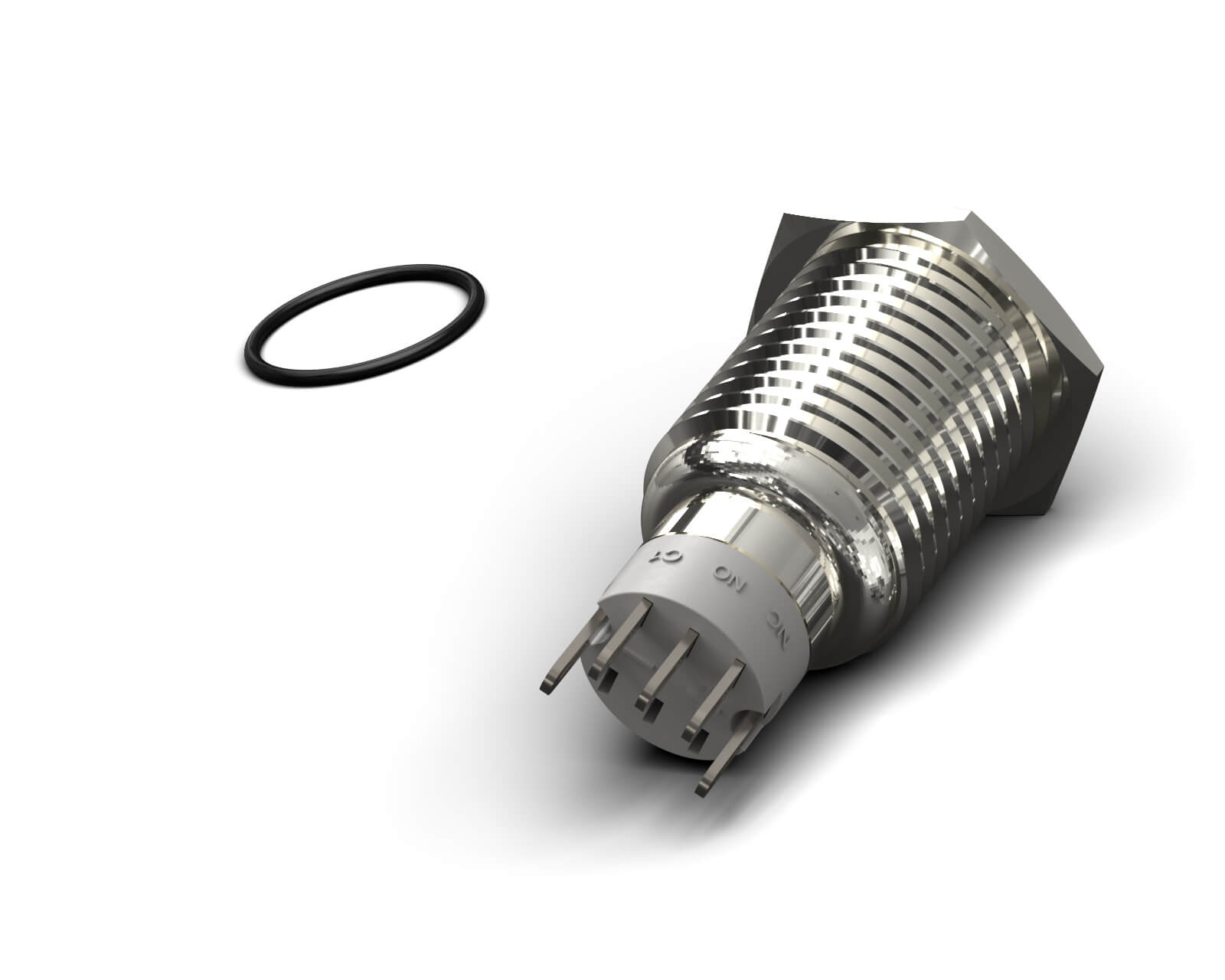

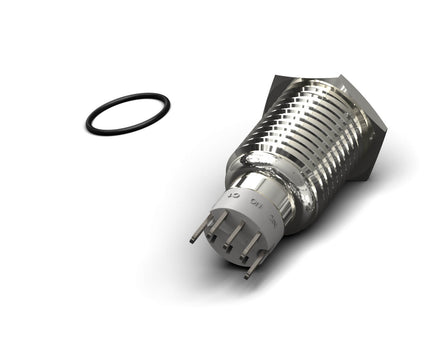

PrimoChill Silver Aluminum Latching Vandal Resistant Switch - 16mm

$13.95 $4.99

SKU: PSW-SLV16N/AAvailability : In stock - In Boise, ID USAIn StockOut of stock

The Silver Aluminum Latching Vandal Resistant Switch is a latching switch that remains latched when pressed. Easy to install and will fit on a regular 5.25 drive cover or wherever you... Read more

HURRY! ONLY LEFT IN STOCK.

Order in the next to get it between and hoursminutes

Color: NO LED

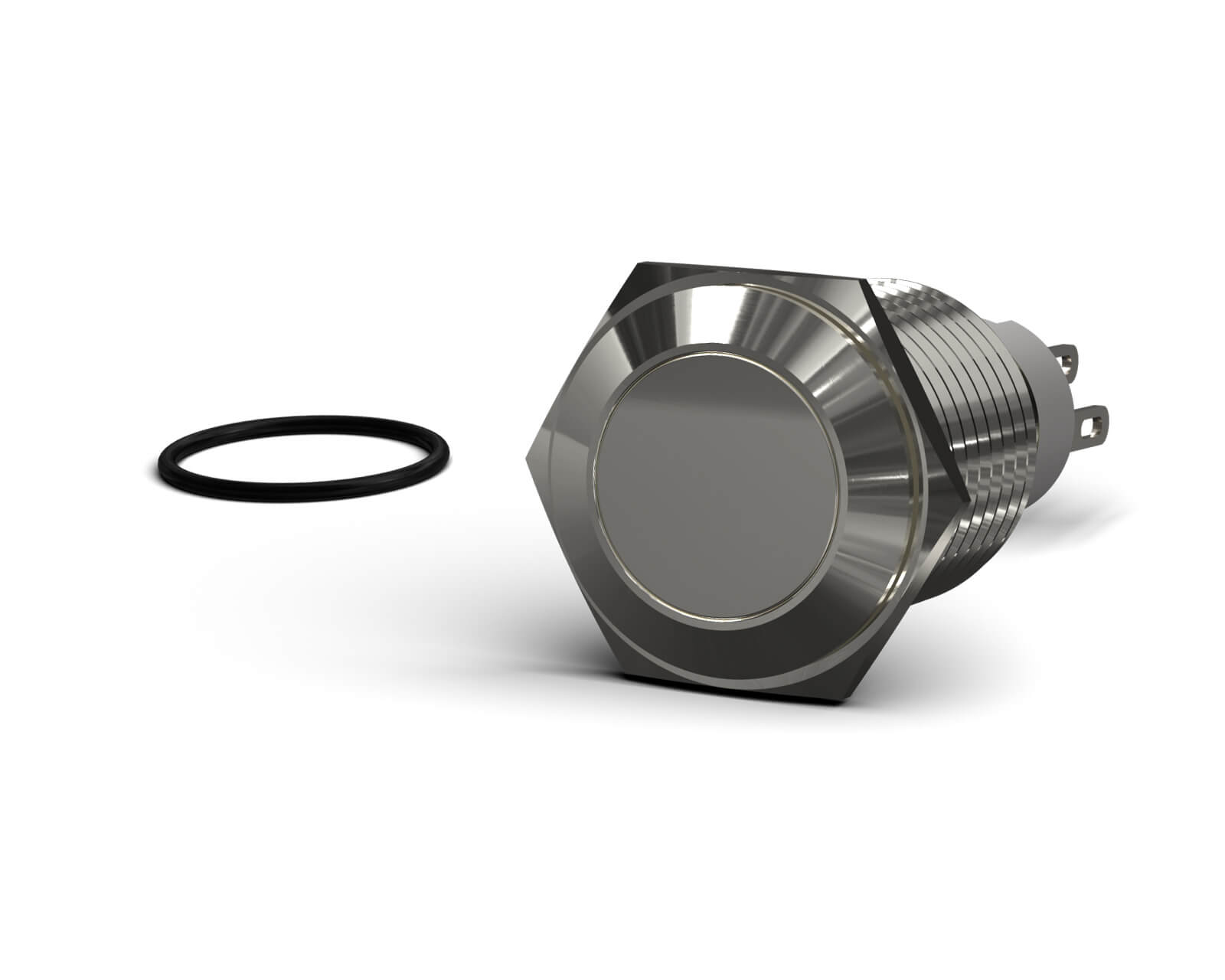

  • NO LED

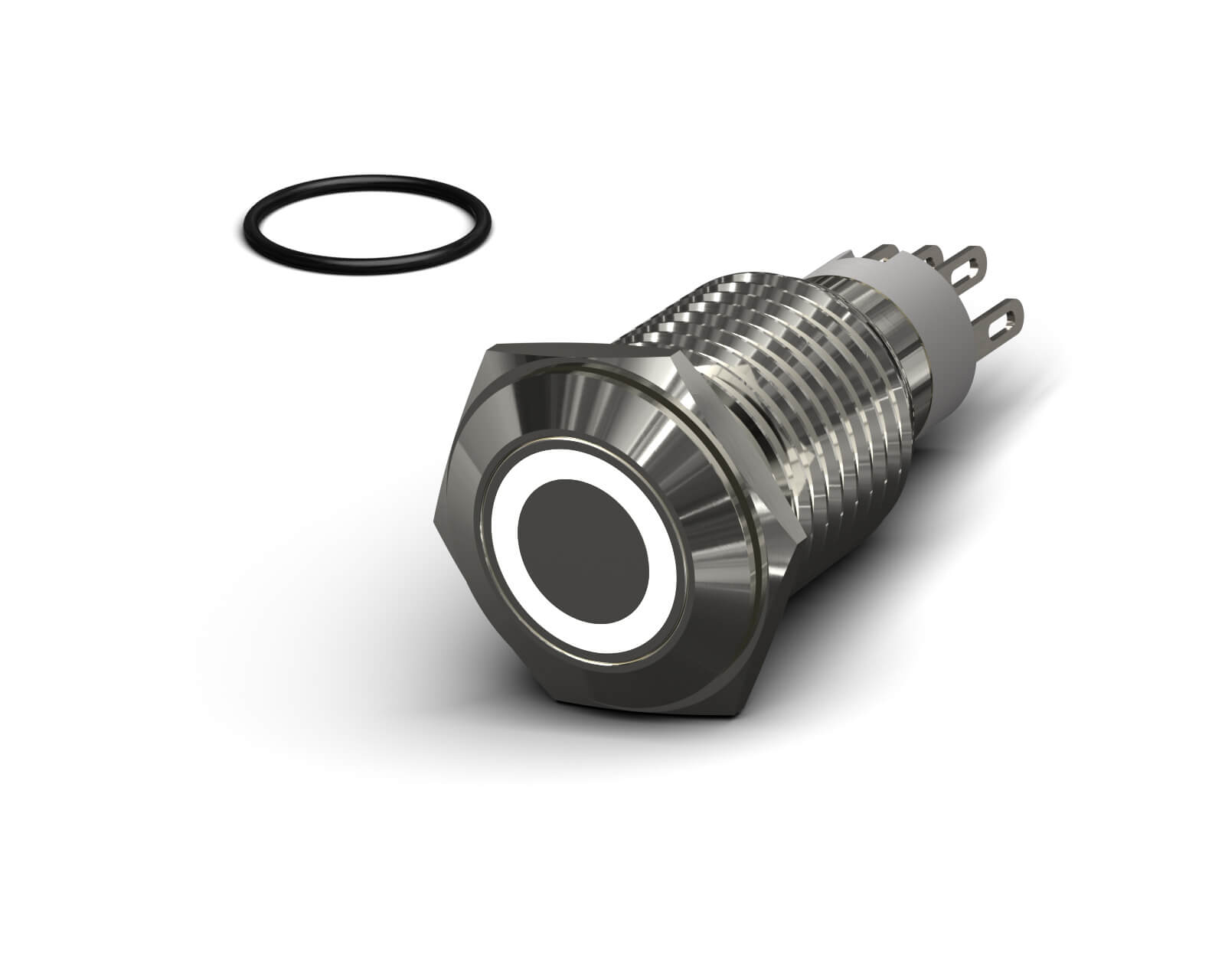

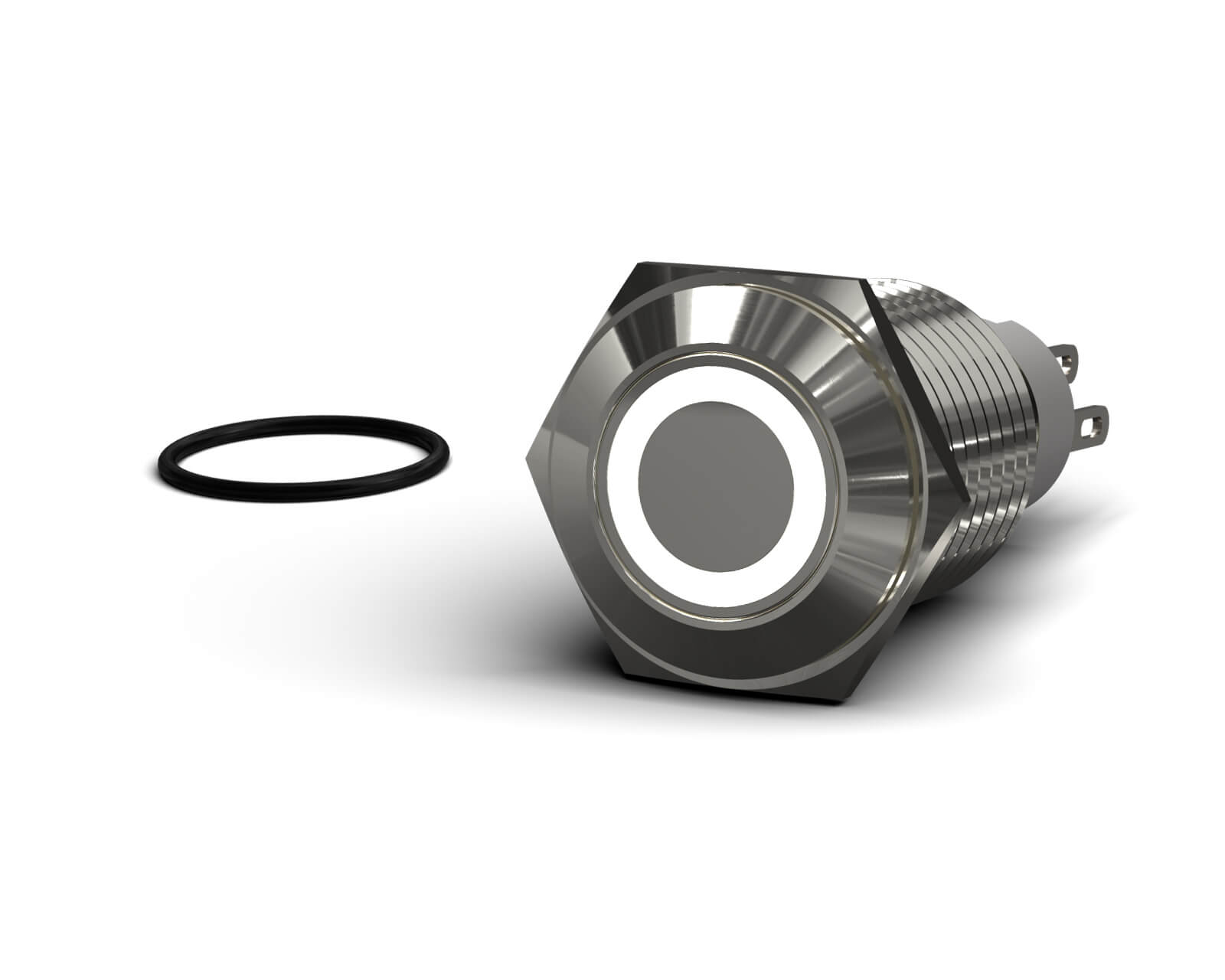

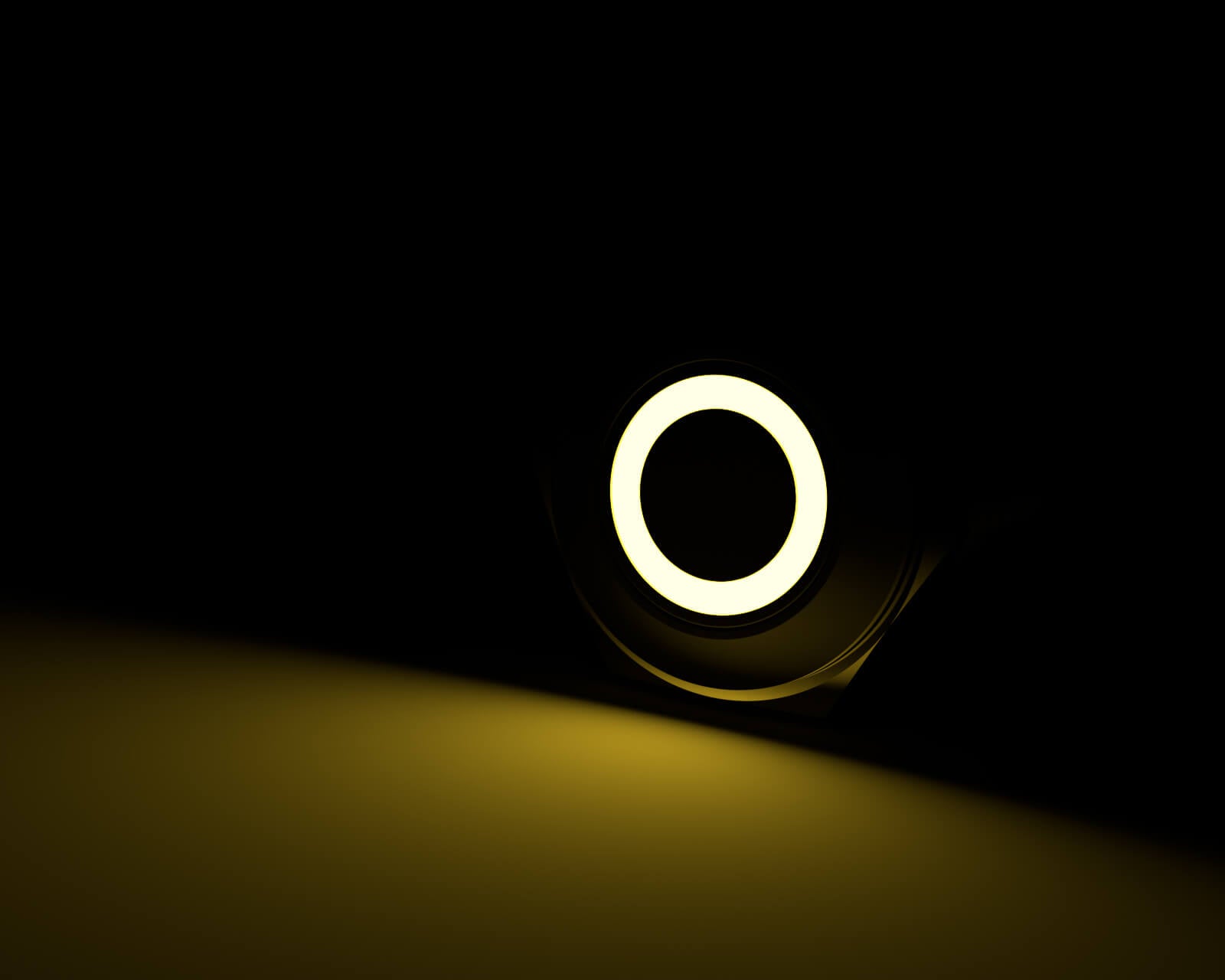

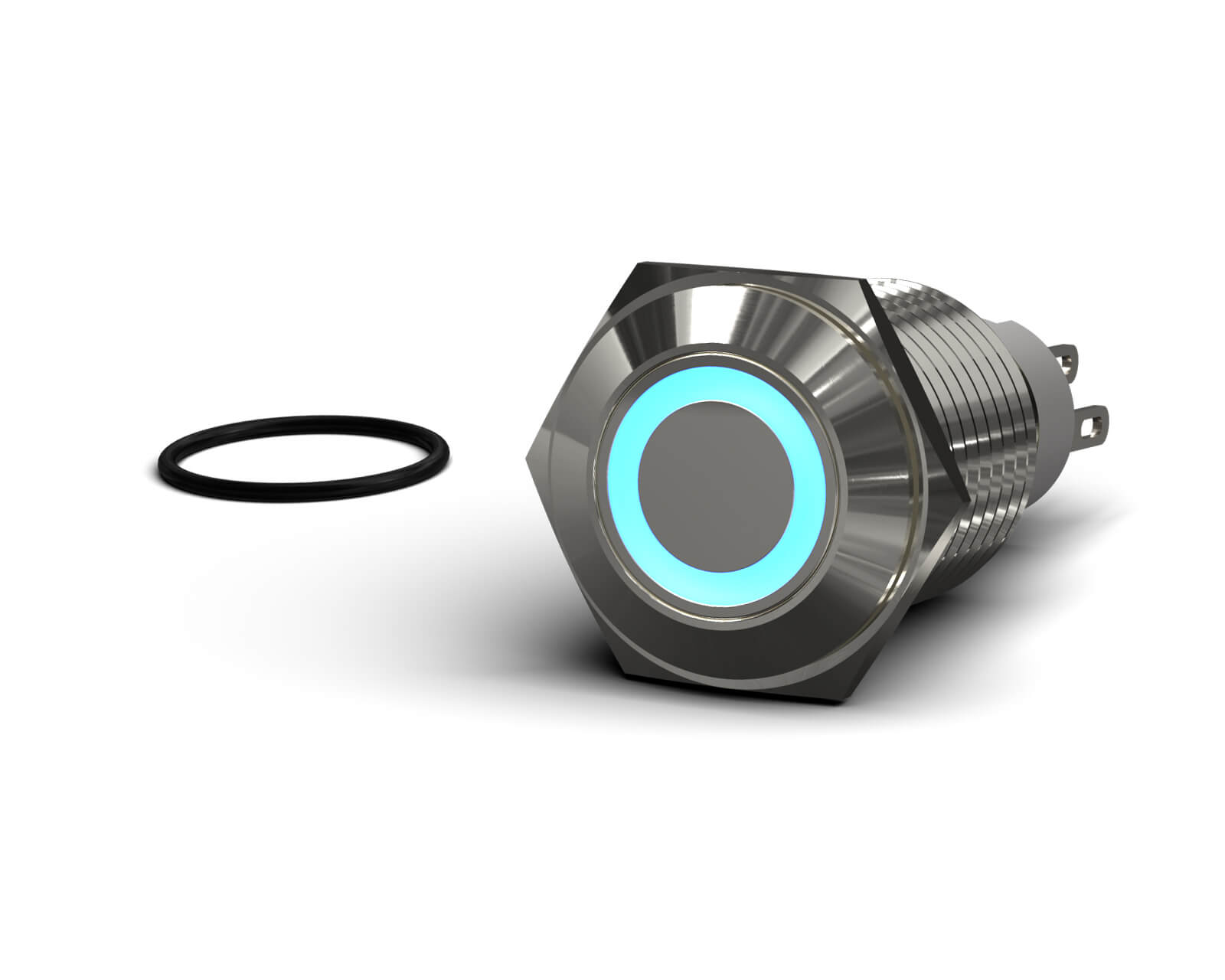

  • Amber LED Ring

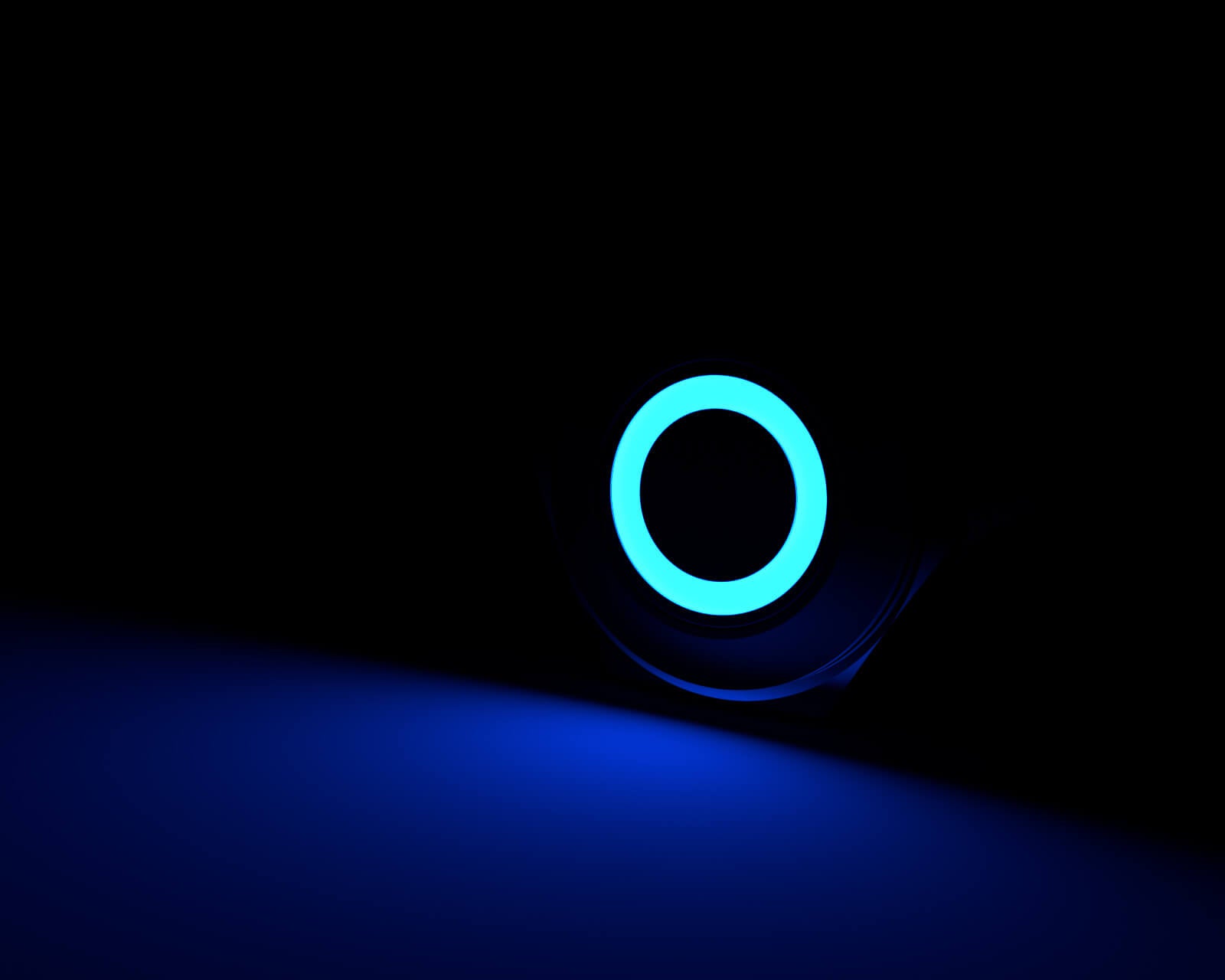

  • Blue LED Ring

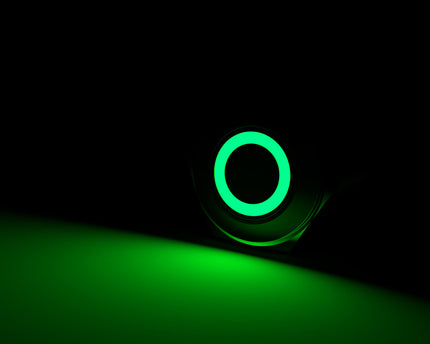

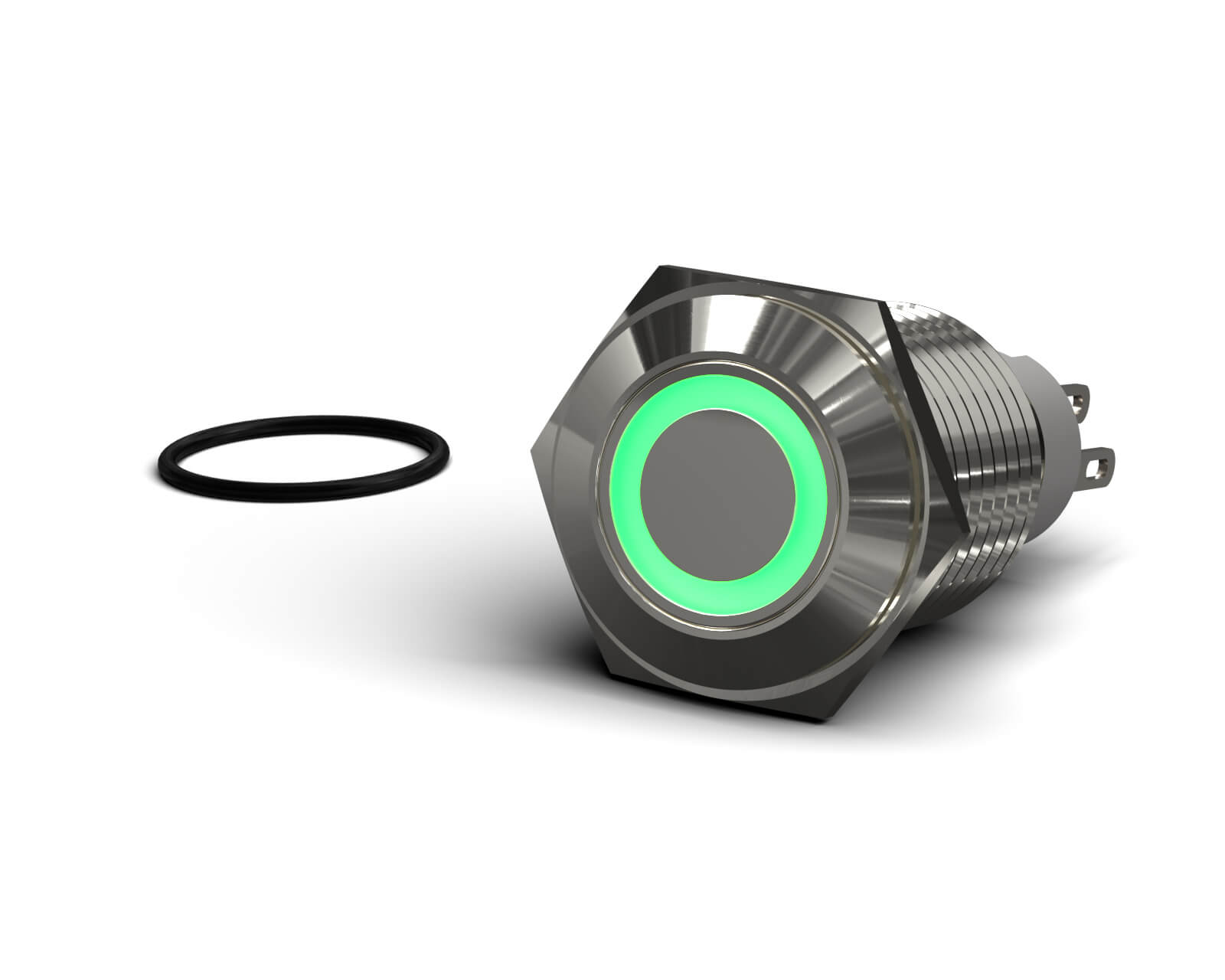

  • Green LED Ring
  • Purple LED Ring

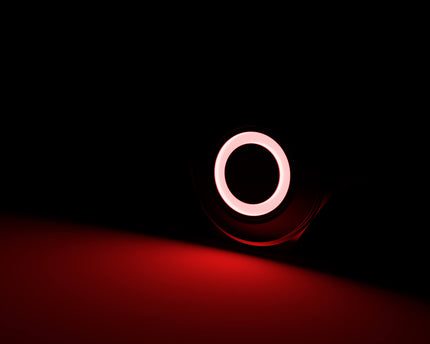

  • Red LED Ring

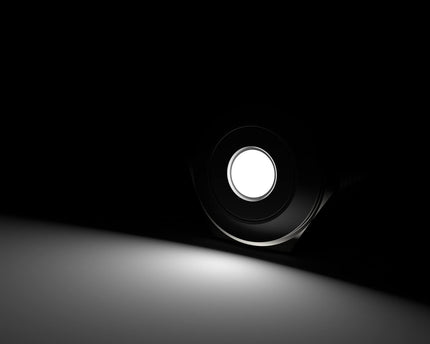

  • White LED Ring

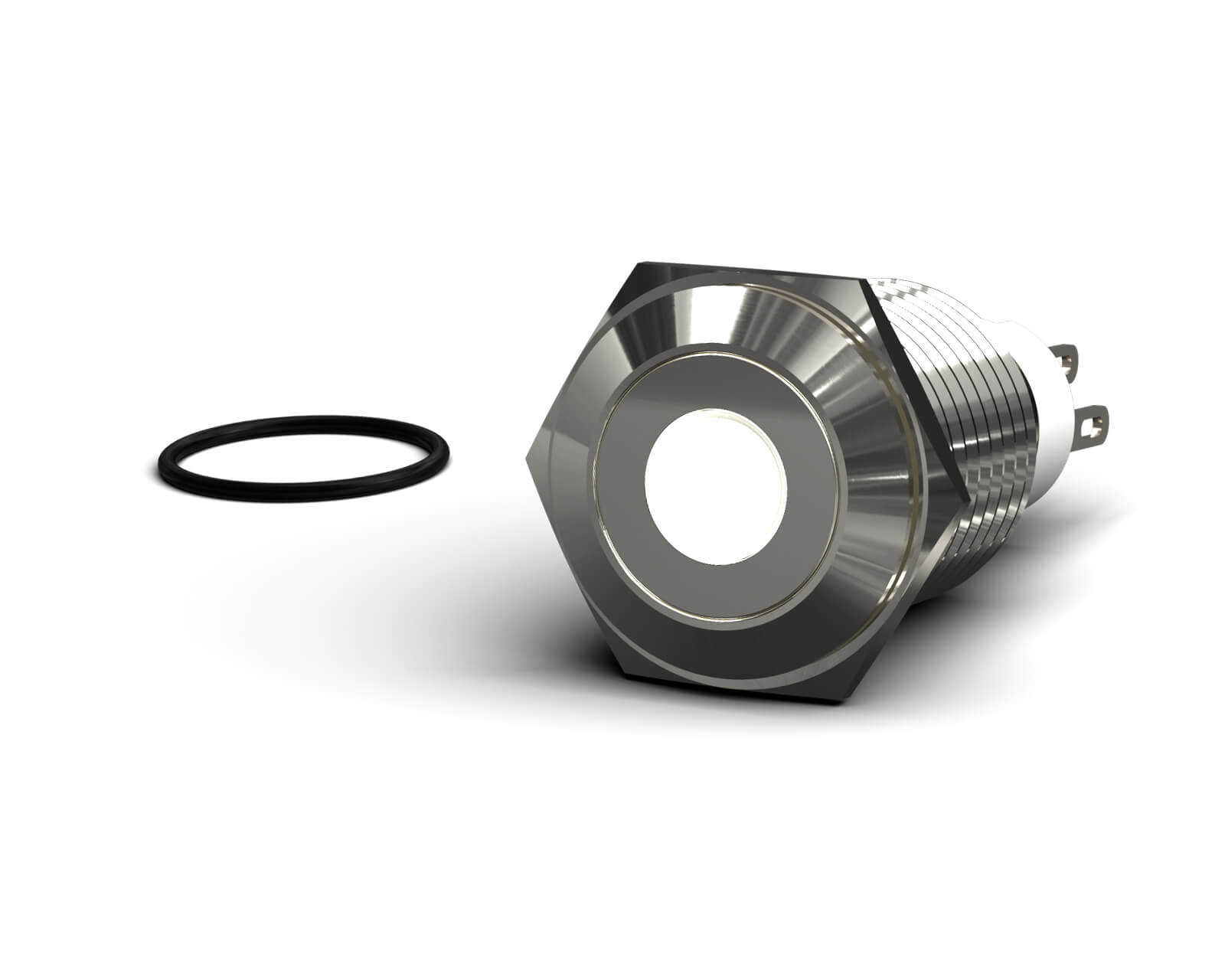

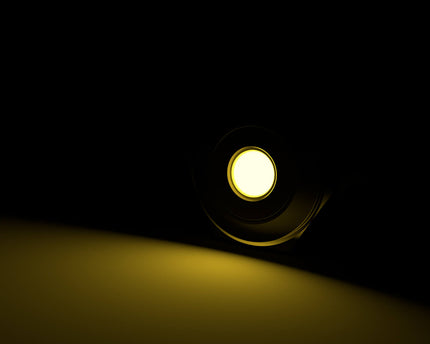

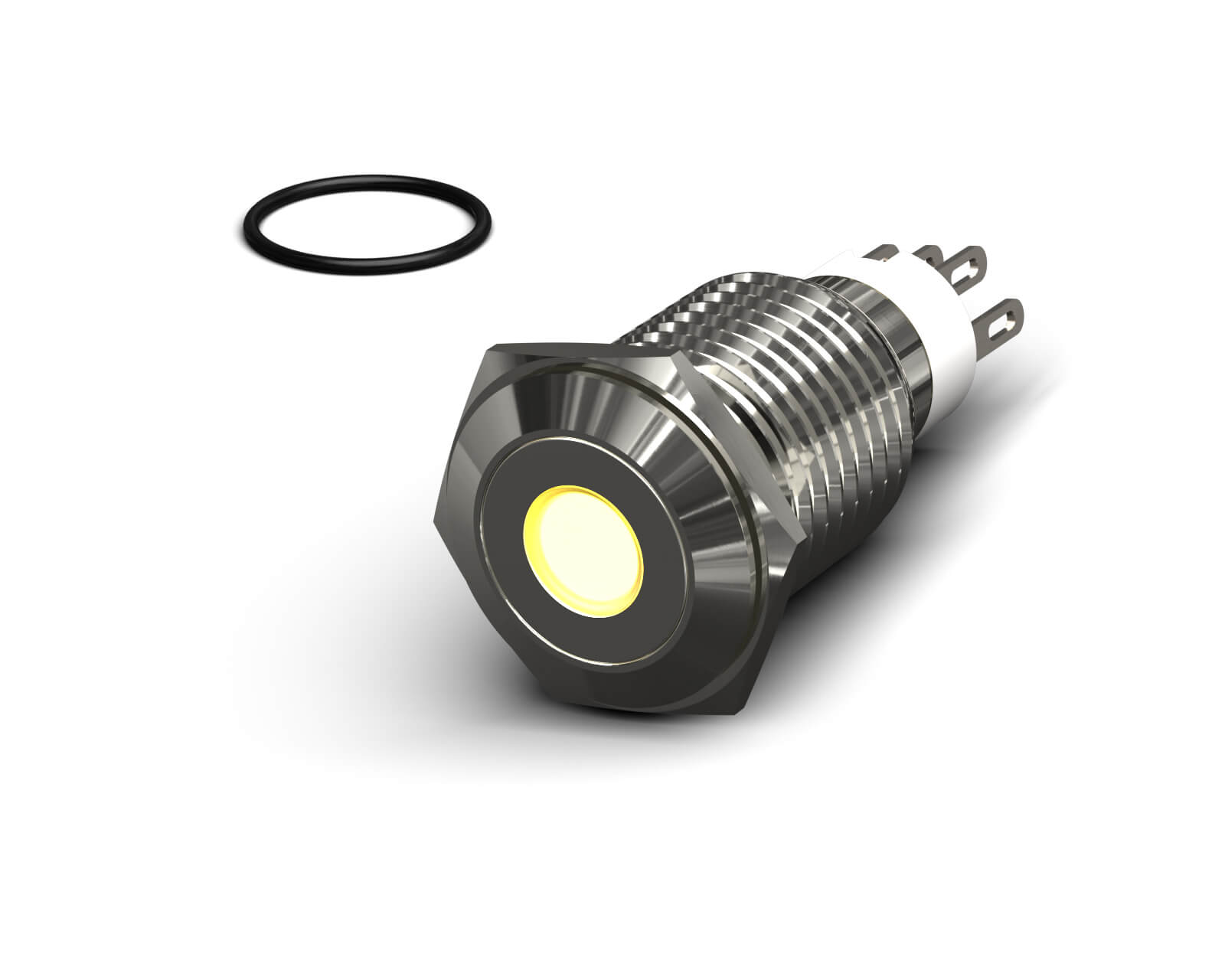

  • Amber LED Dot

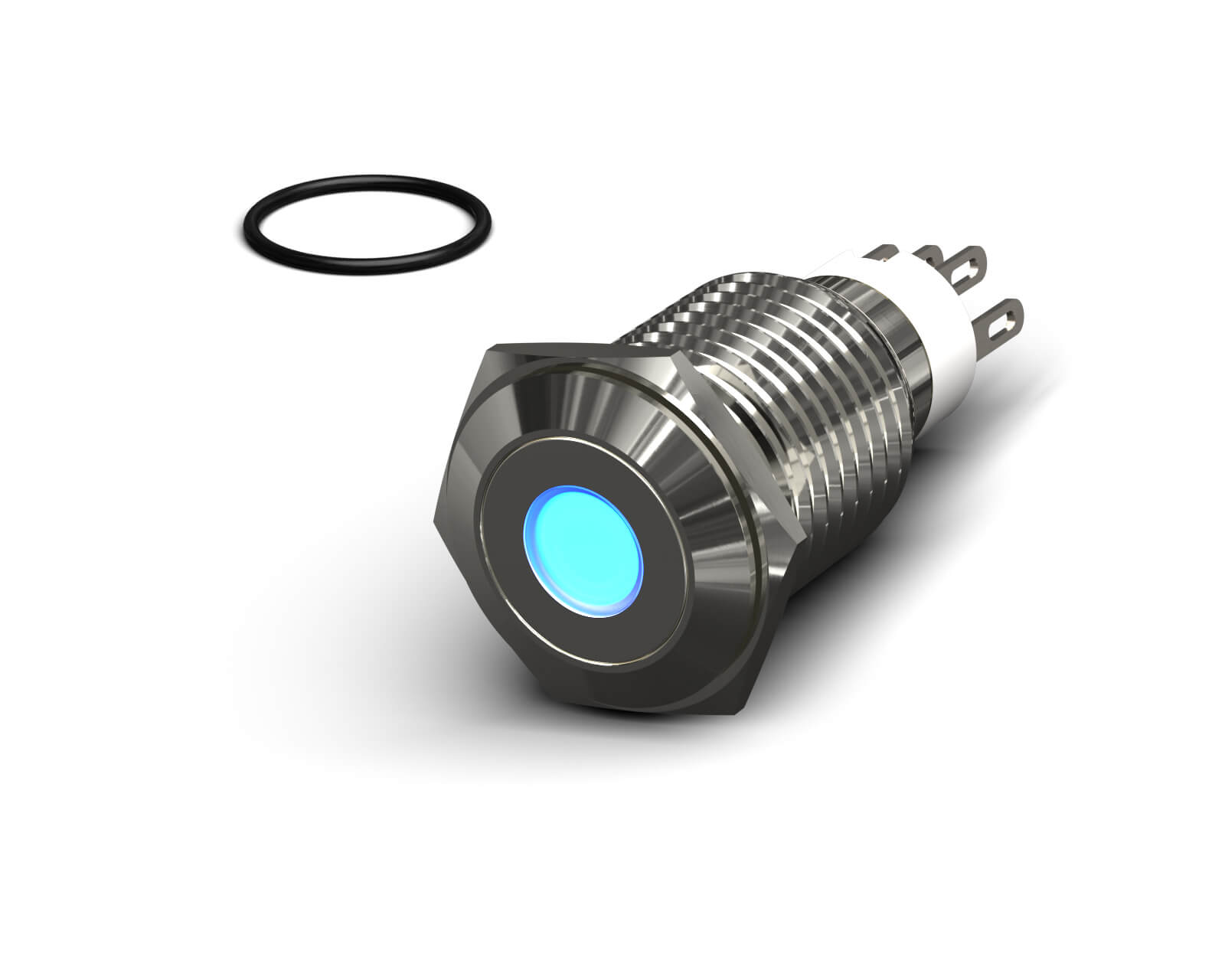

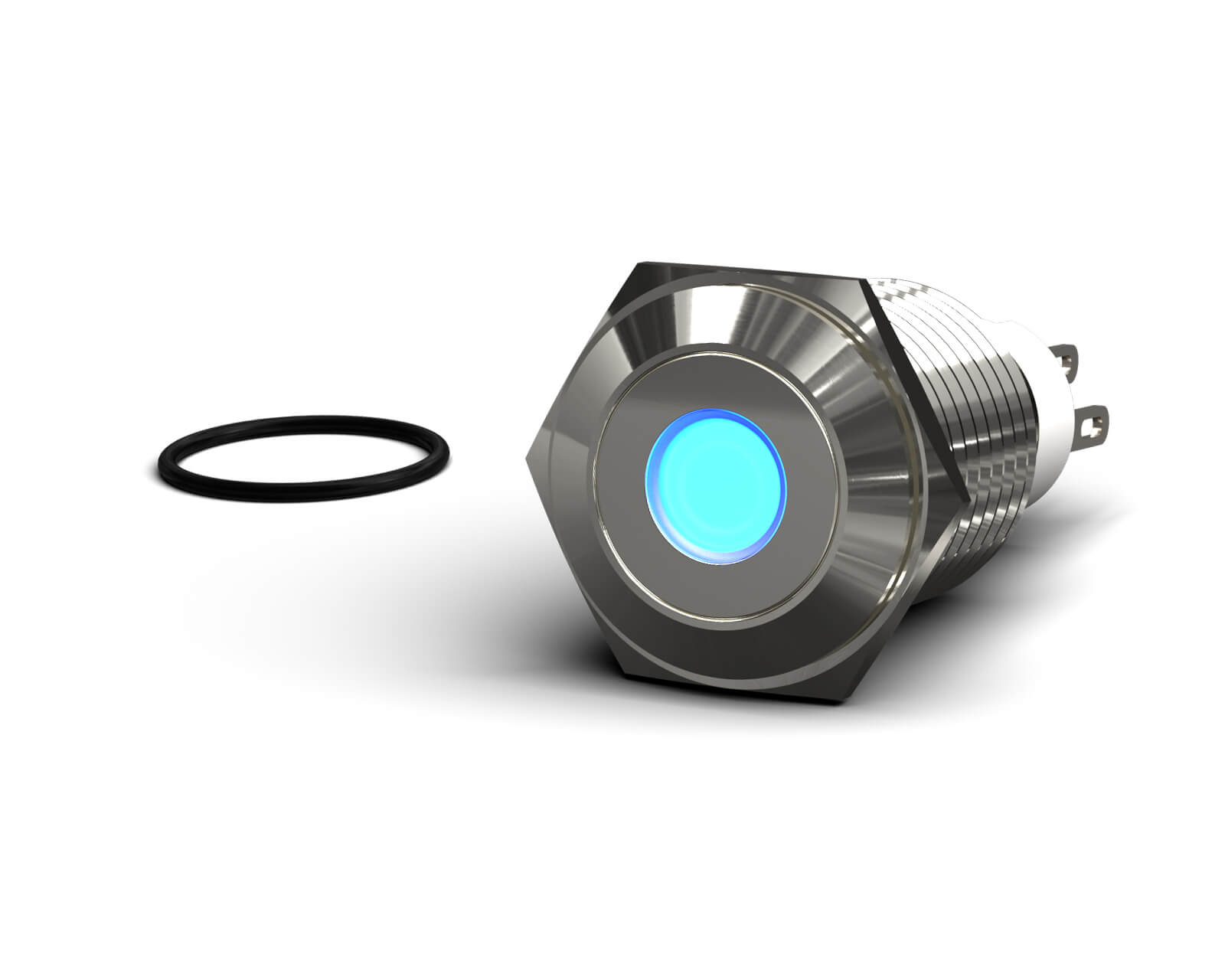

  • Blue LED Dot

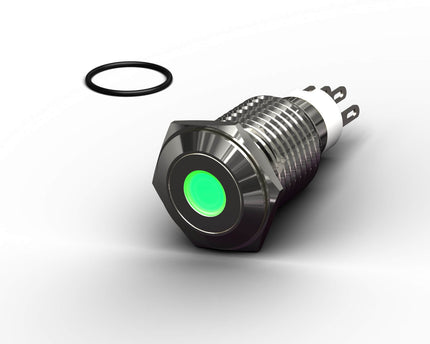

  • Green LED Dot

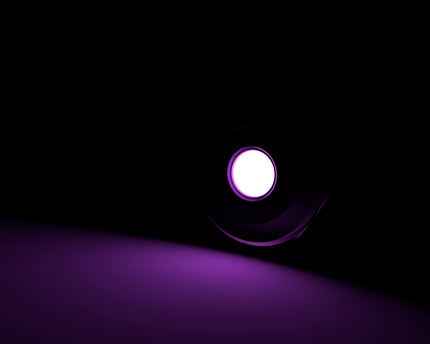

  • Purple LED Dot
  • Red LED Dot

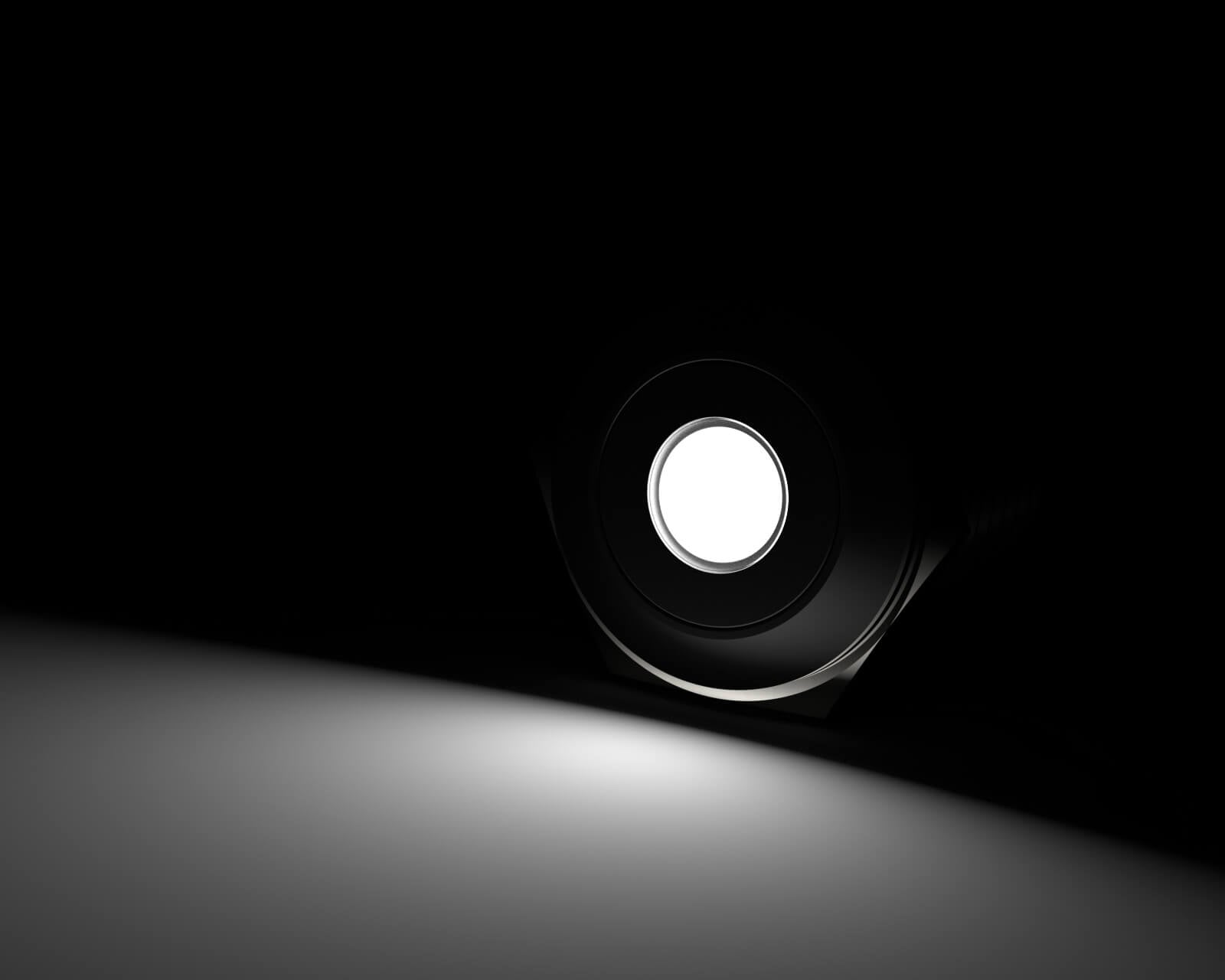

  • White LED Dot
$13.95 $4.99
Out of stock

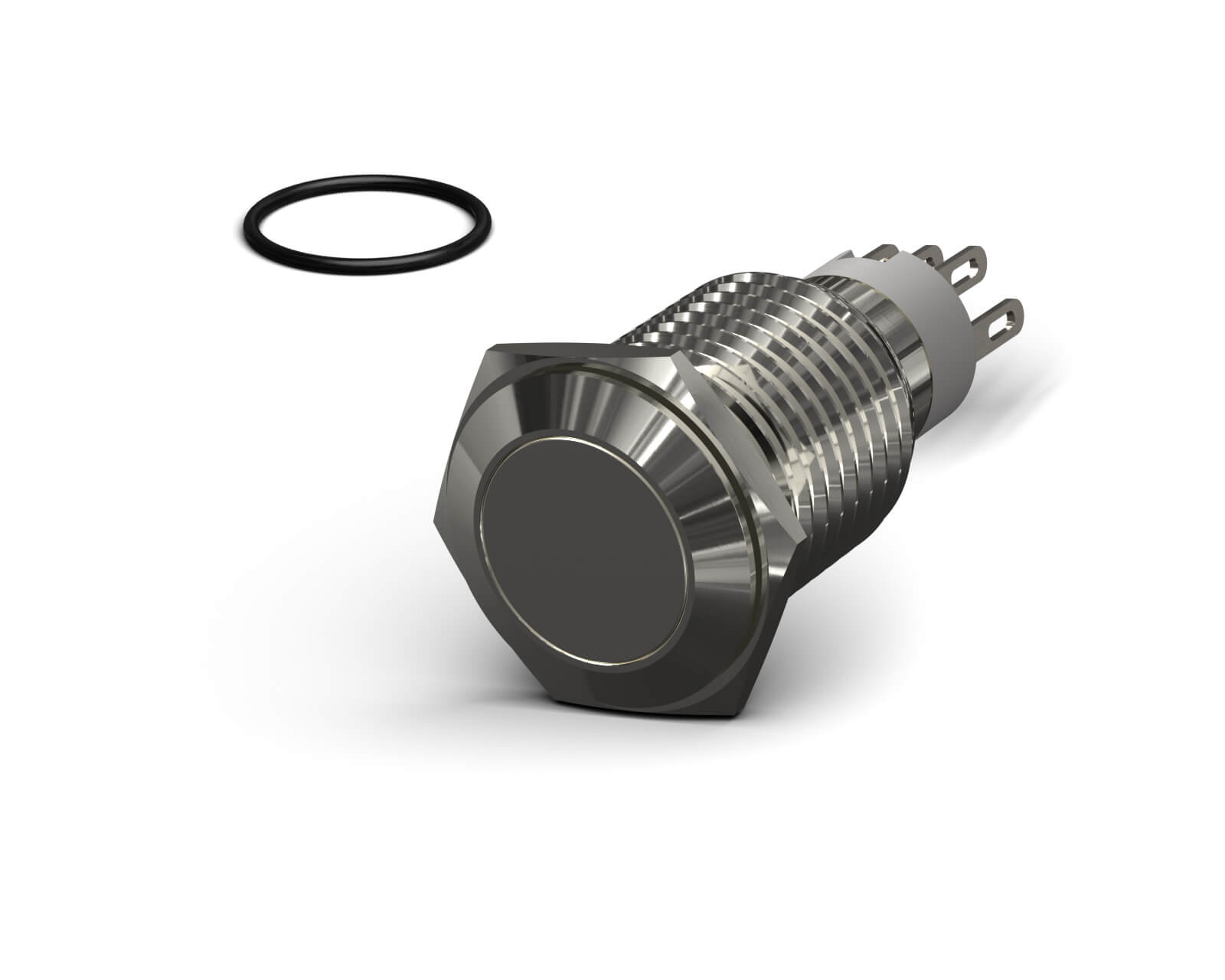

The Silver Aluminum Latching Vandal Resistant Switch is a latching switch that remains latched when pressed. Easy to install and will fit on a regular 5.25 drive cover or wherever you chose.

Features
  • Available in always on Illuminated (Dot and Ring Style LED) and Non-Illuminated

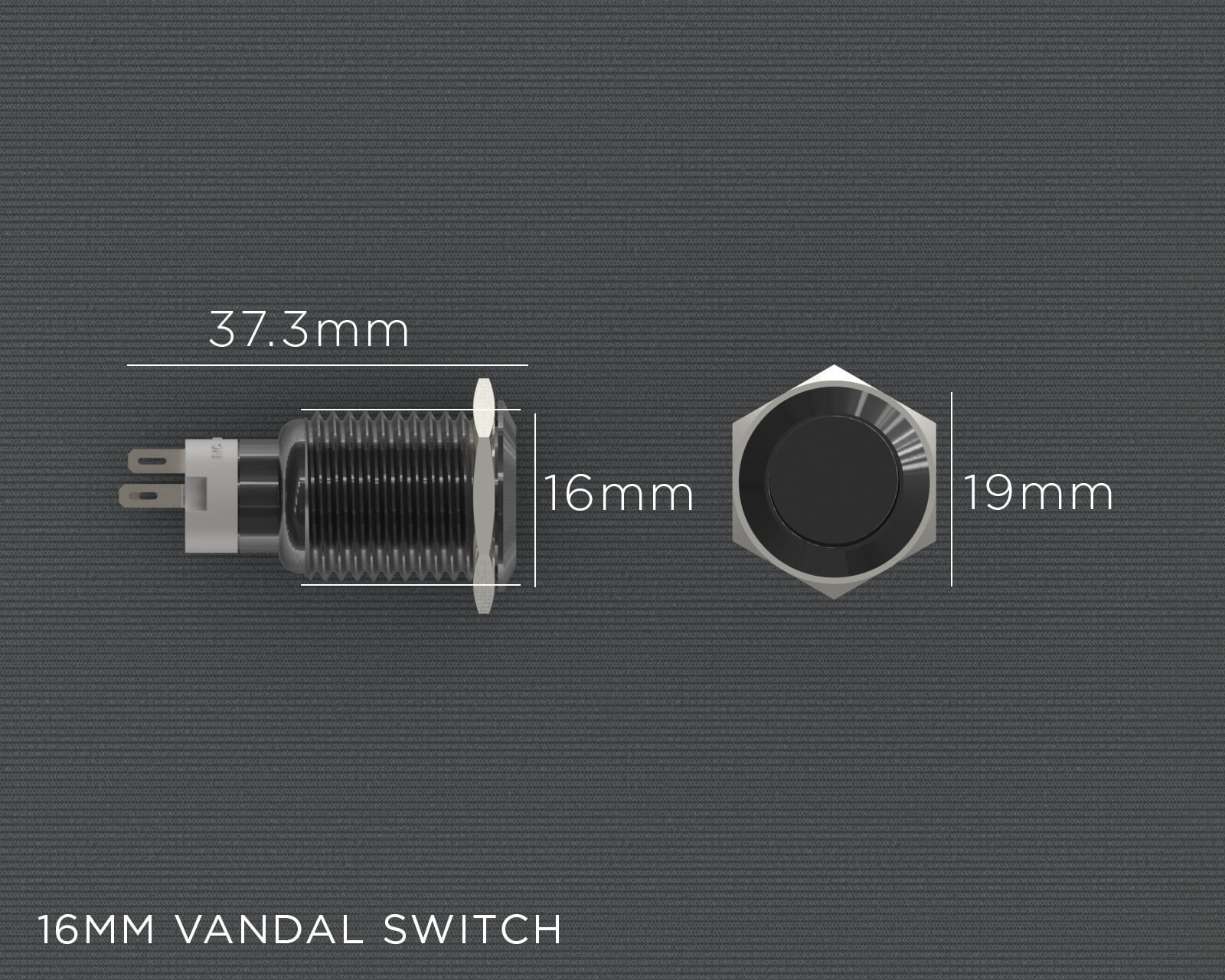

  • Size: 16mm diameter
  • S.P. Push to Make (Latching)
  • Daylight LEDs (in Illuminated version)
  • LED Terminals (in Illuminated version)
  • Front Panel Mounting
  • Switch harnesses with motherboard headers sold separately
Specifications
  • Mount Hole: 15.75mm
  • Switch Structure: No. 3
  • Current: 5 A Maximum
  • 24V DC contact rating (for switch, not LED)
  • LED Voltage: 3.3V , 5V, 12V
  • LED Lifetime: 1,000,000 hours
  • Switch Depression Lifetime: 50,000 cycles
  • Connection Material: Silver
Parts Included

  • 1x Vandal switch with oring and mount nut
  • 1x Wiring diagram
Warnings
*Please be very careful with the power you apply to the LED - Returns will not be accepted of switches that have a burnt out LED. Max Voltage is 12V!

Not responsible for any hardware damage. Use at your own risk.
Installation

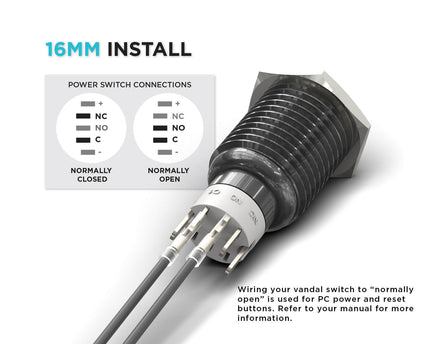

Wiring Diagram
Wiring Diagram
